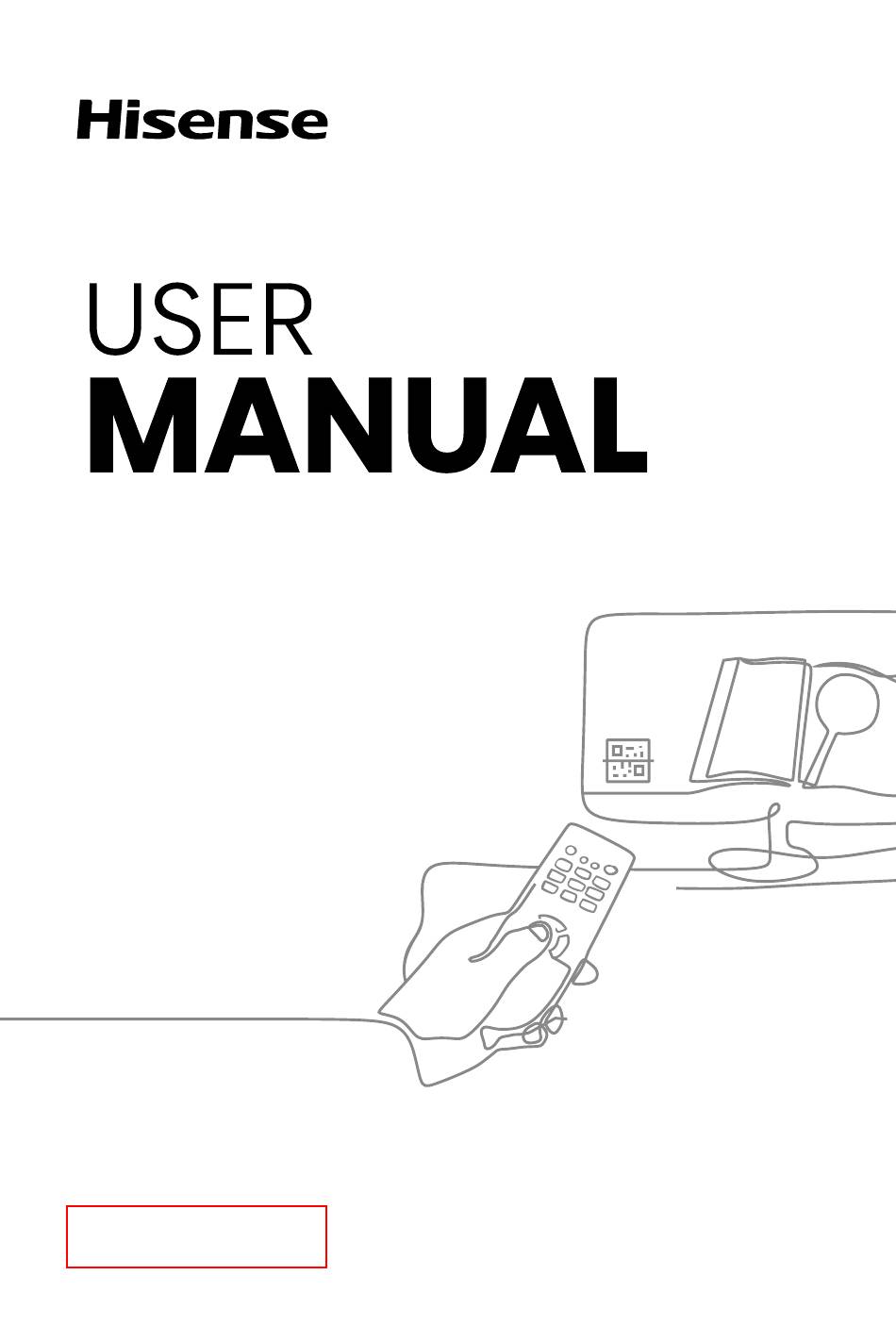

Page 1
Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time. English Deutsch Español Italiano Português Français Nederlands 1406714 ES-A24140P-1 C...
Page 2
Figures and illustrations in this manual are provided for reference only and may differ from actual product appearance. Parts of the software function changes with the system upgrade. Find what you want This TV is equipped with a user manual and embedded E-Manual (Settings > Support > E-Manual).
Page 3
Keep these instructions All rights reserved. Hereby, Hisense Visual Technology Co., Ltd. declares that the radio equipment type is in compliance with Directive 2014/53/EU and Radio Equipment Regulations 2017 of UK. Please enter the model name at the following internet address to read the full text of the declaration of conformity: https://global.hisense.com/support/certificate-download/.
Page 4
The intended use and ambient conditions for this TV This TV is intended for the rendering of video and audio signals, on a table-top or wall- mounted, in a home or office environment. It must not be used in rooms with a high level of humidity or dust concentration.
Page 5
Moving/Transportation when disconnecting. The cable can become damaged and cause a short Before moving this TV, disconnect all cables circuit if pulled on. and move in the vertical position only. Grasp - Do not place the power cable near a the device on the upper and lower edges of high temperature object.
Page 6
- Take care not to touch the ventilation occur on the black areas. Image burn is not openings since they may become hot. covered by the warranty. - Do not apply strong force or impact on - Do not insert foreign objects into the TV through the vents.
Page 7
the fumes from the off-gassing will diminish - The surface of the display panel is eventually. treated and may be easily damaged. Take care not to scratch it with fingernails or other hard objects. Supervision - Also wipe the power plug with a dry cloth - Do not let children play unsupervised at regular intervals.
Page 8
Installing the Stand or Wall Mount Bracket CAUTION Be sure to disconnect the AC power cord before installing a stand or wall mount brackets. The display on your TV is fragile. Make sure the TV screen is not scratched or damaged by hard objects or from pressure.
Page 9
TV Front and Rear 32" 40" 32" 40" Power indicator Power button(Standby/Source) Power cord Item Description Power indicator The light is red in standby mode. Press the button to turn the TV on. Press it again Power button to bring up the control menu and move the focus between different inputs.
Page 10
Connection Terminals Audio Amplifier/Speaker DIGITAL AUDIO OUT ANT OUT DVB-T/T2/C Audio Amplifier/Speaker HDMI HDMI (eARC) DVD/Blu-Ray/AV receiver/ Set-top Box HDMI DVB-S/S2 HDMI NOTE E x c e s s i v e s o u n d p r e s s u r e f r o m earphones and headphones can cause HEADPHONE hearing loss.
Page 11
LAN (Wired setup) Connect your TV to your network by connecting the LAN port on the back of your TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the illustration below. · It is recommended to use a modem or router that supports Dynamic Host Configuration Protocol (DHCP).
Page 12
Remote Control APP or special application The included remote control will vary depending on model, country/region. NOTE: Check information according to the actual remote control in the accessory bag.
Page 13
Buttons of remote control BUTTON DESCRIPTION Power on/ Standby INPUT / Select input sources Number button Select a channel or input numbers GUIDE Display the Electronic Program Guide (DTV mode) CH.LIST Display the Channel List on the screen Red/Green/ Special function buttons Yellow/Blue buttons Press to enter Menu Playpad keys...
Page 14
Installing Batteries in the Remote Control 1. Slide the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.
Page 15
Specifications Features, appearance and specifications are subject to change without notice. Item 32" 40" 28.6 × 16.9 × 3.3 inches 35.4 × 20.3 × 3.3 inches Without Stand (726× 430 × 85 mm) (900 × 515 × 85 mm) Dimension (W ×...
Page 16
Other Information Recycling/Licenses WEEE (Waste Electronic Electric Equipment) European Directive 2012/19/EU This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
