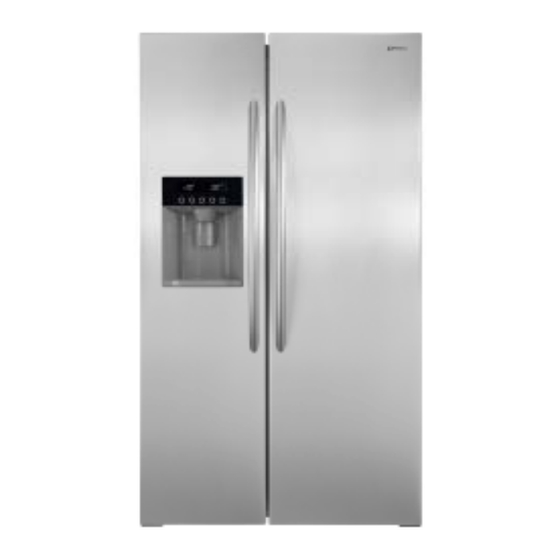

Summary of Contents for Caple CAFF206BK

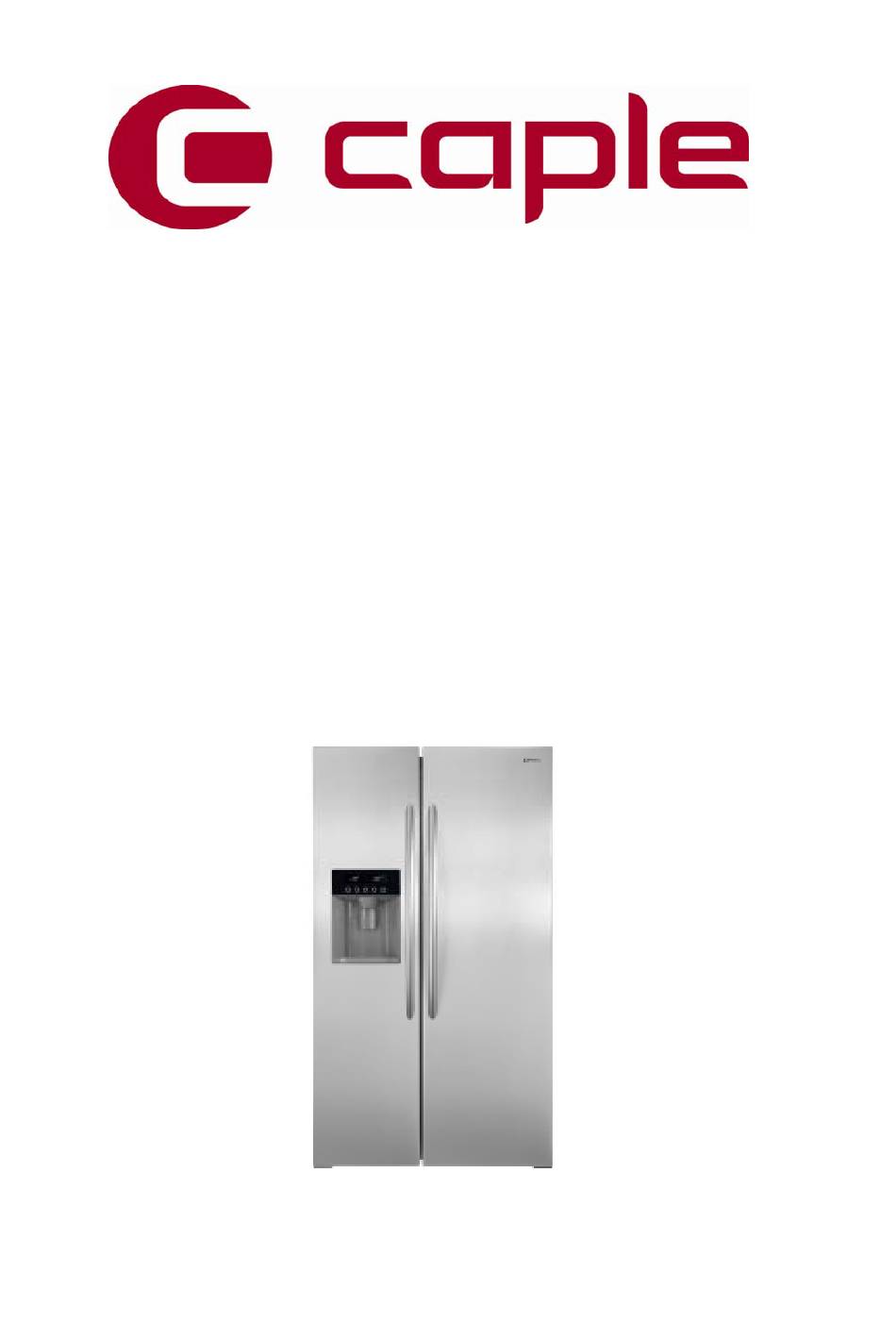

- Page 1 CAFF206BK Caple Side by side Fridge Freezer Caple Side by side Fridge Freezer Technical information...
- Page 3 CAFF206BK - Caple Side by side Fridge Freezer Item Part Code Description GA0200217 Adjust foot GJ9900036 Wheel Axes GS9900035 Wheel GA0200234 Compressor support plate complete DA0100256 Compressor ground wire DA0100256 Compressor DS0200242 Compressor fan blade GS0200239 Condensor fan bracket DA0220134...
- Page 4 CAFF206BK - Caple Side by side Fridge Freezer Item Part Code Description GS0100221 freezer tray 1 GA0101321 change and push the ice motor GA0101324 ice box GS0101139 freezer glass shelf GS0100684 freezer glass shelf GA5100697D1 freezer door gasket GS0101300 water box...
- Page 5 CAFF206BK Caple Side by side Fridge Freezer Caple Side by side Fridge Freezer Service Manual...
- Page 6 Contents Introduction Input and Output controlling 2.1 Input signal 2.1.1 Temperature sensors 2.1.2 Doors lamp switches 2.1.3 Touch Buttons 2.2 Output signal 2.2.1 Loads output DOM contents and rule 3.1 Interface of DOM 3.2 Temperature setting function for F-comp. and R-comp. 3.3 Child lock 3.4 Supper freezing 3.5 Display rule of DOM...
- Page 8 2.1.2. Door lamp switches 2.1.2.1. R-compartment switch 2.1.2.2. F-compartment switch 2.1.3. Touch Buttons 2.1.3.1. Cooler temperature 2.1.3.2. Freezer temperature 2.1.3.3. Supper freezing 2.1.3.4. Child lock 2.2. Output signal 2.2.1. Loads output Parts Controlling mode compressor Run/stop condenser fan Run/stop F-compartment fan 2 shifts speed R-compartment LED lamp Run/stop...
- Page 9 E-valve of choosing ice Run/stop Motor of flap Run/stop Heater of flap Run/stop Heater of dispenser Run/stop Heater of Filling in water Run/stop Micro-switch Run/stop Water valve Run/stop 3. DOM contents and rule 3.1. Interface of DOM "Super freeze icon" "Fridge button"...
- Page 10 "IWD button" "water icon" To switch on the IWD and To display the selected selected cube/ crushed ice/ water of IWD water 3.2. Temperature setting function for F-comp. and R-comp. The setting temperature changing can be carried out by pressing buttons, the corresponding relation between pressing times and setting temperature is as below:(circle according to below the list）...
- Page 11 a、LED lamp of DOM illume when they are operated, and then , the LED lamp will close ,30s after the operation finishes. b、LED lamp illume when doors are opened, and then, they close over 30s； ※ All of LEDs will be ON when buttons of freezer-temp. and supper freezing are pressed at the same time.
- Page 12 Communication between Communication abnormal PCB and DOM 4.1.3. Starting sequence list of Loads Function Starting sequence of loads Remark F-fan ON (high speed) 0.5s 0.5s 0.5s power on damper ON com. ON Defrost sensor Condenser fan ON temperature is more than 45℃ 0.5s DiD heater ON 0.5s...
- Page 13 The ice marker will be reset when the power is switched on first time so that the shelf of ice-marker is located level position. 1.1.2 Filling in water Opening valve of ice marker and filling in water for 5s after the shelf is located level position.
- Page 14 start up screw to take the crushed ice after ice-valve opened. The taking ice will be stopped once it leaves from the switch of dispenser The crushed ice is default mode when power on at first time. 1.2.2 Dispensing ice cube： Choose the ice cube button on DOM, and then, press the switch of dispenser, start up electromagnet and screw to take the ice cube after ice-valve is opened.
