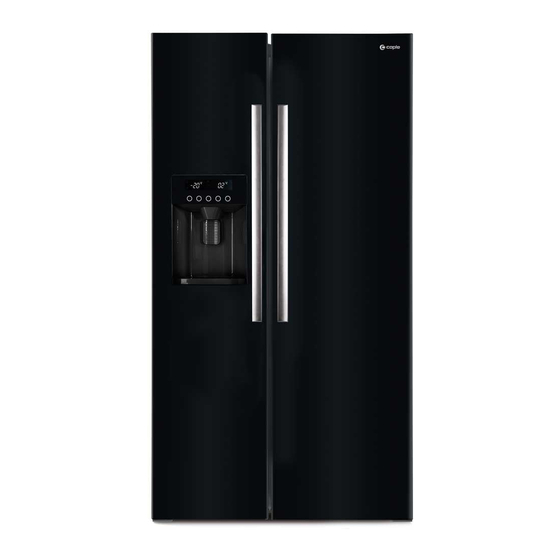

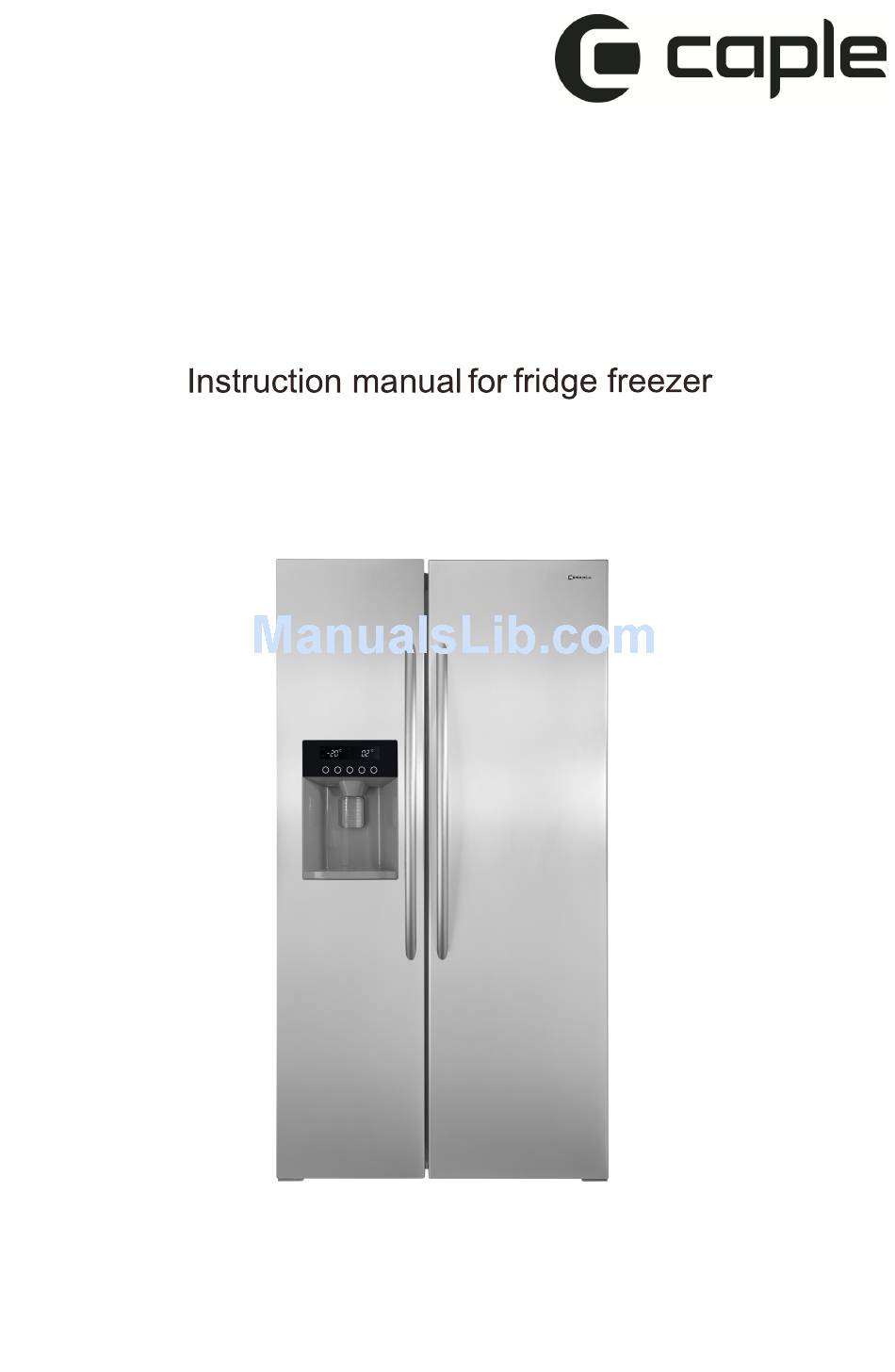

- Page 1 Model code: CAFF207SS / CAFF207BK Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 3: Table Of Contents
Basic safety symbols Connecting the appliance Safety and warning information Features Product components Appliances and installation dimensions Transporting Position Adjusting the feet Water supply connection Operation and control panel Storing food Energy saving tips Care and maintenance Troubleshooting Guarantee information... -
Page 4: Basic Safety Symbols
Safety and warning information Basic safety symbols Connecting the appliance Safety and warning information... - Page 5 Safety and warning information Safety and warning information WARNING When the refrigerator is plugged in, a 1 minute self-diagnostic test will be carried out. During this time do not put hands into the ice box compartment to prevent injury. This appliance is intended to be used in a household, residential environment.
- Page 6 Safety and warning information Safety and warning information cause fire. Do not use a extension cable. Install the appliance in a dry, well ventilated room. The appliance should be placed close to the socket it will be connected too, this allows easy access to cut off the power supply in the case of an accident.
- Page 7 Safety and warning information Safety and warning information The manufacturer cannot be held liable for damage caused by non-compliance with these safety and warning instructions.
-
Page 8: Features
Introduction Features Frost-free green refrigerators R600a refrigerant and foaming agent are hydrocarbons, which does not destroy the ozone layer and won't produce the greenhouse effect. Energy saving and noise reduction This product features contains super freeze, a energy saving system, reduced noise and an optimal refrigeration system. Precise temperature control A microcomputer system allows separate control of each compartment allowing for more precise temperature control. -
Page 9: Product Components
Introduction Product components Please note some features and devices may not be consistent with your refrigerator and the specific structure and configuration may differ slightly to the below drawing. A Freezing compartment B Refrigerator compartment 1 Freezer upper bottle rack 13 Refrigerator lamp 2 Thermal insulation cover 14 Refrigerator glass shelves... -
Page 10: Appliances And Installation Dimensions
Introduction Appliances and installation dimensions Select a good location to place your appliance where it is flat and easy to use.Avoid placing the unit near heat sources (including ovens),direct sunlight or moisture. The figure above is for installation only, it may not represent the actual product. -
Page 11: Transporting
Installation Transporting Carry the fridge holding the bottom and the top of the box. Otherwise,your hands may slip and cause injury. Because the appliance is heavy,carrying it alone is not safe you could hurt yourself or others and cause accidents, we suggest at least two people should handle this product. -
Page 12: Operation And Control Panel
Operation Before Using Remove all packaging, including the foam backing at the bottom of refrigerator and the tape fixing the accessories in the box. Place the refrigerator in the correct final position, and adjust the feet to level the appliance. We suggest cleaning the refrigerator before use. Remove the film: There is a layer of transparent film on the panel of our product, which protects products from being scratched in the process of production and transportation, and you can choose to keep or remove the... -
Page 13: Super Freeze Function
Operation Super freeze function This product has the super freeze function in order to freeze fresh foods quickly and effectively, to help retain freshness. Touch the “Super freeze” button, the icon illuminates, and super freeze mode starts to operate. If a number of items need to be frozen at once, turn on super freeze function in Super freeze advance to make the temperature of the... - Page 14 Operation Ice and water dispenser funtion Touch “IWD” (Ice/Waster Dispenser) button; if the indicator comes on, press and hold the ice discharge lever with the cup, and ice cubes will begin to drop out. Touch “IWD” button; until the indicator comes on, press and hold the ice discharge lever with the glass/cup, and crushed ice will come out.
-
Page 15: Ice And Water Dispenser
Operation Ice and water dispenser Do not take ice cubes with fragile containers, this is to avoid injuries WARNING caused by breakage. Do not touch the ice outlet with your fingers, this is to prevent crushed ice from injuring your hands. When a new refrigerator is used, attention must be paid to the following: When using ice cubes or crushed ice,please take off the thermal insulation... -
Page 16: Open Door Alarm
Operation Refrigerator compartment temperature setting At first connection,the temperature of refrigerator compartment is set at 5℃ . Touch “Fridge” button, and the temperature will cycle in the order of (5℃→4℃→3℃→2℃→0℃→6℃).The last indicated is saved and the appliance starts to work until it reaches the set temperature. Fridge Set temperature Lock/unlock... - Page 17 Operation The refrigerator compartment is mainly used to store foods that are to be preserved for a short time. Refrigerator compartment The refrigerator compartment is suitable for storing dairy, fruits, vegetables, drinks and other foods that will be eaten within a short period of time. We suggest sealing foods before putting them into the refrigerator.
- Page 18 The freezer compartment is used to freeze food, store deeply frozen Operation foods and make ice cubes. It is able to preserve foods for a long time. The freezer compartment is suitable for retaining the freshness of foods for a Freezer compartment long time.
-
Page 19: Storing Food
Operation Storing foods Storing foods guide When storing foods to be frozen, we suggest putting them inside of the freezer compartment, rather than the door rack storage. Do not put bottled or canned foods into the freezer to prevent them from CAUTION cracking or causing damage. -
Page 20: Care And Maintenance
Care and maintenance Defrosting This production has an automatic defrosting function, without the need for manual operation. Cleaning Precautions for internal and external cleaning of refrigerator: Before cleaning, always turn off the power switch, disconnect from the ■ power supply and close the water valve. During cleaning, make sure no water will enter the switch, ■... - Page 21 If the ambient temperature is too low during switch off, the remaining water in the water system may become frozen; in this case, please contact Caple Service to arrange for technicians to resolve the issue. Switching off the ice maker If the ice maker function is not needed for a long time, please switch off the ■...
-
Page 22: General Information
The water filter should be replaced at least every 6 months. A replacement filter can be purchased directly from Caple, either via the website www.caple.co.uk or by contacting sales on 0117 938 1900. Important water filter information... - Page 23 Care and maintenance Troubleshooting Button failure Please check to see if the control panel is locked, if it is locked it will prevent you from using the controls. Unlock the control panel before making any changes to the settings. Delayed start up When the ambient temperature is too high, it will take a long time to start the appliance.
- Page 24 Care and maintenance Troubleshooting Abnormal odours in refrigerator ■ Food with strong odours should be well packed, check for foods which may have gone off; and also clean inside the fridge. Ice maker failing to work normally ■ Check the ice maker switch is turned on; and whether the freezer compartment door is closed or ajar;...
-
Page 25: Troubleshooting
If once you have done this there is still problem, you can contact Caple Service by telephone 0117 938 7420 or by email service@caple.co.uk. -
Page 26: Guarantee Information
Caple undertake that within two years from the... - Page 28 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
