Summary of Contents for Kogan KA8LDZNMIDA

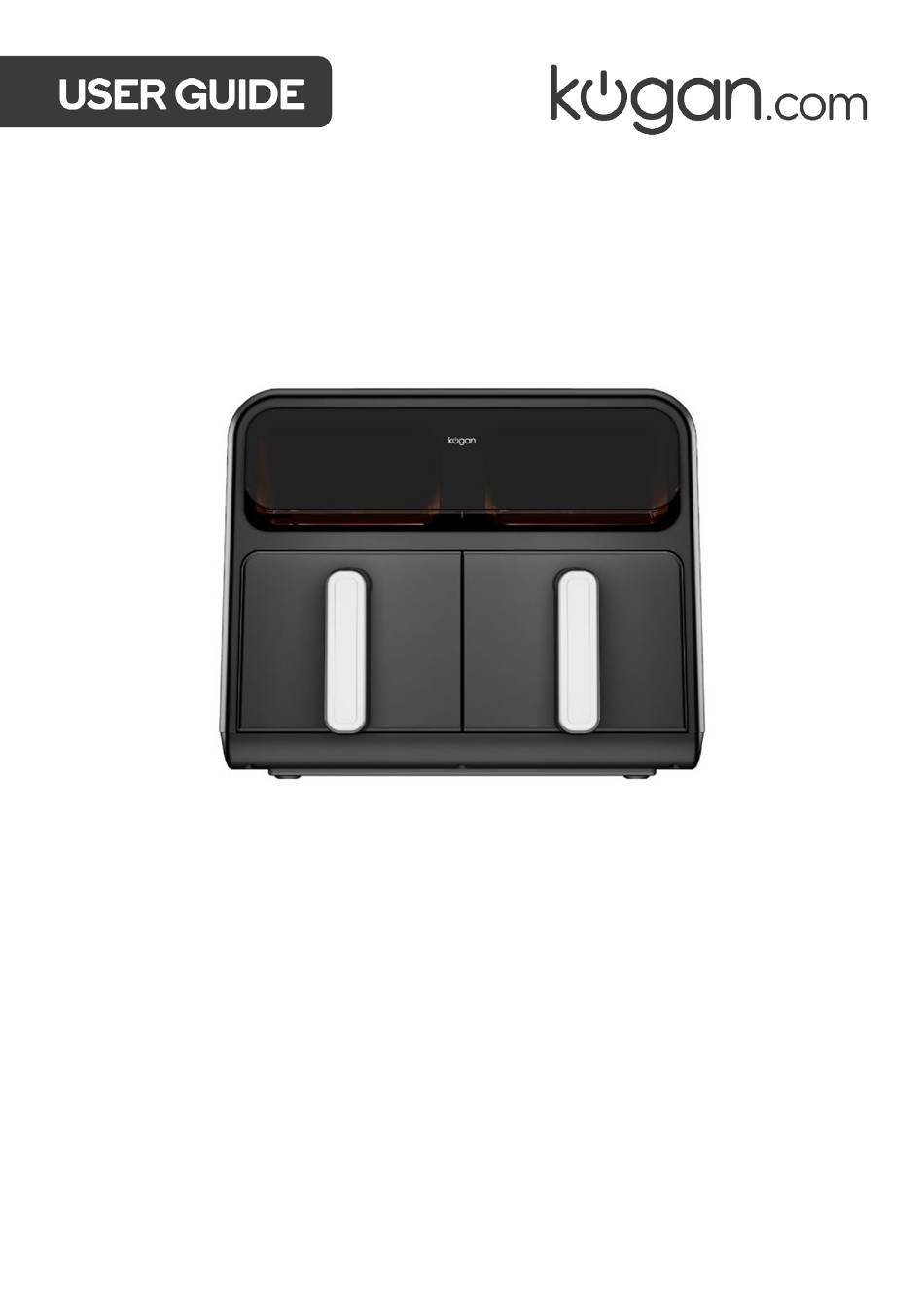

- Page 1 8L XXL DUAL ZONE AIR FRYER KA8LDZNMIDA...
- Page 2 Safety & Warnings Overview Operation Cleaning & Care Specifications Troubleshooting...
- Page 3 • Upon receipt, inspect the packaging and appliance to ensure everything is intact for safe operation. If you notice any damage, contact help.Kogan.com for support. • For your safety, modifications or alterations to the appliance are strictly prohibited.
- Page 4 Safety Instructions • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • Do not immerse any part of the appliance in water or other liquids. • Warning: Avoid spilling any liquids on the connector.
- Page 5 OVERVIEW Rating Label Both the model and serial number can be found on the rating label that is located on the bottom of the air fryer. Front View Control panel Window Left cavity Right cavity...
- Page 6 Rear View Air vent Power cord storage wrap Basket Grill tray Grill tray Right basket Left basket...
- Page 7 OPERATION Name Description Any of the 9 functions can be used in either the left or right Functions basket to cook a wide variety of meals. The temperature and time settings can be adjusted individually for each function. Displays the cook time, set temperature, reminder messages, Display and error messages.
- Page 8 Display Messages Message Description While programming, the display shows the set cook time. During cooking, it displays the remaining cook time. The display indicates the set temperature. Cooking is complete, and the left or right basket can be removed. The left or right basket has been removed. Note: No buttons for that cavity can be used while it is open.
- Page 9 Left Cavity Cooking P lace the grill tray into the basket and evenly distribute the food onto the tray. I nsert the left basket into the left cavity. Plug the air fryer into a suitable electrical outlet. The air fryer will enter standby mode.
- Page 10 I f you need to adjust the temperature or time during cooking, press the 'Temp/Time' button first, then use the arrows to make adjustments. When the cooking cycle is complete, the left display screen will show ‘END', the air fryer will beep 5 times, and all other indicators will turn off.
- Page 11 Right Cavity Cooking Place the grill tray into the basket and evenly distribute the food onto the tray. Insert the right basket into the right cavity. Plug the air fryer into a suitable electrical outlet. The air fryer will enter standby mode. Press the right basket ‘Function Selection' button to choose a function or press the ‘Air Fry' button to select the air fry function.
- Page 12 I f you need to adjust the temperature or time during cooking, press the ‘Temp/Time' button first, then use the arrows to make adjustments. When the cooking cycle is complete, the right display screen will show ‘END', the air fryer will beep 5 times, and all other indicators will turn off.
- Page 13 Dual Zone Cavity Cooking Place the grill tray into the basket and evenly distribute the food onto the tray. Insert the left and right basket into their respective cavities. Plug the air fryer into a suitable electrical outlet. The air fryer will enter standby mode.
- Page 14 During the cooking process, if you want to adjust the temperature or time, first press the ‘Temp/Time' button. This action will cancel the Sync Finish function. Then, use the arrows to adjust the temperature or time. Once set, cooking will continue without interruption.
- Page 15 When the cooking cycle is complete, both display screens will display ‘END,' the unit will beep 5 times, and all other indicators will turn off. Press the ‘Start/Stop' button to enter standby mode. Removing and replacing the basket will also put the unit into standby mode.
- Page 16 Cooking • These cooking options give your meals the rich and crispy flavour of deep frying with little to no oil. • The default time and temperature are a starting point that you can experiment with to get the results you like best. •...
- Page 17 Tips • Always place food evenly on the grill tray for optimal cooking results. Overlapping food may lead to uneven cooking performance. • For increased crispiness, lightly spray or brush small amounts of oil onto the food before cooking. • If the air fryer has been paused for more than 10 minutes, it will return to standby mode and clear all existing settings.
- Page 18 CLEANING & CARE Warning • Without proper cleaning, food and grease splatter may build up around the heating element, potentially causing smoke, fire, and personal injury. • If you see or smell smoke, press ‘Start/Stop,' unplug the appliance, and allow it to cool. Remove food residue or grease with a soft cloth and dish soap.
- Page 19 Part or Accessory Cleaning Method • Clean the air fryer basket with a sponge or cloth and warm water and dish soap. Then rinse well. Ensure that all grease and food debris are removed. Left/Right Basket • DO NOT immerse the basket in water or any other liquid. •...
- Page 20 SPECIFICATIONS Voltage 220-240V~ Frequency 50/60Hz Rated Power 2400W Capacity...
- Page 21 TROUBLESHOOTING This section summarises the most common problems you may encounter while operating the air fryer. If the solution listed does not resolve the issue, contact help.Kogan.com for support. Problem Possible Cause Solution Remove the crisper basket and Crisper basket isn't firmly push it back into the ‘OPEN’...
- Page 22 Press 'Temp/Time' or the ‘Start/Stop’ button to cancel Cannot pause. Sync Finish is activated. the Sync Finish function and perform a single cavity operation. For best cooking results, arrange food in an even layer Food Food not placed in an even without overlapping.
- Page 23 Disconnect the plug from the electrical outlet, wait 30 seconds, then reconnect the power to reset the unit. If the issue persists, contact help.Kogan.com for support. Right cavity upper sensor open circuit protection: The unit has entered fault mode. Disconnect the plug from the electrical outlet, wait 30 seconds, then reconnect the power to reset the unit.
- Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
