C-LITE C-FL-B-FLW-20L Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS
C-FL-B-FLW- (20L,26L,34L,45L) Series
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. Suitable for Wet Locations.
Adspte pour les Endroits Mouiles.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
http://lighting.cree.com/warranty
Document: LPN00872X0004A0_A
Created By: TMT
MOUNTING USING YOKE
1. Attach upper U-bracket to (4) threaded holes on fixture housing
using supplied Allen bolts and Allen wrench. Tighten the bolts. See
Figure 1.
2. Mount fixture in intended location using (2) customer supplied
3/8" (10mm) fasteners and washers appropriate for the mounting
surface. The holes in lower U-bracket can be used as a template
for locating holes on mounting surface. See Figure 1.
3. Aim fixture by loosening (2) center bolts and removing (2) outer
bolts on both sides of U-bracket and rotating fixture to desired tilt
angle. Reinsert bolts into outer holes of U-bracket to lock tilt angle.
Tighten (4) bolts on sides of U-bracket. See Figure 1.
4. Route the fixture's 18AWG power cord to the junction box where
the supply leads can be accessed. The fixture cord has a 0.3125"
(8 mm) outside diameter. A UL listed watertight cord grip suitable
for use on 0.3125" (8 mm) diameter wet location flexible cord shall
be supplied (by others) to install cord onto outdoor junction box.
NOTE: To reduce risk of water entering junction box, teflon tape or
silicone sealant should be used on the threaded portion of the cord
grip. It is recommended that the watertight cord grip be installed
so that the fixture cord exists the junction box toward the ground.
If the junction box does not allow for the cord to exit toward
the ground, the use of an elbow suitable for wet location use is
recommended so that the cord can exit toward the ground.
5. See Color Temperature section to set CCT.
6. Wire as indicated in Electrical Connections section.
NOTE: Factory Settings are 4000K.

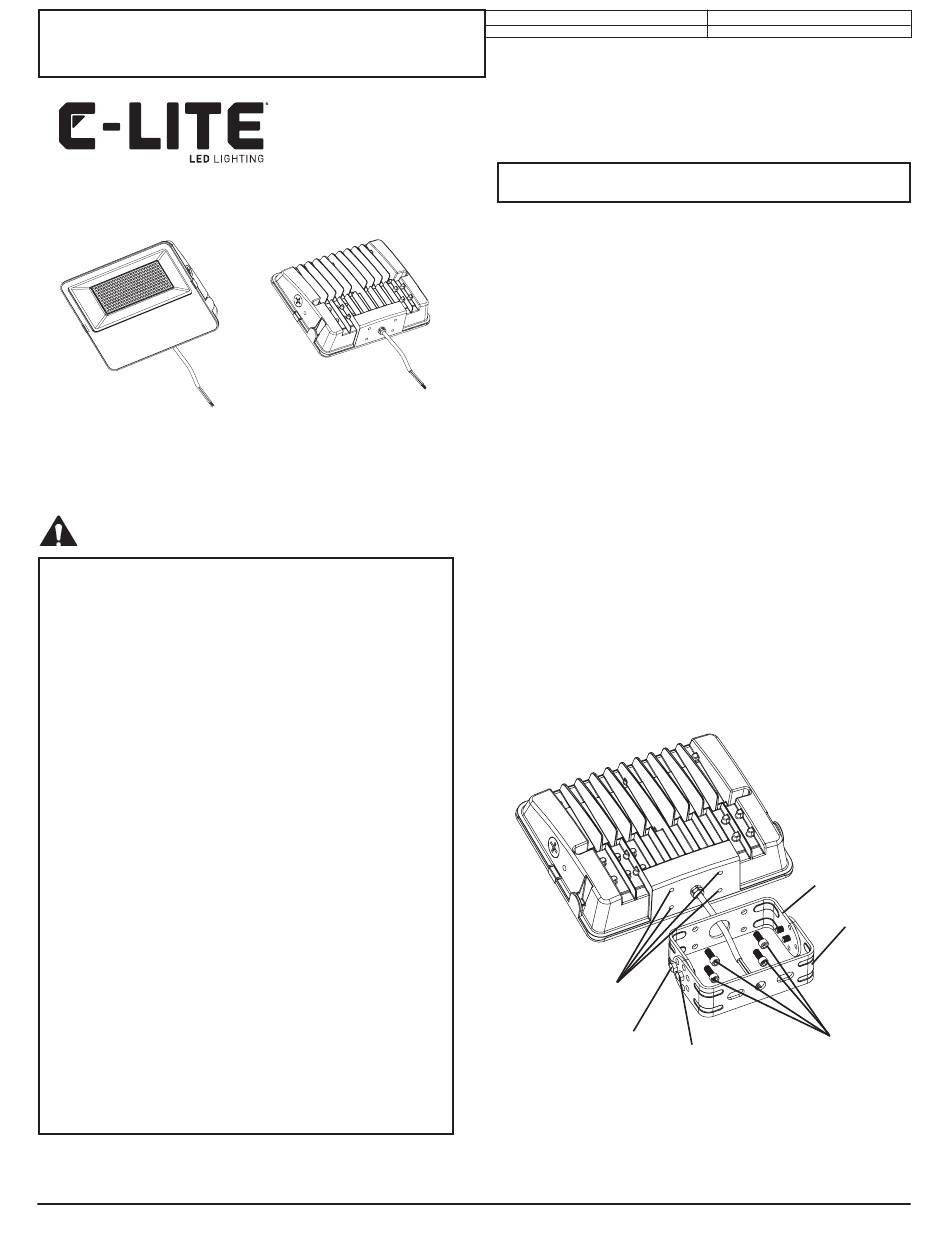

FIGURE 1
Threaded Holes
(1) Outer Bolt on Each Side
of U-Bracket
| 1-800-236-6800
Date 2-5-2024
Upper U-Bracket
Lower U-Bracket
(4) Allen Bolts
(1) Center Bolt on Each
Side of U-Bracket
