Model # FRS80812CRS
FRS80812CRS-O
FRS80812CRS-G
USE AND CARE GUIDE

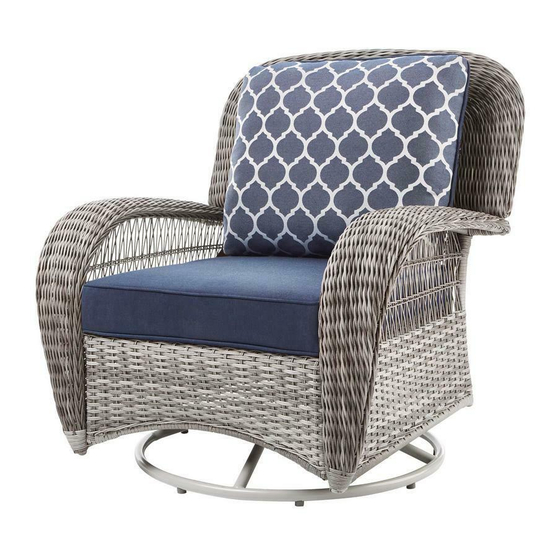

BEACON PARK STEEL WOVEN SWIVEL CHAIR WITH GLIDING FUNCTION
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FRS80812CRS
Summary of Contents for HAMPTON BAY FRS80812CRS
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............Save These Instructions ............2 Package Contents ..............Read All Instructions Before Use ..........2 Assembly ................ -
Page 3: Warranty
Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Right arm Left arm Seat Backrest Glider base Swivel base Back cushion Seat cushion... -
Page 5: Assembly
Assembly CONNECTING THE RIGHT ARM TO THE SEAT Place the right arm (A) on a soft surface. Align the holes on the right panel of the seat (C) to the holes on the front of the right arm (A), and secure by using M6x20 combination bolts (AA). - Page 6 Assembly (continued) ATTACHING THE BACKREST TO THE SEAT AND THE RIGHT ARM Attach the backrest (D) to right arm (A) the and the seat (C) using an M6x20 combination bolt (AA) and M6x50 combination bolts (BB). Do not fully tighten all bolts at this step.
- Page 7 Assembly (continued) CONNECTING THE LEFT ARM TO THE SEAT AND THE BACKREST Connect the left arm (B) to the seat (C) and the backrest (D) using M6x20 combination bolts (AA). Do not fully tighten all bolts at this step. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Assembly (continued) CONNECTING THE ARMS TO THE BACKREST Connect the back of the right and the left arm (A & B) to the backrest (D) by inserting M6x50 combination bolts (BB). Do not fully tighten all bolts at this step.
- Page 9 Assembly (continued) ATTACHING THE GLIDER BASE TO THE ARMS Attach the glider base (E) to the arms (A & B) using M6x18 countersunk bolts (CC) and M6 plastic washers (DD). Do not fully tighten all bolts at this step. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
- Page 10 Assembly (continued) TIGHTENING ALL BOLTS, CONNECTING THE SUPPORT BAR TO THE SWIVEL BASE Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE). Turn the chair right side up, and insert the support bar to the swivel base (F). Support bar...
-
Page 11: Care And Cleaning
Assembly (continued) CHECKING THE CHAIR Place the seat and the back cushion (H & G) to finish the assembly of the chair. Ensure all connections are secure before use. Care and Cleaning For best results, clean the chair with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. Factory ID # FRS80812CRS...
