Bitspower BPM-DCOT-i14 Manual

Cpu delid cap opener tool for intel 14th gen cpu

Advertisement

Quick Links

BPM-DCOT-i14
Bitspower CPU Delid Cap Opener Tool
for Intel 14th Gen CPU

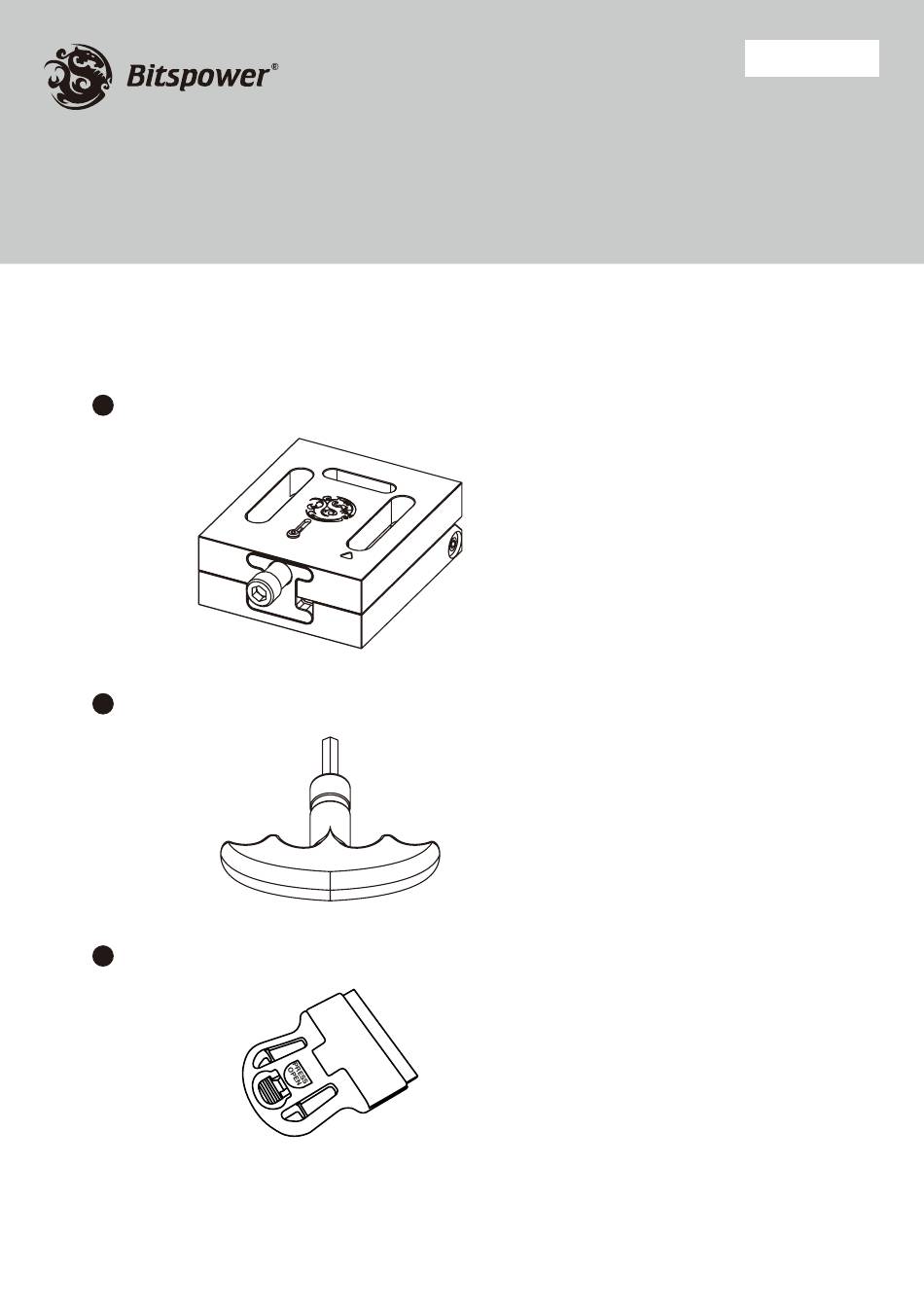

Accessories
1
BPM-DCOT-i14
2
Hex wrench
3
Scraper
1 PCS
1 PCS
1 PCS
EN ver.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the BPM-DCOT-i14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bitspower BPM-DCOT-i14

  • Page 1 EN ver.2 BPM-DCOT-i14 Bitspower CPU Delid Cap Opener Tool for Intel 14th Gen CPU Accessories BPM-DCOT-i14 1 PCS Hex wrench 1 PCS Scraper 1 PCS...
  • Page 2 Assembly steps Installation step 1 Open the top cover. step 2 Place the Intel 14th Gen CPU. Before placing it, please confirm the triangular mark. [ 2 ]...
  • Page 3 Assembly steps step 3 After placing the CPU, put the cover back step 4 Attach the wrench and turn it clockwise to push the slider all the way in. [ 3 ]...
  • Page 4 Assembly steps step 5 After turning the wrench counterclockwise, open the top cover to confirm that the Integrated Heat Spreader (IHS) has separated from the PCB. step 6 Take out the CPU PCB. [ 4 ]...
  • Page 5 Assembly steps step 7 Prepare the scraper. step 8 Use the scraper to clean off any residual glue on the PCB. (Be careful not to scratch the circuits.) [ 5 ]...
  • Page 6 Assembly steps Plastic blade replacement instructions step 1 Press the open button. step 2 Take out the blade. [ 6 ]...
  • Page 7 Assembly steps step 3 Rotate the blade 180 degrees and place it back. step 4 Flip to the other side and press the close button. [ 7 ]...
  • Page 8 As such, if you feel uncomfortable with the steps involved in installing this product, please reach out to our customer support for assistance. We recommend the use of a leak tester, such as our Bitspower Digital Leak Detector, after completing the assembly of your liquid cooling loop to make sure there are no leaks prior to filling up your loop with coolant.
  • Page 9 TC ver.2 BPM-DCOT-i14 Bitspower CPU Delid Cap Opener Tool for Intel 14th Gen CPU 配件 BPM-DCOT-i14 1 組 扳手 1 支 刮板 1 支...
  • Page 10 安裝步驟 安裝說明 步驟 1 打開 BPM-DCOT-i14 上蓋。 步驟 2 如圖示放入 Intel 14 代 CPU,放置前請先 確認對應的三角記號。 [ 10 ]...
  • Page 11 安裝步驟 步驟 3 放置後蓋回 BPM-DCOT-i14 上蓋。 步驟 4 使用扳手,以順時針方向轉動螺絲將滑塊 推到底。 [ 11 ]...
  • Page 12 安裝步驟 步驟 5 逆時針轉回扳手後,打開 BPM-DCOT-i14 上蓋,確認 CPU 上蓋與 PCB 晶圓板分離。 步驟 6 取出 PCB 晶圓板。 [ 12 ]...
  • Page 13 安裝步驟 步驟 7 準備好塑膠刮刀。 步驟 8 用塑膠刮刀將 PCB 晶圓板周圍的殘膠清 除乾淨即完成。( 小心勿刮傷電路 ) [ 13 ]...
  • Page 14 安裝步驟 塑膠刀片更換說明 步驟 1 按下開啟鈕。 步驟 2 取下刀片。 [ 14 ]...
  • Page 15 安裝步驟 步驟 3 刀片轉換方向放回。 步驟 4 翻轉至另一面按下關閉鈕。 [ 15 ]...
  • Page 16 知識。 因此,如果您對安裝的步驟感到不了解, 請聯繫我們的客戶支援以獲得幫助。 我們建議在組裝完您的水路系統後使用測漏計測試,例如我們的 Bitspower 數位測漏計,以 免在注入水冷液後發生洩漏狀況。 禁止在水路有水或水泵運作時使用測漏計。 使用測漏計時,壓力不得超過 0.5 kg/cm 或 7.0 PSI。對您的水冷系統施加過高的壓力可能 會造成您的水冷零件損壞。 Bitspower 不對使用測漏計造成的任何潛在損壞負責。 在安裝任何零件時絕對不要過度擰緊,除非在說明中另有說明,否則過度擰緊會導致您的零 件損壞。 建議使用我們的 Bitspower 透明水冷液來獲得最佳的冷卻效果,同時使用 Bitspower 染料 來達成您想要的顏色。我們建議不要使用純蒸餾水,因為長時間使用可能會導致水垢與藻類 的產生。請避免使用任何其他非推薦的水冷液或液體。使用非推薦的水冷液或液體可能會導 致異常狀況,如硬體塗層剝落、沉積物或殘渣積聚導致管路或 O 圈的損壞和變形及水泵的不 正常運作。Bitspower 不因使用非推薦水冷液而出現的任何問題負責。 絕對不要混用或使用不同種類的金屬製成的零件至您的水冷系統中。絕對不要使用鋁底的水 冷零件與 Bitspower 產品一起使用,會導致您的水冷零件嚴重損壞和漏水,並使您的保固失 效。如果您對使用的零件有任何疑問或問題,請聯繫我們的客戶支援以獲得幫助。 Bitspower 保留更改我們產品設計和解釋的權利,恕不另行通知。產品的實際設計和顏色可 能與我們的網站上顯示的不同。 [ 16 ]...
