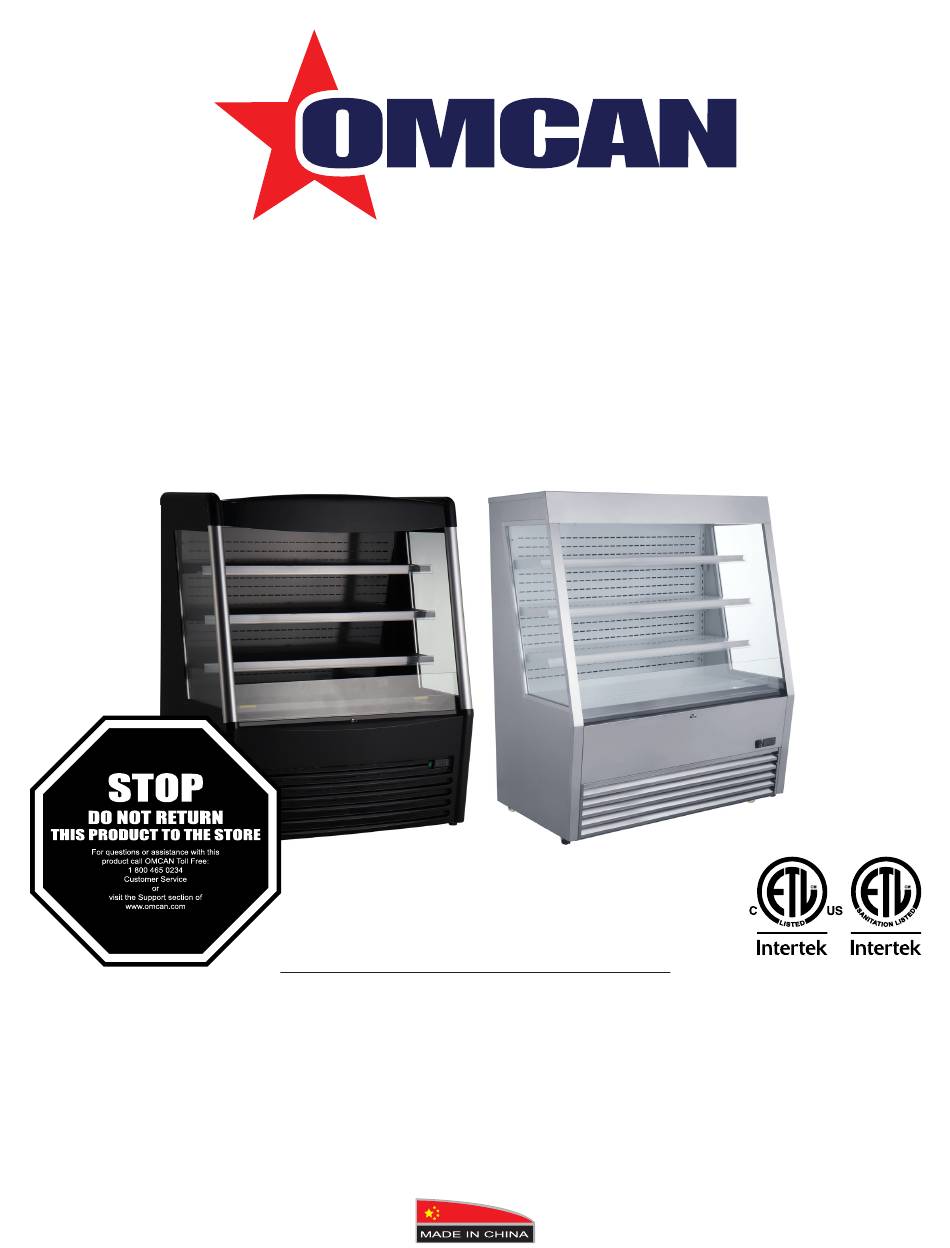

- Page 1 Refrigerated Showcases Models RS-CN-0490, 0490-L Items 48272, 48273 Instruction Manual Revised - 08/19/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
- Page 2 Table of Contents Model RS-CN-0490 / Model RS-CN-0490-L Section Page Disclaimer ----------------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------------- 5 - 8 Technical Specifications ------------------------------------------------------------------------------- 9 Operation ------------------------------------------------------------------------------------------------ 9 - 10 Maintenance ----------------------------------------------------------------------------------------------- 10 Troubleshooting ----------------------------------------------------------------------------------- 10 - 11...
- Page 3 Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE WICKING PAD IS NOT REPLACED EVERY SIX MONTHS, AND IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO THE FLOOR DRAIN.
- Page 4 If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
- Page 5 Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
- Page 6 Safety and Warranty Sufficient space To allow for proper air circulation and increased refrigeration capabilities, the refrigerator must have at least 3 inches of space between wall and unit. Proper ventilation Always place the refrigerator in an area with good ventilation. For first time use, wait at least 2 hours before plugging into wall socket.
- Page 7 Safety and Warranty Protect cables Extra caution should be used when handling cables, as broken or damaged cables can cause sparking and may result in a fire. No water flushing Never flush the refrigerator surface. This can cause leakage, which may result in electrical damage or fire.
- Page 8 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
- Page 9 Technical Specifications Model RS-CN-0490 RS-CN-0490-L Item Number 48272 48273 Type Black Stainless Steel Capacity 426 L / 15.04 cu.ft. Temperature Range 2 - 10°C / 35.6 - 50°F Max Ambient Temp Rating 24°C / 75°F Electrical 110-120V / 60Hz / 1...
- Page 10 Operation FEATURES OF FUNCTION It is a mini-sized and integrated intelligent controller and applicable to the compressor of one HP. • The main functions are: temperature display, temperature control, manual / automatic defrost by burning off, illumination control, value storing, self testing, parameter locking. CONTROLLER OPERATING INSTRUCTIONS 1.
- Page 11 Troubleshooting Non-refrigerating in spite Unit off. Power on. of normal operation. Melting process. Stop melting. Refrigerant leaking. Patch the leak and refill refrigerant. Unit failure. Call for professionals. Weak air from air curtain, Evaporator blocked by frost. Increase melting frequency. and higher cabinet Inside fan damaged.
- Page 12 Parts Breakdown Model RS-CN-0490 48272...
- Page 13 Parts Breakdown Model RS-CN-0490 48272 Item No. Description Position Item No. Description Position Item No. Description Position Front Pillar of Side Glass for 60672 Feet for 48272 AL315 AQ612 Upper Shelf for 48272 48272 AL357 Castor for 48272 61224 Dry Filter for 48272...
- Page 14 Parts Breakdown Model RS-CN-0490 48272 Item No. Description Position Item No. Description Position Item No. Description Position Holder for Condenser Motor for AQ630 Connection Pipe for 48272 AQ632 AC057 Power Cord for 48272 48272 Base Foam of Evaporator for AQ631...
- Page 15 Parts Breakdown Model RS-CN-0490-L 48273...
- Page 16 Parts Breakdown Model RS-CN-0490-L 48273 Item No. Description Position Item No. Description Position Item No. Description Position 60672 Feet for 48273 61224 Dry Filter for 48273 AQ612 Upper Shelf for 48273 Pressing Plate of Dry Filter for AQ635 Castor for 48273...
- Page 17 Parts Breakdown Model RS-CN-0490-L 48273 Item No. Description Position Item No. Description Position Item No. Description Position 71514 Switch (Green) for 48273 60932 Fan Guard for 48273 60590 PVC Trucking for 48273 67648 Temperature Display for 48273 60933 Fan Blade for 48273...
- Page 18 Electrical Schematics Model RS-CN-0490 48272 Model RS-CN-0490-L 48273...
- Page 19 Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
- Page 20 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
