Omcan RE-CN-0050D-BK Instruction Manual

Refrigerated showcases

Hide thumbs

page of 28

/ 28
Bookmarks

Quick Links

Download this manual

Refrigerated Showcases

Models RE-CN-0050D-BK, 0050D-SS, 0071D-BK, 0071D-SS, 0084D-BK,

0084D-SS

Items 50104, 50105, 50106, 50107, 50108, 50109

Instruction Manual

Revised - 11/01/2024

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

Need help?

Do you have a question about the RE-CN-0050D-BK and is the answer not in the manual?

Questions and answers

Summary of Contents for Omcan RE-CN-0050D-BK

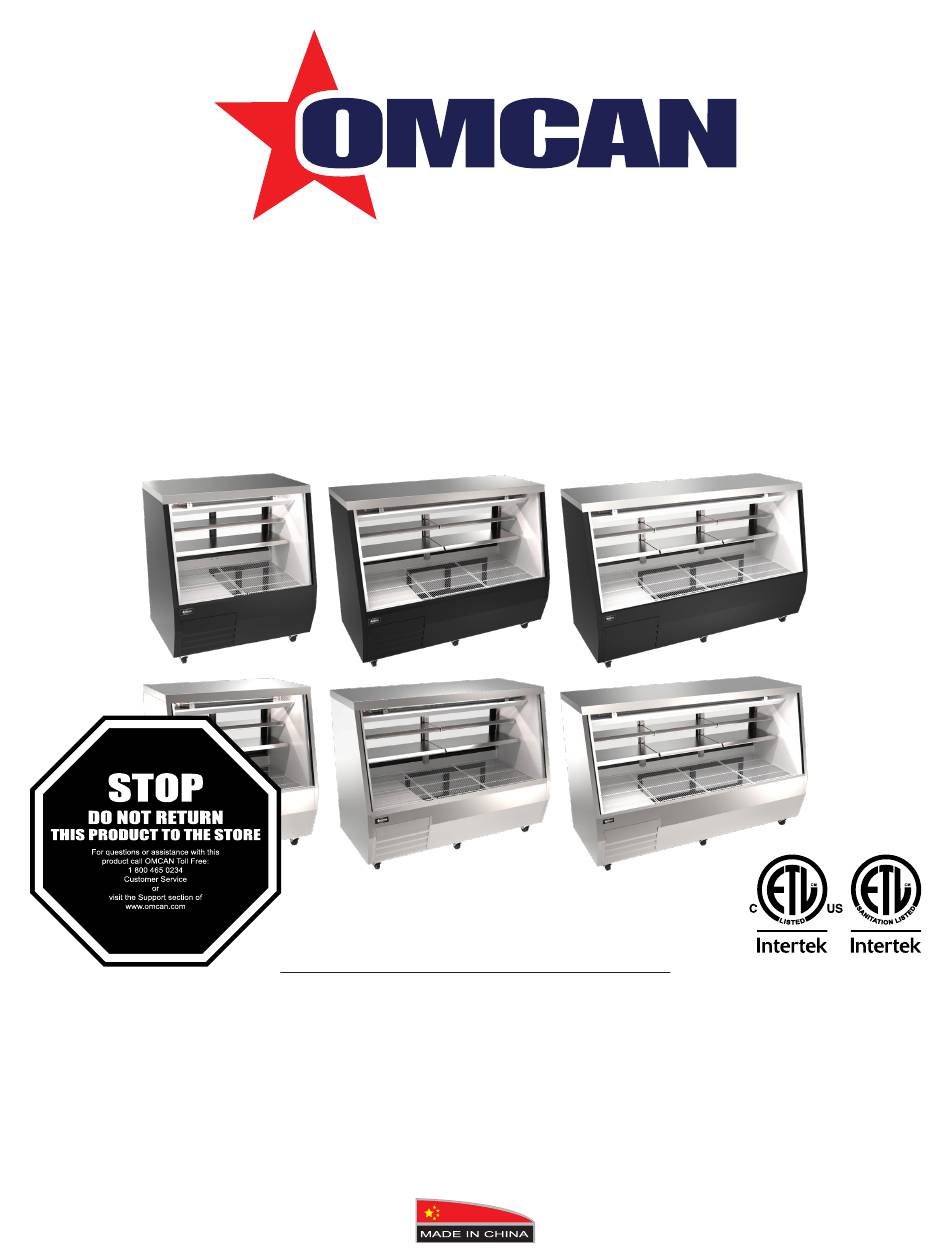

Page 1 Refrigerated Showcases Models RE-CN-0050D-BK, 0050D-SS, 0071D-BK, 0071D-SS, 0084D-BK, 0084D-SS Items 50104, 50105, 50106, 50107, 50108, 50109 Instruction Manual Revised - 11/01/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
Page 2 Table of Contents Model RS-CN-0050D-BK / Model RS-CN-0050D-SS Model RS-CN-0071D-BK / Model RS-CN-0071D-SS Model RS-CN-0084D-BK / Model RS-CN-0084D-SS Section Page Disclaimer ----------------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------------- 5 - 7 Technical Specifications ------------------------------------------------------------------------------- 8 Installation and Operation ---------------------------------------------------------------------- 9 - 10 Maintenance...
Page 3 Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN.
Page 4 If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
Page 5 Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
Page 6 Safety and Warranty Caution: do not connect grounding wire to a water or gas pipe. 5. Do not be hard collided or fiercely vibrated when in transportation; it is not larger than 45°for the inclination of the cabinet. 6. Please refer to the troubleshooting references when the unit is facing some problems. Do no attempt to solve the problem on your own, please refer to certified technician only.
Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
Page 8 Technical Specifications BLACK UNITS Model RS-CN-0050D-BK RS-CN-0071D-BK RS-CN-0084D-BK Item Number 50104 50106 50108 Capacity 583 L / 20.58 cu.ft. 851 L / 30.05 cu.ft. 1017 L / 35.91 cu.ft. Input Power 518 W 816 W 1100 W Defrost Power 320 W 460 W 540 W Foam Agent...
Page 9 Installation and Operation To ensure that your unit works properly from the first day, it must be installed properly. We highly recommend a trained refrigeration mechanic and electrician install your equipment. • Remove the outer packaging, inspect for concealed damage. Immediately file a claim with the freight carrier if there is damage.
Page 10 Installation and Operation RECOMMENDATION Before loading product the unit should be run for 2 to 3 hours. This allows confirmation that the electrical wiring and installation are correct and no shipping damage has occurred. Maintenance Condensers accumulate dirt and dust and require cleaning every 30 days. Dirty condensers result in compressor failure, product loss, and lost sales - which are not covered by warranty.
Page 11 Maintenance STAINLESS STEEL CARE AND CLEANING RECOMMENDED CLEANERS FOR STAINLESS STEEL • Soap, ammonia and detergent medallion applied with a soft cloth or sponge for routine cleaning. • Arcal 20, Loc-O-Nu Eco shine provide a barrier film for fingerprints and smears. •...
Page 12 Troubleshooting Before requesting any service on your unit, please check the following points. Please note that this guide serves only as a reference for solutions to common problems. SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Compressor not running. Fuse blown or circuit breaker Replace fuse or reset circuit tripped.
Page 13 Troubleshooting Cabinet temperature is too warm. Thermostat set too warm. Set thermostat to lower temperature. Blocking air flow. Re-arrange product to allow for proper air flow. Make sure there is at least four inches of clearance from evaporator. Excessive amount of warm Allow adequate time for product to product placed in cabinet.
Page 14 Parts Breakdown Model RS-CN-0050D-BK 50104 Model RS-CN-0050D-SS 50105...
Page 15 Parts Breakdown Model RS-CN-0050D-BK 50104 Item No. Description Position Item No. Description Position Item No. Description Position Hanging Sheet for Evaporator AS656 Front Grill - Black for 50104 AL996 Condenser Fan Cover for 50104 AS680 Baffle for 50104 Condenser/Evaporator Fan Motor AS657 Transformer for 50104 AA764...
Page 16 Parts Breakdown Model RS-CN-0050D-SS 50105 Item No. Description Position Item No. Description Position Item No. Description Position Front Grill - Stainless Steel for Hanging Sheet for Evaporator AS694 AL996 Condenser Fan Cover for 50105 AS680 50105 Baffle for 50105 Condenser/Evaporator Fan Motor AS657 Transformer for 50105 AA764...
Page 17 Parts Breakdown Model RS-CN-0071D-BK 50106 Model RS-CN-0071D-SS 50107...
Page 18 Parts Breakdown Model RS-CN-0071D-BK 50106 Item No. Description Position Item No. Description Position Item No. Description Position Condenser/Evaporator Fan Motor Hanging Sheet for Evaporator AS696 Transformer for 50106 AA764 AS680 Blade for 50106 Baffle for 50106 Limited Block of Installation AS658 AS665 Condenser for 50106...
Page 19 Parts Breakdown Model RS-CN-0071D-SS 50107 Item No. Description Position Item No. Description Position Item No. Description Position Condenser/Evaporator Fan Motor Hanging Sheet for Evaporator AS696 Transformer for 50107 AA764 AS680 Blade for 50107 Baffle for 50107 Limited Block of Installation AS658 AS665 Condenser for 50107...
Page 20 Parts Breakdown Model RS-CN-0084D-BK 50108 Model RS-CN-0084D-SS 50109...
Page 21 Parts Breakdown Model RS-CN-0084D-BK 50108 Item No. Description Position Item No. Description Position Item No. Description Position AS696 Transformer for 50108 AA362 LED Light Switch for 50108 AS729 Baffle for Evaporator for 50108 AI968 Filter for 50108 AA124 Power Switch for 50108 AG546 Evaporator for 50108 Waterproof Cover of Thermostat...
Page 22 Parts Breakdown Model RS-CN-0084D-SS 50109 Item No. Description Position Item No. Description Position Item No. Description Position AS696 Transformer for 50109 AA362 LED Light Switch for 50109 AS729 Baffle for Evaporator for 50109 AI968 Filter for 50109 AA124 Power Switch for 50109 AG546 Evaporator for 50109 Waterproof Cover of Thermostat...
Page 23 Electrical Schematics Model RS-CN-0050D-BK 50104 Model RS-CN-0050D-SS 50105...
Page 24 Electrical Schematics Model RS-CN-0071D-BK 50106 Model RS-CN-0071D-SS 50107...
Page 25 Electrical Schematics Model RS-CN-0084D-BK 50108 Model RS-CN-0084D-SS 50109...
Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
Page 27 Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
Page 28 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
