Summary of Contents for Omcan RS-CN-0900

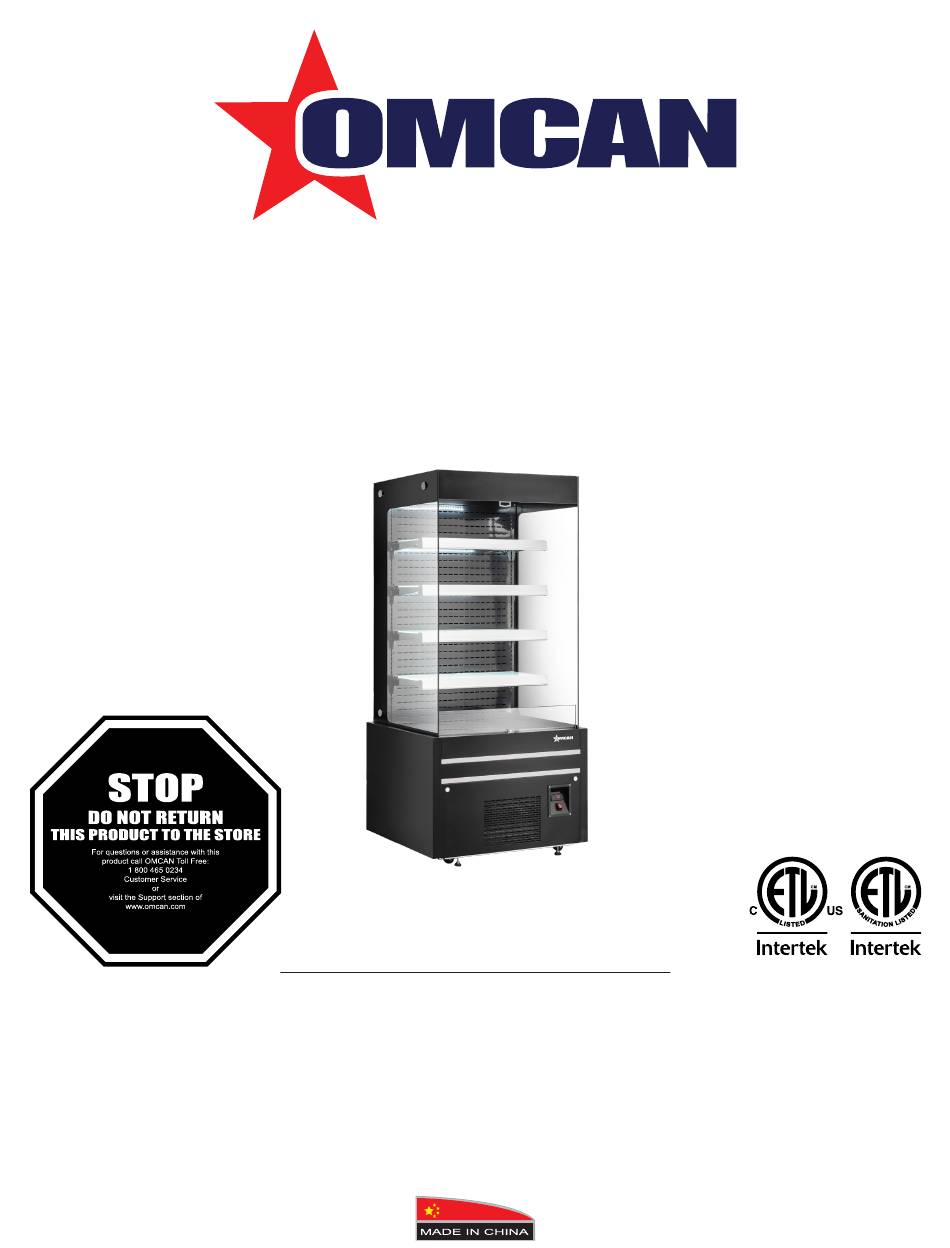

- Page 1 Refrigerated Showcases Models RS-CN-0900, 1200, 1500, 1800 Items 48377, 48378, 48379, 48380 Instruction Manual Revised - 08/27/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
- Page 2 Table of Contents Model RE-CN-0900 / Model RE-CN-1200 Model RE-CN-1500 / Model RE-CN-1800 Section Page Disclaimer ----------------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------------- 5 - 7 Technical Specifications ------------------------------------------------------------------------------- 8 Operation ------------------------------------------------------------------------------------------------ 9 - 10 Maintenance ----------------------------------------------------------------------------------------------- 10 Troubleshooting...
- Page 3 Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN.
- Page 4 If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
- Page 5 Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
- Page 6 Safety and Warranty SUFFICIENT SPACE The distance from both sides and back of the refrigerator to the walls or other obstructions must not be less than 10cm. The refrigeration capability might be reduced if the surrounding space is too small to circulate air. GOOD VENTILATION Always place the refrigerator in a place with good ventilation.
- Page 7 2 YEAR PARTS AND LABOUR 5 YEAR COMPRESSOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
- Page 8 Technical Specifications Model RE-CN-0900 RE-CN-1200 RE-CN-1500 RE-CN-1800 Item Number 48377 48378 48379 48380 Power 1320 W 1600 W 1880 W 2050 W Capacity 560 L / 19.77 cu.ft. 760 L / 26.83 cu.ft. 960 L / 33.9 cu.ft. 1160 L / 40.96 cu.ft. Exterior Material Glass/Painted Metal Interior Material...
- Page 9 Operation USE AND CAUTION Before Use Plug the refrigerator in a 110-120V exclusive socket. Once the refrigerator is running, put a hand on the air suction to confirm it is sufficiently cold. Then you may put food inside the cold box. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 10 4. Frequently observe the operation of the product. In case of any abnormal noise, smell or smog, cut the power supply immediately and call Omcan for help. Do not restart the product before the problem is fixed. 5. Omcan will not be responsible for any accident or damage incurred by failure to follow these instructions.
- Page 11 Defrost is on. Stop defrosting. The refrigerant is leaking. Patch the leak and refill refrigerant. Unit failure. Call Omcan. Weak air from air curtain, and Evaporator blocked by frost. Increase melting frequency. higher cabinet temperature. Inside fan damaged. Replace the fan.
- Page 12 Troubleshooting TROUBLESHOOTING OF DIGITAL CONTROL Fault Code Causes Solution Open circuit or short circuit of Check if the plug on mainboard is loosened or not, or temperature probe. change temperature probe. Open circuit or short circuit of Check if the plug on mainboard is loosened or not, or defrosting probe.
- Page 13 Parts Breakdown Model RS-CN-0900 48377...
- Page 14 Parts Breakdown Model RS-CN-0900 48377 Item No. Description Position Item No. Description Position Item No. Description Position Evaporator Left Wind Deflector AR331 Power Line for 48377 AR348 AR369 Base Upper Cover for 48377 for 48377 Evaporator Left Fixed Plate for...
- Page 15 Parts Breakdown Model RS-CN-1200 48378...
- Page 16 Parts Breakdown Model RS-CN-1200 48378 Item No. Description Position Item No. Description Position Item No. Description Position Evaporator Left Fixed Plate for AR331 Power Line for 48378 AR349 AR410 Base Upper Cover for 48378 48378 AR392 Base Plate for 48378 AR397 Evaporator for 48378 AR411...
- Page 17 Parts Breakdown Model RS-CN-1500 48379...
- Page 18 Parts Breakdown Model RS-CN-1500 48379 Item No. Description Position Item No. Description Position Item No. Description Position Evaporator Left Fixed Plate for AR422 Power Line for 48379 AR349 AR443 Base Upper Cover for 48379 48379 AR423 Base Plate for 48379 AR350 Evaporator for 48379 AR444...
- Page 19 Parts Breakdown Model RS-CN-1800 48380...
- Page 20 Parts Breakdown Model RS-CN-1800 48380 Item No. Description Position Item No. Description Position Item No. Description Position Evaporator Left Fixed Plate for AR422 Power Line for 48380 AR349 AR468 Base Upper Cover for 48380 48380 AR458 Base Plate for 48380 AR397 Evaporator for 48380 AR469...
- Page 21 Electrical Schematics Model RS-CN-0900 48377 Model RS-CN-1200 48378...
- Page 22 Electrical Schematics Model RS-CN-1500 48379 Model RS-CN-1800 48380...
- Page 23 Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
- Page 24 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
