Omcan RS-CN-0145 Instruction Manual

Refrigerated glass door merchandisers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

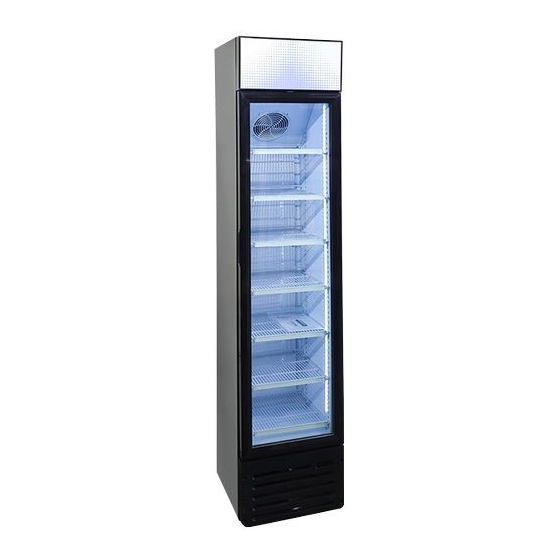

Refrigerated Glass Door Merchandisers
Models RS-CN-0145, 0021, 0021-B, 0040-B, 0052, 0052-B, 0080-B
Items 47240, 44527, 44575, 44528, 44496, 44529, 44530
Instruction Manual
Revised - 11/18/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-CN-0145 and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan RS-CN-0145

Summary of Contents for Omcan RS-CN-0145

  • Page 1 Refrigerated Glass Door Merchandisers Models RS-CN-0145, 0021, 0021-B, 0040-B, 0052, 0052-B, 0080-B Items 47240, 44527, 44575, 44528, 44496, 44529, 44530 Instruction Manual Revised - 11/18/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model RS-CN-0145 / Model RS-CN-0021 / Model RS-CN-0021-B Model RS-CN-0040-B / Model RS-CN-0052 / Model RS-CN-0052-B Model RS-CN-0080-B Section Page Disclaimer ---------------------------------------------------------------------------------------------------------- 3 General Information ----------------------------------------------------------------------------------------- 4 - 5 Safety and Warranty ---------------------------------------------------------------------------------------- 5 - 6 Technical Specifications...

  • Page 3: Disclaimer

    Disclaimer OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR...

  • Page 4: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 5: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 6 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

  • Page 7: Technical Specifications

    Technical Specifications Model RS-CN-0145 RS-CN-0021 RS-CN-0021-B RS-CN-0040-B Capacity 145 L / 5.12 cu.ft. 21 L / 0.74 cu.ft 40 L / 1.4 cu.ft Temperature Range 0 - 10°C / 32 - 50°F Max Ambient Temp 32°C / 90°F Rating Refrigerant...

  • Page 8: Installation

    Technical Specifications Model RS-CN-0052 RS-CN-0052-B RS-CN-0080-B Capacity 52 L / 1.83 cu.ft. 80 L / 2.82 cu.ft. Temperature Range 0 - 10°C / 32 - 50°F Max Ambient Temp 32°C / 90°F Rating Refrigerant R600a Defrosting Power 80 W 76 W 92 W Electrical 110V / 60Hz...

  • Page 9: Operation

    Installation BEFORE USE 1. Remove the carton and packing foam (including the bottom foam) before using. 2. Clean the unit before using. 3. Adjust the foot to make the unit steady according to the ground condition to lower the shock and noise. 4.

  • Page 10: Maintenance

    Maintenance DISCONNECT THE POWER SUPPLY BEFORE MAINTENANCE FOR THE MACHINE! 1. Keep the door gasket clean, remove it from the door and wash it. Dry and seal it as before. Putting some talcum powder on the magnetic surface would prolong its service life. 2.
  • Page 11 Troubleshooting Too high noise. The unit is not level. Adjust the adjustable legs. The fastener of the unit is loose. Fasten the loose fastener. Pipes are touching the Careful separate the touched compressor. pipes. Light is not on. The light is burned out. Replace the light.

  • Page 12: Parts Breakdown

    Parts Breakdown Model RS-CN-0145 47240...
  • Page 13 Parts Breakdown Model RS-CN-0021 44527 Model RS-CN-0052 44496...
  • Page 14 Parts Breakdown Model RS-CN-0021-B 44575 Model RS-CN-0040-B 44528 Model RS-CN-0052-B 44529 Model RS-CN-0080-B 44530...
  • Page 15 Parts Breakdown Model RS-CN-0145 47240 Item No. Description Position Item No. Description Position Item No. Description Position AH198 Top Board for 47240 AH208 Strainer for 47240 AH218 Lightbox Front Board for 47240 AH199 Temperature Control Knob for 47240 AH209 Compressor Front Board for 47240...
  • Page 16 Parts Breakdown Model RS-CN-0021-B 44575 Item No. Description Position Item No. Description Position Item No. Description Position 69121 Power Line for 44575 69128 Filter Holder for 44575 69135 Lamp for 44575 69122 Wire Clip for 44575 69129 Dry Filter for 44575 69136 Shelf for 44575 69123...
  • Page 17 Parts Breakdown Model RS-CN-0080-B 44530 Item No. Description Position Item No. Description Position Item No. Description Position 69179 Power Line for 44530 69186 Filter Holder for 44530 69192 Lamp for 44530 69180 Wire Clip for 44530 69187 Dry Filter for 44530 69193 Shelf for 44530 69181...

  • Page 18: Electrical Schematics

    Electrical Schematics Model RS-CN-0145 47240 Model RS-CN-0021 44527...
  • Page 19 Electrical Schematics Model RS-CN-0021-B 44575 Model RS-CN-0040-B 44528 Model RS-CN-0052-B 44529 Model RS-CN-0080-B 44530...
  • Page 20 Electrical Schematics Model RS-CN-0052 44496...

  • Page 21: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 23: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.

This manual is also suitable for:

Rs-cn-0021Rs-cn-0021-bRs-cn-0040-bRs-cn-0052Rs-cn-0052-bRs-cn-0080-b ... Show all

Table of Contents
