The instruction manual is an integral part of the product
Pellet stoves
P945 C
PRODUCT INFORMATION,
INSTALLATION AND MAINTENANCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the P945 C and is the answer not in the manual?

Questions and answers

Related Manuals for Piazzetta P945 C

Summary of Contents for Piazzetta P945 C

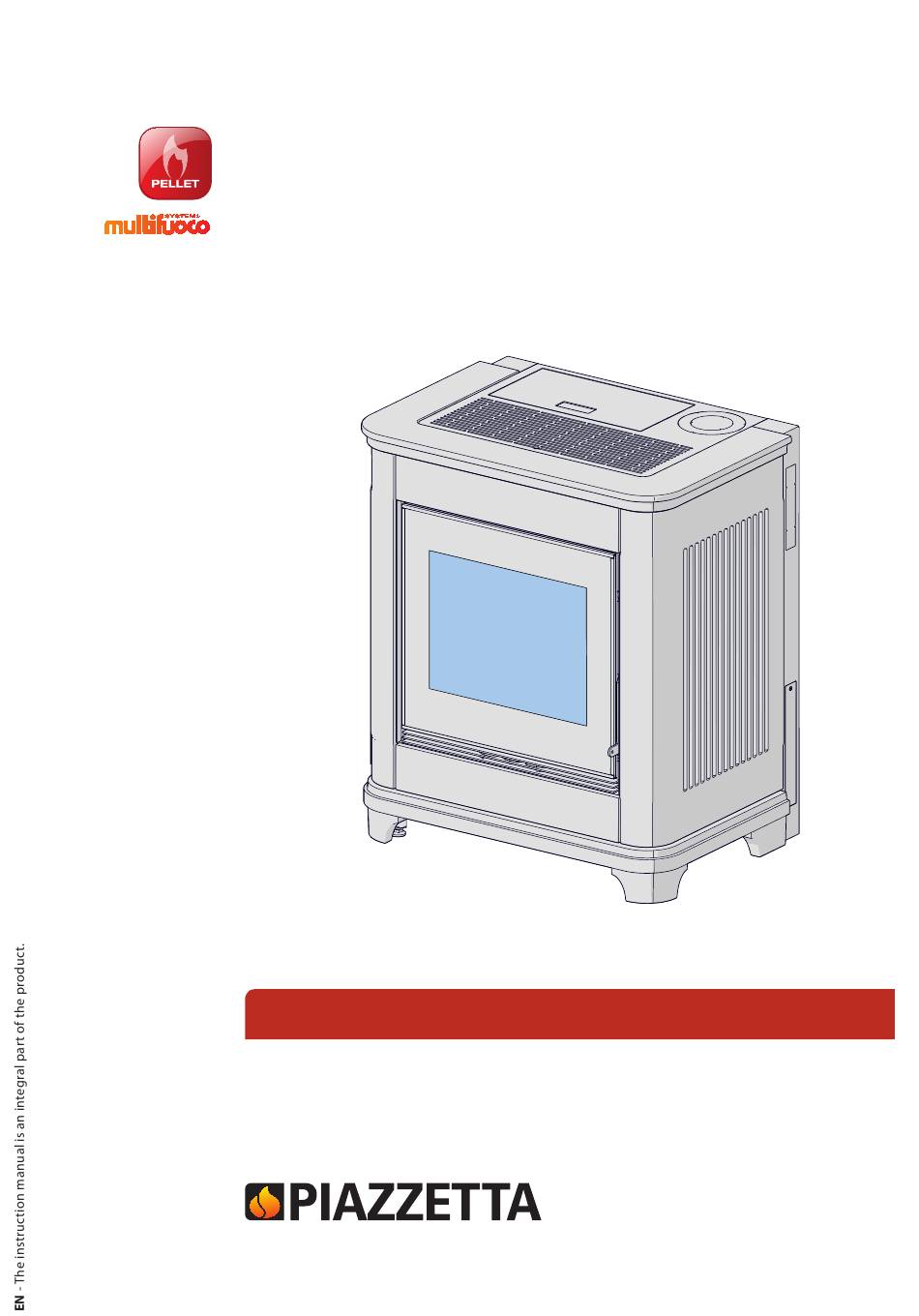

  • Page 1 The instruction manual is an integral part of the product Pellet stoves P945 C PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE...
  • Page 2 TRONIC FORMAT on our company website (www.piazzetta.com), under “Products”, on the specific product characteristics page. This document is the property of Gruppo Piazzetta S.p.A. and no part of it may be reproduced or disclosed to third parties, whol- ly or in part, without written permission All rights reserved by Gruppo Piazzetta S.p.A..
  • Page 3 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CONTENTS GENERAL INFORMATION PRODUCT INFORMATION Product description Part identification Safety devices Check devices Product identification data Characteristics Accessories upon request Technical data Sizes FUEL Pellet specifications Information regarding pellet loading GENERAL INFORMATION REGARDING THE SYSTEM Installation room Fresh air intake Chimney...
  • Page 4 (authorized technical assistance centre). in the sections " FAULTS " or " MESSAGES - - Gruppo Piazzetta S.p.A. cannot be held liable for situations of SAFETY WARNINGS - ANOMALIES ". risk, defects, damage, product malfunctioning or for damage...
  • Page 5 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Product use may cause some surfaces to During the operation and/or cooling phase, become extremely hot (the glass, the exter- slight creaking noises may be heard. This nal surfaces, the handles, the smoke outlet is not considered a defect, but is a conse- passage).
  • Page 6 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT INFORMATION Do not use the appliance as an incinerator or in any way other than that for which it was designed. PRODUCT DESCRIPTION Do not use the appliance if the glass or seals ■ on the door are damaged.
  • Page 7 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PART IDENTIFICATION Pellet hopper cover 22 Smoke intake/Extractor fan Humidifier 23 Electrical power cable Door 24 Auger motor Ceramic glass 25 Environment fan/s Door handle 26 Adjustable feet Metal structure 27 Appliance control panel Hot air outlet Ash catcher Smoke chamber 10 Grate deflector...
  • Page 8 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Electronic control unit: SAFETY DEVICES the electronic control unit signals and controls a series of events including power and ignition failure. The appliance is equipped with the following safety and check devices which stop the stove from operating if any faults occur. Pellet hopper cover open sensor: If any safety warnings or alarms are activated, please consult the if the cover of the pellet hopper is left open for a time exceeding...
  • Page 9 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT IDENTIFICATION DATA CHARACTERISTICS Each product is identified in the following way: Structure: - IDENTIFICATION DATA PLATE (1) with the model (A) and ap- - in steel pliance performance specifications Cladding: - SERIAL NUMBER PLATE (2) with the serial number of the ap- - majolica pliance (B) Firebox:...
  • Page 10 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE TECHNICAL DATA Model P945 C Type SP360-01 Unit of meas- at nominal at part load Description urement heat output heat output Fuel natural pure wood pellets Type of appliance (Designation) CC50 Heat Output Heat input...
  • Page 11 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE (values in mm) SIZES P945 C Fig. 5 80 mm 75 mm 60 mm A Smoke outlet Combustion air duct Ducting outlet standard position DT2006334_H072662EN0_01...
  • Page 12 Only keep the cover of the pellet hopper open for as ■ thorised by Gruppo Piazzetta S.p.A.. long as it takes to complete the refill operation. To en- Using pellets that are out of date or not in conformity ■...
  • Page 13 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE GENERAL INFORMATION The existence of more than one appliance is only per- REGARDING THE SYSTEM mitted if allowed by the regulations and manufacturer of each individual appliance. Below is some general information regarding the system, appli- If the existence of more than one appliance is permit- ■...
  • Page 14 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The connecting pipe for the combustion air inlet of the appliance must comply with the following requirements: In the appliance installation room: - have a diameter equal to or greater than the diameter of the it is not permitted to install liquid fuel appliances with ■...
  • Page 15 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - must be constructed in such a way as to ensure that in the event of winds from all directions and angle, discharge of the combustion products is assured (chimney terminal with anti downdraught cowl) - must be positioned outside the reflux area - must be positioned taking into account the roof inclination and respect the distances in relation to buildings, plants, aerials or...
  • Page 16 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE In particular, remember that the connecting flue pipe: Some systems – particularly those with appliances equipped with - must be in compliance with regulations, equipped with CE a boiler – may cause condensation to form, even if you abide by marking and be made respecting all safety requirements the indications provided.
  • Page 17 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Fig. 10 Fig. 11 DT2006334_H072662EN0_01...
  • Page 18 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE After having removed the material protecting the appliance, re- PREPARATIONS FOR INSTALLATION move all the retainers securing the appliance to the pallet and then remove it from the pallet. Product installation and maintenance must be carried out exclusively by qualified personnel with sufficient knowledge of the product itself.
  • Page 19 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE MINIMUM SAFETY DISTANCES The position of the product inside the room must take into ac- count not only the regulations, heating requirements, the shape of the installation and adjoining rooms but also accessibility dur- ing installation, use and maintenance operations. It is therefore recommended that an area greater than the one indicated, is left around the appliance to facilitate maintenance interventions and prevent overheating problems.
  • Page 20 In this EXCLUSIVE system PATENTED by Gruppo Piazzetta S.p.A., even if inside the appliance. heat produced by the firebox is distributed from bottom-up with- in the room by means of one or more than one fan.
  • Page 21 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Knockout opening Hot air outlet only ducted from standard opening Proceed as follows: - identify the knockout to be removed on the basis of the re- quired ducting - remove the knockout (1) using a 6mm bit to drill through the prearranged holes (2): make sure that the product is not scratched or misshapen in the process Fig.
  • Page 22 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Hot air outlet ducted into more than one room 6.3.5 Ducting indications For effective channelled heat distribution, you must: - wrap the pipe with a 2 cm thick heat insulating material (e.g. mineral fibre, ceramic fibre, rock fibre...) in order to limit heat loss and to ensure an adequately high air temperature - ensure the insulating sheath has a specific weight equal to or greater than 50 kg/m³...
  • Page 23 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.3.6 Hot air outlet heating area For the product to operate correctly, the ducting must have the following characteristics: An area in which combustible or heat-sensitive objects (wooden furniture, curtains, carpets, fabric, clothing, ornaments, flamma- minimum diameter 60 mm ble liquids, etc.) are forbidden is to be provided around the hot...
  • Page 24 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Connection to the upper smoke outlet CONNECTION TO THE SMOKE OUTLET - Remove the knockout (1) by drilling the relative points (2) using a 6mm bit Please refer to and carefully read sections " FLUE PIPE " and "...
  • Page 25 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Additional requirements for the connecting flue pipe ELECTRICAL CONNECTIONS Gruppo Piazzetta S.p.A. supplies pipes and bends for the connect- ing flue pipe, all of which are approved and specifically sized for the smoke outlet of its products.
  • Page 26 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.6.2 Room temperature probe 6.6.3 External environment thermostat Connect the room temperature probe which is provided to the The appliance allows for connection to an external thermostat designated connector (1) on the appliance. The bulb of the probe (not supplied as standard).
  • Page 27 Only connect devices approved by Gruppo Piazzetta along with other connected heat sources. S.p.A.. For more information on installation and opera- tion, please contact a T.A.C.
  • Page 28 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE HUMIDIFIER 10 CLEANING AND MAINTENANCE The appliance is equipped with a system to humidify the envi- ronment. For all installation and maintenance interventions which require access to inside the cladding, the smoke The humidifier is to be filled with water on average chamber or access to electrical and electronic parts, the every two or three days and in any case, on the basis of user must contact a T.A.C.
  • Page 29 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.1 SCHEDULED MAINTENANCE Recommended interval Interventions which may be carried out by the user Glass 1 day Scheduled maintenance must be carried out at least ONCE A YEAR and in any case, before the commission- Brazier and grate support 1 day ing of the appliance after a long period of inactivity.
  • Page 30 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.3 CLEANING THE PAINTED METAL PARTS 10.5 CLEANING THE GLASS When cleaning the painted metal parts, use a soft cloth mois- During start-up it is possible that tar may accumulate on the glass tened with water. which will disappear when optimal combustion is reached.
  • Page 31 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.7 CLEANING THE GRATE AND GRATE Before turning on the appliance, check that the grate is SUPPORT positioned correctly in its seat (and pushed towards the start-up hole). The grate area must be cleaned. A vacuum cleaner which is suitable for use with ash is ■...
  • Page 32 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - move the lower part outwards to extract it 10.9 CLEANING THE SMOKE CHAMBER - remove the side panels (4) Recommended cleaning frequency: refer to the section " SCHEDULED MAINTENANCE ". This operation facilitates an optimal heat exchange ■...
  • Page 33 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - remove the cladding (refer to the CLADDING instructions) 10.11 CLEANING THE ROOM FAN - loosen the screws (1) - remove element (2) Any dust deposits on the fan blades may make the fans noisy dur- ing operation.
  • Page 34 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE “TEE” connector ELECTRONIC BOARD FUSE Proceed as follows: Proceed as follows: - Remove the plug from the "TEE" fitting (1) and clean the pipes - unscrew the fuse box plug (1) located on the electronic board - replace the fuse with another fuse of the same type.
  • Page 35 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE To remove all pellets, proceed as follows: Disposing of this appliance incorrectly may cause environ- - remove the pellets which are in the hopper, as far as the protec- mental damage or harm human health. The appliance and accessories must not be disposed of with tion grille, when the fire is out and the appliance is completely normal household waste.
  • Page 36 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 13 REFERENCE STANDARDS Country of application: The European Union EN 1443 Chimneys - General requirements EN 1457-1 Chimneys - Clay/ceramic flue liners - Part 1: Flue liners operation under dry conditions – Requirements and test methods EN 1457-2 Chimneys - Clay/ceramic flue liners - Part 2: Flue liners operating under wet conditions - Requirements and test...
  • Page 37 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 14 APPENDIX Identification data plate: key Please read and comply with the instructions for installation, use and maintenance. Model = Model Type = Type DoP = Declaration of performance Design.App. = Type of appliance (Designation) N.Body = Notified body Pn = Nominal heat output Pp = Part load heat output...
