RGBlink vue PTZ camera User Manual Article No: RGB-RD-UM-PTZ E002 Version: V1.2...
Page 2
Content DECLARATIONS ..............................1 Fcc/Warranty ..................................1 Operators Safety Summary ..............................2 Installation Safety Summary .............................. 2 CHAPTER 1 YOUR PRODUCT ...........................4 1.1 In The Box ..................................4 1.2 Product Overview .................................4 1.2.1 Product Model ...............................4 1.2.2 Dimension ................................5 1.2.3 Main Features ............................... 5 CHAPTER 2 INSTALL YOUR PRODUCT ........................
Page 3
6.1.1 Camera Return Command ...........................38 6.1.2 Camera Control Command ..........................38 6.1.3 Inquiry Command ..............................41 6.2 Pelco-d Protocol Command List ..........................43 6.3 Pelco-p Protocol Command List ..........................44 6.2 Terms & Definitions ..............................44 6.3 Revision History ................................51 RGBlink vue PTZ camera User Manual...
Page 4
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
Page 5
To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the AC power Cord. The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection RGBlink vue PTZ camera User Manual...
Page 6
Don’t apply in corrosive liquid, as or solid environment to avoid the cover which is made up of organic material. To make sure no obstacle in rotation range. Never power on before installation is completed. Don’t disassemble discretionarily. We are not responsible for any unauthorized modification or dismantling. RGBlink vue PTZ camera User Manual...
Page 7

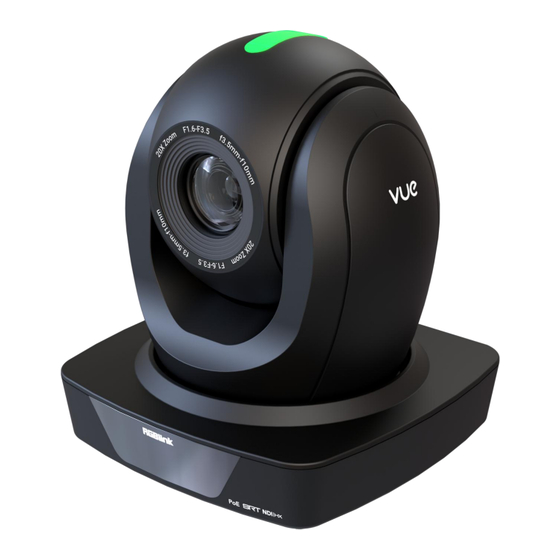

20X USB PTZ Camera with TALLY: RGB20X-USB-TLY 20X PTZ Camera with TALLY (Support PoE): RGB20X-POE-TLY 20X NDI Camera with TALLY (Support PoE): RGB20X-PNDI-TLY 30X PTZ Camera with TALLY (Support PoE): RGB30X-POE-TLY 30X NDI Camera with TALLY (Support PoE): RGB30X-PNDI-TLY RGBlink vue PTZ camera...
Page 8
7) Low‐power Sleep Function: Support low-power sleep/wake up, the consumption is lower than 500mW under sleep mode 8) Support Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized.Support VISCA control protocol through IP port. RGBlink vue PTZ camera User Manual...
Page 9
Image Code Stream Double streams outputs simultaneously Video Compression H.265、H.264 format Control Signal Interface RS-232 Ring through RS232 output, RS-485 Control Protocol Protocol:VISCA/Pelco-D/Pelco-P; Audio Input Interface Double track 3.5mm linear input; Audio Compression AAC、MP3、G.711A Format RGBlink vue PTZ camera User Manual...
Page 10
Working Temperature -10℃~+50℃ Working Humidity 20%~80% Dimension 180mm(front) × 188mm(side) × 198mm(height) Net Weight 1.7kg Working Environment Indoor Remote Operation (IP) Remote Upgrade, Reboot and Reset Accessory Power Supply、RS232 Control Cable、Remoter Optional Accessory Bracket RGBlink vue PTZ camera User Manual...
Page 11
Broadcast PTZ Camera Camera Bottom Dial Switch diagram shown in Figure 2.2 Figure 2.2 Bottom Dial Switch Diagram DIP switch is set to ON or OFF to select different modes of operation as shown in the following table RGBlink vue PTZ camera User Manual...
Page 12
8.CTS 9.RI 2)RS‐232 Mini‐DIN 8‐pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data System Ground IR Commander Signal IR IR OUT No Connection 3)RS232(DB9) Port Definition RGBlink vue PTZ camera User Manual...
Page 13
Note: PTZ Camera has RS232 input and output interface, so you can cascade as the above way. 2.2 Bracket Mount Note: Bracket can only be wall mounted or upside down mounted on template and concrete wall, but can not be installed on plasterboard. 1)Wall Mount Step RGBlink vue PTZ camera User Manual...
Page 14
2)Upside Down Mount Step RGBlink vue PTZ camera User Manual...
Page 15
Note:The bracket mount is the optional accessory. RGBlink vue PTZ camera User Manual...
Page 16
Connect the camera and the monitor via 3G-SDI video cable; video output is available after camera self-test. Note: When the device is first powered on, the current IP address of the camera is displayed in the upper left corner of the screen. RGBlink vue PTZ camera User Manual...
Page 17
Press Key :Left Press Key: Right “HOME” Key: Return to the middle position or enter into the next level menu 9. BLC Control Key Back Light ON / OFF: Turn on or off the back light RGBlink vue PTZ camera User Manual...
Page 18
2. When a key-combination is required, do it in sequence. For example,“ 【 *】+【#】+【F1】”means press“【*】”first and then press“【#】” and last press“【F1】”. 1)Camera Selection Select the camera address to control. 2)Pan/Tilt Control RGBlink vue PTZ camera User Manual...
Page 19
Press and hold the key, the action of focus will keep continue and stops as soon as the key is released. 5) BLC Setting BLC ON / OFF: support 6) Presets Setting, Running, Clearing RGBlink vue PTZ camera User Manual...
Page 20
In normal working mode, press 【MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items. MENU ================ Language English (Setup) (Camera) (P/T/Z) (Video Format) (Network) (Version) (Restore Default) [↑↓]Select [← →]Change Value [Menu]Back [Home]OK RGBlink vue PTZ camera User Manual...
Page 21
Visca ADDR: VISCA=1~7 Pelco-P=1~255 Pelco-D = 1~255 Protocol:VISCA/Pelco-P/Pelco-D/Auto Baud rate: 2400/4800/9600/115200 Visca Address Fix: On/Off 3.3.3 Camera Setting Move the pointer to the (CAMERA) in the Main Menu, click the【HOME】key and enter the (CAMERA) as follow. RGBlink vue PTZ camera User Manual...
Page 22
Anti‐Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain Limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode) WDR: Off,1~8 Shutter Priority:1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000, 1/6000,1/10000(only available in Manual and Shutter priority mode) RGBlink vue PTZ camera User Manual...
Page 23
Blue Gain: 0~255(only available in Manual mode) Saturation: 60%,70%,80%,90%,100%,110%,120%,130% Hue: 0~14 AWB Sensitivity: high/middle/low Color Temp: high/middle/low Color Style: Default, style1~4. 3) IMAGE Move the pointer to the (IMAGE) in the Menu, click the【HOME】and enter the (IMAGE) as follow. RGBlink vue PTZ camera User Manual...
Page 24
Focus Mode: Auto, manual AF‐Zone: Up, middle, down AF‐Sensitivity: High, middle, low 5) NOISE REDUCTION Move the pointer to the (NOISE REDUCTION) in the Menu, click the 【 HOME 】 and enter the (NOISE REDUCTION) as follow. RGBlink vue PTZ camera User Manual...
Page 25
Zoom Speed: Set the zoom speed for remote controller,1~8 Image Freezing: On/Off Accelerating Curve: Fast/slow 3.3.5 Video Format Move the pointer to the (Video Format) in the Menu, click the【HOME】and enter the (Video Format) as follow. RGBlink vue PTZ camera User Manual...
Page 26
DHCP: options: ON/OFF; Turn off DHCP to set the IP address, subnet mask and gateway (NOTE: must be in the same network segment as the IP address. Restart: options: yes/no. 3.3.7 Version Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter the (VERSION) as follow. RGBlink vue PTZ camera User Manual...
Page 27
Internet connection mode: Connect the camera to Internet by Router or Switch and user can log in the device by browser. Note: Please do not put the power and network cable in places where can be easily touched to prevent RGBlink vue PTZ camera User Manual...
Page 28
Note: The IP address to be added cannot be same with that of other computers or devices. The existence of this IP address needs to be verified before adding 3) Click the “Start” and select “Operation” to input cmd as picture below to verify if the network segment has been successfully added. RGBlink vue PTZ camera User Manual...
Page 29
Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as below picture. User can login as administrator and normal user. If login as RGBlink vue PTZ camera User Manual...
Page 30
3.6 Configuration Click Configuration to enter into the device parameters setting page There are the following options: audio configuration, video configuration, network configuration, PTZ RGBlink vue PTZ camera User Manual...
Page 31
Stream Name: When streaming via rtsp or rtmp, user can modify stream name. Main Stream(live/av0), sub stream(live/av1) Click the "Save" button to display the "saved successfully" message,then settings take effect. 2) Stream Release Switch: To turn on/off the main/secondary stream. Protocol: primary / secondary stream applies RTMP protocol. RGBlink vue PTZ camera User Manual...
Page 32
Color Temperature: set color temperature(Default setting:High,with low,middle for options) Red Gain: Set the red gain,effective when it is manual (default 255, 0-255 optional). Blue Gain: Sets the Blue Gain,effective when it is manual (default 199, 0-255 optional). RGBlink vue PTZ camera User Manual...
Page 33
RTSP Port: Set RTSP port,the device will restart automatically after changed (default 554,0-65535 optional). Visca Port: Set Visca port,the device will restart automatically after changed (default 3001,0-65535 optional). Click on the "Save" button,it will be valid when display "Save successful". RGBlink vue PTZ camera User Manual...
Page 34
Date Format: Set the date format (YYYY-MM-DD default That year - month - day,MM-DD-YYYY namely Month - Day -Year,DD-MM-YYYY date - month - year Optional). Date separator: set the date separator (default '/','.','-' Optional). RGBlink vue PTZ camera User Manual...
Page 35
* # 6; Choose one of the above three ways. If chose a, the IP accounts, passwords also need to be restored to the default. RGBlink vue PTZ camera User Manual...
Page 36
Click on the pop-up "Reboot" button and choose “YES” or “NO”,then the device will restart automatically 3.7 Logout Point "Logout" pop‐up "Confirmation" dialog; select "Yes" or "No",choose “Yes” to exit the current page and return to the user login interface again. RGBlink vue PTZ camera User Manual...
Page 38
Chapter 5 Support 5.1 Contact Us RGBlink vue PTZ camera User Manual...
Page 39
Click "Start" and select "Run" and then type “cmd” in the computer;Click "OK" then turn on a DOS command window to enter ping 192.168.5.163. Press the Enter key to appear message as follows: Description network connection is normal RGBlink vue PTZ camera User Manual...
Page 45
U2( 0512 )、U3 ( 0513 )、HD mn pq rs tu vw FF (??) rs tu : ARM Version vw : reserve P: 0~E Video format 0:1080P60 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 8:720P30 1:1080P50 9:720P25 RGBlink vue PTZ camera User Manual...
Page 46
Query Tilt Position Response 0xFF Address 0x00 0x5B Value High Byte Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position Value Low 0xFF Address 0x00 0x5D Value High Byte Response Byte RGBlink vue PTZ camera User Manual...
Page 47
Radio Corporation of America. ●BNC: Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named for its inventors). A cylindrical bayonet connector that operates with a twist-locking motion . RGBlink vue PTZ camera User Manual...
Page 48
2.0 include up to 32 audio channels, up to 1536 kHz audio sample frequency, the HE-AAC and DRA audio standards, improved 3D capability, and additional CEC functions. ● HDMI 2.0a: was released on April 8, 2015, and added support for High Dynamic Range (HDR) video with static metadata. RGBlink vue PTZ camera User Manual...
Page 49
Because of its small dimensions, it is the perfect fit for high-density connections, XFP, SFP, and SFP+ transceivers. ● FC :(Ferrule Connector) is a screw type connector with a 2.5mm ferrule. FC is a round shaped threaded fiber optic connector,mostly used on Datacom, telecom, measurement equipment, single-mode laser. RGBlink vue PTZ camera User Manual...
Page 50
Society of Motion image and Television Engineers. A global organization, based in the United States, that sets SMPTE: standards for baseband visual communications. This includes film as well as video and television standards. ● Video Electronics Standards Association. An organization facilitating computer graphics through standards. VESA: RGBlink vue PTZ camera User Manual...
Page 51
●API: An Application Programming Interface (API) provides a predefined function which allows access capabilities andfeatures orroutines viaa software or hardware, without accessing source code or understanding the details of inner working mechanism. An API call may execute a function and/or provide datafeedback/report. RGBlink vue PTZ camera User Manual...
Page 52
Chroma burst information. Blackburst is used to synchronize video equipment to align the video output. ●ColourBurst: In colour TV systems, a burst of subcarrier frequency located on the back part of the composite video RGBlink vue PTZ camera User Manual...
Page 53
●EDID: Extended Display Identification Data. EDID is a data structure used to communicate video display information, including native resolution and vertical interval refresh rate requirements, to a source device. The source device will then output the provided EDID data, ensuring proper video image quality. RGBlink vue PTZ camera User Manual...
