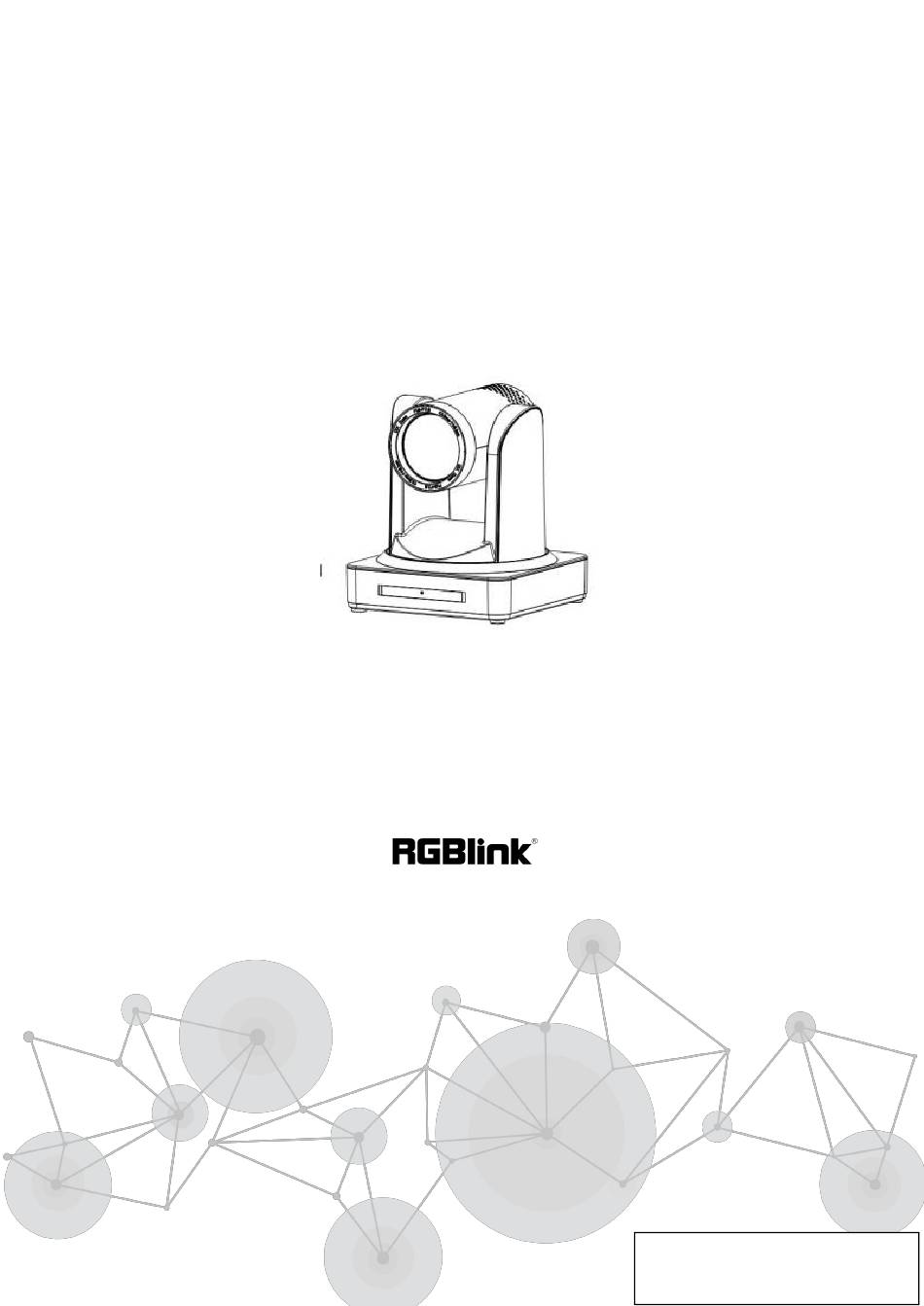

- Page 1 PTZ Camera RGB20X/30X-POE-WH User Manual Article No: RGB-RD-UM-PTZ E001 Version: V1.0...
-
Page 2: Table Of Contents
3.4.1 Connecting Mode.............................26 3.5 IE Log In................................28 3.5.1 Web client..............................28 3.5.2 Preview..............................28 3.6 Configuration..............................29 3.6.1 Audio Configuration..........................29 3.6.2 Video Configuration..........................29 3.6.3 Network Configuration..........................32 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 3 6.1.1 Camera Return Command........................39 6.1.2 Camera Control Command........................39 6.1.3 Inquiry Command............................ 42 6.2 Pelco-D Protocol Command List........................44 6.3 Pelco-P Protocol Command List........................45 6.4 Revision History...............................45 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 4: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 5: Installation Safety Summary
The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection Before opening camera shipping box, inspect it for damage. If you find any damage, notify the shipping © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 6 To make sure no obstacle in rotation range. Never power on before installation is completed. Don’t disassemble discretionarily. We are not responsible for any unauthorized modification or dismantling. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 7: Chapter 1 Your Product

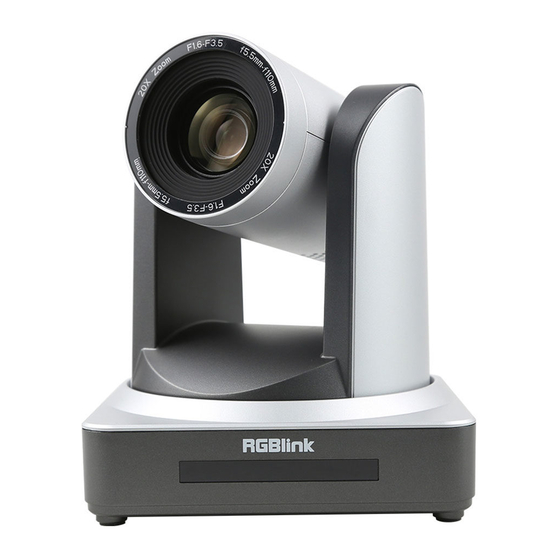

RS232 serial port line × 1 Remote control × 1 1.2 Product Overview 1.2.1 Product Model The User Manual is applicable to: 20X PTZ Camera: RGB20X-POE-WH 30X PTZ Camera: RGB30X-POE-WH 1.2.2 Dimension Figure 1.1 PTZ Camera dimension © Xiamen RGBlink Science & Technology Co., Ltd. -
Page 8: Main Features
Support compression of resolution up to 1920×1080 with frame up to 60 fps and 2 channel 1920×1080p with 30 fps compression. 3) Multiple network protocol: Support ONVIF,RTSP,RTMP protocols and RTMP push mode, easy to link streaming media server © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 9 20%～80% Dimension 150mm×150mm×167.5mm Weight 1.4kg Working Environment Indoor Remote Operation (IP) Remote Upgrade, Reboot and Reset Accessory Power Supply、RS232 Control Cable、Remoter Optional Accessory Bracket © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 10: Chapter 2 Install Your Product
5、Tripod Screw Hole 10、3G-SDI interface 2.1.1 External Interface External interface: RS232 Input /Output, RS485 Input, Audio Input,3G-SDI Output, HDMI Output, LAN, DC12V Power Interface. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 11: Bottom Dial Switch
Computer or keyboard and camera connection method Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 12 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN Note: PTZ Camera has RS232 input and output interface, so you can cascade as the above way. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 13: Bracket Mount
Note: Bracket can only be wall mounted or upside down mounted on template and concrete wall, but can not be installed on plasterboard. 1）Wall mount step © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 14 2）Upside down mount step © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 15 Note:The bracket mount is the optional accessory. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 16: Chapter 3 Use Your Product
Note: When the device is first powered on, the current IP address of the camera is displayed in the upper left corner of the screen. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 17: Remote Controller
Press Key :Left Press Key: Right “HOME” Key: Return to the middle position or enter into the next level menu 9. BLC Control Key © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 18: Applications
2. When a key-combination is required, do it in sequence. For example,“ 【 *】 +【#】+【F1】 ”means press“【*】”first and then press“【#】” and last press“【F1】”. 1）Camera Selection Select the camera address to control. 2）Pan/Tilt Control © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 19 Press and hold the key, the action of focus will keep continue and stops as soon as the key is released. 5) BLC Setting BLC ON / OFF: support 6) Presets Setting, Running, Clearing © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 20: Menu Setting
In normal working mode, press 【MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English （Setup） （Camera） （P/T/Z） （Video Format） （Version） （Restore Default） [↑↓]Select [← →]Change Value [Menu]Back [Home]OK © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 21: System Setting
Visca Address Fix: On/Off 3.3.3 Camera Setting Move the pointer to the (CAMERA) in the Main Menu, click the 【 HOME】key and enter the (CAMERA) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 22 Anti‐Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain Limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode) WDR: Off,1~8 Shutter Priority:1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000, © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 23 Color Temp: high/middle/low Color Style: Default, style1~4. 3) IMAGE Move the pointer to the (IMAGE) in the Menu, click the【HOME】and enter the (IMAGE) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 24 5) NOISE REDUCTION Move the pointer to the (NOISE REDUCTION) in the Menu, click the 【 HOME 】 and enter the (NOISE REDUCTION) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 25: P/T/Z
3.3.5 Video Format Move the pointer to the (Video Format) in the Menu, click the 【 HOME 】and enter the (Video Format) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 26: Version
Lens: Display the lens zoom 3.3.7 Restore Default Move the pointer to the (RESTORE DEFAULT) in the Main Menu, click the【HOME】and enter the (RESTORE DEFAULT) as follow. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 27: Network Connection
1) open the window of Local Area Connection Properties on computer, double click or click the property “Internet”protocol version 4 (TCP/IPv4)to enter into the Internet Protocol Version 4(TCP/IPv4) Properties window. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com... - Page 28 5) User can also to verify network connection as steps above mentioned after the finish of camera self-check. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 29: Ie Log In
Default User name/password: user1 or user2 PTZ control can be carried out, zoom, focus, video capture, sound, zoom, full screen and set the preset position, un,and delete; you can preview and log off. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com... -
Page 30: Configuration
Image Quality: Set the image quality,image quality can be changed only when rate control is variable bit rate,(main stream defaulted is better,secondary stream default is not good,there are best, better, good, bad, worse, worst for options). © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 31 Aperture value: Set the aperture value,active when it is status of manual or aperture-priority(default F1.8, closed, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2 .8, F2.4, F2.0, F1.8 optional). © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com...
- Page 32 Output Format: Set the video output format (default 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50, 720P30, 720P25, 1080P59.94, 1080I59.94, 1080P29.97, 720P59.94, 720P29.97 optional). © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 33: Network Configuration
GB28181 Server Address: IP address of the computer Server SIP Port: 5060 Range 0-65535 Server ID: 34020000002000000001 Click on the "Save" button,it will be valid when display "Save successful". © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 34: System Configuration
If login page by a common user’s name and password ,one does not have configuration privileges but can only operate to preview,logoff. 4) Version upgrade MCU version V3.1.0 2019-5-5 Camera version V2.6.1 2020-5-20 AF version V4.0.6 2019-11-18 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 35: Logout
Point "Logout" pop‐up "Confirmation" dialog; select "Yes" or "No",choose “Yes” to exit the current page and return to the user login interface again. Chapter 4 Ordering Codes © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 36: Product
4.1 Product 981-0011-11-0 RGB20X-POE-WH 20X PTZ Camera(support PoE) 981-0011-15-0 RGB30X-POE-WH 30X PTZ Camera(support PoE) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 37: Chapter 5 Support
Chapter 5 Support 5.1 Contact us © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 38: Camera Maintenance And Troubleshooting
Click "Start" and select "Run" and then type “cmd” in the computer;Click "OK" then turn on a DOS command window to enter ping 192.168.5.163. Press the Enter key to appear message as follows: Description network connection is normal © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 39 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 40: Chapter 6 Appendix
Focus Position Auto 8x 01 04 35 00 FF CAM_WB 3000K 8x 01 04 35 01 FF 4000k 8x 01 04 35 02 FF © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 41 8x 01 04 54 0p FF P=0-8 0:OFF CAM_Gamma 8x 01 04 5B 0p FF p = 0 – 4 0： Default 1： 0.45 2： © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 42 1080P59.94 3:1080i50 B： Set camera CAM_VideoSystem 8x 01 06 35 00 0p FF video system 1080i59.94 4:720P60 C： 720P59.94 5:720P50 D： 1080P29.97 6:1080P30 E： © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 43: Inquiry Command
50 00 00 0p 0q FF pq: Bright Position y0 50 02 FF CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 03 FF © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 44 P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 9:720P25 2:1080i60 A： 1080P59.94 3:1080i50 B： © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 45: Pelco-D Protocol Command List
Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position Value Low 0xFF Address 0x00 0x5D Value High Byte Response Byte © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 46: Pelco-P Protocol Command List
All information herein is © Xiamen RGBlink Science & Technology Co Ltd. excepting where noted. RGBlink®is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing,we reserve the right to alter, vary or otherwise make change without notice.
