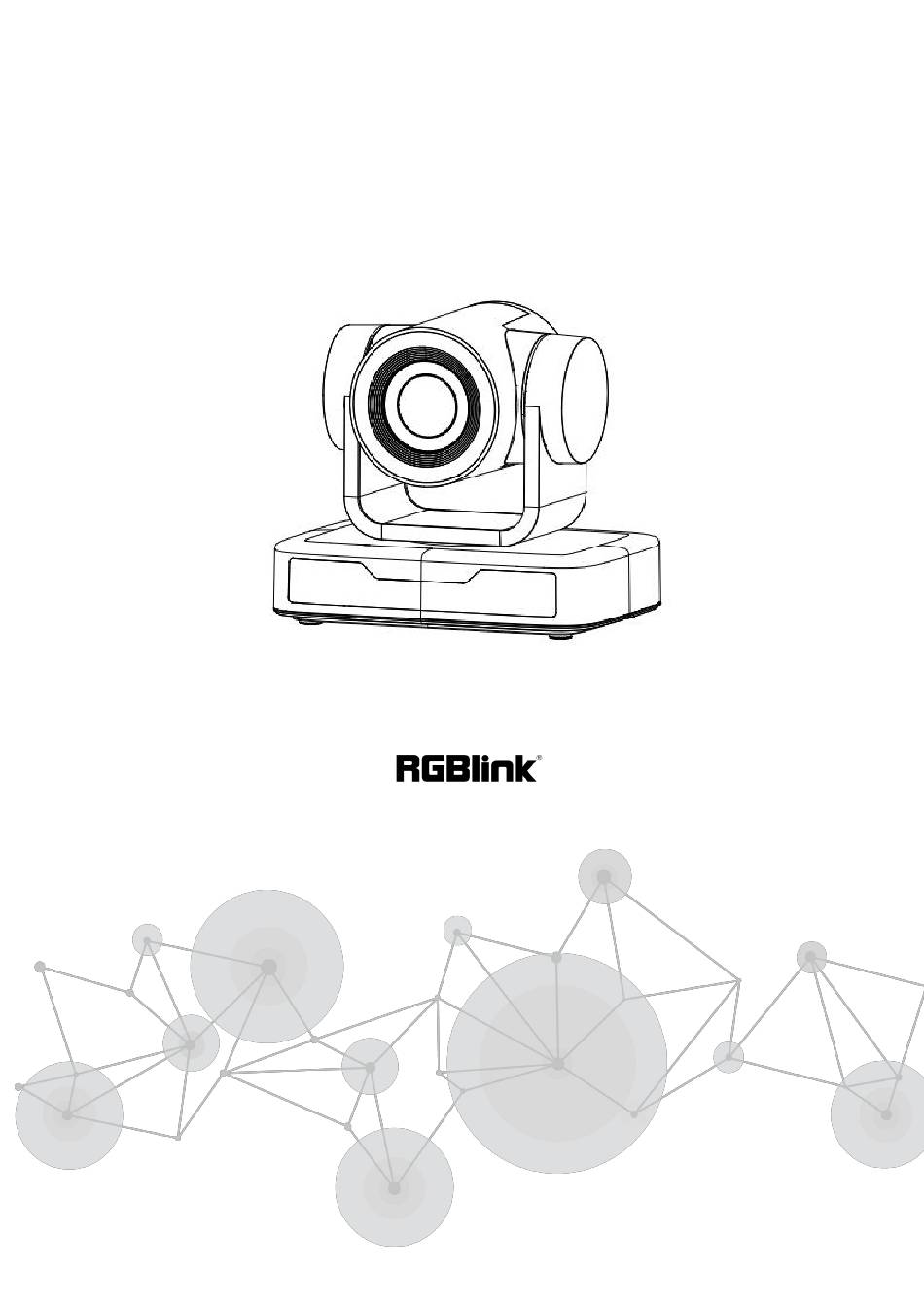

- Page 1 PTZ Camera RGB10X-USB-BK User Manual...
-
Page 2: Table Of Contents
4.1 Product................................23 Chapter 5 Support..............................24 5.1 Contact us................................ 24 5.2 Camera Maintenance and Troubleshooting....................27 5.2.1 Camera Maintenance..........................27 5.2 Troubleshooting............................27 Chapter 6 Appendix..............................28 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 3 6.1.1 Camera Return Command........................28 6.1.2 Camera Control Command........................28 6.1.3 Inquiry Command............................ 31 6.2 Pelco-D Protocol Command List........................33 6.3 Pelco-P Protocol Command List........................34 6.4 Revision History...............................34 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 4: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 5: Operators Safety Summary
To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the AC power Cord. The AC Socket-outlet should be installed near the equipment and be easily accessible. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 6 To make sure no obstacle in rotation range. Never power on before installation is completed. Don’t disassemble discretionarily. We are not responsible for any unauthorized modification or dismantling. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 7: Chapter 1 Your Product
USB2.0 video cable is enough. 1.2 Product Overview 1.2.1 Product Model The User Manual is applicable to: 10X PTZ Camera: RGB10X-USB-BK 1.2.2 Dimension Product Dimension © Xiamen RGBlink Science & Technology Co., Ltd. -
Page 8: Main Features
0.5Lux(F1.8, AGC ON) Illumination 2D﹠3D DNR White Balance Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K Focus Auto / Manual/ One Push Focus Exposure Auto / Manual © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 9 Indoor Package Power Supply, RS232 Control Cable, IR Remote Control, User Manual, Warranty Card, USB2.0 Cable Optional Accessories Ceiling / Wall Mount (Extra Cost) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 10: Chapter 2 Install Your Product
Indicator Socket 3. Camera Base 7. RS232 Control Interface（Output） 4. Tripod Screw Hole 8. RS485 Input (left +, right-) 2.1.1 External Interface Wiring Diagram © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 11: Rs-232 Interface
Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR Commander Signal IR OUT No Connection 3）RS232(DB9) Port Definition © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 12: Bracket Mount
Notes: Ceiling or wall mounting brackets can only be mounted on template and concrete wall. For safety reason, plasterboard is not recommended. 1）Wall Mounting: © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 13 2）Ceiling Mounting © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 14 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 15: Chapter 3 Use Your Product
Long press 3s again on the standby key, the camera will self-check again and return to HOME position (If preset 0 position is set, the camera will return to preset 0 position). © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com... - Page 16 Clear Preset: press 【CLEAR PRESET】 button, and then press the number key 0-9 to clear preset positions. Note : press the【#】 key three times continually to clear all presets. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 17: Menu Setting
3.3.1 Main Menu In normal working mode, press 【MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items. © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 18: System Setting
PELCO-P Address PELCO-D Address Baudrate 9600 Auto Filp [↑↓]Select [← →]Change Value Protocol: VISCA/Pelco-P/Pelco-D/Auto Visca Address: VISCA=1~7 Pelco-P=1~255 Pelco-D=1~255 Baudrate: 2400/4800/9600/115200 Visca Address Fix: On/Off © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 19: Camera Setting
Compensation Level: -7~7 (only available in auto mode when EV is ON) BLC: ON/OFF for options (only available in auto mode) Dynamic Range: 1~8, close © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 20 AWB Sensitivity: high/middle/low Chroma: 0~14 3) Image Move the pointer to the (IMAGE) in the Menu, click the【HOME】and enter into the (IMAGE sub menu) as follow, © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 21 AF-Sensitivity: High/middle/low 5）Noise Reduction Move the pointer to the (NOISE REDUCTION) in the Menu, click the 【HOME】 and enter the (NOISE REDUCTION) as follow, © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 22: P/T/Z
Image Freezing: On/Off Accelerating Curve: Fast/Slow 3.3.5 Version Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter the (VERSION) as follow, © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 23: Restore Default
1 when all parameters or system parameters are restored. User should change the remoter address to be 1 (press No.1 according to the camera so to get normal operation). © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com... -
Page 24: Chapter 4 Ordering Codes
Chapter 4 Ordering Codes 4.1 Product 981-0011-12-0 RGB10X-USB-BK 10X PTZ Camera © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 25: Chapter 5 Support
Chapter 5 Support 5.1 Contact us © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 26: Camera Maintenance And Troubleshooting
Check whether the camera serial device protocol, baud rate, address is consistent b. Check whether the control cable is connected properly c. Check whether the camera working mode is the normal operating mode © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 27: Chapter 6 Appendix
8x 01 04 08 02 FF CAM _Focus Near(Standard) 8x 01 04 08 03 FF Far(Variable) 8x 01 04 08 2p FF p = 0(low) - F(high) © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 28 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Positon © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
- Page 29 8x 01 04 A1 00 00 0p 0q FF pq: Brightness Position CAM_Contrast Direct 8x 01 04 A2 00 00 0p 0q FF pq: Contrast Position © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 30: Inquiry Command
50 00 FF 6500K y0 50 06 FF 6500K y0 50 07 FF 3500K y0 50 08 FF 4500K y0 50 09 FF 5500K © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 31 : ARM Version vw : reserve P: 0~E Video format VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 0:1080P60 8:720P30 © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197...
-
Page 32: Pelco-D Protocol Command List
Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position Value Low 0xFF Address 0x00 0x5D Value High Byte Response Byte © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... -
Page 33: Pelco-P Protocol Command List
Byte 6.4 Revision History The table below lists the changes to the User Manual. Format Time ECO# Description Principle V1.0 2021-09-01 0000# Release Sylvia © Xiamen RGBlink Science & Technology Co., Ltd. | support@rgblink.com | www.rgblink.com Ph: +86 592 5771197... - Page 34 All information herein is © Xiamen RGBlink Science & Technology Co Ltd. excepting where noted. RGBlink®is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are ma de for accuracy at time of printing, we reserve the right to alter, vary or otherwise make change without not ice.
