X7672820200
11/10

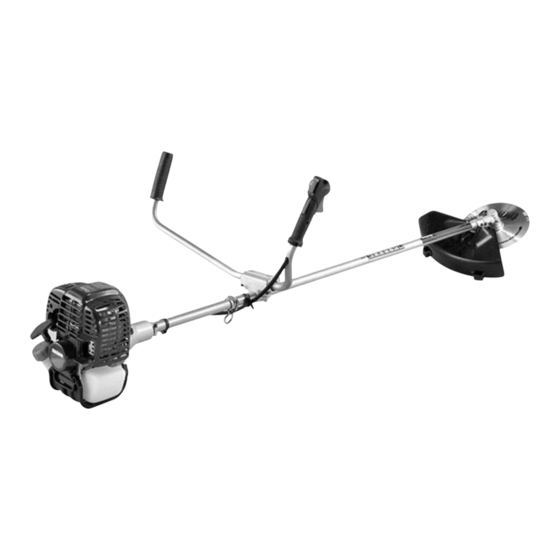

SHINDAIWA GRASS TRIMMER TO BRUSHCUTTER
CONVERSION KIT FOR T272/T3410 GRASS TRIMMER
MODEL: BCK-9
WARNING!
Minimize the risk of injury to yourself and others! Read the Owner's/Opera-
tor's manual originally supplied with the unit that is being upgraded and
familiarize yourself with the contents. Always wear eye and hearing protec-
tion when operating your unit.
Advertisement
Related Manuals for Shindaiwa BCK-9
Summary of Contents for Shindaiwa BCK-9
- Page 1 SHINDAIWA GRASS TRIMMER TO BRUSHCUTTER CONVERSION KIT FOR T272/T3410 GRASS TRIMMER MODEL: BCK-9 WARNING! Minimize the risk of injury to yourself and others! Read the Owner's/Opera- tor's manual originally supplied with the unit that is being upgraded and familiarize yourself with the contents. Always wear eye and hearing protec- tion when operating your unit.
- Page 2 The instructions described in this manual are intended to help Always wear a harness when operating this unit you get the most from your Shindaiwa power tool as well as with a blade. A harness to protect you and others from harm. These procedures are is also recommended when using trimmer line.
- Page 3 Safety Labels IMPORTANT! Safety and Operation Information Labels: Make sure all information labels are undamaged and readable. Immediately replace damaged or missing information labels. A new label is provided in this kit and additional labels are available from your local authorized Shin- daiwa dealer.
- Page 4 Assembly Remove Cutting Attachment Turn the unit over so that the gearcase output shaft faces UP. Align the hole in the holder (A) with the notch in the gearcase flange, and then temporarily lock the output shaft by inserting a hex wrench through both holes.
- Page 5 Disconnect Throttle Cable-Ignition Wires 1. Loosen air cleaner cover knob and remove air cleaner cover. 2. Remove wire end of throttle linkage cable (A) from carburetor throttle swivel hole. 3. Disconnect 2 ignition stop switch leads: a. Pull quick-connect connectors (B) apart. 4.
- Page 6 Remove handlebar clamp (G) from mounting bracket, and unscrew 4 screws to separate clamp. Install handlebar clamp (G) on handlebar (H), and secure with 4 clamp screws. IMPORTANT! Screw heads must face down to permit handlebar adjustments after upper cap (F) is installed on handlebar mounting bracket (C). Place handlebar clamp into mounting bracket, and seat clamp in rubber anti-vibration cushion.
- Page 7 Throttle Linkage and Ignition Leads Place throttle linkage through adjustment fixture (C) and install wire end into large carburetor throttle swivel hole (A). Check throttle for freedom of movement and that wide open throttle / low idle extremes are adjusted properly.
- Page 8 Installing Brushcutter Blade WARNING! Slide the safety clip off-center Shaft Bolt Do not attach any blade to a unit without proper installation of all required parts. Failure to use the Bolt Guard proper parts can cause the blade to Output fly off and seriously injure the operator Holder B Shaft...
- Page 9 Shoulder Strap Adjust the shoulder strap so the shoulder pad rests comfortably on the off-side shoulder and the cutting path of the cutting attachment is parallel to the ground. WARNING! Always wear a shoulder strap when operating this unit with a blade. A shoulder strap is also recommended when using trimmer line.
- Page 10 Using A Brushcutter Blade WARNING! ■ Before working with a blade-equipped unit, always inspect and clear the area of objects that could interfere with or damage the blade. ■ Never use a blade near sidewalks, fence posts, buildings or other objects that could cause injury or damage. ■...
- Page 11 NOTES...
- Page 12 If you require assistance or have questions concerning the application, operation or maintenance of this product you may call the Shindaiwa Consumer Product Support Department at 1-877-986-7783 from 8:30 am to 4:30 pm (Central Standard Time) Monday through Friday. Before calling, please know the model and serial number of your unit.
