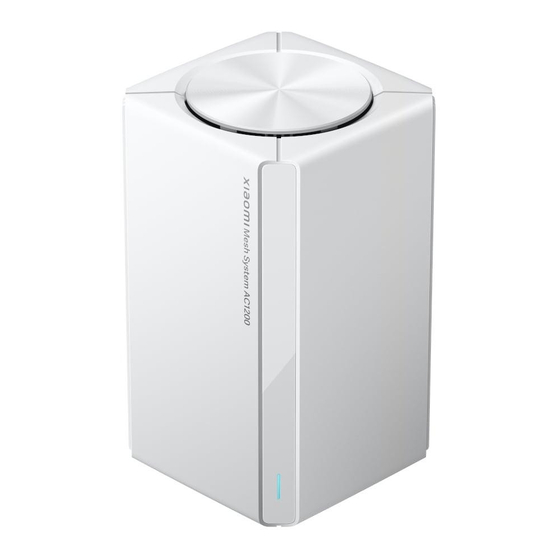

Xiaomi Mesh System AC1200 User Manual

Hide thumbs Also See for Mesh System AC1200:

User manual

page of 51

/ 51
Bookmarks

Available languages

Quick Links

Download this manual

Mesh System AC1200 User

Manual · 01

Xiaomi AC1200 Mesh 路由器使用說明書 · 15

Manual del usuario del Sistema de malla Xiaomi

Mesh System AC1200 · 27

AC1200

Xiaomi · 38

Model /產品型號：RD13

Need help?

Do you have a question about the Mesh System AC1200 and is the answer not in the manual?

Questions and answers

Flip Scheepers

February 11, 2025

Can I enhance the tower signal with the AC1200

1 comments:

Mr. Anderson

May 14, 2025

No, the Xiaomi Mesh System AC1200 cannot enhance the tower signal. It is a Wi-Fi mesh system designed to improve wireless network coverage inside a building, not to boost cellular tower signals.

This answer is automatically generated

Summary of Contents for Xiaomi Mesh System AC1200

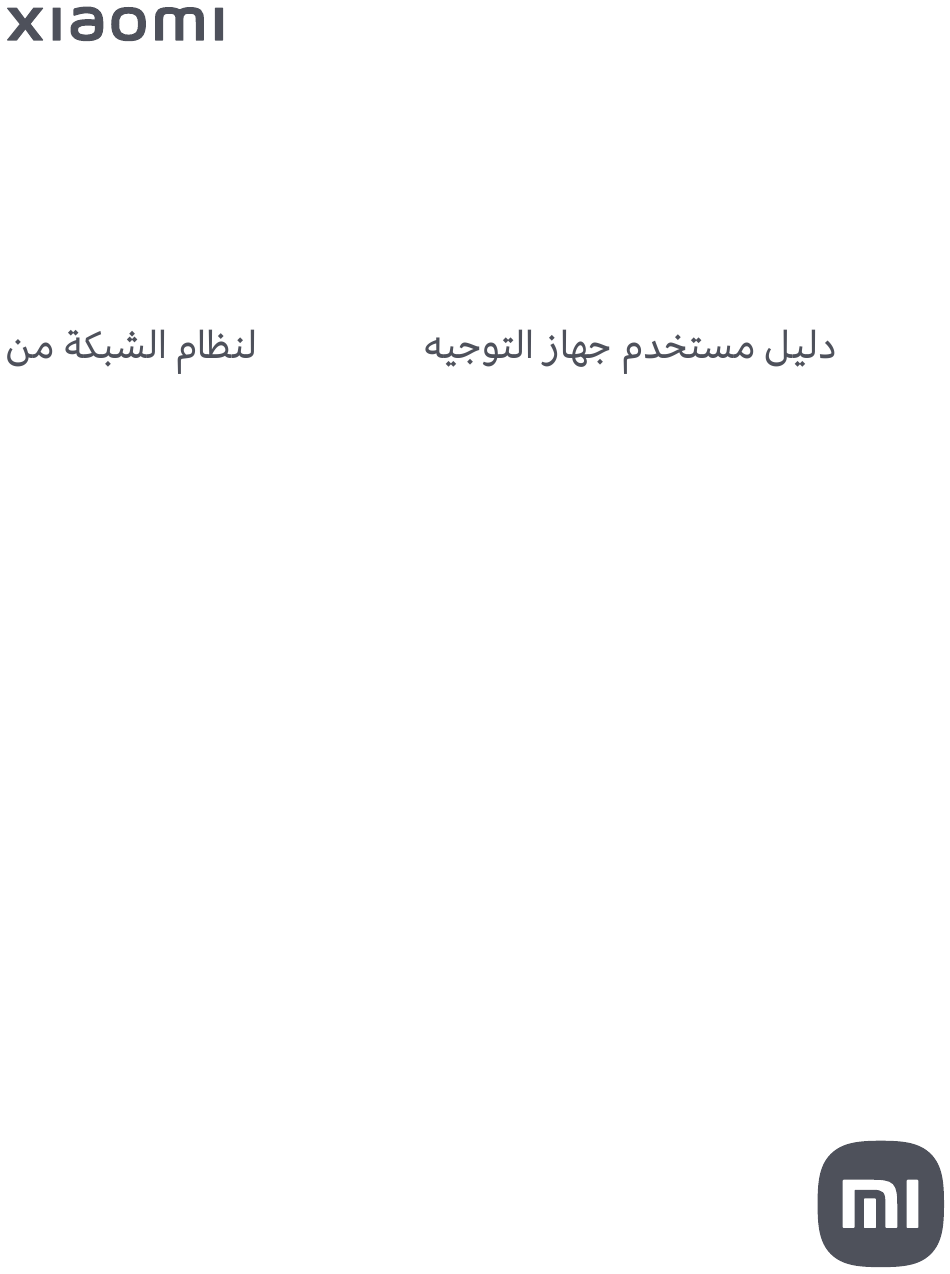

Page 1 Mesh System AC1200 User Manual · 01 Xiaomi AC1200 Mesh 路由器使用說明書 · 15 Manual del usuario del Sistema de malla Xiaomi Mesh System AC1200 · 27 AC1200 Xiaomi · 38 Model /產品型號：RD13...
Page 2 Read this manual carefully before use, and retain it for future reference. ① ② ③ Indicator Press the button to have Mesh networking with routers that support the Xiaomi Mesh function. Mesh/Reset ① Press and hold the button for 5 seconds to restore button the router to its factory settings.
Page 3 Indicator Status Description The router is off or unplugged. Orange The system is starting up or a network connection error occurred. Blinking orange The new added satellite router is connecting to the Mesh networking or the system is updating. Breathing orange The router is started and the system is ready for configuration.
Page 4 Network Configuration Preparation before the Configuration 1. Connect the router to power, then the router will automatically turn on. Note: For the product of 2-pack or 3-pack version, connect any of the routers as the main router to power. Then the router will automatically turn on.
Page 5 Europe (except for Russia). The name of the app displayed on your device should be taken as the default. 2. Open Mi Home/Xiaomi Home app, tap "+" on the upper right, choose the right product model, and then follow the instructions to complete the network configuration.
Page 6 · After completing the network configuration, you can also add the router via the Mi Home/Xiaomi Home app. Refer to the QR code in the Method 1 to download and install the Mi Home/Xiaomi Home app. Make sure that the settings of country or region via the web browser are consistent with the country or region selected in the Mi Home/ Xiaomi Home app;...
Page 7 Xiaomi Mesh Networking Xiaomi Mesh networking technology supports Mesh networking of up to 10 routers to achieve broader network coverage. Follow the steps below to configure the Mesh networking. Note: Go to www.mi.com to check the product model and version of the routers that support the Xiaomi Mesh networking function.
Page 8 Method 2 Mesh Networking via Mesh Button 1. Make sure the main router is connected to the network. Connect the satellite router to power and place it near but at least one meter away from the main router. Otherwise, they will interfere with each other and affect the networking.
Page 9 Method 3 Mesh Networking via Network Cable 1. Make sure the main router is connected to the network. Place the satellite router in the location where you need Wi-Fi coverage and power it on. 2. Connect any port of the satellite router and any port of the main router via a network cable.
Page 10 Troubleshooting Issue Possible Cause and Solution · I cannot access the Make sure the network cable is plugged internet. into the Ethernet port of the modem. If your modem has multiple Ethernet ports, leave the others unplugged. · Turn off your modem and wait for 5 minutes, then turn it on and have a reset.
Page 11 2412 MHz–2472 MHz Wi-Fi 5150 MHz–5250 MHz Hereby, Beijing Xiaomi Electronics Co., Ltd. declares that the radio equipment type RD13 is in compliance with Directive 2014/53/EU, Directive 2011/65/EU and Directive 2009/125/EC. The full text of the EU declaration of conformity is available at the following internet address:...
Page 12 All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
Page 13 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 14 Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Operation in the band 5150-5250 MHz is only for indoor use.
Page 15 Manufacturers authorized EU Representative Name: Xiaomi Technology Netherlands B.V. Address: Prinses Beatrixlaan 582, 2595BM, The Hague, The Netherlands Manufacturer: Beijing Xiaomi Electronics Co., Ltd. Address: Room 802, Floor 8, Building 5, No.15 KeChuang 10th Road, Beijing Economic and Technological Development Zone, Beijing City, China For further information, please go to www.mi.com...
Page 16 產品介紹使用產品前請仔細閱讀本說明書，並妥善保管。 ① ② ③ 指示燈按下該按鈕可與支援小米 Mesh 功能的路由器進行 Mesh/ 重設 ① Mesh 網路連線。按鈕按住該按鈕 5 秒鐘可將路由器還原為原廠設定。 ② 網路連接埠 2 個 10/100/1000 Mbps WAN/LAN 自動感測連接埠。 ③ 電源埠將電源供應器連接至路由器。提示：說明書中的產品、配件、使用者介面等插圖均為示意圖，僅供參考。由於產品的更新與升級，產品實物與示意圖可能略有差異，請以實物為準...
Page 18 網路設定設定前的準備事項 1. 將路由器連接到電源，然後路由器將自動開啟。提示：對於 2 組或 3 組版本的產品，請將任何路由器作為主要路由器連接到電源。然後，路由器將自動開啟。 2. 重新啟動數據機。提示：數據機由您的網際網路服務提供者提供。 3. 將網路線的一端插入路由器的任何連接埠，另一端插入數據機的 LAN 連接埠。提示：如果您使用乙太網路壁式插座而不是數據機，請直接將網路線插入其中。網際網路...
Page 19 方法 1：透過米家 APP 進行網路設定 1. 掃描 QR 碼，下載米家 APP*。或在 Google Play 商店及 Apple App Store 搜尋「米家」，下載並安裝米家 APP。 * 本應用程式在歐洲（俄羅斯除外）稱為「米家」應用程式。您的裝置上顯示的應用程式名稱應作為預設名稱。 2. 打開米家 APP，在頁面右上角點選「+」，選擇正確的產品型號，然後根據 APP 提示方式完成網路設定。智慧住家提示： · 由於米家 APP 的升級與更新，實際操作可能與本產品描述略有差異，請按照目前最新米家 APP 版本指引進行操作。 · 對於 2 組或 3 組版本的產品，盒子內的路由器在出廠時已預先配對。當一個路由器的網路設定完成後，只需開啟其餘路由器的電源，便會...
Page 21 小米 Mesh 網路小米 Mesh 網路技術支援最多 10 個路由器的 Mesh 網路，可實現更廣泛的網路覆蓋。請按照以下步驟設定 Mesh 網路。提示：請前往 www.mi.com 查看支援小米 Mesh 網路功能的路由器的產品型號和版本。方法 1：透過米家 APP 進行 Mesh 網路連線 1. 開啟米家 APP。 2. 前往主要路由器的「Mesh 網路裝置」頁面。 3. 點擊頁面右上角的「+」。 4. 遵循指示完成 Mesh 網路連線。 5. 當 Mesh 網路連線完成後，衛星路由器的指示燈隨即變為藍燈。 Mesh 網路裝置...
Page 22 方法 2：透過 Mesh 按鈕進行 Mesh 網路連線 1. 確保主要路由器已連線至網路。將衛星路由器連接到電源，並將其放置在距離主要路由器至少一公尺的靠近位置。否則，它們會相互干擾，從而影響網路連線。 2. 當衛星路由器開啟電源後，主要路由器會自動發現該裝置，並且主要路由器的指示燈將開始漸變亮起藍燈。提示：如果已設定衛星路由器，請先按下其重設按鈕，將其還原為原廠設定。 3. 按下主要路由器上的 Mesh 按鈕，主要路由器和衛星路由器的指示燈將開始閃爍。完成 Mesh 網路連線大約需要 2 分鐘。 4. 當 Mesh 網路連線完成後，衛星路由器的指示燈隨即變為藍燈。 Mesh/ 重設按鈕網際網路...
Page 23 方法 3：透過網路線進行 Mesh 網路連線 1. 確保主要路由器已連線至網路。將衛星路由器放置在需要 Wi-Fi 覆蓋的位置，然後將其開啟電源。 2. 透過網路線將衛星路由器的任何連接埠連接到主要路由器的任何連接埠。主要路由器和衛星路由器的指示燈將開始閃爍。完成 Mesh 網路連線大約需要 2 分鐘。 3. 當 Mesh 網路連線完成後，衛星路由器的指示燈隨即變為藍燈。數據機...
Page 25 法規遵循資訊運作頻率台灣： 2412 MHz-2462 MHz 5150 MHz-5250 MHz Wi-Fi 香港： 2412 MHz–2472 MHz 5150 MHz–5250 MHz NCC 電磁波警語減少電磁波影響，請妥適使用應避免影響附近雷達系統之操作建議使用時至少距離人體 20 公分 NCC 低功率射頻器材警語取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。端口描述端口類型端口規格網口 10M/100M/1000M...
Page 26 有毒有害物質聲明 Xiaomi AC1200 Mesh 路由器，型號（型式）：RD13 汞多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) －－附件－...
Page 27 本規格名稱 Xiaomi AC1200 Mesh 路由器型號 RD13 規格 12 V 技術 2 個 10/100/1000 Mbps WAN/LAN 自動感測連接埠 2.4 GHz Wi-Fi (300 Mbps)，2 × 2 MIMO 技術 5 GHz Wi-Fi (867 Mbps)，2 × 2 MIMO 溫度 0℃ 至 40℃...
Page 28 ③ Indicador Pulse el botón para generar redes de malla con enrutadores Botón de malla/ que admitan la función de malla de Xiaomi. ① restablecimiento Mantenga presionado el botón durante 5 segundos para restaurar el enrutador a la configuración de fábrica.
Page 30 Configuración de red Preparación antes de la configuración 1. Al conectar el enrutador a la corriente, se encenderá de forma automática. Nota: Para la versión de paquete de 2 o 3 unidades del producto, conecte cualquiera de los enrutadores como enrutador principal a la corriente. El enrutador se encenderá...
Page 31 2. Abra la aplicación Mi Home/Xiaomi Home, presione "+" arriba a la derecha, elija el modelo de producto correcto y luego siga las instrucciones para completar la configuración de la red.
Page 33 Redes de malla Xiaomi La tecnología de redes de malla Xiaomi admite redes de malla de hasta 10 enrutadores para obtener una cobertura de red más amplia. Siga los pasos a continuación para configurar redes de malla. Nota: Vaya a www.mi.com para comprobar el modelo del producto y la versión de los enrutadores que admiten la función de redes de malla...
Page 34 Método 2: Generación de redes de malla a través del botón de malla 1. Asegúrese de que el enrutador principal esté conectado a la red. Conecte el enrutador satelital a la corriente y colóquelo cerca, pero al menos a un metro del enrutador principal. De lo contrario, harán interferencia uno con el otro y esto afectará...
Page 35 Método 3: Generación de redes de malla a través del cable de red 1. Asegúrese de que el enrutador principal esté conectado a la red. Coloque el enrutador satelital en la ubicación donde necesite cobertura de Wi-Fi y enciéndalo. 2. Conecte cualquier puerto del enrutador satelital y cualquier puerto del enrutador principal a través de un cable de red.
Page 37 Mi Home/ Compruebe si el modelo de producto Xiaomi Home. seleccionado es correcto en la aplicación Mi Home/Xiaomi Home. · Si la red de configuración del enrutador se completó a través del navegador web, asegúrese de que la configuración del país o región a través del navegador web sea la...
Page 38 Wi-Fi 5 GHz (867 Mbps), 2 × 2 MIMO Temperatura operativa De 0 ℃ a 40 ℃ Importador: XIAOMI SOFTWARE DE MEXICO, S.de R.L.de C.V RFC: XSM2107156A3 BLVD.LAGO ZURICH 219, PISO 9 902 Y 903, AMPLIACION GRANADA, MIGUEL HIDALGO, CIUDAD DE MEXICO.CP.11529 Fabricante: Beijing Xiaomi Electronics Co., Ltd.
Page 39 ① ② ③ .Xiaomi Mesh ① 10/100/1000 × 2 WAN/LAN ② ③...
Page 42 Mi Home/Xiaomi Home .*Mi Home/Xiaomi Home "Mi Home/Xiaomi Home" Xiaomi Home "+" Mi Home/Xiaomi Home · ·...
Page 43 Wi-Fi .Wi-Fi .192.168.31.1 miwiﬁ.com Wi-Fi Wi-Fi · · .Mi Home/Xiaomi Home Mi Home/Xiaomi Home (QR) Mi Home/Xiaomi Home...
Page 44 Xiaomi Xiaomi www.mi.com .Xiaomi Mi Home/Xiaomi Home .Mi Home/Xiaomi Home "Mesh " "+" Mesh...
Page 46 Wi-Fi...
Page 47 · · · · .8.8.4.4 8.8.8.8 · Wi-Fi .Wi-Fi Wi-Fi · · · WPA2 ·...
Page 48 · .Wi-Fi Wi-Fi · Wi-Fi · .Mi Home/Xiaomi Home Mi Home/Xiaomi Home. · Mi Home/Xiaomi Home.
Page 49 20≥) 2472– 2412 Wi-Fi 23≥) 5250– 5150 Beijing Xiaomi Electronics Co., Ltd. 2011/65/EU 2014/53/EU RD13 .2009/125/EC (2012/19/EU WEEE) CE RF · · · 5250–5150...
Page 50 MIMO 2 × 2 ( 867) 5 Wi-Fi · .(miwiﬁ.com) " " Wi-Fi · Beijing Xiaomi Electronics Co., Ltd. : Room 802, Floor 8, Building 5, No.15 KeChuang 10th Road, Beijing : Economic and Technological Development Zone, Beijing City, China www.mi.com...
