Technaxx TX-183 User Manual

Technaxx TX-183 User Manual

4g kids-watch

Advertisement

Quick Links

Technaxx
* User Manual
®

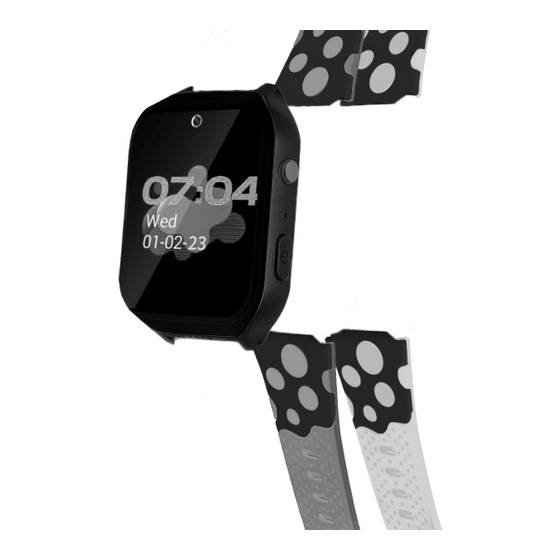

4G Kids-Watch TX-183
with temperature measurement and GPS tracking
Before using the device the first time, read the user manual carefully.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should always be supervised by an adult during use. Not suitable
for children under 3 years of age.
Keep this user manual for future reference or product sharing carefully. Do
the same with the original accessories for this product. In case of warranty,
please contact the dealer or the store where you bought this product.
Enjoy your product * Share your experience and opinion on one of
the well-known internet portals.
1
Model: 4G Kids-Watch, Version 1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TX-183 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Technaxx TX-183

  • Page 1 Technaxx * User Manual ® 4G Kids-Watch TX-183 with temperature measurement and GPS tracking Before using the device the first time, read the user manual carefully. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 2 Contents About ........ 11 Warnings ........3 Tools ........12 Safety instructions ...... 3 Buddies ......12 Features ........4 Exercise reminder ..... 12 Calculator ......12 Product overview ......4 Stopwatch ......12 Technical specifications ....4 Timer ........ 12 Box contents ......
  • Page 3 Warnings Keep packaging parts away from children. They are not part of the ● product. Danger of burns from battery acid! The battery can be life- ● threatening if swallowed. In case of contact with battery acid, rinse the affected area with clean water and consult a doctor immediately! Keep ●...
  • Page 4 Features • Voice and video calls • GPS location and safety zone setup • SOS button • Always be in touch with your child • Free 4G LocaFind app for configuration, calls and tracking • Photo function with fun filters •...
  • Page 5 4G Kids Watch User Manual Charging cable NOTE: Please use Technaxx authorized accessories. CAUTION: Risk of explosion if battery is re-placed by an incorrect type. Do not remove or attempt to remove the non-user-replaceable battery. If you have a problem with the battery, please contact the customer support.
  • Page 6 This device has a rechargeable battery. It must be fully charged before first use. NOTE: Charge the battery of the device every 2–3 month if it is not used! (1) Use only Technaxx authorized magnetic charging cable. (2) Connect the magnetic charging cable as shown on the right.
  • Page 7 1 Charging Port 2 Connect charging cable Download 4G Locafind App 4G LocaFind app is available in Apple and Google app store. Search the App by “4G LocaFind”. Activation procedure (1) Ensure the SIM is active with sufficient voice and data allowance. (2) If necessary, charge the watch.
  • Page 8 4G Kids-Watch Menu Functions and settings of the clock briefly explained. The touch display (1) is mainly used to navigate through the menu. To exit a function or setting, or to return to a previous setting, press either the touch button (3) or power/return button (5).
  • Page 9 A data plan option (recommended: 300-500MB) is required for video calls. Video With the Video function, you can record small, simple videos. These are saved on the watch. Info: However, the videos can only be played back on the watch. There is no possibility to export them. Camera With the Camera function, shoot photos either with or without filters.
  • Page 10 General Here you can manually "Set date and time". However, this is only • necessary in exceptional cases. The current date and time are synchronized via the existing Internet connection. • If you want to change the "Language" this is possible here. Choose between the languages: Cestina, Dansk, Deutsch, English, Espanol, Francais, Italiano, Nederlands, Norsk bokmal, Polski, Portugues, Suomi, Svenska, Русский...
  • Page 11 Menu Choose between Standard, Rotate or Zoom Out to adjust the "Swipe • Effect" to your needs. The swipe effect occurs when swiping and thus switching between functions (icons). • In "Menu mode" you change the number of displayed functions (icons) per page.
  • Page 12 Buddies To add friends, at least one other 4G Kids-Watch from Technaxx is required. A maximum of 4 friends can be added. The prerequisite for this is an inserted SIM card with a booked data tariff. To add, both watches must be at a maximum distance of 20cm from each other.
  • Page 13 Temperature Measure the body temperature and the skin temperature. The body temperature measurement can only be • started when the watch is put on the wrist. If the watch is not worn on the wrist, you will see the prompt "Put on watch"...
  • Page 14 4G LocaFind App Functions and settings of the app briefly explained. Tracker (Home page) The home page shows you the information about the selected tracker/watch. From here it is possible to make settings for the watch, as well as perform interactions with the watch. Chat, location (safety zone, playback), call (mobile) and under More video call or voice call (Internet), as well as the photo album.
  • Page 15 Message The item Message is divided into Alam and Message. Alarm: Under Alarm will find • notifications which you can also receive as push notifications. Entering/leaving the security zone • The device needs to be charged • because the battery is low. •...
  • Page 16 Me (Account settings) Under Me you will find the data of your account • Profile: Click on the profile picture (robot). A new page will open. Profile picture: Change your profile • picture. Username: Enter a username. This will • be displayed on the clock.
  • Page 17 Child information (Tracker) Entering the data of the tracker / child. To update, change or add data click on the profile picture (robot). Name: Freely selectable, should • specified to distinguish different trackers. Mobile number of the tracker: Enter the •...
  • Page 18 Tracker list In the tracker list you will find all trackers / watches that you have added to your 4G LocaFind account. Overview: • The online / offline status of the watch is displayed. Green = Online; Gray = Offline Set Default / Current Tracker: Shows •...
  • Page 19 Access Manage the people who have access to the watch. Only the administrator can delete members, change the relationship or give administrator rights to another person. Info: Only one person can be an administrator! More Under More you will find "General functions" and "Other functions".
  • Page 20 notifications when the battery is low. Alarm Clock: Set up to 5 different alarms for your child. • Pedometer: Enable the pedometer to have the watch count the steps • your child has taken. Phone book: Open the option to add phone numbers that are allowed •...
  • Page 21 The last transmitted location is displayed on the map. Pressing on the map opens the real-time tracking. The symbols, from top to bottom, on the right side in the picture have the following meaning: • Battery level of the watch •...
  • Page 22 Location Clicking on the location opens the map. Vital values On the home page of the watch (Tracker), you can see the transmitted vital values of the watch. If this is not the case, activate the corresponding functions under More. Steps = Step counter •...
  • Page 23 Heart rate By clicking on Heart rate on the home page, you open the curve view of the heart rate readings. In addition, the maximum, average and minimum heart rate are displayed. Important: The heart rate is only a measured value and may differ from the actual value! It serves only as a reference value.
  • Page 24 Body temperature By clicking on Body temperature on the home page, you open the curve view over the measured values of the body temperature. In addition, the maximum and minimum body temperature are displayed. Important: The body temperature is only a measured value and may differ from the actual value! It serves only as a reference value.
  • Page 25 Economic Area. A "Declaration of Conformity" in accordance with the applicable directives and corresponding standards has been issued by Technaxx Deutschland GmbH & Co KG. This can be requested at the address www.technaxx.de/ (in the bottom bar "Declaration of Conformity").
  • Page 26 Cd = cadmium, Hg = mercury, Pb = lead. Return your product to your collection point with the fully discharged battery installed inside! Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany 4G Kids-Watch Model: 4G Kids-Watch, Version 1.1...
