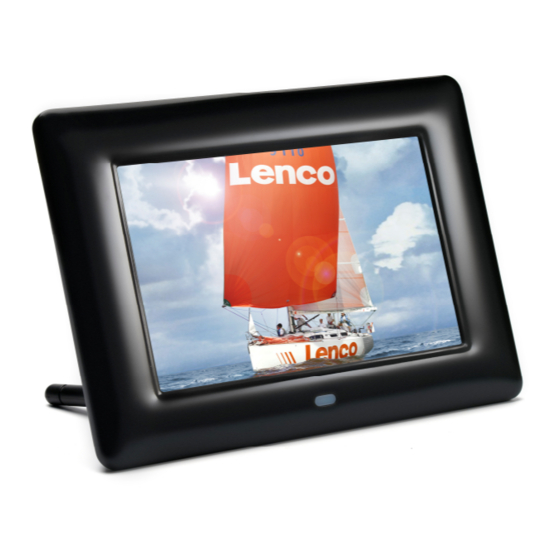

LENCO DF-705 - V1.0 User Manual
  1. Manuals
  2. Brands
  3. LENCO Manuals
  4. Digital Photo Frame
  5. DF-705 - V1.0
  6. User manual

LENCO DF-705 - V1.0 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DF-705
User's Manual
For information and support, www.lenco.eu
English V1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-705 - V1.0 and is the answer not in the manual?

Questions and answers

Related Manuals for LENCO DF-705 - V1.0

Summary of Contents for LENCO DF-705 - V1.0

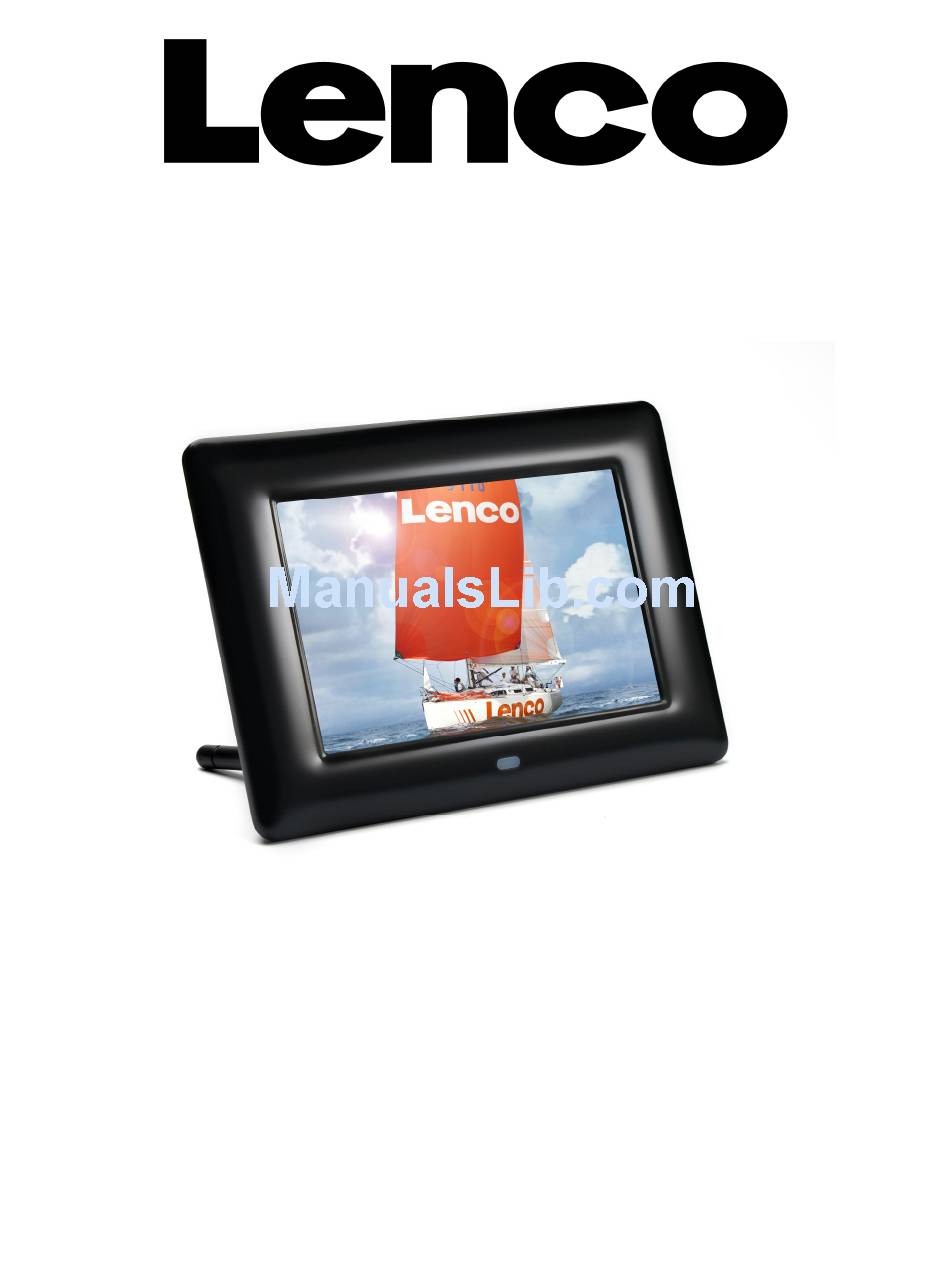

  • Page 1 DF-705 User’s Manual For information and support, www.lenco.eu English V1.0...
  • Page 2 Cautions Precautions and maintenance ● For indoor use only ● To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation. ● To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
  • Page 3 Introduction: Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame.

  • Page 4: Table Of Contents

    CONTENTS 1. Product Diagram ······················································································ 4 1.1 Remote Control··············································································· 5 1.2 Back Side of Frame ········································································ 5 1.3 left Side of Frame············································································ 5 2. Installing & Replacing the Battery ···························································· 5 3. Getting Started ························································································· 6 4. Operating Instruction················································································ 6 4.1 Picture Mode···················································································...

  • Page 5: Product Diagram

    1 Product Diagram 1.1 Remote Control 1. POWER ─ Power On/Off 2. SETUP ─Go directly to Setup mode. 3. ROTATE ─In the pause state of single picture, press ROTATE to revolve the picture 90 ° i n counterclockwise every time. ─Functional selection button from the bottom to the top cursor.

  • Page 6: Back Side Of Frame

    1.2 Back Side of Frame 1.Power on/off 2.UP 1.3 Left Side of Frame 3.Play/Pause/OK 4. Right 5. Left 6.Down 7.Menu/Exit 1.3 left Side of Frame 1.SD/SDHC/MMC 2. USB 3. DC IN 2. Installing & Replacing the Battery Place the upside of the remote control down, press down on the ridged area of the battery cover and pull towards you to remove the tray.

  • Page 7: Getting Started

    3. Getting Started 3.1 Extend the digital photo frame bracket on the back of the frame to the widest position for greatest stability, and then plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into the right side the frame.

  • Page 8: Setup

    In the thumbnail mode, press select “Rotate”, press OK to access to rotate mode, use to choose the picture you want to rotate, then press OK to operate. Press Reset to back to the default and press Return back to the first picture.

  • Page 9: Setup Menu-Display Setup

    5.3 Setup Menu-Display setup Brightness (Normal/Bright/Soft) Contrast (-4/-3/-2/-1/0/+1/+2/+3/+4) TFT Brightness (-7/-6/-5/-4/-3/-2/-1/0/+1/+2/+3/+4/+5/+6/+7) TFT Contrast (-7/-6/-5/-4/-3/-2/-1/0/+1/+2/+3/+4/+5/+6/+7) TFT Saturation (-7/-6/-5/-4/-3/-2/-1/0/+1/+2/+3/+4/+5/+6/+7) 5.4 Setup Menu-custom setup OSD Language: (English,French,German,Italian,Spanish Portuguese,Dutch,Polish,Chinese) Repeat mode(off/one/folder/all) USB Source(SD/MMC, MS, XD) Default(read) 5.5 Setup Menu-Exit 6.Stand Instruction Extend the bracket from the slot of the digital photo frame ， r otate the bracket until it is locked in place ,and then revolve the bracket to choose standing horizontally or vertically.

  • Page 10: Technical Specifications

    7. Technical Specifications Adapter: Input AC 100-240V 50/60HZ Output DC 12V/2A Picture Format: JPEG Memory Cards: SD/MMC/MS USB:USB Host Screen Parameter: Screen Size: 7inch TFT Resolution : 800*480 Pixel Contrast: 300:1 Aspect Ratio: 16:10 Brightness: 300cd/m2 Response Time: 20ms Working Temperature: 0℃~40℃, Humidity: 10-85% 8.Troubleshooting Guide If you are having problems with your player, please consult both this guide and manual.
