Weight Limit:1000LBS / 454KG

KT - 2024/6/6

4675349MK (Ivory Linen)

4677449MK (Whiskey Gray Linen)

Thank you for purchasing from DHP!

Questions, concerns, missing parts?

CONTACT OUR CUSTOMER SERVICE DEPARTMENT

BEFORE RETURNING PRODUCT TO THE RETAILER.

If parts are missing or damaged, we will gladly ship your

replacement parts free of charge.

Visit www.dhpfurniture.com/eng/replacement-parts

or call Toll-Free 1-800-267-1739

You can also chat with us at www.dhpfurniture.com

Date of Purchase

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY

INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

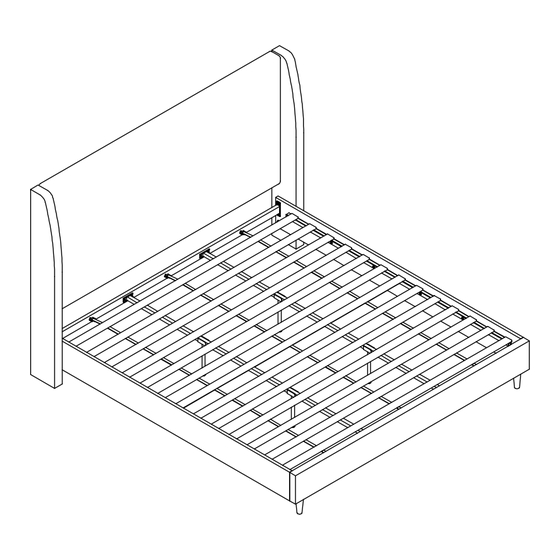

Upholstered Bed

King

Lot Number

(TAKEN FROM CARTON)

B344675349MK00KT

Need help?

Do you have a question about the 4675349MK and is the answer not in the manual?

Questions and answers

Summary of Contents for Dorel Home Products 4675349MK

Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B344675349MK00KT KT - 2024/6/6 2024 Dorel Home Products All Rights Reserved...
Page 2 Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
Page 3 PARTS...
Page 4 Cross Brace Support Leg Wooden Slats 1 PC 1 PC 4 PCS 1 PC 1 PC PART NUMBERS 4675349MK 4677449MK PART Each part has a unique part number. (Ivory Linen) (Whiskey Gray Linen) LABELS Please reference the appropriate part 4675349MK010KT...
Page 5 PARTS LIST - BOX 1/2 Foot Bracket 1 PC 2 PCS 2 PCS PART NUMBERS 4675349MK 4677449MK PART (Ivory Linen) (Whiskey Gray Linen) Each part has a unique part number. LABELS Please reference the appropriate part T393090 T393090 number when contacting customer...
Page 6 Center Rail Side Panel Side Panel 1 PC 2 PCS 1 PC 1 PC PART NUMBERS 4675349MK 4677449MK Each part has a unique part number. PART Please reference the appropriate part (Ivory Linen) (Whiskey Gray Linen) LABELS number when contacting customer...
Page 7 The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page. Ratchet Wrench 1 PC Hardware Pack 4675349MK (Ivory Linen) HP#:24675349MK0KT 4677449MK (Whiskey Gray Linen)
Page 8 Step 1 Attach Z1 x 2 to A1 and A2 with Fully tighten all the bolts in this step.
Page 9 Step 2 Do not completely tighten the BOLTS leave half of the thread exposed. Attach Z x 2 to B. Screw into B as illustrated, making sure to leave half of the threads exposed.
Page 10 Step 3 Attach T to D with Attach S to C with...
Page 11 Step 4 Hang C and D on B as illustrated. Don't completely tighten the bolts until STEP 11 is complete.This will help with alignment.
Page 12 Step 5 Attach L and D to A1 with & & Attach L and C to A2 with & & Slot should be facing inside of the bed.
Page 13 Step 6 Attach A to A1 and A2 with...
Page 14 Step 7 Stick N to the back of A with Velcro as illustrated.
Page 15 Step 8 Attach J x 2 to F with...
Page 16 Step 9 Attach subassemblies ( F & J x 2 ) from previous step to L and B with...
Page 17 Step 10 Velcro towards the top! Attach E x 2 to C/D with X 12...
Page 18 Step 11 Attach K to E x 2 and F x 2 with Fully tighten all bolts.
Page 19 Step 12 12.1 Attach one end of P to L by inserting the tab into the slot and turn it to the level position. 12.2 Spread the slats P along the bed with equal spacing, engage the velcro at the end of slat with the counter part on E. 12.1 12.2...
Page 20 Step 13 Attach the other end of P to B by inserting the tab into the slot and turn it to the level position.
Page 21 CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
Page 22 Preguntas, inquietudes, partes que faltan? CONTACTE 4675349MK (Lino de marfil) NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. 4677449MK (Fabricaci n a base de) Si le faltan piezas o las que se incluyen est n da adas, con mucho Cama Tapizada gusto le enviaremos sus piezas de reemplazo sin cargo extra.
Page 23 Tambi n confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la secci n en ingl s. N MERO DE PIEZAS 4675349MK 4677449MK ETIQUETAS DESCRIPCI N (Lino de marfil)
Page 24 Instrucciones Limite de peso - Cama : 1000LBS / 454KG Paso 1 Una Z1 x 2 con A1&A2 con Consejos tiles Luego apriete completamente todos los pernos en este paso. Paso 2 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para Una Z x 2 con B.
Page 25 4675349MK (Ivoire lin) Des questions, des pr occupations ou des pi ces manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE 4677449MK (Whiskey lin gris) AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. Si des pi ces sont manquantes ou endommag es, nous Lit Rembourr e exp dierons volontiers vos pi ces de rechange gratuitement.
Page 26 (illustrations disponibles dans la section en anglais). LISTE DES PI CES 4675349MK 4677449MK TIQUETTE DESCRIPTION (Ivoire lin) (Whiskey lin gris)
Page 27 Instructions Limite de Poids - Lit : 1000LBS / 454KG tape 1 Attacher Z1 x 2 A1 et A2 avec Conseils utiles Compl tement tous les boulons dans cette tape. tape 2 D placez votre nouveau mobilier avec soin, nous recommandons deux Attacher Z x 2 personnes pour soulever et transporter le mobilier vers son nouvel tape 3...
