Dorel Home Products 4603349N Instruction Booklet

Upholstered bed king
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Weight Limit:500 Lb / 227 Kg
KT. - 2022/6/13
© 2022 Dorel Home Products All Rights Reserved
4603349N (Ivory Velvet)
4604449N (Light Grey Velvet)

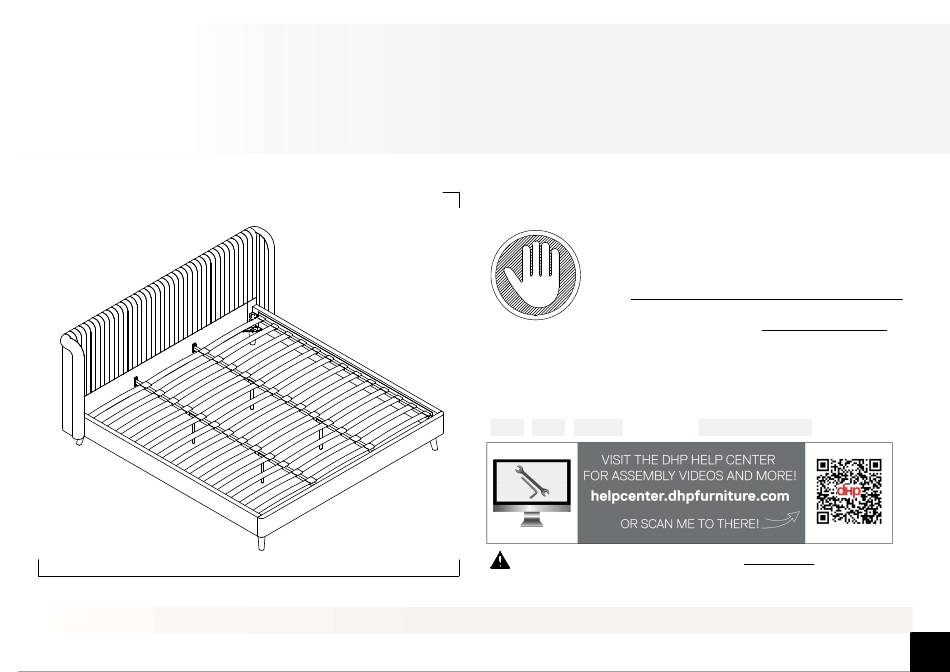

Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Upholstered Bed
King
Lot Number
(TAKEN FROM CARTON)
B344603349N00-KT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4603349N and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products 4603349N

Summary of Contents for Dorel Home Products 4603349N

  • Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B344603349N00-KT KT. - 2022/6/13 © 2022 Dorel Home Products All Rights Reserved...

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship ● Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
  • Page 3 PARTS...
  • Page 4 39 PCS 2 PCS 2 PCS 1 PC Single Slat Cap Double Slat Cap 26 PCS 26 PCS 4 PCS PART NUMBERS 4603349N 4604449N PART (Ivory Velvet) (Light Grey Velvet) LABELS • Each part has a unique part number. T1021830 T1021860...
  • Page 5 • Before throwing any packaging, please Center Rail verify all contents and make sure you 2 PCS have received all the parts listed above! PART NUMBERS 4603349N 4604449N PART (Ivory Velvet) (Light Grey Velvet) LABELS T1021700 T1021780...

  • Page 6: Hardware List

    4 PCS Hardware Pack Please do not completely tighten all the hardware, until the entire assembly is complete, unless 4603349N (Ivory Velvet) otherwise indicated in the step-by-step instructions. HP#:T4603349N-00 4604449N (Light Grey Velvet) The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
  • Page 7 Step 1 ❷ Screw Bolt onto Headboard A, ❶ Screw Bolt onto Footboard B . Do not completely tighten the bolts, leave half of the threads exposed.
  • Page 8 Step 2 Attach Side Rail E to Side Panel C with Bolt Repeat the same step for remaining parts Side Panel C / Side Rail E. The slat holes on part E should be facing upward. These two holes should be located at the bottom side. X 14...
  • Page 9 Step 3 Attach Bracket S and Bracket T to Side Panel C with Bolt Repeat the same step for the other subassembly Side Panel C / Bracket S / Bracket T . X 12...
  • Page 10 Step 4 Hang Side Panel C x 2 on Headboard A & Footboard B as illustrated, don't fully tighten the bolts until STEP 8 is complete.
  • Page 11 Step 5 Attach Leg Z x 4 to Headboard A, Footboard B and Side Panel C with ❶ Bolt don't completely tighten the bolts until STEP 8 is complete. X 16...
  • Page 12 Step 6 6.1 Open the non woven fabric window at the back of Part Headboard A. 6.2 Attach Side Board A1 and Side Board A2 to Headboard A with Bolt ❸ Fully tighten Bolt in this step.
  • Page 13 Step 7 Attach Support Leg L X 2 to Center Rail F with Bolt Repeat the same procedure for remaining part Support Leg Lx 2 and Center Rail F.
  • Page 14 Step 8 Attach Center Rail F x 2 to Headboard A and Footboard B with Bolt Then properly tighten all the bolts.
  • Page 15 Step 9 Do Not insert caps Y before Step 10. 9.1 Insert Wooden Slats P1 into Single Slat Cap X; 9.2 Press Single Slat Cap X into Side Rail E, repeat the same procedure for the opposite side of the bed with a new Wooden Slats P1 and Single Slat Cap X .
  • Page 16 Step 10 10.1 Insert Double Slat Cap Y x 2 onto the free end of both Wooden Slats P1 assembled in previous step. Take a new Wooden Slats P1 and insert each end into Double Slat Cap Y x 2; 10.2 Press Double Slat Cap Y x 2 SIMULTANEOUSLY into Center Rail F x 2 as illustrated.

  • Page 17: Helpful Hints

    Helpful Hints CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location.

  • Page 18: Información Sobre La Garantía

    4603349N (Marfil gris) ¡NO LO REGRESE A LA TIENDA! 4604449N (Rosa Terciopelo gris) Si le faltan piezas o las que se incluyen están dañadas, con mucho gusto le enviaremos sus piezas de reemplazo sin Cama Tapizada cargo extra. King Visite www.dhpfurniture.com/spa/replacement-parts...
  • Page 19 Antes de deshacerse de las cajas de cartón, asegúrese de que estén vacías. También confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la sección en inglés. NÚMERO DE PIEZAS 4603349N 4604449N ETIQUETAS DESCRIPCIÓN (Marfil gris)

  • Page 20: Consejos Útiles

    Instrucciones Paso 1 ❷ ❶ Limites de peso - Cama : 500 Lb / 227 Kg Una los con A, Una los con B. Paso 2 Consejos útiles Una E con C con los . Repita el paso para las otras partesC/E. Paso 3 •...

  • Page 21: Informations Sur La Garantie

    4603349N (Ivoire gris) NE PAS RETOURNER CE PRODUIT AU MAGASIN ! 4604449N (Rose Velours gris) Si une pièce est manquante ou endommagée, nous vous expédierons avec plaisir vos pièces de remplacement Lit Rembourré gratuitement. Visitez www.dhpfurniture.com/fre/replacement-parts Très grand lit deux places...
  • Page 22 à l'assemblage en les comparant avec le tableau des pièces (illustrations disponibles dans la section en anglais). LISTE DES PIÈCES 4603349N 4604449N ÉTIQUETTE DESCRIPTION (Ivoire gris) (Rose Velours gris) DES PIÈCES...

  • Page 23: Conseils Utiles

    Instructions Étape 1 ❷ ❶ Limite de Poids - Lit : 500 Lb / 227 Kg Attacher à A, Attacher à B. Étape 2 Conseils utiles Attacher E à C avec . Répétez la même étape pour les autres C/E. Étape 3 •...
