Dorel Home Products 4682619 Manual

Bunk bed twin
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Weight Limit : 200 lbs / 91 kg (Top and Bottom)
Y.W. - 2023/11/06
2023 Dorel Home Products All Rights Reserved
4682619 (Navy Blue),4682419 (Light Gray)
Thank you for purchasing from DHP!
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE
DEPARTMENT BEFORE RETURNING PRODUCT
TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Lot Number (TAKEN FROM CARTON)
B34468261900-100063

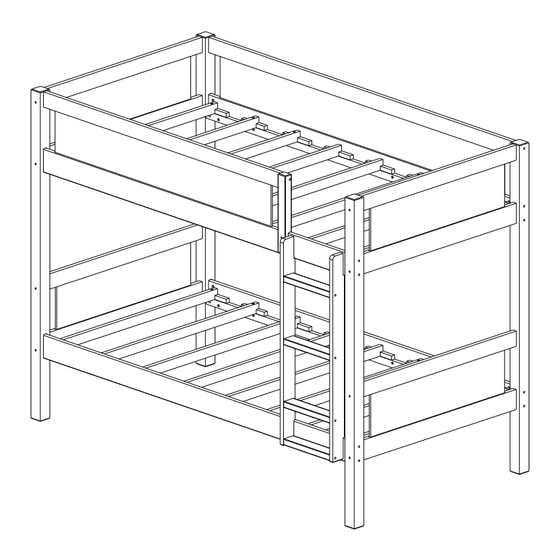

Bunk Bed
Twin / Twin
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4682619 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Home Products 4682619

Summary of Contents for Dorel Home Products 4682619

  • Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Y.W. - 2023/11/06 B34468261900-100063 2023 Dorel Home Products All Rights Reserved...

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly ● Work in a spacious area and near where the unit will be used, preferably on a DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and date of original purchase from authorized retailers.
  • Page 3 WARNINGS - Bunk Bed: Twin / Twin ● STRANGULATION HAZARD - Never attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts and jump ropes. ●...
  • Page 4 PARTS...

  • Page 5: Parts List

    PARTS LIST POST POST POST TOP CROSS 2 PCS 1 PC 1 PC 4 PCS SIDE RAIL BOTTOM CROSS PANEL SIDE RAIL 4 PCS 4 PCS 1 PC 1 PC SIDE RAIL SIDE RAIL LONG GUARDRAIL LONG GUARDRAIL 1 PC 1 PC 1 PC 1 PC...
  • Page 6 PARTS LIST SHORT GUARDRAIL SHORT GUARDRAIL GUARDRAIL POST LADDER END 1 PC 1 PC 1 PC 1 PC LADDER END LADDER STEP SLAT SLAT 1 PC 4 PCS 4 PCS 12 PCS...
  • Page 7 PART UNMBERS PART 4682619 4682419 LABELS (Navy Blue) (Light Gray) T1034610 T1034810 T1034620 T1034820 T1034630 T1034830 T1034640 T1034840 Each part has a unique part number. Please T1034650 T1034850 reference the appropriate part number when T1034660 T1034860 contacting customer service for replacement parts.

  • Page 8: Hardware List

    28 PCS 2 PCS 2 PCS ❾ Hardware Pack 4682619 (Navy Blue), HP#: T4682619-00 4682419 (Light Gray) Please do not completely tighten all the hardware, until the entire assembly ALLEN KEY is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 9 Step 1 ❻ Warning label side face inward ❸ One of the top crosses D has a label on it, Use it during this step. Insert F into each hole of the bottom cross E as shown below and push down until firmly in place. Attach the top crosses D to the E.
  • Page 10 Step 2 ❻ ❸ Repeat the previous step to assemble the other set of headboards. Be sure to pair the posts A & C for one pair. ❻ ❸ ❸ ❸ ❻ ❸...
  • Page 11 Step 3 ❸ ❻ Insert wood dowels ❻ into each end of the guardrails K. Insert barrel nuts ❺ into side rails G, H, I & J as shown below. Insert L into each hole of the side rails H as shown below and push down until firmly in place.
  • Page 12 Step 4 Insert N into each hole of the side rails G as ❻ shown below and push down until firmly in place. Insert wood dowels ❻ into each end of the guardrails M. Attach the guardrail M to posts A & O and secure ❸...
  • Page 13 Step 5 Insert wood dowels ❻ into the ends of the ladder steps Rx4. Attach ladder ends P & Q to ladder steps R with wood joint connectors ❷. ❷ ❻ ❷ ❷ ❻...
  • Page 14 Step 6 Attach the ladder to the side rails G & I with wood joint connector ❷ as shown. ❷ ❷...
  • Page 15 Step 7 Insert slats with wood dowel Sx4 into the center slots of the side rails G & H and I & J as shown. Attach slats without wood dowel Tx12 onto side rails G & H and I & J of the bunk with flat head screws ❹.

  • Page 16: Helpful Hints

    Helpful Hints CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the ● Move your new furniture carefully, with two maximum weights indicated may result in instability or cause possible injury. people lifting and carrying the unit to its new location.
  • Page 17 Preguntas, inquietudes, partes que faltan? CONTACTE A 4682619 (Azul Marino), 4682419 (Gris Claro) NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. Si le faltan piezas o las que se incluyen están dañadas, con mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra.
  • Page 18 PRECAUCIÓN - Litera : Individual / Individual ● PELIGRO DE ESTRANGULAMIENTO - Nunca cuelgue o ate en la cama artículos que no estén diseñados para usarlos con la cama; por ejemplo, pero no limitado a esto, ganchos, cinturones y cuerdas de saltar. ●...
  • Page 19 Partes Paquete de componentes Piezas de reemplazo, 4682619 (Azul Marino), visite www.dhpfurniture.com/spa/replacement-parts #de paquete: T4682619-00 4682419 (Gris Claro) IMPOTRTANTE: La lista de números de piezas que aparece a continuación es exclusiva de su producto. Por favor, manténgalo Nota: Por favor no apriete completamente los pernos hasta que a mano cuando solicite piezas de repuesto.
  • Page 20 NÚMERO DE PIEZAS ETIQUETAS 4682619 4682419 DESCRIPCIÓN DE PIEZAS (Azul Marino) (Gris Claro) POSTE T1034610 T1034810 POSTE T1034620 T1034820 POSTE T1034630 T1034830 CRUZ SUPERIOR T1034640 T1034840 CRUZ INFERIOR T1034650 T1034850 PANEL T1034660 T1034860 BARANDILLA LATERAL T1034670 T1034870 BARANDILLA LATERAL T1034680...
  • Page 21 Instrucciones Paso 1 Una de las cruces superiores D tiene una etiqueta, utilícela durante este Paso 5 Inserte tacos de madera ❻ en los extremos de los peldaños de la paso. Inserte F en cada orificio de la cruz inferior E como se muestra a continuación y empuje hacia abajo hasta que quede firmemente en su escalera Rx4.Fije los extremos P y Q de la escalera a los peldaños R lugar.

  • Page 22: Consejos Útiles

    Límites de peso: 200 lbs / 91 kg por piso Consejos útiles ● Mueva sus muebles nuevos con cuidado, se requiere de dos personas para levantar y trasladar su producto a su nueva ubicación. ● Sus muebles se pueden desmontar y volver a ensamblar en caso de mudanza.

  • Page 23: Avant De Commencer L'assemblage

    Des questions, des préoccupations ou des pièces manquantes? CONTACTEZ NOTRE SERVICE À LA CLIENTÈLE AVANT DE 4682619 (Bleu Marine), 4682419 (Gris Clair) RETOURNER LE PRODUIT AU DÉTAILLANT. Si des pièces sont manquantes ou endommagées, nous expédierons volontiers vos pièces de rechange gratuitement.
  • Page 24 AVERTISSEMENT - Lits Superposés : Une place / Une place ● RISQUE D'ÉTRANGLEMENT - Ne jamais placer ou suspendre des articles sur aucune partie du lit superposé qui ne sont pas conçus pour être utilisés avec ce lit; par exemple, mais n'étant pas limité à, des crochets, des ceintures, et des cordes à sauter. ●...
  • Page 25 Pièces Quincaillerie Pour des pièces de rechange, visitez: 4682619 (Bleu Marine), www.dhpfurniture.com/spa/replacement-parts #de paquet: T4682619-00 4682419 (Gris Clair) IMPORTANT: La liste des références ci-dessous est propre à votre produit. Remarque: Sauf indication contraire dans les instructions, ne Veuillez l'avoir sous la main lorsque vous appelez pour des pas resserrer complètement les vis et les boulons, jusqu'à...

  • Page 26: Liste Des Pièces

    LISTE DES PIÈCES ÉTIQUETTE 4682619 4682419 DESCRIPTION DES PIÈCES (Bleu Marine) (Gris Clair) POTEAU T1034610 T1034810 POTEAU T1034620 T1034820 POTEAU T1034630 T1034830 CROIX SUPÉRIEURE T1034640 T1034840 CROIX DU BAS T1034650 T1034850 PANNEAU T1034660 T1034860 GARDE-FOU T1034670 T1034870 GARDE-FOU T1034680 T1034880...
  • Page 27 Instructions Étape 1 l'échelle Rx4.Fixer les extrémités de l'échelle P et Q aux marches de L'une des croix supérieures D porte une étiquette, utilisez-la au cours de l'échelle R à l'aide de connecteurs de joints en bois ❷. cette étape. Insérez F dans chaque trou de la croix inférieure E comme indiqué...

  • Page 28: Consejos Utiles

    Limite de Poide: 200 lbs / 91 kg chaque étage Consejos utiles ● Déplacez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel emplacement. ● Votre mobilier peut être démonté et réassemblé pourfaciliter les déménagements.
