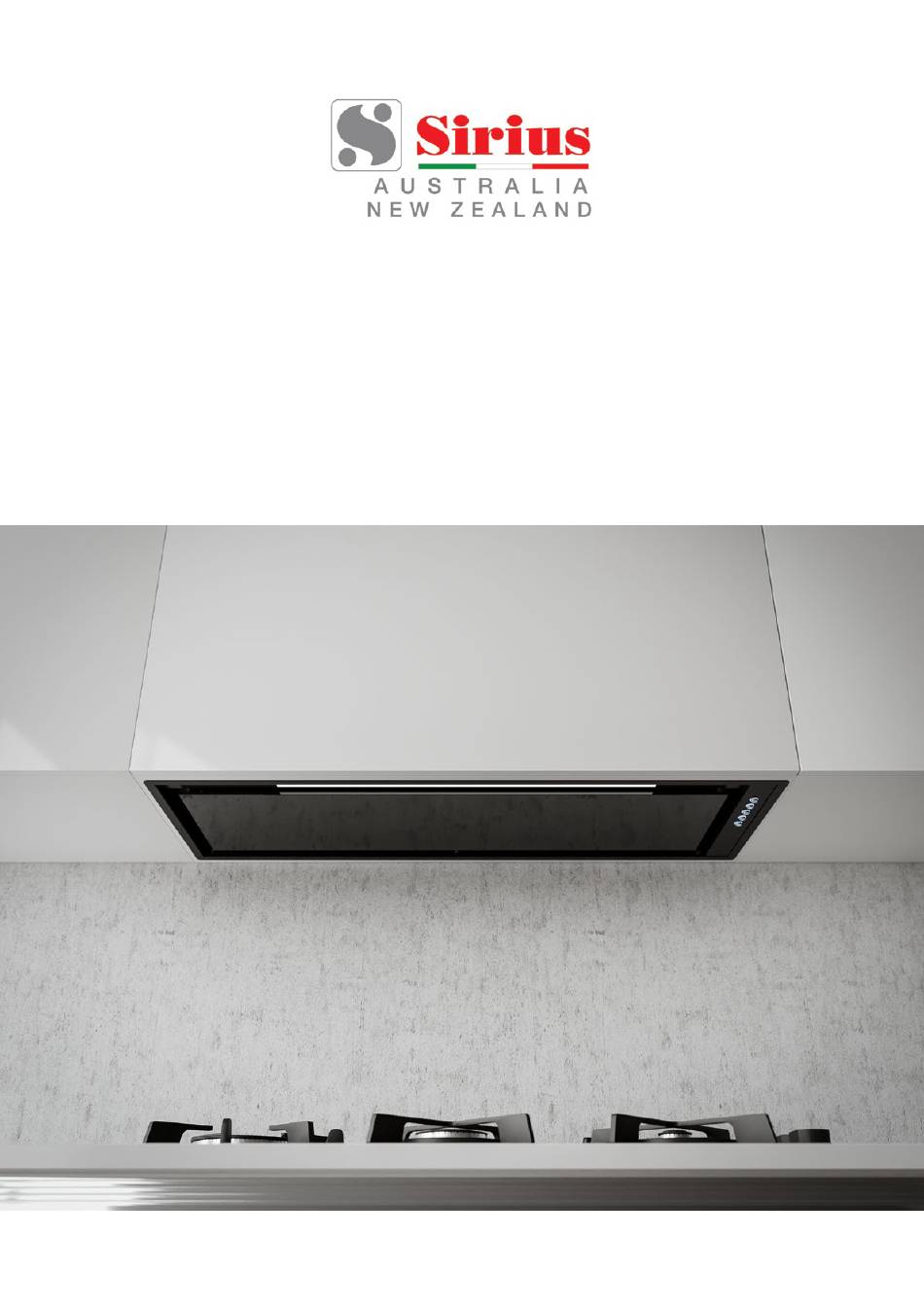

Congratulations on your purchase!
Thank you for choosing a Sirius product.

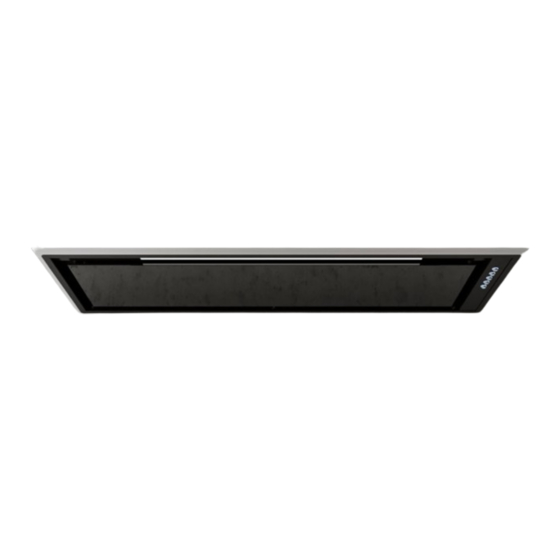

SL927 HEATED MODELS
RANGEHOOD INSTALLATION INSTRUCTIONS
SL927ELHD85
SL927ELH85
SL927ELHD52
SL927ELH52
siriusaustralia.com.au
EAN#9351116006112
EAN#9351116006105
EAN#9351116006129
EAN#9351116006099
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sirius Satellite Radio SL927 Series
Summary of Contents for Sirius Satellite Radio SL927 Series
- Page 1 Congratulations on your purchase! Thank you for choosing a Sirius product. SL927 HEATED MODELS RANGEHOOD INSTALLATION INSTRUCTIONS SL927ELHD85 EAN#9351116006112 SL927ELH85 EAN#9351116006105 SL927ELHD52 EAN#9351116006129 SL927ELH52 EAN#9351116006099 siriusaustralia.com.au...
- Page 2 BEFORE YOU INSTALL LINE DRAWINGS DUCTING AND CLEARANCES INSTALLING THE RANGEHOODS USING THE RANGEHOOD / MAINTENANCE REPLACING THE LED LIGHT WIRING DIAGRAM WARRANTY INFORMATION...
- Page 3 BEFORE YOU INSTALL - DUCTING INFORMATION Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts. Flexible ducting is not permitted under any circumstances.
- Page 4 LINE DRAWINGS SL927ELH52 SL927ELH85 SL927ELHD52 SL927ELHD85...
- Page 5 DUCTING AND CLEARANCES RANGEHOOD VS COOKTOP SIZE WARNING Min. 600mm - Max. 700mm for induction cooktops. Min. 650mm - Max. 750mm gas cooktops. If the rangehood is positioned above the max height recommended, warranty may be compromised as performance of the rangehood will be affected. Measurement is taken from the top of the trivets to the underside of the hood.
- Page 6 If the rating label in the rangehood shows the symbol , the appliance is built in class II° and it does not need any earth connection. If the rating label in the rangehood does not show the symbol , the appliance is built in class I° and it needs the earth connection.
- Page 7 SL927 INSTALLATION Eave vent - EASYEAVE 150/200 WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. NOTE Before installing the appliance, make sure that none of the parts are damaged in any way. In (Fig.
- Page 8 To install the appliance please respect the follow NOTE instructions: • The appliance must be installed by qualified • To make it easier to install the rangehood inside technicians, or where possible use a Sirius the cabinet, it is recommended to remove the recommended installer.
- Page 9 USING THE RANGEHOOD WARNING SL927 (fig. 6) A: Heated glass on/off The rangehood is quite heavy, so two people B: Light on/off switch will be needed for installation. C: Motor switch on speed 1/off - (low/simmer) 1. To install the appliance, adjust the position of the D: Motor switch on speed 2/off - (general cooking) adjustable side-springs using the supplied screws E: Motor switch on speed 3/off - (high power)
- Page 10 COLOUR TEMPERATURE SETTING Make sure that the lights and the fan are off. Holding down the 0/1 key (Fig.6 C) will turn on the light at the previously set colour temperature. Press and hold the Light key (Fig.6 B) to change the colour tempera- ture.
- Page 11 REPLACING THE LED STRIP ON THE SL927 2. Take out the LED light from its connector and 1. Before replacing the LED light, switch off the replace. (Fig 7c - d) rangehood, then - by using appropriate tools - • To find the correct LED light, please contact Sirius remove the LED light from its slot.
- Page 12 WIRING DIAGRAM...
- Page 14 (Fig. 2c)
- Page 15 WARRANTY INFORMATION Dear Customer, Thank you for choosing this Sirius Rangehood. We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring that our customers receive the best possible after-sales care. The Sirius ‘Protection Plan’...
- Page 16 Your Warranty Register now to qualify. Terms & Conditions This warranty will not apply where: Division or travel costs for a technician or The fault is caused by accident, Authorised Service Agent shall be for the misuse, an infestation of insect account of the Purchaser.
