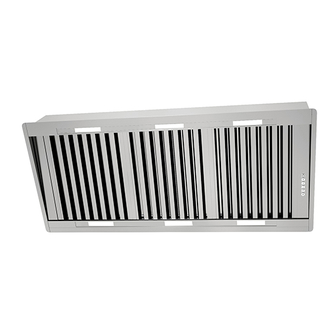

- Page 1 Congratulations on your purchase! Thank you for choosing a Sirius product. SL920 FRESCO series UNDERMOUNT RANGEHOOD INSTALLATION INSTRUCTIONS SL920 FRESCO 850 EAN #9351116002022 SL920 FRESCO 1200 EAN #9351116002039 SL920 FRESCO 1500 EAN #9351116002046 www.siriusbrand.com...
- Page 2 CAUTION BEFORE YOU INSTALL – please read Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the hood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts.
- Page 3 Before carrying out any cleaning or maintaining WARNING operations, the appliance needs to be switched off. If the appliance is not provided with a non-separable Min. 1200mm - Max. 1600mm from the barbecue flexible cable and plug, or with another device grill surface for alfresco installations.
- Page 4 SL920 series INSTALLATION WARNING: Failure to install the screws or fixing To install the appliance please respect the follow device in accordance with these instructions instructions: may result in electrical hazards. • The appliance must be installed by qualified technicians, or where possible use a Sirius NOTE recommended installer.
- Page 5 5. Repeat this operation for all four screws (Fig. 6). making sure the appropriate ducting is used for the entire run. OPERATION SL920 FRESCO series (Fig. 8) A: Light switch on/off B: Motor switch on speed 1/off - (low/simmer) C: Motor switch on speed 2 - (general cooking)
- Page 6 MAINTENANCE • Accurate maintenance guarantees good NOTE functioning and long-lasting performance. • Particular care is due to the grease filter panel. It To remove the rangehood from the cabinet can be removed by pushing its handle toward the (Fig. 11), remove the fixing screws (Fig. 6) using back side of the rangehood and pulling the filter a screwdriver, and remove the grease filters.
-
Page 7: Remote Control
REMOTE CONTROL 6 channel control for rangehood remote. • When the rangehood is first turned on, hold the lighting button for 5 seconds. RC001 - RADIO CONTROL Radio control used for the remote operation of rangehoods. TECHNICAL DATA • Alkaline battery powered: 12 V mod. 23 A •... - Page 8 WIRING DIAGRAM: SL920 FRESCO ARISIT PTY LIMITED (Australia) www.arisit.com Sirius Hoods and ducting products are only available from our select group of Sirius Professional Stockists ABN 23 091 515 294 nationwide. For the latest list of Sirius Stockists www.arisitwarranties.com.au 40-50 Mark Anthony Drive near you, please refer to www.siriusbrand.com Dandenong South VIC 3175...
