Summary of Contents for Hunter Exton

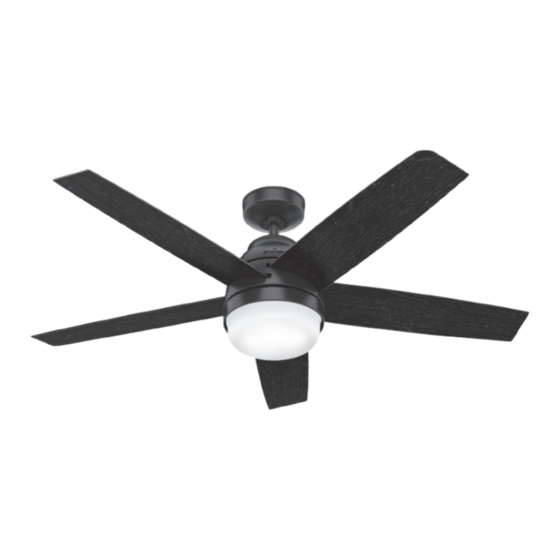

- Page 1 Exton Installation Manual Model: 51349 Matte Silver 51350 Matte Black 51351 Fresh White Fan weight ±2 lbs: 23.8 lbs (10.8 kg) ©2020 Hunter Fan Co. PG3972 r121420...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
- Page 4 A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit.
- Page 5 You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box.
- Page 6 1886 Hanging the Fan NOTICE To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. Note: Fan style may vary.
- Page 7 Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualifi ed electrician. Hunter Pro Tip: You are going to need these:...
- Page 8 1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades Put the blade washers found in the hardware bag onto the blade screws found in the hardware bag.
- Page 9 1886 Assembling the LIght Kit Assembling the LIght Kit 2 of 3 Light Kit Screw Feed the wire plugs through the center Partially install two light kit hole of the upper switch housing, then assembly screws, found in the wrap keyhole slots around the screws hardware bag, halfway into and twist counterclockwise.
- Page 10 1886 Preparing the Remote The remote control is already paired for use. For Key Press Function your convenience, a remote To access the battery compartment, remove the function card is packed in + Quick Press Light On/Off small Phillips head screw that with your remote.
- Page 11 Follow the onscreen prompts to set up your fan. (fan style may vary). Hunter Pro Tip: Need to install the app later? When ready, turn the wall switch off and then on.
- Page 12 Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. provide maintenance to the fan, or acts of God (e.g. flood).
