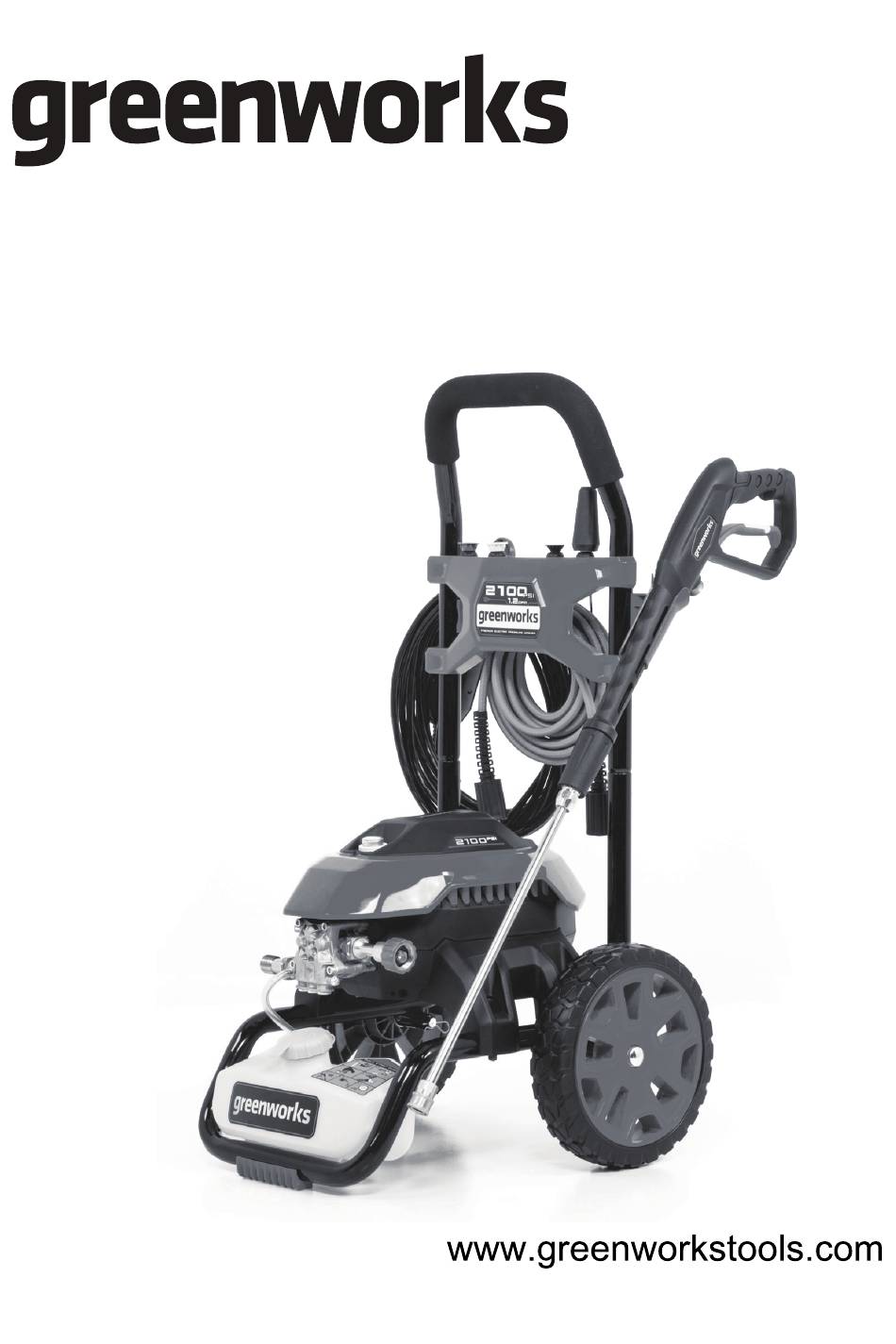

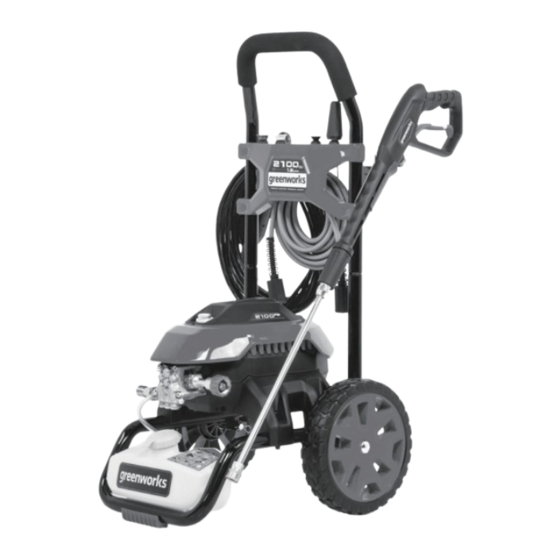

- Page 1 GPW2100 PRESSURE WASHER OPERATOR MANUAL LAVADORA A PRESIÓN MANUAL DEL OPERADOR PWA113...
- Page 3 English Install the upper handle........6 Description......... 2 Install the wheels..........6 Purpose.............. 2 Install the spray wand........6 Overview............2 3.10 Install the high pressure hose......7 General power tool safety Operation........... 7 warnings..........2 Connect the water supply to the machine..7 General power tool safety warnings....
- Page 4 English DESCRIPTION GENERAL POWER TOOL SAFETY WARNINGS PURPOSE • The machine is not intended for use by persons (including children) with reduced physical, sensory or mental The machine is used to used to clean vehicles, boats, capabilities, or lack of experience and knowledge, unless buildings, porches, decks, patios, and driveways.
- Page 5 English EXTENSION CORDS • Do not abuse the cord. Never use the cord to carry the product or to disconnect the plug from an outlet. Keep • Use only extension cords that are intended for outdoor cord away from heat, oil, sharp edges, or moving parts. use.
- Page 6 English PROPOSITION 65 Symbol Explanation To reduce the risk of injury from WARNING kickback, hold the spray lance se- This product contains a chemical known to the state of curely with both hands when the ma- California to cause cancer, birth defects or other chine is on.
- Page 7 English UNPACK THE MACHINE INSTALL THE HOSE HOOK WARNING Make sure that you correctly assemble the machine before use. WARNING • If the parts are damaged, do not use the machine. • If you do not have all the parts, do not operate the machine.
- Page 8 English INSTALL THE POWER CORD INSTALL THE WHEELS STORAGE ARM 1. Put an axle (14) through the wheel and handle frame. 2. Attach a washer (13) to the axle (14). 3. Put a cotter pin (12) through the hole of the axle (14). INSTALL THE SPRAY WAND 1.
- Page 9 English 3.10 INSTALL THE HIGH PRESSURE CAUTION HOSE Inspect the filter in the water inlet connector before you connect the garden hose • If the filter is damaged, do not use the machine until the filter is replaced. • If the filter is dirty, clean the filter. 1.
- Page 10 English • Release the spray gun trigger (21) to stop water flow SPRAY TIP APPLICATION through the spray tip (11). White - Wide fan tip (40° ) 4.2.1 UNLOCK THE GUN TRIGGER • The white 40 degree tip, referred to •...
- Page 11 English STOP THE MACHINE WARNING Do the instructions on the solution bottle to prepare 1. Release the spray gun trigger. detergent. 2. Press down on the ON/OFF switch, once again, to set the power switch to the "OFF" (O) position. NOTE WARNING If it is necessary, use a funnel to prevent the spill of...
- Page 12 English TROUBLESHOOTING If there is too much pump pressure, the spray tip can become clogged, you can feel a pulsing sensation while you pull the spray gun trigger. PROBLEM POSSIBLE SOLUTION CAUSE 5.1.1 REMOVE THE SPRAY TIP The motor does The power button Set the power 1.
- Page 13 English PROBLEM POSSIBLE SOLUTION PROBLEM POSSIBLE SOLUTION CAUSE CAUSE The water supply Open water supply The motor buzzes, The supply volt- Make sure that on- is not sufficient. fully. Check gar- but the machine age is low. ly the pressure den hose for kinks, does not start.
- Page 14 (3) years against defects in materials, parts or workmanship. Greenworks, at its own discretion, will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer.
- Page 15 English EXPLODED VIEW 5 6 7 8 Item No. Part No. Description 311023614 Upper handle assembly 311033614 Lower handle assembly 311043614 Housing assembly 33201671 Spray tip cleaning tool C1102321-00 25° spray tip C1102273-00 40° spray tip 34139319 Soap spray tip 31208363 Turbo nozzle 311311635...
