ACS580-01 UL Type 4X (IP66) drives, NEC types
Quick installation and start-up guide
This guide is applicable to the North American product types. There is a separate guide for the global (IEC) product types.
Documentation in other languages
Safety instructions
WARNING! Obey these instructions. If you ignore them, injury or death, or damage to the equipment can occur. If
you are not a qualified electrical professional, do not do electrical installation or maintenance work.
WARNING! Before you activate the automatic fault reset or automatic restart functions of the drive control
program, make sure that no dangerous situations can occur. These functions reset the drive automatically and
continue operation after a fault or supply break. If these functions are activated, the installation must be clearly
marked as defined in IEC/EN/UL 61800-5-1, subclause 6.5.3, for example, "THIS MACHINE STARTS AUTOMATICALLY".
Do not do work on the drive, motor cable, motor, or control cables when the drive is connected to the input power.
Before you start the work, isolate the drive from all dangerous voltage sources and make sure that it is safe to start the
work. Always wait for 5 minutes after disconnecting the input power to let the intermediate circuit capacitors
discharge.
Do not do work on the drive when a rotating permanent magnet motor is connected to it. A rotating permanent
magnet motor energizes the drive, including its input and output terminals.

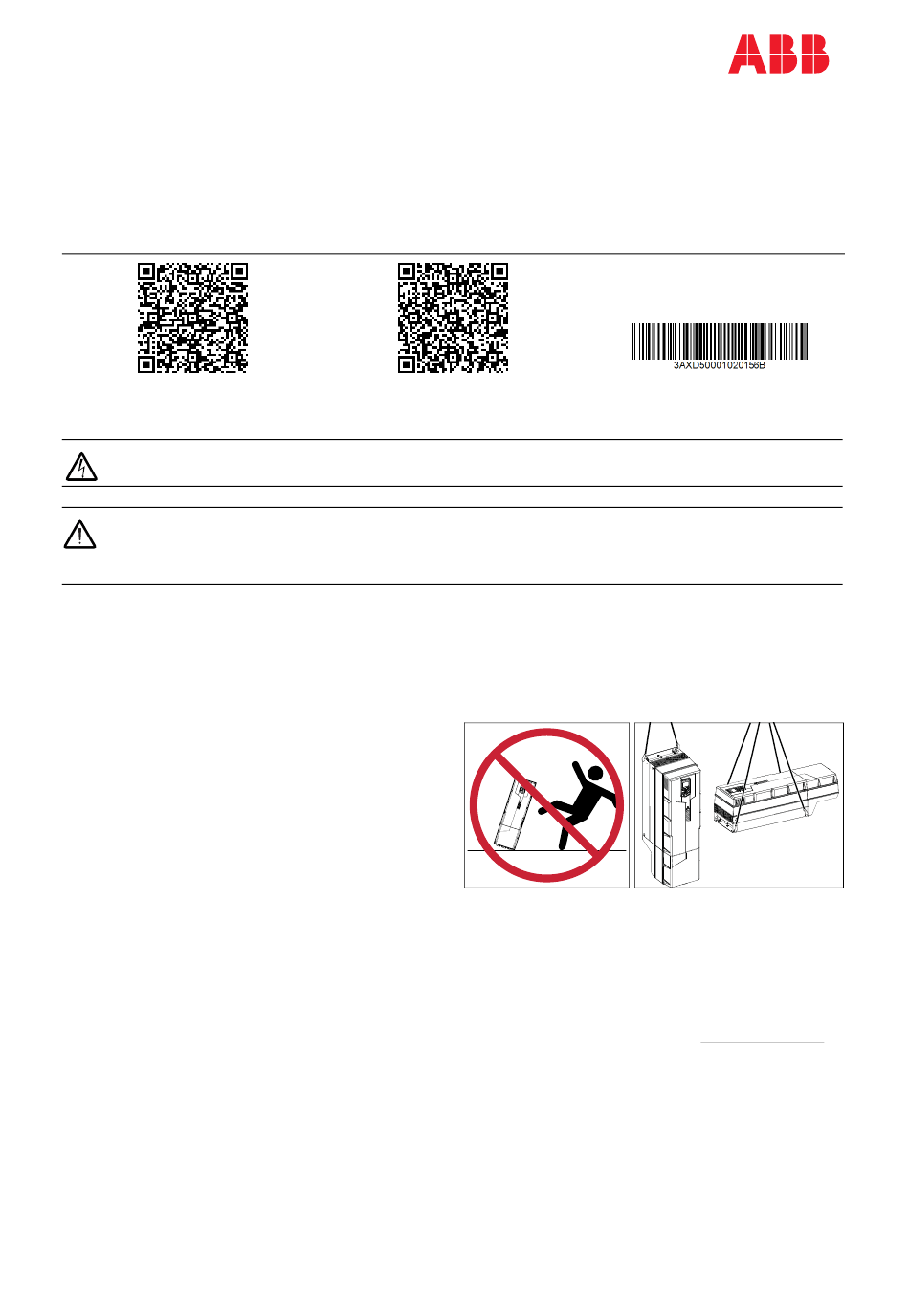

Do not tilt the drive. The drive is heavy and has a high
center of gravity. It can topple accidentally.
All frames have lifting eyes to assist with lifting.
Frames R3: Lifting the drive with a lifting device is
recommended since weight exceeds 50 lb (23 kg)
1. Unpack the drive
Keep the drive in its package until you are ready to install it.
Make sure that these items are included:
drive
mounting template
control panel (factory-installed inside the cover)
quick installation and start-up guide
multilingual residual voltage warning stickers
hardware and firmware manuals, if ordered
options in separate packages, if ordered.
Make sure that there are no signs of damage to the items.
2. Reform the capacitors
If the drive has not been powered up for a year or more, you must reform the DC link capacitors. See
contact ABB technical support.
3. Select the cables and fuses
Input power cable: Use symmetrical shielded cable (VFD cable) for the best EMC performance. NEC installations: Conduit
with continuous conductivity (Type EMT, RMC or LFMC) is also allowed and must be grounded on both ends. Non-metallic
conduit (Type LFNC) will not suppress EMC noise. If noise issues are occurring, changing to continuously conductive
conduit or shielded cable will be beneficial in most situations. Do not run input power wiring and motor wiring in the same
conduit.
Motor cable: ABB recommends symmetrically shielded VFD motor cable to reduce bearing current and wear and stress on
motor insulation and to provide the best EMC performance. Although not recommended, conductors inside conduit are
allowed in NEC installations. Continuously conductive (metallic) conduit (Type EMT, RMC or LFMC) should be grounded on
both ends. Non-metallic conduit (Type LFNC) will not suppress EMC noise. If noise issues are occurring, changing to
continuously conductive conduit or shielded cable will be beneficial in most situations. Use separate conduit run for each
motor. Do not run input power wiring and motor wiring in the same conduit.
Wet locations and underground cable: Use liquid-tight conduit in wet, dirty, dusty, corrosive or similar locations when
using conduit. Usage of Non-metallic conduit underground and in wet locations is allowed. However, these installations
Ecodesign information
(EU 2019/1781 and SI 2021 No. 745)
About this document
3AXD50001020156 Rev B EN
2024-05-24
© 2024 ABB. All rights reserved.
Original instructions.
Related documents
1
or

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACS580-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for ABB ACS580-01

  • Page 1 Do not run input power wiring and motor wiring in the same conduit. Motor cable: ABB recommends symmetrically shielded VFD motor cable to reduce bearing current and wear and stress on motor insulation and to provide the best EMC performance. Although not recommended, conductors inside conduit are allowed in NEC installations.
  • Page 2 inherently have an increased chance for nuisance problems due to the potential for water/moisture in the conduit. Water/ moisture in the conduit increases the likelihood of VFD faults or warnings. Proper installation is required to make sure there is no intrusion of water/moisture. For more information: see Hardware Manual, section Electrical Installation –...
  • Page 3  Put the drive on the wall and tighten the screws 6. Remove the cover(s) 8 screws (Pozidriv #2) Tighten to 1.8 lbf-ft (2.5 Nm) 7. Optional - remove and replace the cable/conduit box (to modify holes) - 4 screws 8 screws (Pozidriv #2) Tighten to 2.5 Nm(1.8 lbf-ft) WARNING! Cable box screws must be correctly torqued to ensure a...
  • Page 4 PE conductor. Use a measuring voltage of 1000 V DC. The insulation resistance of an ABB motor must be more than 100 Mohm (reference value at 25 °C or 77 °F). For the insulation resistance of other motors, see the manufacturer’s instructions.
  • Page 5 Prepare the power cables (conduit): • Attach the cable conduit fittings for the motor and input cabling to the cable entry holes Conduit Connect the power cables. For the tightening torques, refer to Terminal data for power connections. • Slide the conductors through the conduit. •...
  • Page 6  Default I/O connections (ABB standard macro) Reference voltage and analog inputs and outputs Signal cable shield (screen) Ext. frequency reference 1: 0 … 10 V 1…10 kohm AGND Analog input circuit common +10V Reference voltage 10 V DC Not configured...
  • Page 7 This section shows examples for routing the control cables. Utilize the retaining clips along the edge of the controller. BRAKE RES MOTOR INPUT BRAKE RES MOTOR L1 L2 L3 T2/V T3/W R- T1/U T2/V T3/W UDC+  EIA-485 embedded fieldbus connection You can connect the drive to a serial communication link with a fieldbus adapter module or the embedded fieldbus interface.
  • Page 8 Overview and connection diagrams for connecting the drive to the fieldbus are shown below. Fieldbus controller Termination ON Fieldbus 1) The devices at both ends on the fieldbus must have termination set to ON. 2) One device, preferably at the end on the fieldbus, must have bias set to ON.
  • Page 9 The First start assistant guides you through the first start-up. The assistant begins automatically. Wait until the control panel shows the language selection screen. Select the language you want to use and press (OK). Note: After you select the language, it takes a few minutes for the control panel to wake up.
  • Page 10 PID, fieldbus, advanced functions and clock, region and display. You can also reset logs, parameters, and the control panel Home view. ABB recommends that you make at least these additional settings: • Choose a macro or set start, stop and reference values separately •...
  • Page 11 6) UL 61800-5-1, CSA C22.2 No. 274: The drive is suitable for use on a circuit capable of delivering not more than 100,000 symmetrical Amperes (rms) at 600 V maximum when protected by the ABB recommended fuses, internally or externally. Option +F254 (UL98 input disconnect switch with handle and internal fuses) provides branch circuit protection at this...
  • Page 12 Alternate Fuses, MMPs and Circuit Breakers for ABB Drives (3AXD50000645015 [English]) 7) Refer to for additional UL fuses and circuit breakers that can be used as branch circuit protection. 8) Class J, CC, and CF fuses are also allowed at the same nominal current and voltage ratings as external fuses.
  • Page 13 WEEE TÜV Nord UKCA Related documents Document Code (English) ACS580-01 (0.75 to 250 kW, 1.0 to 350 hp) hardware manual 3AXD50000044794 ACS580 standard control program firmware manual 3AXD50000016097 ACS-AP-I, -S, -W and ACH-AP-H, -W Assistant control panels user's manual 3AUA0000085685...
