- Page 1 MP Series Micro Piston Pump Operating Manual Longer Precision Pump Co., Ltd.
- Page 2 Longer Precision Pump Co., Ltd. Content 1. Product Instruction ..........................1 1.1 Main Features ........................ 1 1.2 MP Series Micro Piston Pump System Structure ............2 1.3 Function and Performance .................... 3 1.4 Working Condition ......................3 2. Operation Instruction ......................... 4 2.1 Pipe Connection ......................
- Page 3 Longer Precision Pump Co., Ltd. 1. Product Instruction MP series micro piston pump is a precision dispensing pump developed by Longer Precision Pump Co., Ltd. The main function of the pump is to carry out the quantitative fluid delivery. It has very high dispensing accuracy and reproducibility.

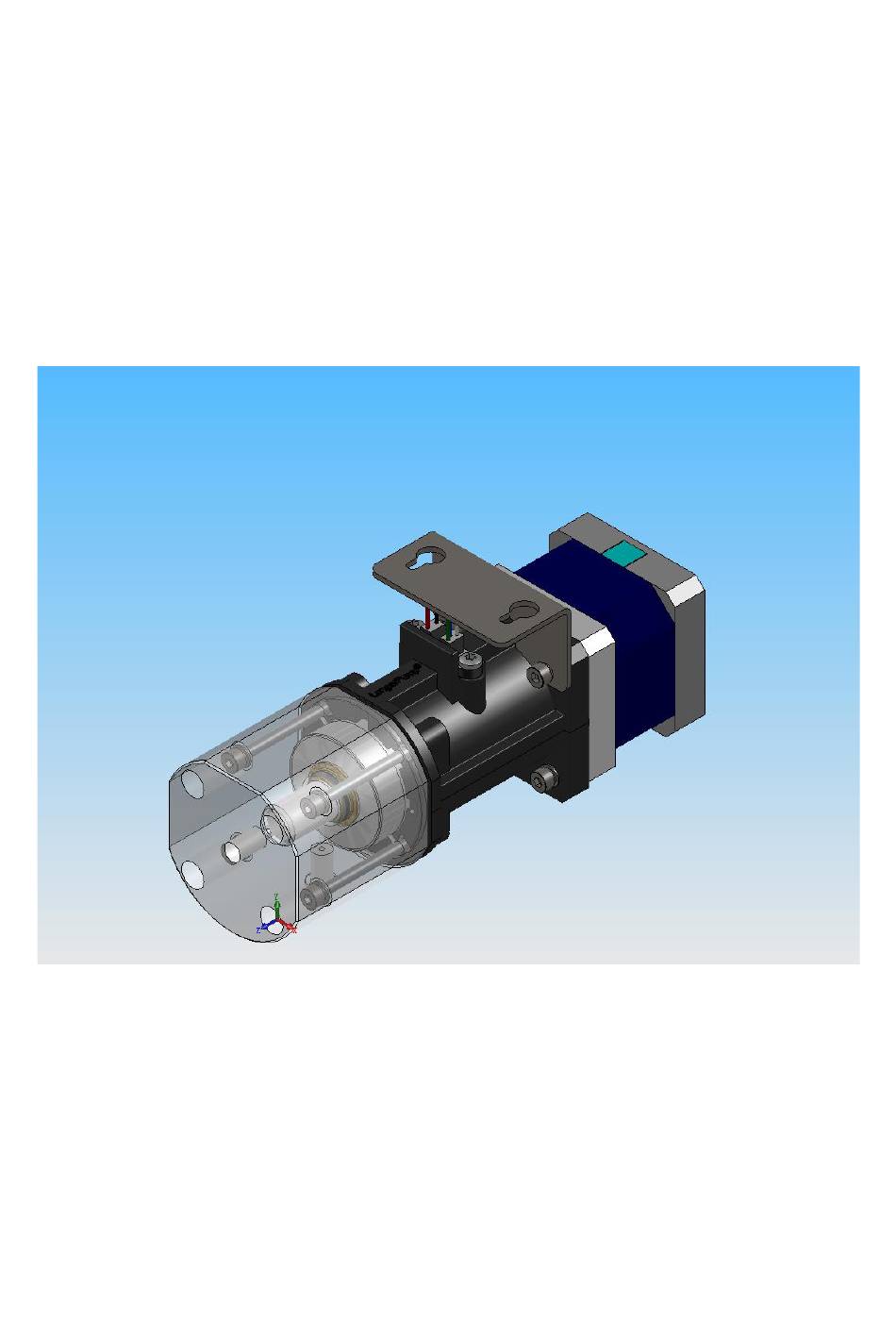

- Page 4 Longer Precision Pump Co., Ltd. 1.2 MP Series Micro Piston Pump System Structure Outline Dimension: mm 1/4”-28UNF (2 pcs) Main Structure Mounting Bracket Step Motor Photoelectric Sensor Seal Ring Pump Head 步进电机 安装支架 光电传感器 密封圈 泵头 标签 传动单元...
- Page 5 Longer Precision Pump Co., Ltd. 1.3 Function and Performance 1.3.1 Dispensing Function The micro piston pump has 8 volumes: 25ul 50ul 100ul 250ul 500ul 1ml 2.5ml 5ml. Each volume pump can dispense full stroke or part of the stroke, depending on the control logic. For the minimal dispensing volume, please consult your distributor.
- Page 6 Longer Precision Pump Co., Ltd. 2. Operation Instruction 2.1 Pipe Connection The pump connects inlet and outlet pipes through two 1/4″-28UNF internal thread holes Steps as below: Step 1 Inlet or Outlet Pipe 进口或出口管道 Pipe Fitting 管接头 锁紧锥 Locking Cone 装配后...
- Page 7 Longer Precision Pump Co., Ltd. 出液管 Outlet Pipe Pipe Fitting 管接头 Outlet 出液口 Sealing Gasket 密封垫 1/4”-28UNF (2 pcs) 1/4″-28螺纹接口（2个） Pipe Fitting 管接头 密封垫 Pump Head 泵头 Inlet 进液口 进液管 Inlet Pipe Put the gasket into 1/4”-28UNF hole. Make sure the gaskets lay on the bottom of the holes to ensure good sealing performance and protect the gasket from damage.
- Page 8 Longer Precision Pump Co., Ltd. CCW: Pump aspirates CW: Pump dispenses Motor Specification Step Angle 1.8° Rated Voltage 3.0V Phase Rated Current/phase 1.2A 100MΩ (500VDC) Insulation Resistance Resistance/phase 2.5Ω±10% Insulation Class Inductance/phase 3.3mH±20% 2.2.2 Photoelectric Sensor Interface Main function of photoelectric sensor: piston initial position detection.
- Page 9 Longer Precision Pump Co., Ltd. Wire Green: Ground of the Logic Vcc. 2.3 Pump Mounting 2.3.1 Mounting Bracket on Pump Mounting bracket is an option. Customer can use it if necessary. Micro Piston Pump 微型柱塞泵 内六角圆柱头螺钉M3×12 Hexagon head screws M3X12 弹性垫圈3+小平垫3...
- Page 10 Longer Precision Pump Co., Ltd. Micro Piston Pump 微型柱塞泵 2× 3.2 Mounting 用户安装孔 Mounting Hole Bracket 安装支架 2× 7 3. Transportation and Storage The micro piston pump is precision product., especially the pump head. Please avoid shocks during the transporting, storage and operation.
- Page 11 Please contact with sales before shipping back the products. 6. Contract Information Baoding Longer Precision Pump Co., Ltd Building A, Chuangye Center, Baoding National High-Tech Industry Development Zone Baoding, Hebei, China 071051 Email: longer@longerpump.com...
