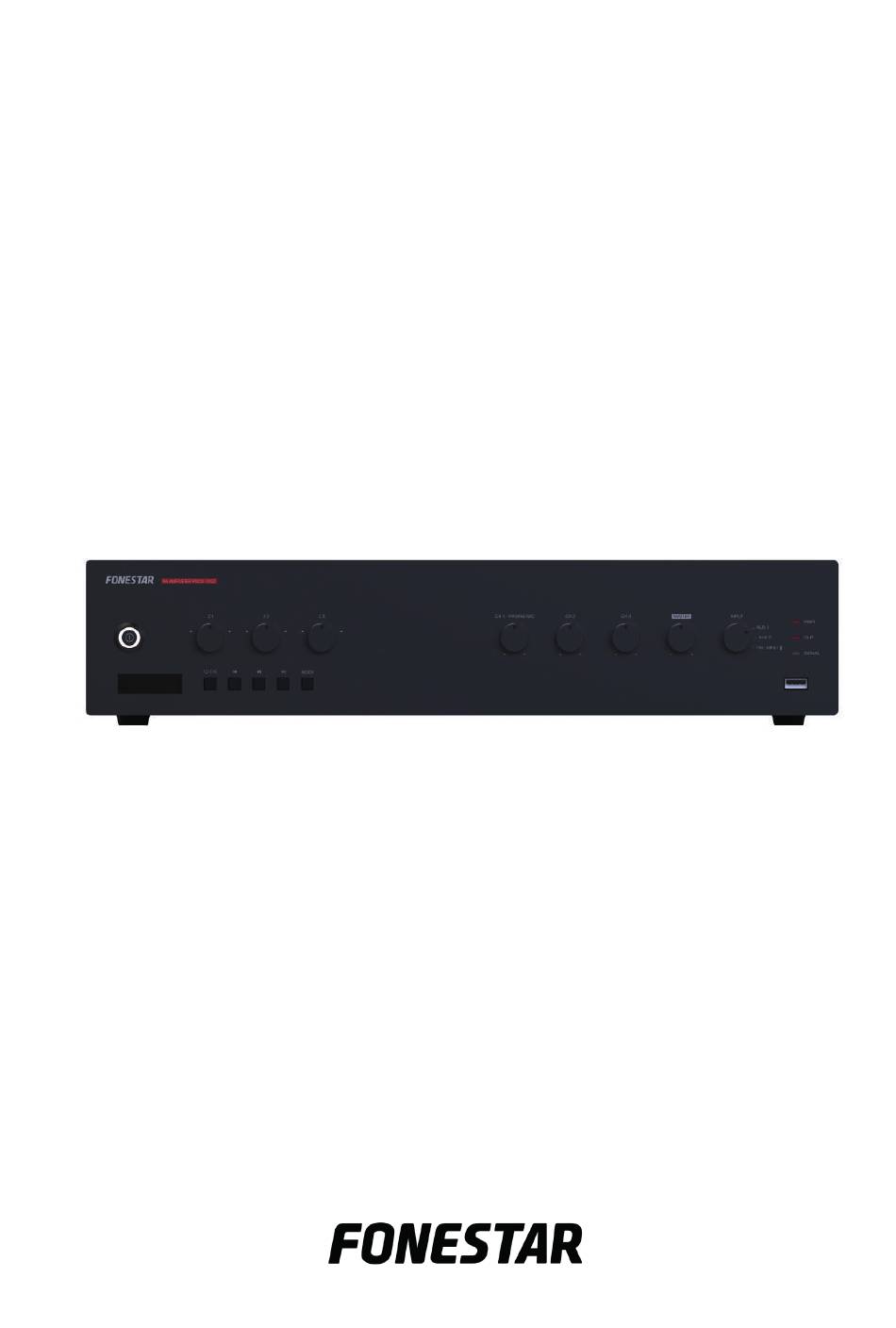

- Page 1 PROX-120Z BLUETOOTH /USB/FM PA AND ZONE PA AMPLIFIER ® AMPLIFICADOR DE MEGAFONÍA BLUETOOTH /USB/FM Y ZONAS ® AMPLIFICATEUR PUBLIC ADDRESS BLUETOOTH /USB/FM ET ZONES ® AMPLIFICADOR DE MEGAFONIA BLUETOOTH /USB/FM E ZONAS ® INSTRUCTION MANUAL/MANUAL DE USUARIO/ MODE D’EMPLOI/MANUAL DE INSTRUÇÕES...
- Page 2 DESCRIPTION Distributed audio for PA installations with 100 speakers, also with low impedance output. Versatile player for background music. It has 2 zone outputs with volume control for different music levels per zone. User-friendly operation and a modern, discreet design. CONTROLS AND FUNCTIONS FRONT PANEL 3 4 5 6 7...
- Page 3 3 4 5 6 7 131415 REAR PANEL 14 15 1.- AUX 1/AUX 2: stereo auxiliary inputs for connection of audio devices such as mixers, computers, etc. These inputs have 2 connector options, 2 x RCA or euroblock. 2.- CH 2/CH 3: audio inputs from dynamic microphone (MIC), condenser microphone (PHANTOM +48 V) or lines (LINE), balanced eurolock connector.
- Page 4 Before connecting to other equipment, be aware of the conditions required in a HIGH IMPEDANCE (100 V) and LOW IMPEDANCE installation. More information can be found at: fonestar.com/downloads/install_fonestar_en.pdf Check that the volume and gain controls are at minimum, connect the amplifier to power.
- Page 5 INPUT PRIORITY The EMERG input INPUT has the highest priority attenuating all other inputs when the input has a signal. CH 1 input has priority over inputs CH 2, CH 3, AUX 1, AUX 2 and the player. This priority is by signal level and can be selected with VOX control.
- Page 6 BLOCK DIAGRAM SIMPLIFIED EU DECLARATION OF CONFORMITY FONESTAR SISTEMAS S.A. hereby declares that the BLUETOOTH/USB/FM PA and zone PA amplifier PROX-120Z complies with Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following internet address: fonestar.com/PROX-120Z...
- Page 7 TECHNICAL SPECIFICATIONS PROX-120Z FEATURES Public address amplifier. Bluetooth/USB/FM player. Microphone input with mix, gain and priority level control. Input priorities by signal level. Tone controls. 100 V and 4 Ω outputs. 3 outputs zones with volume control and Off. POWER...
