Summary of Contents for Jumper HWA11
- Page 1 Electronic Blood Pressure Monitor HWA11 User Manual Version: V1.0 Revision Date: 2022.5...
- Page 2 Product Composition The product is comprised of the host machine and the wrist cuff of Electronic Blood Pressure Monitor. Application Scope The Electronic Blood Pressure Monitor is used to measure the diastolic pressure, systolic pressure and pulse rate of adults by oscillometric method for diagnostic reference.
- Page 3 Safety Precautions The warnings and illustrations shown in the User Manual enable you to use the product safely and correctly, thus preventing you and others from being injured, specifically as follows: Legend, mark and meaning Warning message Anti-electric shock degree is Type BF of the application part When the product life expires and the end users discard the products, send them to the designated...
- Page 4 Quick Start Guide Avoid smoking, eating, drinking caffeinated drinks or exercising for 30 minutes before taking measurement. 1. Sit upright in a chair with both feet on the floor. 2. Remove tight fitting clothing from your upper arm along with any thick clothing.

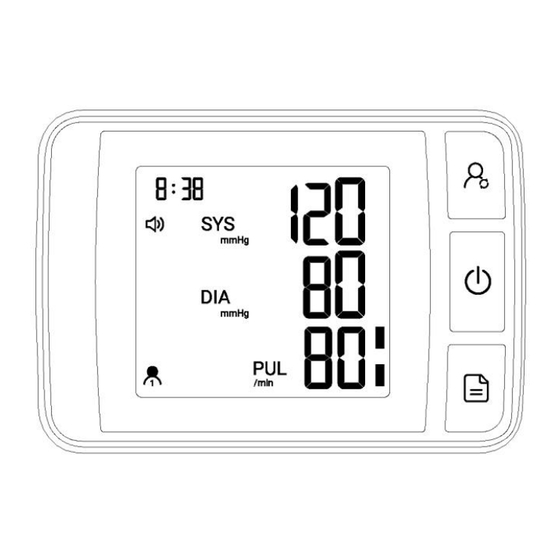

- Page 5 Overview Monitor Features ⚫ Universal Cuff ⚫ Irregular Heartbeat Detector - 4 -...
- Page 6 ⚫ 199 Readings * 2 Users and No Readings*the Guest ⚫ Auto-off Power Saving Feature ⚫ Operated by 2*AAA batteries Display Packing List Name Quantity - 5 -...
- Page 7 Electronic Blood Pressure Monitor Wrist Cuff Dry Battery (AAA) User Manual Zipped Carrying Bag - 6 -...
- Page 8 Preparation 2.1 Battery Installation a）Open the battery cover as shown in the picture. b）Place 2*AAA dry batteries. Pay attention to the battery electrode indication. 2.2 Battery power indication and replacement After the product is turned on, if low power symbol appears on the screen, the measurement cannot be performed, and the battery must be replaced.
- Page 9 Function Setting Mode 3.1 User mode Switch between “User 1” 、 “User 2” and “Guest”can be processed in the “OFF” state or upon the measurement completion, by short press on the “User ” button. 3.2 Year/Month/Date/Time setting In the “OFF” state, enter the setting mode by long press on the “User ”...
- Page 10 move to the “Month” setting mode. After entering the “Month” setting mode, 1-01 will flash on the screen. Press the “Memory ” button, the “Month” value can be setting. Press the “User ” button for “Month” value confirmation and enter the “Date”...
- Page 11 3.3 Unit setting Either mmHg or KPa will show up on the screen, upon entering the “Unit” setting mode, by pressing the “User ” button. Display of mmHg indicates that the mmHg unit is selected; display of KPa indicates that the kPa unit is selected. Unit will be switched upon every press on the “Memory ”...
- Page 12 Correct Method of Use 4.1 How to use the wrist cuff (1) The palm up, please put the wrist band directly on the exposed wrist, ensure that the sphygmomanometer is located on the same side of the palm, the wrist band close to the skin and roll up, do not roll the cuff of the clothes in the wrist band.As shown on the right.
- Page 13 (5) When measuring, the middle of the wristband was consistent with the heart height, and the body and wrist could not shake.To do this, it is recommended to use a soft pad on the outside of the lower arm. Do not press the on / off key button before holding the wrist cuff; If you cannot place the wrist cuff on your left wrist, please measure it with the right wrist;...
- Page 14 higher pressure; (3) When the pulse is measured, the screen will display the “heart” symbol and start flashing. The flashing “heart” symbol will be displayed on the screen. (4) Upon measurement completion, the measured values of systolic pressure, diastolic pressure and pulse will be displayed on the screen. (5) The screen will continue to display the measurement results, unless you press on the “Power ”...
- Page 15 4.5 Classification standard for blood pressure condition There is no definition of hypotension yet. Generally, if the systolic blood pressure is less than 100mmHg (13.3kPa), it is hypotension. Contraindications, Precautions, Warnings and Prompt Instruction (1) Warning: Keep the device out of the reach of the children under 12 and people who can’t express their intention.
- Page 16 circumference exceeds this range, you might fail to obtain the correct measured value of blood pressure; This model of Electronic Blood Pressure Monitor is not suitable for newborns or young children; The blood pressure is constantly changing. You shall not judge the blood pressure condition with just one measurement result.
- Page 17 Indoor temperature, environment, noise, user's body position, speech or exercise might affect the blood pressure measurements. The body movement, magnetic field and improper wearing of wrist cuff and sensor will affect the measurement as well. Abnormal phenomena and handling * When the measurement is abnormal, the following symbols will appear.
- Page 18 displayed low-pressure area Err is displayed in the high-pressure area, The inflation fails. Please check the P is displayed in the cuff, tie it up and try again. low-pressure area. HI is displayed in the The inflation pressure is greater low-pressure area than 307±8 mmHg ( 41 kPa±1 kPa ), Please measure again.
- Page 19 pressed on the arms and remeasure The wrist cuff is not Please entrust well connected and repair No pressure there is an air leak The wristband was Please buy a new damaged over age product The wrist cuff is Is the wrist cuff Please wrap the exhaust for a wrapped too loose?
- Page 20 - 19 -...
- Page 21 Storage & Maintenance ⚫ Keep the device away from direct sunlight, extreme temperatures, humidity or moisture. ⚫ Use a dry, soft cloth to clean the device, or if desired, use a cloth lightly dampened with water. ⚫ Do not use corrosive cleaner, benzene, thinner or other volatile liquids to clean the device.
- Page 22 Specifications Product Name Electronic Blood Pressure Monitor Model HWA11 Display Mode Digital display mode Measuring Mode Oscillographic method Measuring Body Part Wrist Pressure value 0-295mmHg(0kPa-39.3kPa) Measuring Range Pulse value 40-199 pulse beats/min Pressure value ± 3mmHg(± 0.4kPa) Static measurement accuracy Pulse value ±...
- Page 23 Monitor Size 87mm (length) *61mm (width) * 24.1mm (height) Screen Size 45mm (length) *41mm (width) Wrist cuff measured wrist circumference 13.5-19.5cm Annexure User Manual, Dry battery, Zipped Carrying Bag High-performance dry battery can be used for Battery Life about 300 times at normal temperature Service Life 5 years Date of Production...
- Page 24 Storage Environment rain during transportation. The packaged Blood Pressure Monitor shall be stored indoors at the temperature of -20℃~55℃ and the relative humidity of 10%~93%, atmospheric Condition： 70kPa-106k, without corrosive gas and with good ventilation. FCC Compliance Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 25 After-sale Service After-sale service unit: Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, China Tel: +86-755-26696279 Fax: +86-755-26852025 E-mail: info@jumper-medical.com...
- Page 26 Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, China Tel: +86-755-26692192, 26696279 Fax: +86-755-26852025 E-mail: info@jumper-medical.com Website:www.jumper-medical.com Postal Code: 518103 - 25 -...
