- Page 1 Electronic Blood Pressure Monitor Tensiomètre électronique JPD-HA200 User Manual Manuel d'utilisation du JPD-HA200 Version: V2.1 Revision Date: 2021.08...

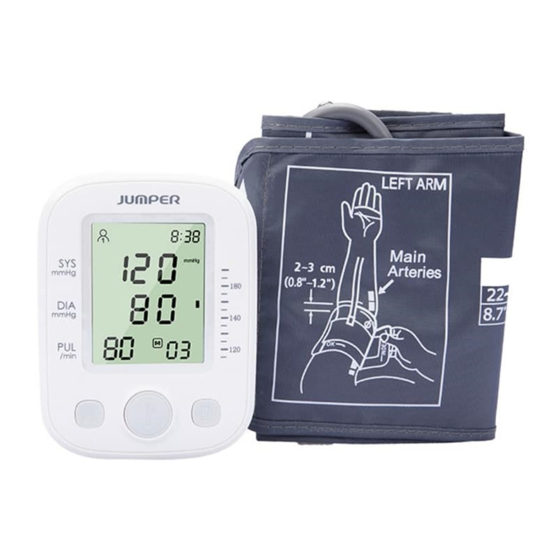

- Page 2 Product Composition The product is comprised of the host machine and the cuff of Electronic Blood Pressure Monitor. Application Scope The Electronic Blood Pressure Monitor is used to measure the diastolic pressure, systolic pressure and pulse rate of adults by oscillometric method for diagnostic reference.
-
Page 3: Safety Precautions
Safety Precautions The warnings and illustrations shown in the User Manual enable you to use the product safely and correctly, thus preventing you and others from being injured, specifically as follows: Legend, mark and meaning Warning message Anti-electric shock degree is Type BF of the application part When the product life expires and the end users discard the products, send them to the designated... - Page 4 Quick Start Guide Avoid smoking, eating, drinking caffeinated drinks or exercising for 30 minutes before taking measurement. 1. Sit upright in a chair with both feet on the floor. 2. Remove tight fitting clothing from your upper arm along with any thick clothing.
- Page 5 Overview Monitor Features Universal Cuff Irregular Heartbeat Detector Average of last 3 readings 99 Readings* 2 Users Auto-off Power Saving Feature Operated by 4 AAA batteries (USB 5V optional) - 4 -...
-
Page 6: Packing List
Display Packing List Name Quantity Electronic Blood Pressure Monitor Cuff Easy-to-carry Storage Bag User Manual USB Cable - 5 -... - Page 7 Preparation 2.1 Battery Installation a) Open the battery cover as shown in the picture. b) Place 4 AAA dry batteries. Pay attention to the battery electrode indication. 2.2 Battery power indication and replacement After the product is turned on, if low power symbol appears on the screen , the measurement cannot be performed, and the battery must be replaced.
- Page 8 2.4 Cuff The applicable arm circumference range of the cuff is 22-36cm or 22-42cm. Connection: Insert the air plug of cuff air tube into air jack of the Electronic Blood Pressure Monitor. Figure shown as above: - 7 -...
-
Page 9: Function Setting Mode
Function Setting Mode 3.1 User mode In the shutdown state, press the “User ” button for 3 seconds, the screen displays “User 1 ” or “User 2 ”, and flickers continuously. Press the “Memory ” button to switch to the other user. (default user: User 1 (Note: In the shutdown state, press “User ”... - Page 10 flash on the month. Press the “Memory ” button to increase the value which can be switched among 1 and 12, press the “User ” button for confirmation and enter the date setting mode. After entering the date setting mode, XX-XX is displayed on the screen and flickers on the date display.
- Page 11 month (01~ 12), date (01~31), hour (1~12 AM/PM) and minute (00~59). When the ceiling value of a certain time sector is reached, the relevant value of the sector will start from the minimum individually. 3.3 Talking function setting (voice version only) After entering talking function setting mode, “...
-
Page 12: Correct Method Of Use
Correct Method of Use 4.1 How to use the cuff (1) Place the cuff flat on the table, leave the hook & loop downwards, and pass the end of cuff through the metal ring to form a loop. The hook &... - Page 13 4.1 Comment utiliser le brassard (1) Placez le brassard à plat sur la table, laissez le crochet et la boucle vers le bas et passez l'extrémité du brassard à travers l'anneau métallique pour former une boucle. Le crochet et la boucle doivent pointer vers l'extérieur.
- Page 14 (5) Le brassard doit être enroulé confortablement sur le haut du bras, avec un espace restreint pour deux doigts. Avant la mesure, retirez les vêtements ajustés de votre bras ainsi que tout vêtement épais. (6) Placez l'avant-bras à plat sur le bureau, en laissant le centre de la paume naturellement vers le haut, en vous asseyant bien droit et en vous assurant que le centre du brassard et le cœur sont au même niveau.
- Page 15 on the screen. (4) Upon measurement completion, the measured values of systolic pressure, diastolic pressure and pulse will be displayed on the screen. (5) The screen will continue to display the measurement results, unless your long-press on the "Power " button to turn off the device. If there is no operation, the device will be powered off automatically in 30s.
- Page 16 (5) L'écran continuera à afficher les résultats de mesure, à moins que vous n'appuyiez longuement sur le bouton "Power" pour éteindre l'appareil. S'il n'y a pas d'opération, l'appareil s'éteindra automatiquement dans 30 secondes. 4.3 Using memory function This blood pressure monitor is available for 2 users with 99 memories per user.
- Page 17 button for 3 seconds until “ ” shows in the SYS area and “ ” shows in the low DIA area, thus all the measurement data of the current user are deleted. 4.4 Effacement des données de mesure enregistrées Dans l'état d'arrêt, appuyez longuement sur le bouton "Mémoire" et le bouton "Utilisateur"...
- Page 18 Contraindications, Precautions, Warnings and Prompt Instruction (1) Warning: Keep the device out of the reach of the children under 12 and people who can’t express their intention. When children of 12~18 use the device, they should be accompanied by the adults. Pregnant women shall use under the guidance of doctors.
- Page 19 measurement results is very dangerous; (2) Precautions: Do not repair, disassemble or modify the Electronic Blood Pressure Monitor without permission; Do not collide or drop the host to avoid collision or strong impact on the device; Do not mix old and new batteries of different brands for use. Indoor temperature, environment, noise, user's body position, speech or exercise might affect the blood pressure measurements.
-
Page 20: Troubleshooting
Troubleshooting * If you have trouble using the device, please check the following instruction. Problem Possible cause How to correct Replace new batteries or use Low battery the USB for power supply. No display when The polarities of press the Power batteries are Install the batteries in correct button... - Page 21 “Err P” The inflation Please check the cuff, tie it up fails. and try again. displayed The inflation pressure is “HI ”displayed greater than Please measure again. 307±8 mmHg ( 41 kPa±1 kPa ). Note: If your problem cannot be solved by the above, please contact customer service.
-
Page 22: Storage And Maintenance
Storage & Maintenance Keep the device away from direct sunlight, extreme temperatures, humidity or moisture. Use a dry, soft cloth to clean the device, or if desired, use a cloth lightly dampened with water. Do not use corrosive cleaner, benzene, thinner or other volatile ... -
Page 23: Specifications
Specifications Product Electronic Blood Pressure Tensiomètre électronique Name Monitor Model JPD-HA200 JPD-HA200 Display Digital display mode Mode d'affichage numérique Mode Measurin Oscillographic method Méthode oscillographique g Mode Measurin g Body Upper arm Haut du bras Part 0-295mmHg Pressure 0-295mmHg (0kPa-39.3kPa) （0kPa-39.3... - Page 24 Pulse rate per minute, Fréquence cardiaque par Pulse displaying minute, affichant trois chiffres three digits It can store 99 groups of Il peut stocker 99 groupes de Storage measurement data for données de mesure pour capacity each of two users chacun des deux utilisateurs 4 AAA dry batteries Power...
- Page 25 22-42cm) Cuff, User Manual, Dry (tour de bras mesuré 22-36cm Annexure Battery, ou 22-42cm) Easy-to-carry Storage Bag High-performance dry Battery battery can be used for Brassard, manuel d'utilisation, Life about 300 times at normal pile sèche, temperature Service 5 years 5 années Life Date of...
- Page 26 Condition： 70kPa-106kPa, without ventilation. corrosive gas and with good ventilation. After-sale Service After-sale service unit: Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, China Tel: +86-755-26696279 - 25 -...
- Page 27 Fax: +86-755-26852025 E-mail: JUMPER-after-sale-service@hotmail.com Website: www.jumper-medical.com Postal Code: 518103 Authorized European Representative: MedPath GmbH Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany - 26 -...
- Page 28 Shenzhen Jumper Medical Equipment Co., Ltd. D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, China,518103. Tel: +86-755-26696279 Fax: +86-755-26852025 E-mail: -after-sale-service@hotmail.com JUMPER Website:www.jumper-medical.com - 27 -...
