DO NOT
HANDHELD
THIS TOOL
USE MANUAL and SPARE PARTS
IMPORTANT DO NOT DESTROY !
Via Foresto 42 - 31058 SUSEGANA TV ITALY
65.16 ROP
cod. 11568ROP
11568ROP_6516ROP_5 170921 IV
Tel.0438455318 Fax 0438455530
E-mail: omer@omer.it
INTRODUCTION:

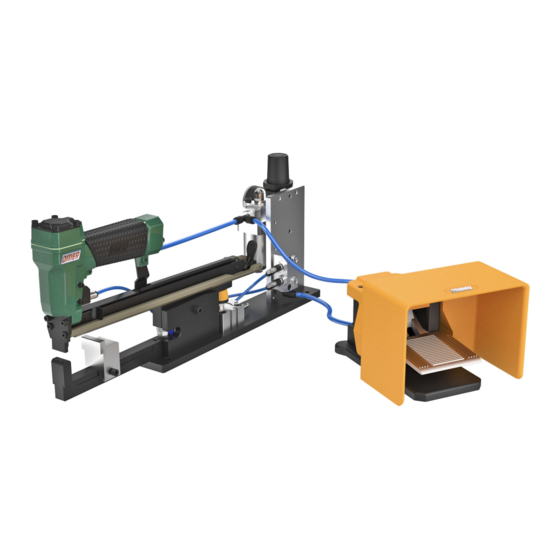

The bench-mounted stapler ROP is the optimal solution for fixing blisters, paper or
plastic bags, boxes, displaying cards, etc.
Features:
• Possibility to be easily fixed upon working surface
•Pneumatic system complete with FRL unit & manometer for a correct power
supply
• Pedal activated mode
•Working pressure: 5,5 ÷ 6,5 bar ( 80÷ 95 psi)
• Top loading
• Magazine capacity: 2 strips
• Applicable sizes: 6 to 16mm
• Easy jam-clearing
• Easily replaceable pneumatic tool units (with units suitable for different fastener
series, i.e. 3G, 64, 80, 50, 65, 40, 4097)
• Possible adjustements:
MADE
IN
ITALY
www.omer.it
- Clinching depth
- Front side opening
- Clinching speed
- Fire delay
Advertisement
Related Manuals for Omer 65.16 ROP
Summary of Contents for Omer 65.16 ROP
- Page 1 ® INTRODUCTION: The bench-mounted stapler ROP is the optimal solution for fixing blisters, paper or 65.16 ROP plastic bags, boxes, displaying cards, etc. Features: cod. 11568ROP • Possibility to be easily fixed upon working surface •Pneumatic system complete with FRL unit & manometer for a correct power supply •...
- Page 2 Easy jam-clearing trigger Manometer Silenced rear exhaust Automated hold down Filter/reducer/lubricator unit opening mechanism Rapid rear airplug Clinching speed regulator 2 strips capacity magazine Distributor (opening) Fire delay regulator Pneumatic pedal Anvil Adjustable spacer Plate for bench-mounting Front side opening adjustment Adjustment of clinching depth Clinching speed regulator (closing)
- Page 3 Loading ........................14 Jam-clearing ........................ 15 Spare parts ........................16 Spare parts for 65.16 ROC-C stapler ................17 Spare parts for 65.16 ROP ..................18 Pneumatic diagram ..................... 19 Accessories – O-Rings ....................20 Spare parts list ......................21 Notes ........................... 22...
- Page 4 INTRODUCTION In order to assure high reliability, OMER has made a careful choice of the materials and components to be used in the manufacturing process of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual.
- Page 5 OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model.
- Page 6 In order to assure the safety and reliability of OMER guns, maintenance and repairs must be carried out by skilled persons and OMER original spare parts must always be used. If you notice any irregularities in the operation of the machine, stop work at once, disconnect it straight away from the compressed air supply and unload the magazine.
- Page 7 Technical data Suitable staple series : Stapling results 98.06 (standard supplied) 0,65x1,25 staple 1/4" 5/8" 10,8 Gauge: 19 Crown: .476” (1/ 2“) Usable lenghts mm 6÷16 1/4"÷5/8" Usable lengths inch Magazine capacity No. of fasteners 5,5÷6,5 Working pressure bar Working pressure psi 80÷95 0,58 Air consumption litres/shot...
- Page 8 Technical data *all sizes are shown in mm Max 10 15,5 Min 0,5 27,5 152,5 Max 18 160,5 - 9 -...
- Page 9 Operating mode W ] ] { Á ] ˘ ~ • àˇb [ @ Á L 1 - I nsert the material to be fastened until spacer is met. 2 - Press pedal to activate the stapler. Before using the unit make sure all necessary adjustments for a correct and safe usage have been performed.
- Page 10 Adjustment of front side opening ÓÁ *• ] [ ˇÁ cb ^ ~ Á ] ˘ ~ [ b [ @ Á à^ \çcˇ} ~ [ ˇÁ } çcˇÁ &~ Á åà• • b ~ ^ Á ] çˇÁ ˇ] Á à{ { ] ¢ Á à[ Á ~ àc: Á b [ c~ • ˇb ] [ Á ] *Á ˇã~ Á } àˇ~ • b à{ Á ˇ] Á &~ Á *àcˇ~ [ ~ ^ È max 18 mm 2 mm 1 - Press the stapler head and keep this position to gain...
- Page 11 Clinching depth adjustment W ] Á à¸] b ^ Á *{ àˇˇ~ [ b [ @ Ð ^ à} à@ b [ @ Á ˇã~ Á } àˇ~ • b à{ Á ˇ] Á &~ Á *àcˇ~ [ ~ ^ Á b ˇÁ b cÁ ˘ ] ccb &{ ~ Á ˇ] Á c~ ˇÁ ˇã~ Á å{ b [ åãb [ @ Á ^ ~ ˘ ˇãÁ &: Á à^ \çcˇb [ @ Á ˇã~ Á...
- Page 12 Fire delay adjustment Õ b • ~ Á ^ ~ { à: Á à^ \çcˇ} ~ [ ˇÁ b cÁ ˇã~ Á } ] • ~ Á [ ~ å~ ccà• : Á ˇã~ Á ¢ b ^ ~ • Á b cÁ ˇã~ Á *• ] [ ˇÁ ] ˘ ~ [ b [ @ Á ] [ Á ˇã~ Á ˇ] ] { Ê Á cb [ å~ Á : ] çÁ } çcˇÁ @ b ¸~ Á ˇb } ~ Á...
- Page 13 Loading DO NOT press pedal while loading, to avoid activating the device 1 - Pull the pusher backwards and lock it at the stop position at the rear of the tool, this will open the movable hold down 2 - Load staples 3 - Release the slider - 14 -...
- Page 14 Jam-clearing R [ Á åàc~ Á ] *Á \à} } b [ @ Ê Á ˘ • ] å~ ~ ^ Á àcÁ *] { { ] ¢ cL Á 1 - Pull the pusher all the way back and lock it. 2 - Remove the staples from the magazine.
- Page 15 Spare parts - 16 -...
- Page 16 05.12.2 64.05 98.02 98.06 08.00.1Z 08.16.6Z 65.16 ROC-C c o d . 2 1 5 6 8 R O C - C 65.16 ROP Upgrade c o d . 11 5 6 8 R O P Number - 17 -...
- Page 17 17.31.4 06.00.3 17.34.8 98.07.1 B(V) 18.02 05.30 17.38 05.12 Connetion tubes 98.01 98.05.2 ø 05.20 05.25 Ø 05.20 Upgrade 65.16 ROP-72 c o d . 1 1 5 6 8 R O P - 7 2 Number - 18 -...
- Page 18 Pneumatic diagram 5,5 ÷ 6,5 bar B(V) Ø4 Ø4 A(C) B(V) Ø6 Ø6 R P S 5,5 ÷ 6,5 bar Ø6 Ø6 17.39.6 - 19 -...
- Page 19 00.06 00.04 01.10 18.21 Manometro Manometer Boccetta olio Oiler 65.16 ROP Upgrade 65.16 ROP Upgrade c o d . 1 1 5 6 8 R O P c o d . 11 5 6 8 R O P Number Number...
- Page 20 Notes - 22 -...
