Summary of Contents for Omer 62.16 ROP
- Page 1 ® 62.16 ROP cod. 11552ROP DO NOT MADE HANDHELD ITALY THIS TOOL USE MANUAL and SPARE PARTS IMPORTANT DO NOT DESTROY ! 11552ROP_6216ROP_5 290724 DV Via Foresto 42 - 31058 SUSEGANA TV ITALY Tel.0438455318 Fax 0438455530 E-mail: omer@omer.it www.omer.it...
-
Page 2: Introduction

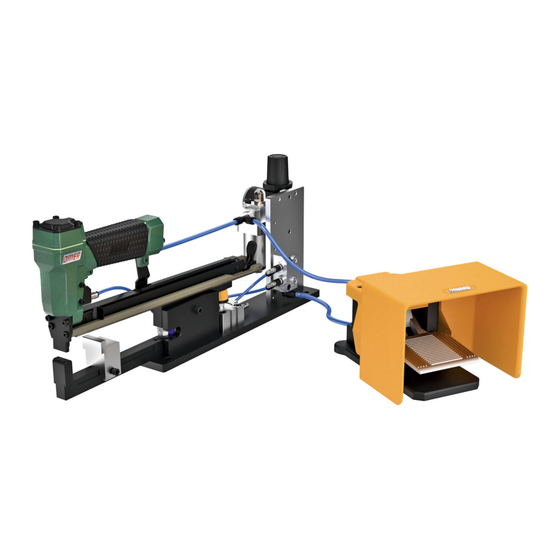

INTRODUCTION: The bench-mounted stapler ROP is the optimal solution for fixing blisters, paper or plastic bags, boxes, displaying cards, etc. Features: • Possibility to be easily fixed upon working surface •Pneumatic system complete with FRL unit & manometer for a correct power supply •... -
Page 3: Nomenclature
- 2 -... -
Page 4: Table Of Contents
Loading ........................16 Jam-clearing ......................17 Spare parts ......................18 Spare parts for 62.16 ROC-C stapler ............... 19 Spare parts for 62.16 ROP ..................20 Accessories – O-Rings ..................... 21 Spare parts list ......................22 Pneumatic diagram ....................23 Notes ........................24... -
Page 5: Section A General Information For A Safe Use Of The Stapler
INTRODUCTION In order to assure high reliability, OMER has made a careful choice of the materials and components to be used in the manufacturing process of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual. -
Page 6: Section B Compressed Air Supply System
OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model. -
Page 7: Section D Information Regarding Maintenance And Repair
To do so, unscrew the head screws with the hex spanner supplied, open the gun and remove the different components. Check carefully the state of wear of the O-rings and of the rubber parts. Replace the worn parts with OMER original spare parts. - Page 8 INTRODUCTION In order to assure high reliability, OMER has made a careful choice of the materials and components to be used in the manufacturing process of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual.
- Page 9 OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model.
- Page 10 To do so, unscrew the head screws with the hex spanner supplied, open the gun and remove the different components. Check carefully the state of wear of the O-rings and of the rubber parts. Replace the worn parts with OMER original spare parts.
-
Page 11: Technical Data
Technical data Suitable staple series : Stapling results 98.06 (standard supplied) 0,55x0,75 staple 1/4" 5/8" 11,7 Gauge: 23 Crown: .500" (1/2") Usable lenghts mm 6÷16 1/4"÷5/8" Usable lengths inch Magazine capacity No. of fasteners 5,5÷6,5 Working pressure bar Working pressure psi 80÷95 0,58 Air consumption litres/shot... - Page 12 Technical data *all sizes are shown in mm Max 18 Max 10 15,5 Min 0,5 27,5 142,5 150,5 - 11 -...
-
Page 13: Operating Mode
Operating mode Tool operating : Before using the unit make sure all necessary adjustments for a correct and safe usage have been performed. 1 - I nsert the material to be fastened until spacer is met. 2 - Press pedal to activate the stapler. Setting of staple position The stapling position is determined by adjusting the spacer as follows: 1 - Loosen the screws. -
Page 14: Front Side Opening
Adjustment of front side opening A front side opening adjustment must be carried out to allow an easy insertion of the material to be fastened. max 18 mm 2 mm 1 - Press the stapler head and keep this position to gain access to the pneumatic cylinder and bumper. -
Page 15: Clinching Depth
Clinching depth adjustment To avoid flattening/damaging the material to be fastened it is possible to set the clinching depth by adjusting the end-run screw. Disconnect the air before proceeding with the adjustment. max 10 mm min 0,5 mm 1 - Loosen the nut which stops the end-run screw. 2 - Screw or unscrew the end-run screw to adjust the clinching depth. -
Page 16: Firing Delay
Fire delay adjustment Fire delay adjustment is the more necessary the wider is the front opening on the tool, since you must give time to the stapler to block the material before firing. delays firing anticipates firing Clinching speed adjustment This adjustment allows you to set the most comfortable working speed. -
Page 17: Loading
Loading DO NOT press pedal while loading, to avoid activating the device 1 - Pull the pusher backwards and lock it at the stop position at the rear of the tool, this will open the movable hold down 2 - Load staples 3 - Release the slider - 16 -... -
Page 18: Jam-Clearing
Jam-clearing In case of jamming, proceed as follows: 1 - Pull the pusher all the way back and lock it. 2 - Remove the staples from the magazine. 3 - Open the slider closing trigger. 4 - Pull the slider all the way back by acting on the pusher and holding it in such a position. 5 - Pull the jammed staple out from the firing channel. -
Page 19: Spare Parts
Spare parts - 18 -... -
Page 20: Spare Parts For 62.16 Roc-C Stapler
64.05 98.02 98.06 08.00.1Z 08.16.6Z 62.16 ROC-C c o d . 1 1 5 5 2 R O C - C 62.16 ROP Upgrade c o d . 1 1 5 5 2 R O P Number - 19 -... -
Page 21: Spare Parts For 62.16 Rop
32.05 06.19 17.37.2 17.31.4 06.00.3 17.34.8 98.07.1 B(V) 18.02 05.30 17.38 05.12 Connetion tubes 98.01 98.05.2 05.20 ø 05.25 Ø 05.20 62.16 ROP Upgrade c o d . 1 1 5 5 2 R O P Number - 20 -... -
Page 22: Accessories - O-Rings
Accessories 07.50 07.40 07.30 07.25 O-Ring 01.21.3 00.27 01.21.1 28.00 00.70.5 00.35 01.33 01.29 00.26 01.10 00.14 00.12 00.13 00.06 00.04 62.16 ROP Upgrade c o d . 1 1 5 5 2 R O P Number - 21 -... -
Page 23: Spare Parts List
Raccordo T Tee connection 81.00.80 Controtestina Nose 18.02 Cilindro Pneumatico Pneumatic Cylinder 91.05.62 Testina Nose plate 18.21 Manometro Manometer Boccetta olio Oiler 62.16 ROP Upgrade c o d . 1 1 5 5 2 R O P Number - 22 -... -
Page 24: Pneumatic Diagram
Pneumatic diagram 5,5 ÷ 6,5 bar B(V) Ø4 Ø4 A(C) B(V) Ø6 Ø6 R P S 5,5 ÷ 6,5 bar Ø6 Ø6 17.39.6 - 23 -... -
Page 25: Notes
Notes - 24 -...
