26.8 ROPB
cod. 115501ROPB
DO NOT
MADE
HANDHELD
IN
ITALY
THIS TOOL
USE MANUAL and SPARE PARTS
IMPORTANT DO NOT DESTROY !
Via Foresto 42 - 31058 SUSEGANA TV ITALY
Tel.0438455318 Fax 0438455530
E-mail: omer@omer.it
www.omer.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26.8 ROPB and is the answer not in the manual?

Questions and answers

Summary of Contents for Omer 26.8 ROPB

  • Page 1 ® 26.8 ROPB cod. 115501ROPB DO NOT MADE HANDHELD ITALY THIS TOOL USE MANUAL and SPARE PARTS IMPORTANT DO NOT DESTROY ! Via Foresto 42 - 31058 SUSEGANA TV ITALY Tel.0438455318 Fax 0438455530 E-mail: omer@omer.it www.omer.it...

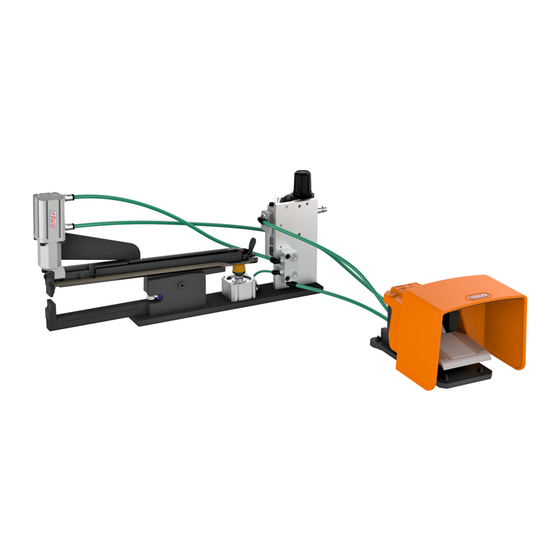

  • Page 2 INTRODUCTION: The bench-mounted stapler ROP is the optimal solution for fixing blisters, paper or plastic bags, boxes, displaying cards, etc. Features: • Possibility to be easily fixed upon working surface •Pneumatic system complete with FRL unit & manometer for a correct power supply •...
  • Page 3 - 2 -...
  • Page 4: Ec Conformity Declaration

    INTRODUCTION In order to assure high reliability, OMER has made a careful choice of the materials and components to be used in the manufacturing process of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual.
  • Page 5: Section B Compressed Air Supply System

    OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model.
  • Page 6: Section D Information Regarding Maintenance And Repair

    To do so, unscrew the head screws with the hex spanner supplied, open the gun and remove the different components. Check carefully the state of wear of the O-rings and of the rubber parts. Replace the worn parts with OMER original spare parts.
  • Page 7 INTRODUCTION In order to assure high reliability, OMER has made a careful choice of the materials and components to be used in the manufacturing process of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual.
  • Page 8 OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model.
  • Page 9 To do so, unscrew the head screws with the hex spanner supplied, open the gun and remove the different components. Check carefully the state of wear of the O-rings and of the rubber parts. Replace the worn parts with OMER original spare parts.
  • Page 10: Technical Data

    Technical data Suitable staple series : Stapling results 98.06-578 (standard supplied) 0,45x0,50 staple 1/4" 5/16” 11,8 Gauge: 25½ Crown: .503” (1/2") 6÷8 Usable lenghts mm 1/4"÷5/16" Usable lengths inch Magazine capacity No. of fasteners 5÷6 Working pressure bar Working pressure psi 80÷95 0,90 Air consumption litres/shot...
  • Page 11 Technical data *all sizes are shown in mm Max 4 15,5 Min 0,5 27,5 160,5 Max 10 - 10 -...
  • Page 12 Actuation Before using the unit make sure all necessary adjustments for a correct and safe usage have been performed. - 11 -...
  • Page 13 Adjustment of front side opening A front side opening adjustment must be carried out to allow an easy insertion of the material to be fastened. max 10 mm 3 mm 1 - Press the stapler head and keep this position to gain access to the pneumatic cylinder and bumper.
  • Page 14 Clinching depth adjustment To avoid flattening/damaging the material to be fastened it is possible to set the clinching depth by adjusting the end-run screw. Disconnect the air before proceeding with the adjustment. max 4 mm min 0,5 mm 1 - Loosen the nut which stops the end-run screw. 2 - Screw or unscrew the end-run screw to adjust the clinching depth.
  • Page 15 Loading DO NOT press pedal while loading, to avoid activating the device 1 - Pull the pusher backwards and lock it at the stop position at the rear of the tool, this will open the movable hold down 2 - Load staples 3 - Release the slider - 14 -...
  • Page 16: Jam-Clearing

    Jam-clearing In case of jamming, proceed as follows: 1 - Pull the pusher all the way back and lock it. 2 - Remove the staples from the magazine. 3 - Open the slider closing trigger. 4 - Pull the slider all the way back by acting on the pusher and holding it in such a position. 5 - Pull the jammed staple out from the firing channel.
  • Page 17: Spare Parts

    Spare parts - 16 -...
  • Page 18 08.16.6Z 98.06-578 26.8 ROC-CB c o d . 2 1 5 5 0 1 R O C - C B 26.8 ROPB Upgrade c o d . 1 1 5 5 0 1 R O P B Number - 17 -...
  • Page 19 32.05.1 17.31.6 08.19 17.31.8 08.00.5 18.02.1 17.31.4 17.31.5 17.37.5 05.30 Connetion tubes 98.01 98.05.2 05.20 ø 05.25 05.20 Ø 26.8 ROPB Upgrade c o d . 1 1 5 5 0 1 R O P B Number - 18 -...
  • Page 20: Spare Parts List

    Tappo 81.04.80 Controtestina Nose 17.37.5 Silenziatore Silencer 91.15.78 Testina Nose plate Boccetta olio Oiler Accessories 07.50 07.40 07.30 07.25 26.8 ROPB Upgrade c o d . 1 1 5 5 0 1 R O P B Number - 19 -...
  • Page 21: Pneumatic Diagram

    Pneumatic diagram 5 ÷ 6 bar Ø4 Ø6 Ø6 Ø6 R P S 5,5 ÷ 6,5 bar Ø6 - 20 -...
  • Page 22 Notes - 21 -...
