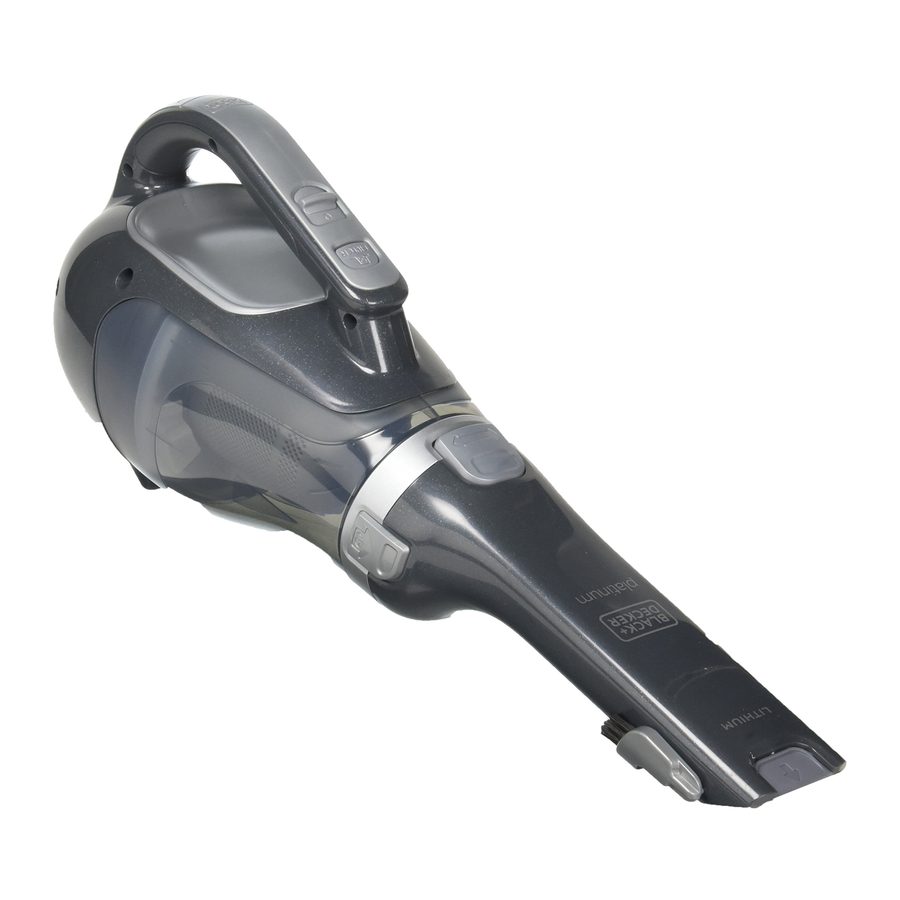

BLACK+DECKER BDH2000L, BDH2010LP, CHV1410L Manual

Table of Contents

Contents

1 Symbols
2 Product Features
3 Charging the battery
4 Wall Mounting
5 Use
6 Maintenance
7 Troubleshooting
8 Accessories
9 Battery Removal
10 SAFETY GUIDELINES DEFINITIONS
11 IMPORTANT SAFETY INSTRUCTIONS
12 SAFETY WARNINGS AND INSTRUCTIONS
- 12.1 BATTERIES
- 12.2 CHARGING
13 Service Information
14 TWO-YEAR LIMITED WARRANTY
15 Documents / Resources
- 15.1 References
- 15.2 Download manual

Symbols

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V	volts	A	amperes
Hz	hertz	W	watts
min	minutes	or AC	alternating current
or DC	direct current	n₀	no load speed
	Class I Construction (grounded)		earthing terminal
	Class II Construction (double insulated)		safety alert symbol
Wh	Watt Hours	.../min or rpm	revolutions or reciprocation per minute

Product Features

On/off switch
Bowl release button
Charging indicator
Dust bowl
Nozzle
Nozzle release button
Nozzle rotating button
Extendable crevice tool
Flip-up Brush
Charger base
Charger
Cloth filter
Plastic pre-filter
Wall mount bracket (BDH2010LP)

Charging the battery

Do not charge the battery at ambient temperatures below 39°F (4°C) or above 104°F (40°C).
The charge is complete when the charging indicator lights will turn off. The charger and the battery can be left connected indefinitely.

Place the appliance on the charging base as shown in figure A.
Plug in the charger. The charging indicator LED will illuminate.
Leave the appliance to charge.

While charging, the charger may get warm, this is perfectly normal and safe. The charging indicator will be lit as long as the appliance is charging. It can remain on charge indefinitely without damage or danger. It is not possible to "overcharge" the battery cells with the charger provided.

Wall Mounting

(BDH2010LP)
The product can be wall mounted, if desired, using the wall mount bracket, screws and anchors supplied. To wall mount the vac, refer to figures B and C.

Figure B - Mark the location of the screw holes.
Figure C - Hang the vac on the wall by placing the opening on the base of the vac over the hooks in the wall mount bracket.

Use

Switching on and off

Figure D - To start, slide the On/Off switch forward (i.e. "O"= Off, "I" = On).
To stop, slide the switch back.
Return the product to the charger immediately after use so that it will be ready and fully charged for the next use. Ensure that the product is fully engaged with the charger base.

Cleaning and emptying the product

Projectile/Respiratory Hazard: Never use the vac without its filter.

NOTE: The filter is re-usable, do not confuse it with a disposable dust bag, and do not throw it away when the product is emptied. We recommend that you replace the filter every 6-9 months depending on frequency of use. There are two methods of cleaning the bowl, a quick empty method and a thorough clean method.

For a quick empty (figures E, F)

Figure E - Press in on both nozzle release buttons on the sides of the nozzle and remove the nozzle by pulling straight off.
Figure F - Empty the dust from the bowl.
For a more thorough cleaning, remove bowl as described in figures G, H, & I.

Removing the dust bowl and filters

The filters are re-usable and should be cleaned regularly.

Figure G - Press the release latch and pull the dust bowl straight off.
While holding the dust bowl over a bin or sink, pull out the filter to empty the contents of the bowl.
To replace the dust bowl, place it back onto the handle until it "clicks" firmly into position.

Never use the appliance without the filters. Optimum dust collection will only be achieved with clean filters.

Figure H - This vacuum has a plastic pre-filter and an inner cloth filter. To separate the cloth filter from the plastic filter, twist the plastic filter in a clockwise direction.
Remove the inner cloth filter and shake or lightly brush any loose dust off both filters.
Figure I - The dust bowls and filters can be washed in warm soapy water. Allow to dry before placing back into the vac.
Figure J - To replace the filters, slide the outer plastic filter over the cloth filter.
Align the wings of the plastic filter with the slots in the cloth filter and twist in a counterclockwise direction.
Place filters back into the bowl pressing firmly to ensure a secure fit.
To replace dust bowl, place it back onto the handle until it "clicks" firmly into position.

Maximum dust collection will only be obtained with a clean filter and an empty dust bowl. If dust begins to fall back out of the product after it is switched off, this indicates that the bowl is full and requires emptying.

Wash the filters regularly using warm, soapy water and ensure that they are completely dry before using again. The cleaner the filter is, the better the product will perform.
It is very important that the filter is correctly in position before use.

Nozzle / Accessories

Figure K - A crevice tool is built into the nozzle and can be extended as shown in figure K by pulling the extension piece until it locks into position.
Figure L - A brush accessory is built into the nozzle and can be flipped upwards for use.
Figure M - The nozzle can be rotated for better access in tight spots. To rotate the nozzle, press the button shown in figure M and rotate the nozzle to the left or right until it clicks into place.

Replacing the filters

The filters should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filters are available from your BLACK+DECKER dealer.

Visit www.blackanddecker.com to locate dealers.

Remove the old filters as described above.
Fit the new filters as described above.

Maintenance

Bowls and filters can be washed thoroughly; however, use only mild soap and a damp cloth to clean the main part of the vacuum.

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts.

Troubleshooting

If the product does not work, check the following:

The charger was correctly plugged in for recharge. (It feels slightly warm to the touch.)
The charger cord is not damaged and is correctly attached.
The charger is plugged into a working electrical outlet.
The switch is in the "OFF" position when charging.

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986.

Accessories

Recommended accessories for use with your product are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call:
1-800-544-6986.

Filter accessory number VF110.

The use of any accessory not recommended for use with this product could be hazardous.

Battery Removal

This product uses Lithium Ion rechargeable and recyclable batteries. When the batteries no longer hold a charge, they should be removed from the Vac and recycled. They must not be incinerated or composted.

To remove the battery pack for disposal:

First, before attempting to disassemble the product, turn it on and leave it on until the motor completely stops insuring a complete discharge of the batteries.
Using a phillips screwdriver, remove the seven screws securing the two housing halves.
Lift the housing cover away from the assembly.
Detach all lead connections from battery pack.
Remove battery pack and dispose of as per recommended guidelines.

SAFETY GUIDELINES DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially haz ard ous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliances, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

burn hazard
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Some household dust contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.

burn hazard
To reduce the risk of fire, electrical shock or injury:

Close supervision is necessary when any appliance is used by or near children. Do not allow to be used as a toy.
Do not use without dust bag and/or filters in place.
Do not charge the unit outdoors.
Shock Hazard. To protect against risk of electrical shock, do not put unit or charging base in water or other liquid.
Do not use dry hand vacs to pick up liquids, toxic substances, flammable or combustible liquids such as gasoline or use in areas where they may be present.
Do not use wet/dry hand vacs to pick up toxic substances, flammable or combustible liquids such as gasoline or use in areas where they may be present.
Do not operate in the presence of explosives and/or flammable fumes or liquids.
Shock Hazard. Do not operate any appliance with a damaged cord or charger or after the appliance malfunctions, is left outdoors, dropped into water or is damaged in any manner. Return the appliance to any authorized service facility.
Do not use dry hand vacs outdoors or on wet surfaces.
Do not abuse the cord. Never carry the charger or base by the cord or yank to disconnect from an outlet; instead grasp the charger and pull to disconnect. Keep cord away from heated surfaces. Do not pull cord around sharp edges or corners.
Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces The unit should be placed or mounted away from sinks and hot surfaces.
Do not use an extension cord. Plug the charger directly into an electrical outlet.
Use the charger only in a standard electrical outlet (120V/60Hz).
Do not attempt to use the charger with any other product; do not attempt to charge this product with any other charger. Use only the charger supplied by the manufacturer to recharge.
Keep hair, loose clothing, and all parts of body away from openings and moving parts.
Do not insert accessories when unit is running.
Shock Hazard. Do not handle plug or appliance with wet hands.
Do not put any object into unit openings. Do not use with any openings blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Fire Hazard. Do not vacuum burning or smoking materials, such as lit cigarette butts, matches or hot ashes.
Do not use on or near hot surfaces.
Use extra caution when cleaning on stairs.
This appliance is intended for household use only and not for commercial or industrial use.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Unplug the charger from outlet before any routine cleaning or maintenance.
This product includes rechargeable Lithium Ion batteries. Do not incinerate batteries as they will explode at high temperatures.
If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Lithium Ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.

Do not look into the air vents when the unit is switched on, as sometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filters as debris inside the unit can be disturbed.

The charger supplied with this product is intended to be plugged in such that it is correctly orientated in a vertical or floor mount position.

SAFETY WARNINGS AND INSTRUCTIONS

BATTERIES

Do not disassemble or open, drop (mechanical abuse), crush, bend or deform, puncture, or shred.
Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, or expose to fire, excessive heat including soldering irons, or put in microwave oven.
Only use the battery / tool with a charging system specified by the manufacturer/supplier.
Do not short-circuit a battery or allow metallic or conductive objects to contact both battery terminals simultaneously.
Dispose of used batteries promptly according to the manufacturer/supplier's instructions.
Improper battery use may result in a fire, explosion, or other hazard.
Battery / tool usage by children should be supervised.

CHARGING

This manual contains important safety and operating instructions.
Before using battery charger, read all instructions and cautionary warnings on battery charger and product using battery.

To reduce the risk of injury, use this charger only with this product. Batteries in other products may burst causing personal injury or damage.
Do not expose charger to rain or snow.
Use of an attachment not recommended or sold by Black+Decker may result in a risk of fire, electric shock, or injury to persons.
To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire, electric shock or electrocution.
Use only the supplied charger when charging your tool. The use of any other charger could damage the tool or create a hazardous condition.
Use only one charger when charging.
Do not attempt to open the charger. There are no customer serviceable parts inside. Return to any authorized Black+Decker service center.
DO NOT incinerate the tool or batteries even if they are severely damaged or completely worn out. The batteries can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.
Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for three minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

Battery liquid may be flammable if exposed to spark or flame.

SAVE THESE INSTRUCTIONS

Service Information

All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

TWO-YEAR LIMITED WARRANTY

BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com.
Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Imported by
Black & Decker (U.S.) Inc.,
701 E. Joppa Rd.
Towson, MD 21286 U.S.A.

BlackandDecker.com
1-800-544-6986

If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers
If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent.
Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

To register your new product, visit www.BlackandDecker.com/NewOwner
