Summary of Contents for Black+Decker BDX19301-4B

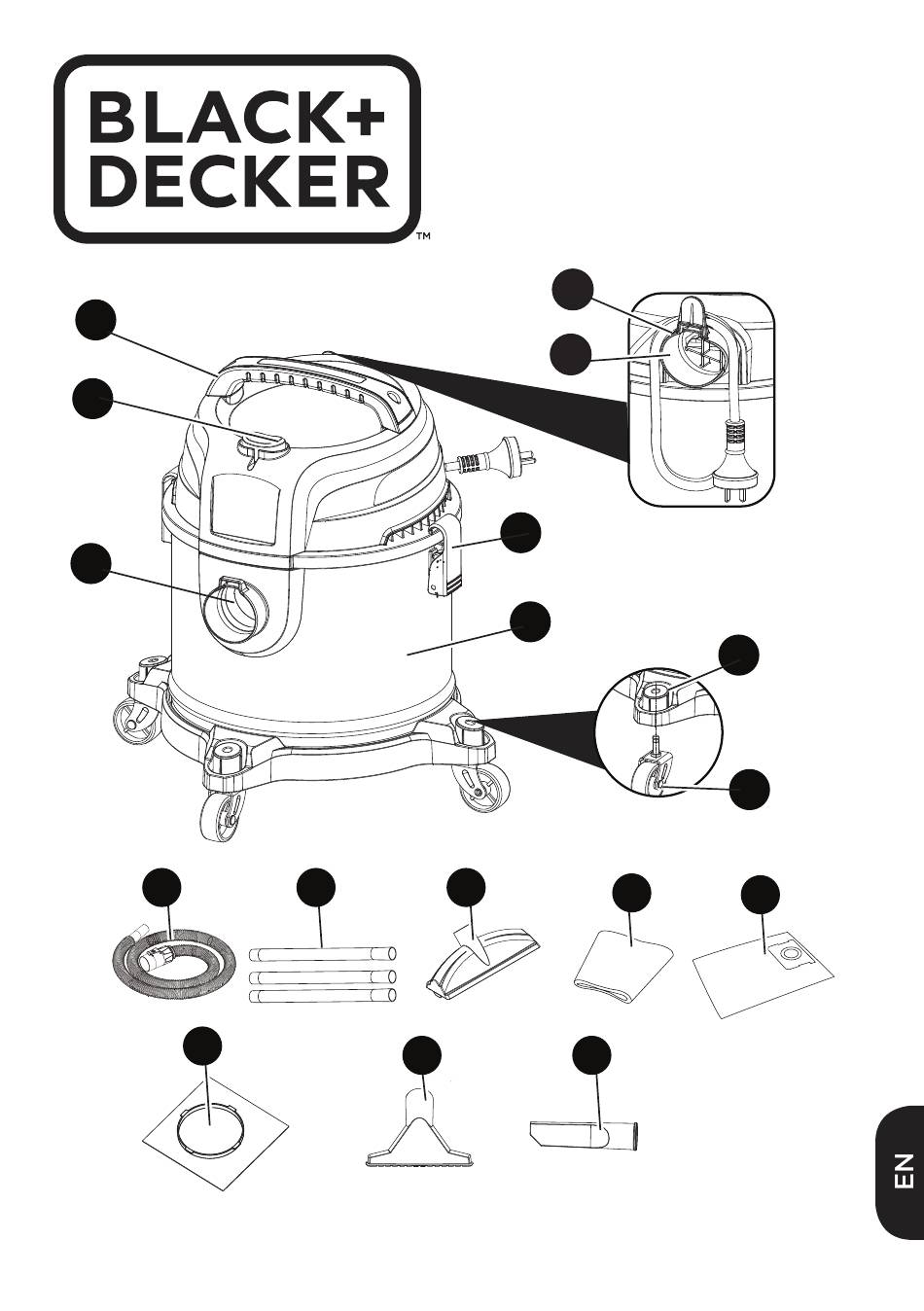

  • Page 1 BDX19301-4B...

  • Page 2: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION Handle (To be assembled before use) Switch Latch Vacuum port Dust tank Blowing port Power cord wrap Accessory holder Caster（To be assembled before use) DESCRIPTION PART PART NUMBERS Hose BDVA13-3304 Extension wand BDVA25-1205 Floor nozzle BDVA13-1570 Foam filter BDVA20-1200A Disposable filter bag...

  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS Model BDX19301-4B Voltage / Frequency / Wattage 240V / 50Hz / 850W Motor By-Pass, Single Stage Tank Capacity 15 Litre Hose 32mmx1.5m Power cord H05VV-F, 2C x 0.75mm² / 1.83m. Length WARNING: Use only extension cords that are rated for outdoor use. Extension cords in poor condition or that are too small in wire size can pose fire and shock hazards.

  • Page 4: What Is Not Covered

    EXPRESS WARRANTY STATEMENT WET/DRY VACUUM You are not required to do anything to register your wet/dry vacuum purchase. Please attach the purchase receipt to this manual and ensure both are kept safe. We hope you enjoy your new wet/dry vacuum , and if you have any problems call customer service on the above phone numbers.
  • Page 5 COMPLETE WARRANTY STATEMENT – WET/DRY VACUUM As soon as you have purchased the wet/dry vacuum, we recommend that you check to make sure it is intact and that you read the operating instructions carefully before using it. The purchase receipt for this product is to be retained and must be presented if making a claim under the terms of the Smart Marketing Group (SMG) warranty.
  • Page 6 SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS & GROUNDING INSTRUCTIONS When using an electrical appliance, basic precautions should be always followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. ATTENTION! Read all safety rules carefully before attempting to operate. Retain for future reference. DANGER! Never operate this unit when flammable materials or vapors are present because electrical devices produce arcs or sparks that can cause a fire or explosion.

  • Page 7: Important Safeguards

    20. Do not pick up soot, cement, plaster or drywall dust without filter and dust bag in place. These are very fine particles that may affect the performance of the motor or be exhausted back into the air. Additional dust bags are available. 21.

  • Page 8: Installing Casters

    ASSEMBLY INSTALLING HANDLE To install handle 1. Place handle in recess (3) 2. Insert provided screws (1) 3. Use Phillips screwdriver to secure and tighten. INSTALLING CASTERS Use provided casters and insert into the bottom of caster dolly as shown in Figure (A). Strong pressure required and listen for the click to ensure locked in place.
  • Page 9 The filter must always be in correct position to reduce the risk of leaks and possible damage to vac. Make sure that the filter is completely covering the filter cage and that the clamp ring is as close to the lid as possible. Make sure there are no gaps between the filter and the lid (See illustration).

  • Page 10: Blowing Operation

    EMPTY THE TANK WARNING! To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank. step 1 step 2 step 3 BLOWING OPERATION WARNING! Always wear safety eyewear complying with ANSI Z87.1 (or in Canada CSA Z94.3) when using as a blower.
  • Page 11 CARE AND MAINTENANCE FILTER REPLACEMENT WARNING! To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.Your filter should be cleaned often to maintain peak vacuum performance. IMPORTANT To avoid damage to the blower wheel and motor, always reinstall the reusable dry filter before using the vacuum for dry pickups and always reinstall the foam filter before using the vacuum for wet pickups.

  • Page 12: Troubleshooting

    TROUBLESHOOTING WARNING! TO REDUCE THE RISK OF INJURY FROM MOVING PARTS AND/OR ELECTRICAL SHOCK, TURN SWITCH OFF AND DISCONNECT GROUNDED PLUG FROM ELECTRICAL OUTLET BEFORE PERFORMING TROUBLESHOOTING CHECKS. Minor problems often can be fixed without calling customer service. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Make sure electrical outlet has voltage Vacuum cannot...
  • Page 13 EXPANDED VIEW / PARTS LIST PART DESCRIPTION PART DESCRIPTION Handle Silencer sponge Tray sealing strip Switch Top cover Filter cage Latch Baffle Dust tank Crimp cap Cord clamp Vacuum port Caster dolly Power cord Caster Motor...
  • Page 14 ©2020 Manufactured under license for Black & Decker Corporation by Alton Industry Ltd Group. Made in China. Product in this box may differ slightly from that pictured. BLACK+DECKER and the BLACK+DECKER logos and product names are trademarks of The Black & Decker Corporation, used under license. All rights reserved.
