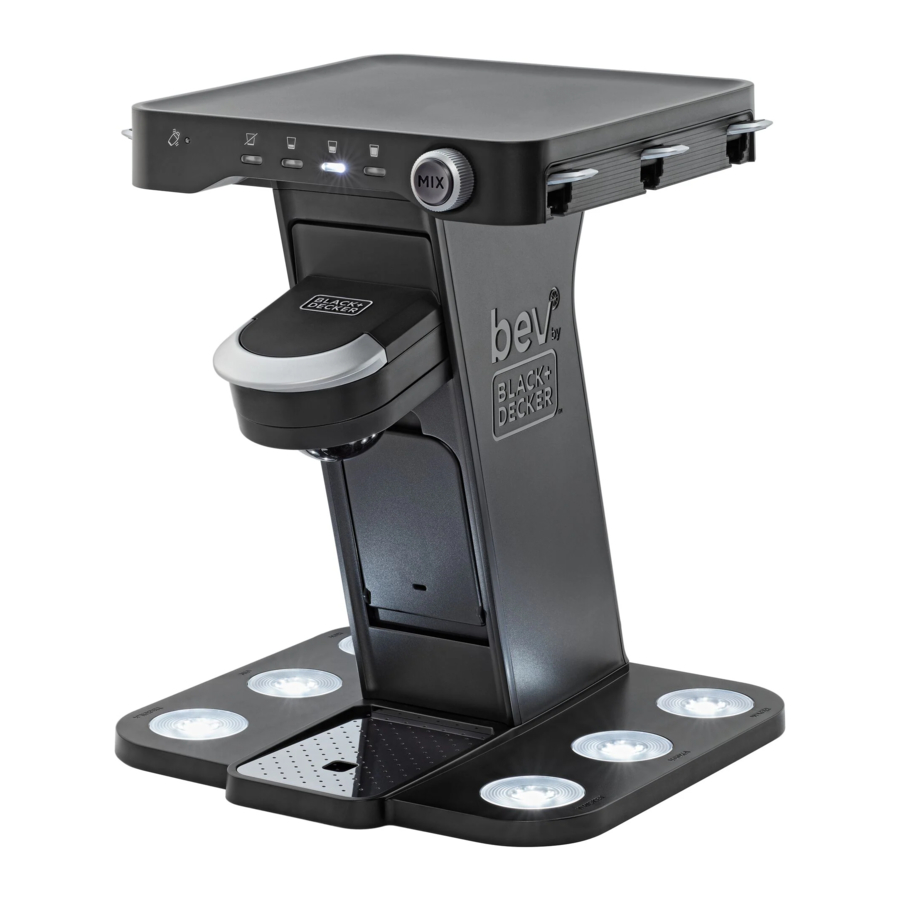

BLACK+DECKER Bev BEHB101 Manual

COMPONENTS

1. Jack plug
2. Plug port
3. Drip tray
4. Drip tray cover
5. Drip tray cover finger hole
6. Bottle platform
7. Straws (6)
8. Straw locks (6)
9. Straw tips (6)
10. Straw slots (6)
11. Straw plug (6)
12. Straw plug notch (6)
13. Bottle stoppers (6)
14. Power switch
15. Strength LEDs (4)
16. Bottle LEDs (6)
17. Glass shelf
18. Tower
19. Shaker LED
20. Capsule (not included)
21. Capsule holder
22. Capsule holder lid
23. Capsule cup
24. Capsule tab
25. Strength selector dial
26. Mix button
27. Party mode button
28. Cleaning mode button
29. Water bottle
30. Straw cleaner

ASSEMBLY AND ADJUSTMENTS

To reduce the risk of serious personal injury, turn appliance off and disconnect appliance from power source before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can cause injury.

Installing Cord

(Fig. B)

1. Place the cocktail maker upright on a flat, level, stable surface.
2. Insert the jack plug of the cord into the plug port .
3. Plug the other end of the cord into an outlet.

Installing Coaster

1. Place the drip tray cover into the drip tray so the rounded and slanted corners of the cover line up with the rounded and slanted corners of the drip tray.
2. Ensure the cover sits fully inside the drip tray.
3. To remove the cover, lift from the drip tray cover finger hole .

Installing Bottles

(Fig. D)

Only use water in the supplied water bottle. Use of other liquids or substances in the water bottle may result in damage to the appliance.

Avoid spills while installing bottles.

NOTE: It is recommended to use 750 ml bottles or smaller to ensure all bottles sit on the bottle platform without hanging off the platform.

NOTE: Bottles must fit between the bottle platform and the top of the cocktail maker while standing.

1. Slide a straw into a bottle so the straw tip sits on the bottom of the bottle.
2. Slide the bottle stopper down the straw until it sits fully in the top of the bottle.
3. Ensure the straw lock is up.
4. Align the straw plug notch with the straw slot .
5. Slide the straw plug all the way into the straw slot, allowing the bottle to sit freely in its designated space. Ensure the straw plug is fully seated in the slot.
6. To lock it into place, push the straw lock down until it clicks. Ensure the lever is fully down.
7. Repeat for all bottles.

Bottles must be placed in their designated space to ensure the correct drink is dispensed. Names of the liquids are located in each spot, indicating the appropriate liquid.

The following are the only liquids that should be used with the appliance.

• Water
• Gin
• Rum
• Vodka
• Tequila
• Whiskey

Removing Bottles

(Fig. E)

Avoid spills while removing bottles.

1. Lift the straw lock .
2. Slide the straw plug and bottle off the cocktail maker.
3. Pull the bottle stopper out of the bottle and remove the straw .

NOTE: If the cocktail maker pauses for an empty bottle and you press mix without replacing the bottle, it will skip to the next bottle in the recipe. If that bottle is empty, it will pause again. Refer to the PAUSE MODE section for more information.

OPERATION

To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can cause injury.

On/Off

(Fig. F)

DO NOT interact with the cocktail maker while it is operating.

• To turn the cocktail maker on, push the "I" side of the power switch . The 4 strength LEDs and 6 bottle LEDs will blink. When they become solid, the cocktail maker is ready to use.
• To turn the cocktail maker off, push the "O" side the side of the power switch. All LEDs will turn off.

Choose a Glass Tray

Place a glass or shaker on either the glass shelf or drip tray , depending on the height of the glass being used. Refer to the cocktail image on the capsule for glass style.

NOTE: A glass or shaker must be in place before making a drink to avoid spillage.

Short glass:

1. Pull the glass shelf down so it stands straight out from the tower .
2. Place a small glass on the glass shelf.

Tall glass:

1. Push the glass shelf up so it hides away in the tower.
2. Ensure the drip tray cover is in place.
3. Place a tall glass on the drip tray cover.

Shaker:

The shaker LED will light when a drink needs to be shaken. In this case, use a shaker instead of a tall glass.

1. Push the glass shelf up so it hides away in the tower.
2. Ensure the drip tray cover is in place.
3. Place a shaker on the drip tray cover.

Inserting a Capsule

Cut Hazard. DO NOT probe capsule holder area with fingers.

Pinch point. Keep away from capsule holder when closing capsule holder lid.

Use only Bartesian capsule. Use with any other capsule may result in damage to the appliance.

DO NOT open capsule .

Once the capsule is punctured, it may drip liquid. To avoid this, place a capsule in the capsule holder just before mixing a drink.

1. Before inserting a capsule, place a glass or shaker on the glass shelf or drip tray as described in the CHOOSE A GLASS TRAY section
2. Select the capsule you wish to use.
3. To open the capsule holder, lift the capsule holder lid until it clicks into place.
4. Ensure the bar code is clean from liquid and debris. Wipe your thumb across the bar code before inserting capsule into capsule holder.
5. Place the capsule in the capsule cup located in the holder. Ensure the capsule tab faces to the left. The cocktail maker will not operate if the capsule is inserted any other way.
6. Ensure the capsule sits fully in the capsule cup.
   NOTE: The scanner inside the capsule holder scans the code on top of the capsule. This allows the cocktail maker to pull from the correct bottles so it dispenses the correct drink.
7. Push the capsule holder lid down to close the capsule holder until it clicks. Ensure the lid is fully closed before operating.

NOTE: If the capsule code is successfully read, the bottle LEDs will light under the bottles that are being used. Ensure each bottle is in its correct place.

NOTE:If lights DO NOT turn on, lift the capsule holder lid and use a clean, dry towel to wipe the barcode scanner and the capsule barcode as shown in Fig. I. Then, repeat step 6.

(Fig. I)

Select Alcohol Strength

(Fig. J)

To select the amount of alcohol to be dispensed into the drink, turn the strength selector dial .

• left: less alcohol
• Right: more alcohol

The strength LEDs will turn on and off as you turn the selector, indicating the strength of the drink.

• ‑ mocktail (no alcohol)
• ‑ light alcohol content
• ‑ regular alcohol content
• ‑ strong alcohol content

Making a Drink

(Fig. F–J)

Fig. J

To ensure liquor is not dispensed while making a mocktail, lift straw locks for the alcohol bottles and keep the water bottle straw lock down.

1. Turn the cocktail maker on as described in the ON/ OFF section.
2. Place a glass or shaker on the glass shelf or drip tray depending on its height as described in the CHOOSE A GLASS TRAY section.
3. Insert the desired capsule into the capsule holder as described in the INSERTING CAPSULE section.
4. Turn the strength selector dial to set the alcohol content as described in the SELECT ALCOHOL STRENGTH section.
5. Bottles used for the drink recipe will light up. Ensure bottles are installed in all locations illuminated.
6. Push the mix button to begin making a drink.
7. The bottle LED will light under the bottle whose liquid is being dispensed.
8. It is complete when all the LEDs become solid.
9. Remove the capsule before removing the glass. The capsule may drip when it is being removed and if left in the holder.

NOTE: While making a drink, if the power button is turned off, the appliance is unplugged, or after one minute in pause mode, the mixing process will be reset, ending the mixing of the current drink. If this happens, a small amount of alcohol may remain in the internal lines. To ensure the next drink is not mixed with this remaining alcohol, clean the lines as described in the CLEANING MODE section before mixing another drink. To resume making the drink while in pause mode, refer to the PAUSE MODE section.

NOTE: If the cocktail maker continues to dispense to the point of overflow, turn the appliance off, lift the straw lock, or lift the capsule holder lid .

Bottle Runs Out During Mixing

(Fig. F, J)

If a bottle runs out of liquid while the cocktail maker is mixing a drink:

• The cocktail mixer will enter pause mode for 2 minutes to allow you to replace the empty bottle. Refer to the PAUSE MODE section for more information.
• DO NOT turn the power switch off. Turning it off will reset the mixing process and the cartridge will no longer be able to be used.

NOTE: The unit will not flush the lines while the capsule holder lid is lifted.

To replace the empty bottle:

1. Remove the bottle as described in the REMOVING BOTTLES section.
2. Install the a new bottle as described in the INSTALLING BOTTLES section.
3. Press the mix button to resume mixing the drink from where it left off.

Pause Mode

Pause mode lasts for 2 minutes. The strength LEDs will light to indicate the time remaining.

3 solid, 1 flashing	1:30 ‑ 2 min. remaining
2 solid, 1 flashing	1 ‑ 1:30 min. remaining
1 solid, 1 flashing	30 sec. ‑ 1 minute remaining
1 flashing	less than 30 sec.

• Press and hold the mix button for 3 seconds to cancel pause mode.
• If the LED countdown finishes before the drink mixing resumes or pause mode is canceled, the unit will pump a small amount of water to flush the lines. The cocktail maker will reset to its original mode and the drink will no longer be mixed. If there is no water loaded into the cocktail maker, the unit will flush the lines with air.

NOTE: The unit will not flush the lines while the capsule holder lid is lifted.

Pause mode is triggered three ways.

• The mix button is pressed.
  • Press the mix button once more to resume.
• The capsule holder lid is open.
  • Close the lid and press the mix button.
• A bottle runs out of liquid
  • Replace the empty bottle as described in the BOTTLE RUNS OUT DURING MIXING section.

Turn on Party Mode LEDs

(Fig. K)

The bottle LEDs can be set to flash in a preset pattern.

1. Turn the cocktail maker on by pushing the "I" side of the power switch . All 6 bottle LEDs will light.
2. Press the party mode button once to set party mode. The LEDs will begin flashing.
3. Press the party mode button a second time to turn all bottle LEDs off..
4. Press the party mode button a third time to turn all bottle LEDs back on.

MAINTENANCE

To reduce the risk of serious personal injury, turn unit off and keep away from power switch before making any adjustments or removing/installing attachments or accessories.
An accidental start‑up can cause injury.

Your BLACK+DECKER appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper appliance care and regular cleaning.

Cleaning

(Fig. C)

Never use solvents or other harsh chemicals for cleaning the non‑metallic parts of the appliance. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the appliance; never immerse any part of the appliance into a liquid.

Straws, bottle stoppers, capsule cup, drip tray cover, and water bottle are top‑rack dishwasher safe. It is recommended that you manually rinse the attachments before placing them in the dishwasher.

• Clean the inside of the straws with warm water, mild soap, and the provided straw cleaner .
• Clean all external parts with a cloth dampened with warm water and mild soap.
• Remove the capsule cup by pulling it up and out of the capsule holder . To reinstall the cup, slide it into the capsule holder and press down. Ensure the cup sits fully and securely inside the capsule holder.

Cleaning Mode

(Fig. E, I, L, M)

It is recommended to clean the liquid lines of the cocktail maker at least once a month.

1. Remove the capsule from the capsule holder . Ensure the capsule cup remains in place.

   (Fig. L)
2. Place a large glass that holds at least 10 oz (300 ml) on the drip tray .
3. Remove the bottles as described in the REMOVING BOTTLES section.
4. Fill a glass with at least 2 oz (60 ml) of water.
5. Place a straw in the glass and install the straw as described in the INSTALLING BOTTLES section.
6. Repeat steps 1 ‑ 5 for all bottles.
7. Press the cleaning mode button for 6 seconds.

   (Fig. M)
8. Once the unit starts pumping water, let go of the cleaning mode button.
9. The bottle LEDs will light one at a time to indicate which line is being cleaned. Once all LEDs turn on, the process is complete.
10. Water may splash on the barcode scanner . Use a clean, dry towel to wipe the barcode scanner and surrounding area.
11. Install the bottles as described in the INSTALLING BOTTLES section.

Accessories

Since accessories, other than those offered by BLACK+DECKER, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only BLACK+DECKER recommended accessories should be used with this product.

Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact BLACK+DECKER call 1‑800‑544‑6986.

Storage

• Clean out the liquid lines as described in the CLEANING MODE section.
• Switch off the appliance.
• Always store disconnected from power supply!
• Store in a place that is as cool and dry as possible.
• Store in a place where it cannot be accessed by children or unauthorized persons.
• Remove all bottles, capsules, straws, and stoppers from the appliance when storing for long periods of time.
• Check the appliance for damage before use after long periods of storage.

Transport

• Always transport your products disconnected from power supply.
• Turn power switch to the off position.
• Check the appliance for damage before use after transport
• Remove all bottles, capsule, straws, and stoppers from the appliance for transport.
• DO NOT transport with bottles installed.

Technical Data

12VDC 1000mA

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.BlackandDecker.com/NewOwner

IMPORTANT SAFEGUARDS

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

To reduce the risk of injury, read the instruction manual.

Intended Use

This appliance is intended for residential use only for mixing cocktails by adults of legal drinking age.

DO NOT let children come into contact with the appliance.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read and save all safety warnings, instructions, and cautionary markings for appliance, alcohol, and capsules.
• This appliance is intended for adults of legal drinking age. This appliance should not be used by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they DO NOT play with the appliance.
• Always drink responsibly.
• To protect against risk of electrical shock, DO NOT immerse appliance, motor, cord, or plug in water or other liquid. DO NOT use the appliance in the bathroom, near water, or in adverse weather conditions.
• Only use the power adaptor supplied by the manufacturer.
• Unplug when not in use, during external cleaning, or when making adjustments.
• DO NOT abuse the cord. Use the plug, never the cord, for unplugging the appliance. Replace damaged cord or plug immediately.
• DO NOT operate any appliance after the appliance malfunctions, or is dropped or damaged in any manner. Call the appropriate toll‑free number in this manual.
• DO NOT use broken, chipped, or cracked bottles of alcohol.
• The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury; DO NOT use attachments or appliances for anything other than intended use.
• This appliance is not intended for commercial, professional, or industrial use. It is designed and built exclusively for household use.
• DO NOT place appliance on, near, or in a hot item such as a stove, oven, pot, or container.
• DO NOT touch puncturing needles inside the pod holder. The needles are sharp. Handle carefully with your hands away from cutting edge. Always store out of reach of children with the pod holder closed.
• DO NOT use the appliance with wet hands.
• Never modify the appliance, attachments, or any parts thereof.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

• DO NOT use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum gauge for Cord sets

Volts		Total length of Cord in Feet (meters)
120 V		25 (7.6)	50 (15.2)	100 (30.5)	150 (45.7)
240 V		50 (15.2)	100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire gauge
More Than	Not More Than
0	6	18	16	16	14
6	10	18	16	14	12
10	12	16	16	14	12
12	16	14	12	Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V: volts
Hz: hertz
min: minutes
or DC: direct current
: Class I Construction (grounded)
.../min: per minute
BPM: beats per minute
IPM: impacts per minute
OPM: oscillations per minute
RPM: revolutions per
sfpm: surface feet per minute
SPM: strokes per minute
A: amperes
Wh: watt hours
Ah: amp hours
or AC: alternating current
or AC/DC: alternating or direct current
: Class II Construction (double insulated)
n_o : no load speed
n: rated speed
PSI: pounds per square inch
earthing terminal
: safety alert symbol
: visible radiation do not stare into the light
: wear respiratory protection
: wear eye protection
: wear hearing protection
: read all documentation
: do not expose to rain

(1‑800‑544‑6986)
BlackandDecker.com

Documents / Resources

References

• Home | BLACK+DECKER
• Home | BLACK+DECKER

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download BLACK+DECKER Bev BEHB101 Manual
