Do you have a question about the GULLIVER/N/M and is the answer not in the manual?
Questions and answers
Sendi
February 21, 2025
Cara pasang sensor rx dan tx menuju ke nomer berapa
Nanang
February 21, 2025
Cara pasang sensor ke no berapa saja
1 comments:
Mr. Anderson
February 21, 2025
To install the sensor on the Dea GULLIVER/N/M motor, follow these steps:
1. Attach the mounting brackets to the magnets as shown in the manual. 2. Mount the SOUTH (S) magnet at the closing limit switch and the NORTH (N) magnet at the opening limit switch. 3. Connect the BROWN cable of the magnetic sensor to the FCC 1 input (Closing Limit Switch 1). 4. Connect the BLACK cable of the magnetic sensor to the FCA 1 input (Opening Limit Switch 1). 5. Ensure that the fixing dowels of the support plate always face the motor when assembling the magnet support brackets on the rack. 6. Refer to the control board instructions to verify the correct limit switch inputs. 7. Ensure correct installation to prevent potential danger to people or property.
Follow all safety precautions and guidelines as outlined in the manual.

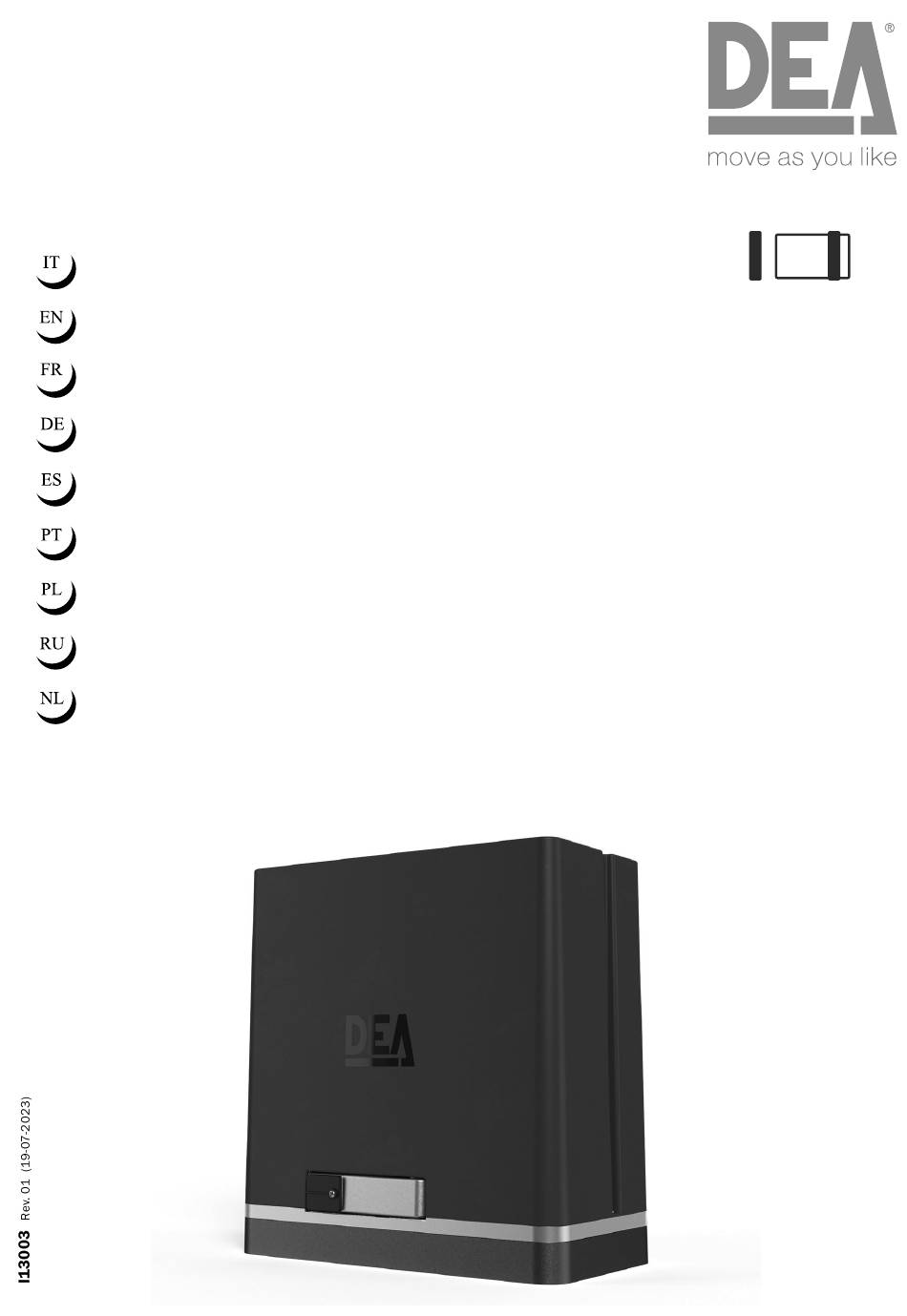

Page 1
GULLIVER/N Operatore elettromeccanico per cancelli scorrevoli indus triali Istru z io ni d ’ u so ed av ve r ten z e Electromec hanical operator s for indus trial sliding gates O pe ra tin g in st ru c t io n s and wa rn in g s Opérateur s électromécaniques pour por t ails coulissants indus triels Noti ce d’e mp l oi et aver ti ss eme n ts Elektromec hanisc her Antrieb für indus trielle Sc hiebetore...
Page 2
GULLIVER/N Electromechanical operators for GULLIVER/N industrial sliding gates Operating instructions and warnings Index Product Description Maintenance Technical data Product Disposal Installation and Assembly Electrical Connections Start-up SYMBOLS The following symbols are used within this manual to indicate potential hazards. Important safety notice. Failure to follow these instructions may result in serious injury or damage to property. Failure to do so may result in product malfunction and create a hazardous situation.
Page 3
GULLIVER/N 2 TECHNICAL DATA GULLIVER/N/3P/M - GULLIVER/N/3P/F/M - GULLIVER/N/M - GULLIVER/N/IB GULLIVER/N/3P/IB Power supply (V) 230-240 V ~ (50/60 Hz) Motor power supply voltage (V) 230 V ~ 230 V 3~ Nominal Power (W) Maximum power (W) 1650 Nominal torque (Nm)
Page 5
GULLIVER/N 3 INSTALLATION AND ASSEMBLY 3.1 For a satisfactory installation of the product is important to: • Ensure that the facility complies with current regulations and then defi ne the full project of the automatic opening; • Ensure that throughout the course of the gate, while opening and closing, there are no friction points; •...
Page 6
DEA System does not take responsibility for any issues ari- sing from improper parameter settings. The installer must still verify compliance with the limits specifi ed by EN 12453 standard. See the instructions provided with the control panel to be connected.
Page 7
GULLIVER/N NET230N WIRING DIAGRAM WL / FL 24 ELOCK FLASH 230 WARN_FIX / SAS_OUTPUT MOTOR 24V_AUX MOTOR 24V_ST Length Description Cable (1m - 20m) (20m - 50m) POWER SUPPLY 24 V power supply 3 x 1,5 mm² 3 x 2,5 mm² 230-240V~ 50/60Hz 230 V power supply 4 x 0,5 mm²...
Page 8
GULLIVER/N NET-CPU EVO WIRING DIAGRAM TYPE 00 TYPE 03 RESET NONE IN 7 NONE NONE IN 8 NONE NONE IN 9 NONE NONE IN 10 NONE NONE IN 11 NONE NONE IN 12 ENCODER FLASH_FIX FLASH_FIX OUT 1 WARN_FIX WARN_FIX OUT 2 ENC 1 ELOCK_INV_...
Page 9
GULLIVER/N NET-M230-I WIRING DIAGRAM INV M1 ENCODER Length Description Cable (1m - 20m) (20m - 50m) 24 V power supply 3 x 1,5 mm² 3 x 2,5 mm² 230 V power supply 4 x 0,5 mm² 4 x 2,5 mm² Warning light 2 x 0,5 mm²...
Page 10
5.1 Installation test The testing operation is essential in order to verify the correct installation of the system. DEA System wants to summarize the proper testing of all the automation in 4 easy steps: •...
Page 11
GULLIVER/N 7 PRODUCT DISPOSAL GULLIVER/N consists of materials of various types, some of which can be recycled (electrical cables, plastic, aluminum, etc. ..) while others must be disposed of (electronic boards and components). Proceed as follows: 1. Disconnect the power supply; 2.
Page 12
Dla każdego risk analysis and the detailed design of the automatism. - DEA System fournit ces indi- typu automatyki, instalator musi sam oszacować realne warunki miejsca montażu i cations que vous pouvez considérer comme valables pour une installation-type, même...
Page 13
GULLIVER/N 4x UNI 5737 4x UNI 5739 M12x70 M6x20 8x UNI 6592 Ø12 4x UNI 7474 [ITA] Posizione dell'etichetta con i dati tecnici del motore. [ENG] Position of the label with the technical data of the motor. [FRA] Emplacement de l'étiquette avec les données techniques du moteur.
Page 14
GULLIVER/N [ITA] Utilizzare la piastra di base come dima e valutare il tipo di fissaggio a terra più indicato. [ENG] Use the base plate as a template and evaluate the most suitable type of ground fixing. [FRA] Utilisez la plaque de base comme modèle et évaluez le type de fixation au sol le plus approprié.
Page 15
GULLIVER/N Anta cancello, Door gate, Leaf, Schiebetor, Hoja, Folha, Brama, Struttura fissa, Fixed Base di fondazione, Foundation structure, Structure plate, Plaque de fondation, Funda- fixe, Wand, Estructu- 125 mm. mentplatte, Placa de cimentación, ra fija, Estrutura Cremagliera, Rack, Placa de fundação fixa Crémaillère, Zahnstan- towa,...
Page 16
GULLIVER/N antiorario counterclockwise 180° 100° 4x UNI 8112 M4x8 2x UNI 5739 M6x12 2x UNI 5927 M6x10 2x UNI 5931 M5x6 2x UNI 8842-A 2x UNI 7474 2x UNI 5931 M5x16 Sensore, Sensor 2x UNI 6592 Senseur, Sensor Sensor, Czujnik Magnete, Magnet Aimant, Magneto Íman, Magnes...
Page 17
GULLIVER/N Nero, Black, Noire, Schwarz, Negro, FCA 1 SWO 1 Preto, Czarny Blu, Blue, Bleu, Blau, Azul, Niebieski, Marrone, Brown, Marron, Braun, FCC 1 SWC 1 P063|SE.04 = 000 P063|SE.04 = 001 Pos. Description Pos. Description NORD ATTENZIONE: In caso di utilizzo del parametro P063|SE.04 per l’installazione invertita del motore (motore a destra), la posizione dei magneti non deve essere modificata.
Page 18
GULLIVER/N max 120° [ITA] Canalina per passaggio cavi alimentazione motore e centrale di comando. [ENG] Conduit for operator power supply cables and control panel. [FRA] Conduit pour câbles alimentation moteur et platine de commande. [DEU] Elektrorohr für das Stromzuleitun- gskabel. [ESP] Conducto para pasar los cables de alimentación motor y cuadro de maniobras.
Page 20
GULLIVER/N INSTRUCTIONS FOR THE FINAL USER This guide has been prepared for the fi nal users of the automatism; the installer is required to deliver this gui- de and illustrate its contents to the person in charge of the system. The latter must then provide similar instruc- tion to all the other users.
Page 21
E-Mail address: deasystem@deasystem.com declare that the DoC is issued under our sole responsibility and belongs to the following product: GULLIVER/N - GULLIVER/N/M - GULLIVER/N/IB - GULLIVER/N/SC - GULLIVER/N/3P - GULLIVER/N/3P/M - Apparatus model/Product: GULLIVER/N/3P/F/M - GULLIVER/N/3P/IB - GULLIVER/N/400/3P/SC - GULLIVER/N/400/3P...
Page 25
BATCH DEA SYSTEM S.p.A. Via Della Tecnica, 6 - 36013 PIOVENE ROCCHETTE (VI) - ITALY tel: +39 0445 550789 - fax: +39 0445 550265 Internet: http:\\www.deasystem.com - E-mail: deasystem@deasystem.com...
Need help?
Do you have a question about the GULLIVER/N/M and is the answer not in the manual?
Questions and answers
Cara pasang sensor rx dan tx menuju ke nomer berapa
Cara pasang sensor ke no berapa saja
To install the sensor on the Dea GULLIVER/N/M motor, follow these steps:
1. Attach the mounting brackets to the magnets as shown in the manual.
2. Mount the SOUTH (S) magnet at the closing limit switch and the NORTH (N) magnet at the opening limit switch.
3. Connect the BROWN cable of the magnetic sensor to the FCC 1 input (Closing Limit Switch 1).
4. Connect the BLACK cable of the magnetic sensor to the FCA 1 input (Opening Limit Switch 1).
5. Ensure that the fixing dowels of the support plate always face the motor when assembling the magnet support brackets on the rack.
6. Refer to the control board instructions to verify the correct limit switch inputs.
7. Ensure correct installation to prevent potential danger to people or property.
Follow all safety precautions and guidelines as outlined in the manual.
This answer is automatically generated
