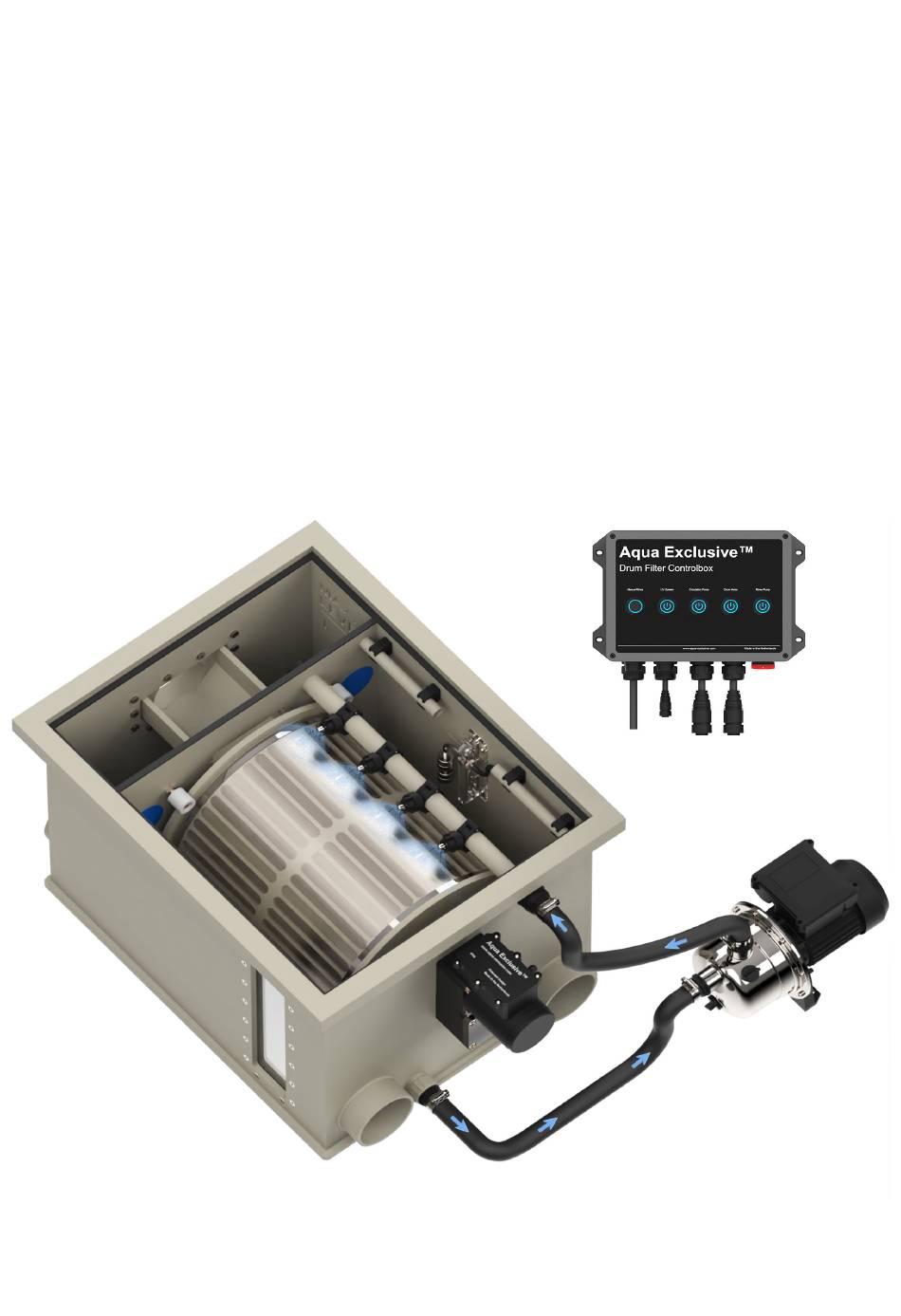

- Page 1 Aqua Exclusive™ RDF 30 PRO V2 OWNER’S MANUAL...
- Page 2 All information in this document and all product software is subject to copyright and other in- tellectual property rights of Aqua Exclusive™ and its licensors. This material may not be mod- ified, reproduced, or copied, in whole or in part, without the prior written permission of Aqua Exclusive™.
- Page 3 Aqua Exclusive Contents 1.RDF 30 PRO V2....................4 1.1 What is the RDF 30 PRO V2?....................4 1.2 How does the RDF 30 PRO V2 work?.................4 1.3 Filter overview........................5 2. Safety information.....................6 3. Filter installation....................7 4. How to install your rotary drum filter............8 4.1 Flexible rubber couplings.....................8...
- Page 4 The filter can be installed in both ways, gravity or pump fed setup. The RDF 30 PRO V2 has three inlets and two outlets. Water enters the filter at the front and flows through the drum. The drum is equipped with a filter panel that filters small and large particles out of the water.
- Page 5 Bypass system (4 Blue Caps) Filter panel with SS316L mesh Drain gutter Sight glass Figure 2: RDF 30 PRO V2 front and back view Drain gutter outlet 110mm (4 inch) Thread connector 1” Inlet 110mm (4 inch) Water level sensor cable Inlet 110mm (4 inch) Spray Bar thread connector 1”...
- Page 6 Aqua Exclusive Safety 2. Safety information This system may cause bodily harm or damage to property if not used properly and in accor- dance with all safety guidelines, or if used for any purpose other than that for which it was designed.
- Page 7 3. Filter installation In this manual, we show you how to install the RDF 30 PRO V2 on a pond/fish tank, but the fil- ter is suitable for almost all fresh and saltwater applications. If you plan to install this system in a way that deviates significantly from the recommendations in this user manual, allow a specialist to inspect the installation to ensure that all technical specifications have been met.
- Page 8 Before you start with the installation, you need to know how you want to install your drum filter. The RDF 30 PRO V2 can be used for both gravity and pump fed installations. On the following pages, we show four drawings illustrating how the drum filter can be installed, two with a pump fed installation and two with a gravity fed installation.
- Page 9 Aqua Exclusive Installation Figure 5: Pump fed installation - Example 1 Figure 6: Pump fed installation - Example 2 RDF 30 PRO OWNER’S MANUAL...
- Page 10 Aqua Exclusive Installation 6. Gravity fed installation In a gravity-fed installation, the filter is partially below the water level. The pump is placed at the end of the filter line and pumps water from the filter back to the pond/tank or to a bio filter (See figure 8 and 9).
- Page 11 Aqua Exclusive Installation Figure 8: Gravity fed installation - Example 1 Figure 9: Gravity fed installation - Example 2 RDF 30 PRO OWNER’S MANUAL...
- Page 12 Aqua Exclusive Water Level Sensor 7. Water level sensor The water level sensor measures the water level and sends a signal to the control box when the filter panel needs to be cleaned. The location of the sensor depends on whether you have a pump fed or a gravity fed installation.
- Page 13 Aqua Exclusive Cleaning Process 8. Cleaning process The drum is equipped with a filter panel that filters small and large particles out of the water. As soon as the filter panel is saturated, the water sensor will register this and the automatic cleaning process will be activated.
- Page 14 Aqua Exclusive Controlbox 9. Controlbox Mount the drum filter control box on a wall or fence and connect all cables to the corre- sponding connectors on the bottom of the control box. Check figure 12 and 13 for the details.
- Page 15 Aqua Exclusive Maintenance 10. Maintenance We advice checking your filter system at least once a month. During maintenance, the power supply must be disconnected. 10.1 Bypass activation The filter is equipped with a bypass system, consisting of 4 holes with blue caps in the first chamber.
- Page 16 Aqua Exclusive Technical Drawing 12. Technical drawing The technical drawing can be downloaded from our website: www.aqua-exclusive.com RDF 30 PRO OWNER’S MANUAL...
- Page 17 Aqua Exclusive™ Aqua Exclusive B.V. The Netherlands www.aqua-exclusive.com...
