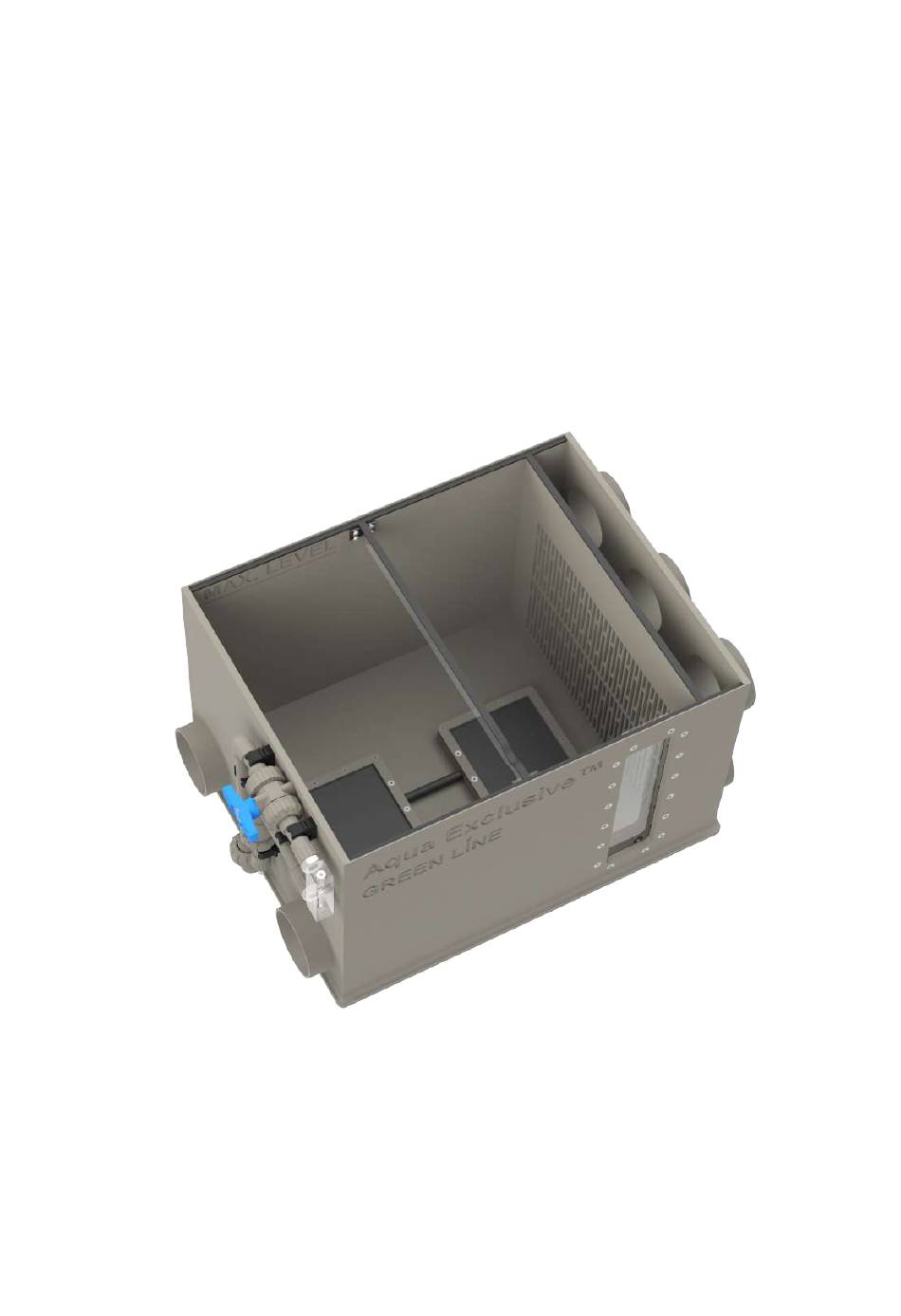

- Page 1 Aqua Exclusive™ Green Line BIO 25 OWNER’S MANUAL Version: 2023.2...
- Page 2 All information in this document and all product software is subject to copyright and other in- tellectual property rights of Aqua Exclusive™ and its licensors. This material may not be mod- ified, reproduced or copied, in whole or in part, without the prior written permission of Aqua Exclusive™.
-
Page 3: Table Of Contents
Aqua Exclusive Contents 1.Green Line BIO....................4 1.1 What is the Green Line BIO?....................4 1.2 How does the Green Line BIO work?.................4 1.3 Aqua Exclusive Green Line....................4 1.4 What is included........................4 1.5 Filter overview........................5 1.6 Specifications.........................6 2. Safety information.....................7 3. Suitable for many applications................8 4. -
Page 4: Green Line Bio
Overview 1.1 What is the Green Line BIO 25? The Aqua Exclusive Green Line Bio Filter 25 is a compact self-cleaning biological filter. The system is equipped with the latest techniques in the field of water purification which results in exceptional performance and very low energy consumption. The main function of the bio filter is to convert toxic nutrients (ammonia and nitrite) into nitrates, a nutrient low in toxicity which plants use for growth. -
Page 5: Filter Overview
Aqua Exclusive Overview 1.5 Filter overview Figure 2: Green Line BIO overview 1. Air diffuser 1 4. Stabilizer bar 2. Air flow clutch valve 5. Air diffuser 2 3. Air flow meter 6. Sight glass Figure 3: Green Line BIO filter front and back view Inlet 4”... -
Page 6: Specifications
Aqua Exclusive Specifications 1.6 Specifications Specifications Model: Green Line BIO 25 Brand: Aqua Exclusive™ Product number: 300104 Model Year: 2023 Type of filtering: Biological filtration Type of filter: Moving bed biofilter Water volume: Up to 25.000 Liters (6600 Gallon) Minimum water flow:... -
Page 7: Safety Information
Aqua Exclusive Safety 2. Safety information This system may cause damage to property if you do not use it properly and in accordance with all safety guidelines, or if you attempt to use it for any purpose other than that for which it was designed. -
Page 8: Suitable For Many Applications
Installation 3. Suitable for many applications The Green Line Bio 25 is a part of the Aqua Exclusive Green Line. With the launch of the Aqua Exclusive™ Green Line, we bring a professional and complete automatic filter line to the market. A very efficient en compact filter line with the latest tech- niques in the field of water purification. -
Page 9: Filter Installation
4. Filter installation In this manual we show you how to install the Green Line Bio 25 on a pond, but the filter is suitable for almost all freshwater applications. If you plan to install this system in a way that deviates significantly from the recommendations in this user manual, allow for a specialist to inspect the installation to ensure that all technical specifications have been met. -
Page 10: Pump Fed Or Gravity Setup
5. Pump Fed or Gravity setup? Before you start with the installation you need to know how you want to install your filter. The Green Line BIO 25 can be used for both, gravity and pump fed setup. 6. Pump Fed setup In a pump fed setup, a pump moves the water from the pond the filter. -
Page 11: Gravity Setup
Aqua Exclusive Installation 7. Gravity setup A gravity fed filter works in the opposite way to a pump fed filter system, with the pump drawing water away from the filter either via a suction hose, or been situated in the filter’s final chamber. -
Page 12: Water Level
Aqua Exclusive Installation 8. Water level It is important to maintain the correct water level for an optimal operation of the filter system. A lower water level will not make the system work properly and higher water levels Max. water level line can cause leaks. -
Page 13: Connecting Correct Outlets
Aqua Exclusive Installation 9. Connecting correct outlets Pump fed setup: Top three outlets. Gravity setup: Bottom three outlets. For an optimal flow you need to use 3 outlets, if a low flow is sufficient you can use 1 or 2 out- lets. -
Page 14: Flexible Couplings
Aqua Exclusive Installation 10. Flexible couplings It is recommended to use flexible rubber couplings when connecting the water lines. These can compensate for small differences in dimensions and also absorb vibration. This allows you to connect the pvc pipes and various filter parts and makes the installation easy. -
Page 15: Installing The Air Pump
Aqua Exclusive Installation 12. Installing the air pump An air pump of 40 - 60 liters per minute must be connected to the bio filter. The air pump can be connected to the bio filter with a hose. Air hose connector Figure 12: Air hose connector 13. -
Page 16: Maintenance
Aqua Exclusive Installation 14. Maintenance We advice to check your filter system at least once a month. It is important that the filter media moves around well and the filter is not dirty. The filter media will change from white to brown over time because the good bacteria live on the filter media. -
Page 17: Technical Drawing
Aqua Exclusive Installation 15. Technical drawing The technical drawing can be downloaded online at www.aqua-exclusive.com. Installation... - Page 18 Aqua Exclusive™ Publication date: 2023/02/28...
