- Page 1 Aqua Exclusive™ Green Line UV-C 30 OWNER’S MANUAL Version: 2023.2...
- Page 2 All information in this document and all product software is subject to copyright and other in- tellectual property rights of Aqua Exclusive™ and its licensors. This material may not be mod- ified, reproduced or copied, in whole or in part, without the prior written permission of Aqua Exclusive™.
-
Page 3: Table Of Contents
Aqua Exclusive Contents 1.Green Line UV-C....................4 1.1 What is the Green Line UV-C?....................4 1.2 How does the Green Line UV-C work?................4 1.3 Aqua Exclusive Green Line....................4 1.4 What is included........................4 1.5 Filter overview........................5 1.6 Specifications.........................6 2. Safety information.....................7 3. Suitable for many applications................8 4. -
Page 4: Green Line Uv-C

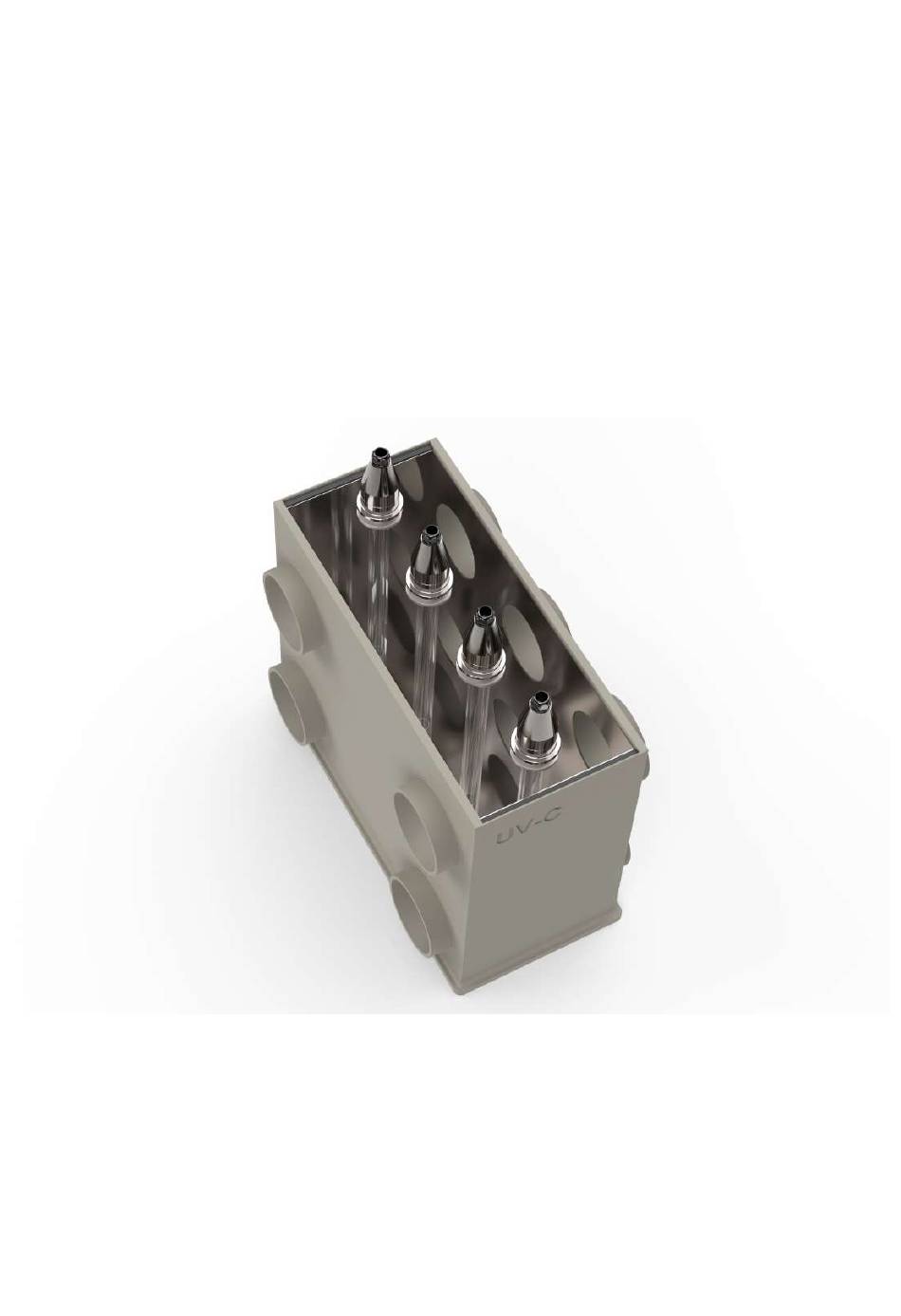

1.1 What is the Green Line UV-C? The Aqua Exclusive Green Line UV-C system is a very efficeint and compact UV-C system. This system has four 110mm (4 inch) inlets and six 110mm (4 inch) outlets. Up to 4 lamps can be connected. -
Page 5: Filter Overview
Aqua Exclusive Overview 1.5 Filter overview Figure 2: Green Line UV-C overview Quartz sleeve Flange (SS 316L) UV-C connector (SS 316L) Stainless steel housing Figure 3: Green Line UV-C front and back view Inlet 110mm (4 inch) Outlet 110mm (4 inch) - Pump fed setup... -
Page 6: Specifications
Fish farms, (koi) ponds, (Large) aquari- ums, Natural swimming pools and more! Dimensions (Length x width x height): 240 x 520 x 410 mm (29.9" x 20.5" x 9.45") Manufacturer: Aqua Exclusive B.V. Country of origin: Netherlands GREEN LINE OWNER’S MANUAL... -
Page 7: Safety Information
Aqua Exclusive Safety 2. Safety information This system may cause bodily harm or damage to property if you do not use it properly and in accordance with all safety guidelines, or if you attempt to use it for any purpose other than that for which it was designed. -
Page 8: Suitable For Many Applications
Installation 3. Suitable for many applications The Green Line UV-C system 30 is a part of the Aqua Exclusive Green Line. With the launch of the Aqua Exclusive™ Green Line, we bring a professional and complete automatic filter line to the market. A very efficient en compact filter line with the latest tech- niques in the field of water purification. -
Page 9: Filter Installation
Aqua Exclusive Installation 4. Filter installation In this manual we show you how to install the Green Line UV-C System 30 on a pond, but the filter is suitable for almost all freshwater applications. If you plan to install this system in a way that deviates significantly from the recommendations in this user manual, allow for a specialist to inspect the installation to ensure that all technical specifications have been met. -
Page 10: Pump Fed Or Gravity Setup
Aqua Exclusive Installation 5. Pump Fed or Gravity setup? Before you start with the installation you need to know how you want to install your filter. The Green Line UV-C System 30 can be used for both, gravity and pump fed setup. -
Page 11: Gravity Setup
Aqua Exclusive Installation 7. Gravity setup A gravity fed filter works in the opposite way to a pump fed filter system, with the pump drawing water away from the filter either via a suction hose, or been situated in the filter’s final chamber. -
Page 12: Water Level
Aqua Exclusive Installation 8. Water level It is important to maintain the correct water level for an optimal operation of the filter sys- tem. A lower water level will not make the system work properly and higher water levels can cause leaks. -
Page 13: Flexible Couplings
Aqua Exclusive Installation 9. Flexible couplings It is recommended to use flexible rubber couplings when connecting the water lines. These can compensate for small differences in dimensions and also absorb vibration. This allows you to connect the pvc pipes and various filter parts and makes the installation easy. -
Page 14: Connecting Correct Outlets
Aqua Exclusive Installation 11. Connecting correct outlets Connect the correct outlets for your setup. For a pump fed setup use the upper outlets and for a gravity setup use the lower outlets. 11.1 Outlets pump fed setup Outlets for pump fed setup Figure 10: Pump fed outlets 11.2 Outlets gravity setup... -
Page 15: Connecting The Uv-C System
Aqua Exclusive Installation 12. Connecting the UV-C System The stainless steel 316L head consists of several parts. Below you can see how to assemble it correctly. Make sure that you always have the power off when you unscrew the head. -
Page 16: Electronic Enclosures
Aqua Exclusive Installation 13. Electronic enclosures Figure 14: Electronic enclosures 13.1 How to install the uv-c system box Mount the uv-c system box on a wall. The cable from the uv-c system box must be connected to the uv-c head. The uv-c system box must be connected to the drum filter control box. -
Page 17: Maintenance
Aqua Exclusive Maintenance 14. Maintenance We advice to check your filter system at least once a month, to make sure everything is work- ing properly. ATTENTION: the radiation of UV is harmful! When opening the lid/maintenance cover, the power to the UV box must be OFF. -
Page 18: Technical Drawing
Aqua Exclusive Technical Drawing 15. Technical drawing The technical drawing can be downloaded online at www.aqua-exclusive.com. GREEN LINE OWNER’S MANUAL... - Page 19 Aqua Exclusive™ Publication date: 2023/02/28...
