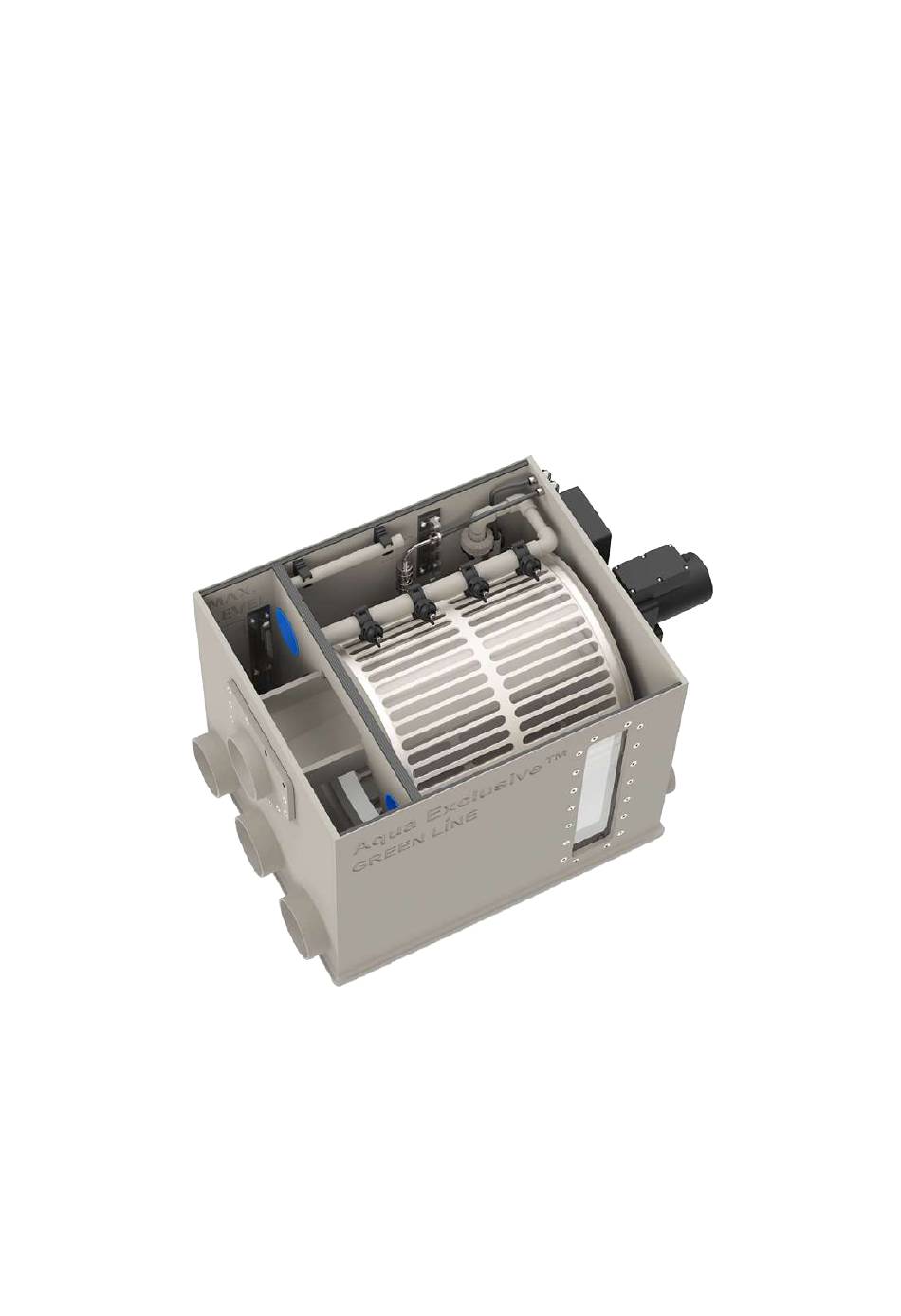

- Page 1 Aqua Exclusive™ Green Line RDF 30 OWNER’S MANUAL Version: 2023.2...
- Page 2 All information in this document and all product software is subject to copyright and other in- tellectual property rights of Aqua Exclusive™ and its licensors. This material may not be mod- ified, reproduced or copied, in whole or in part, without the prior written permission of Aqua Exclusive™.
-
Page 3: Table Of Contents
Aqua Exclusive Contents 1.Green Line RDF....................4 1.1 What is the Green Line RDF 30?..................4 1.2 How does the Green Line RDF 30 work?................4 1.3 Aqua Exclusive Green Line....................4 1.4 What is included........................4 1.5 Filter overview........................5 1.6 Specifications.........................6 2. Safety information.....................7 3. -
Page 4: Green Line Rdf

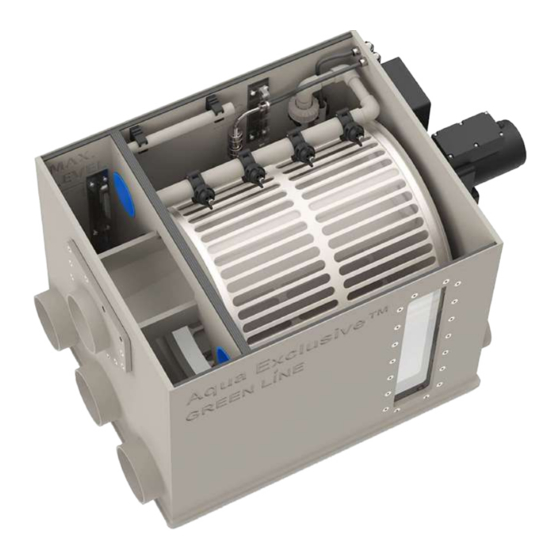

1.1 What is the Green Line RDF 30? The Aqua Exclusive Green Line RDF 30 is a professional and automatic pre-filter system. It is a mechanical filter and this is the first step in the filtering process. The task is to remove faeces and other particles from the water before they break down in ammonia or nitrite. -
Page 5: Filter Overview
Aqua Exclusive Overview 1.5 Filter overview Figure 2: Green Line RDF overview Stainless steel 316L nozzle + holder Spray bar By-pass system Drum motor Water level sensor holder 1 Drum Drain gutter Filter panel Water level sensor holder 2 Sight glass Figure 3: Green Line RDF front and back view Drain outlet 4”... -
Page 6: Specifications
Aqua Exclusive Specifications 1.6 Specifications Specifications Model: Green Line RDF 30 Brand: Aqua Exclusive™ Product number: 300101 (110v), 300102 (220v) Model Year: 2023 Type of filtering: Mechanical filtration Type of filter: Rotary drum filter Water volume: Up to 60.000 Liters (16000 Gallon) -
Page 7: Safety Information
Aqua Exclusive Safety 2. Safety information This system may cause bodily harm or damage to property if you do not use it properly and in accordance with all safety guidelines, or if you attempt to use it for any purpose other than that for which it was designed. -
Page 8: Suitable For Many Applications
Installation 3. Suitable for many applications The Green Line RDF 30 is a part of the Aqua Exclusive Green Line. With the launch of the Aqua Exclusive™ Green Line, we bring a professional and complete automatic filter line to the market. A very efficient and compact filter line with the latest tech- niques in the field of water purification. -
Page 9: Filter Installation
4. Filter installation In this manual we show you how to install the Green Line RDF 30 on a pond, but the filter is suitable for almost all freshwater applications. If you plan to install this system in a way that deviates significantly from the recommendations in this user manual, allow for a specialist to inspect the installation to ensure that all technical specifications have been met. -
Page 10: Pump Fed Or Gravity Setup
5. Pump Fed or Gravity setup? Before you start with the installation you need to know how you want to install your filter. The Green Line RDF 30 can be used for both, gravity and pump fed setup. 6. Pump Fed setup In a pump fed setup, a pump moves the water from the pond the filter. -
Page 11: Gravity Setup
Aqua Exclusive Installation 7. Gravity setup A gravity fed filter works in the opposite way to a pump fed filter system, with the pump drawing water away from the filter either via a suction hose, or been situated in the filter’s final chamber. -
Page 12: Water Level
Aqua Exclusive Installation 8. Water level It is important to maintain the correct water level for an optimal operation of the filter system. A lower water level will not make the system work properly and higher water levels can cause leaks. -
Page 13: Flexible Couplings
Aqua Exclusive Installation 9. Flexible couplings It is recommended to use flexible rubber couplings when connecting the water lines. These can compensate for small differences in dimensions and also absorb vibration. This allows you to connect the pvc pipes and various filter parts and makes the installation easy. -
Page 14: Water Level Sensor
Aqua Exclusive Water Level Sensor 11. Water level sensor The stainless steel 316L water level sensor measures the water level and sends a signal to the control box when the drum with filter panel needs to be cleaned. The location of the sensor depends on whether you have a pump fed setup or a gravity setup, see figure 10. -
Page 15: Built-In Safety
Aqua Exclusive Cleaning Process 12. Built-in safety The filter is equipped with a built-in safety. This shuts the system down when there are prob- lems and prevents any damage. 12.1 Safety with pump fed setup With the pump fed setup, the safety ensures that the filter can never overflow. If too much water is pumped into the filter or the filter has problems, the system will switch everything off. -
Page 16: Cleaning Process
Aqua Exclusive Controlbox 14. Cleaning process The filter cleans itself fully automatically when the filter panel is saturated with dirt. The drum will start to rotate and the special nozzles will spray the filter panel on the drum clean. The dirty water gets washed away through the drain gutter. -
Page 17: Spray Nozzles
Aqua Exclusive Controlbox 14.2 Spray nozzles Our high-quality stainless steel 316L nozzles are made with the utmost precision and provide a special water jet for optimal cleaning of the filter panel. With our new designed quick re- lease system you can easily clean the nozzles when neccecery. -
Page 18: How To Install The Rinse Pump Box
Aqua Exclusive Controlbox 15.1 How to install the rinse pump box Mount the rinse pump box on a wall. The rinse pump cable coming out of the black box on the back of the filter must be connected to the rinse pump box. The main supply cable of the rinse pump box must be connected to the drum filter control box. -
Page 19: How To Install The Drum Filter Control Box
Aqua Exclusive Controlbox 15.2 How to install the drum filter control box Mount the drum filter control box on a wall and connect all cables to the correct connectors on the bottom of the control box. For details see figure 18. -
Page 20: Filling Up The System
Aqua Exclusive Maintenance 16. Filling up the system Step 1: Open the valves on the inlet and the outlet if present, in order to fill the filter system with water. Step 2: Let the filter fill until the correct water level has been reached. -
Page 21: Maintenance
Aqua Exclusive Maintenance 17. Maintenance We advice to check your filter system at least once a month. During maintenance the power supply must be disconnected. 17.1. Bypass activation During maintenance or when there is a problem, the drum can be short-circuited by means of the bypass. -
Page 22: Technical Drawing
Aqua Exclusive Maintenance 18. Technical drawing The technical drawing can be downloaded online at www.aqua-exclusive.com. GREEN LINE OWNER’S MANUAL... - Page 23 Aqua Exclusive™ Publication date: 2023/02/28...
