SM300/SM320/SM325
TM320/TM325
LCD Display Loggers Operation

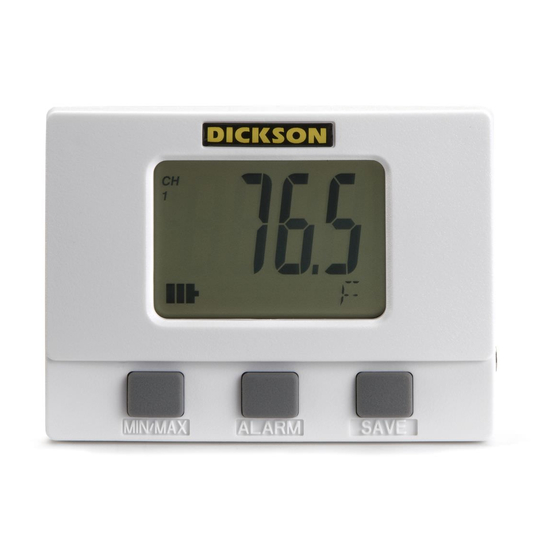

SM300
TM320
Getting Started
• Install version 8.0 or higher of DicksonWare™
Software (compatible with Windows® 98 or higher).
• Connect the cable (supplied with the software) to
the logger and to a working serial or USB port on
your computer.
• If using the USB connection, your computer may
detect the logger when the logger is powered on and
connected to the computer via the USB
connection. Depending on your version of Windows,
the computer may go through an Add New Hardware
routine.
• Click the Setup button. You will be prompted to to
select a USB or Serial COM Port connection, then click
Continue. A Setup window will appear, and all fields
should be automatically filled in, this will confirm
that DicksonWare™ has recognized the logger.
Should all fields remain blank, refer to "No
Communication" in the Troubleshooting section of
this manual. Once DicksonWare™ recognizes the
logger, press the Clear button. This will delete all data
currently stored.
www.
DICKSON
DICKSON
SM320
TM325
Please refer to the "Software and Logger Operations"
section of this manual for more Setup and Download
instructions.
Note: Make sure thermocouple probes are connected for
SM320/SM325 models.
• The logger is now sampling and ready for use, a Delta
(Δ) symbol will appear in the display to confirm
logging. The default sample interval is 1 minute.
You may choose to change Default settings for sample
interval and start-date and time. When changing
these settings, the logger will automatically go
through the clear process to accept your changes.
Note: To achieve longer battery life during operation,
use a less frequent sample rate, disconnect the unit
from the USB port when not downloading data, limit the
frequency of memory card transfers, and DO NOT insert
the memory card all the way unless downloading.
.com
SM325
SM325
information@itm.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dickson SM300

  • Page 1 DICKSON DICKSON SM300/SM320/SM325 TM320/TM325 LCD Display Loggers Operation SM300 SM320 SM325 SM325 TM320 TM325 Getting Started • Install version 8.0 or higher of DicksonWare™ Please refer to the “Software and Logger Operations” section of this manual for more Setup and Download Software (compatible with Windows®...
  • Page 2 Max displayed by the logger will be the minimum and Button Functions: maximum values sensed since it was last cleared. Save Note: This feature is only for use with the Dickson Note: DicksonWare™ will show the minimum and Memory Cards. maximum values of the downloaded data. These could be different than that displayed on the unit itself.
  • Page 3 File > Open and browse to the appropriate drive for your the temperature or Humidity value for each channel, you reader and select the LOD file. will be allowed to Disable a channel that is not neces- Specifications SM300 SM320 SM325 -4 to +158°F -4 to +158°F -4 to +158°F...
  • Page 4 24 hrs. Clear memory and try again. These loggers are DicksonWare™ software installed on your PC. Version designed for use in a non-condensing environment. 8.0 or higher is required for models SM300, SM320, If the environment creates condensation, try placing SM325, TM320 and TM325.
