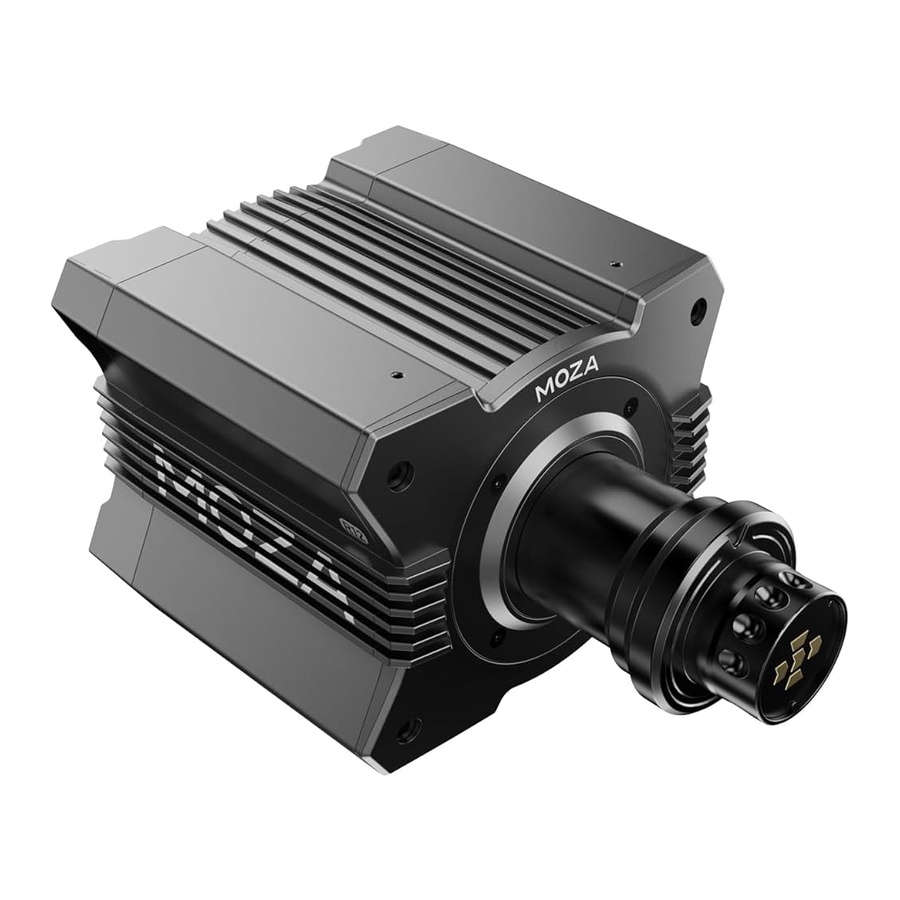

Moza R12 Manual

Connection Ports & Dimensions

Installation Guide

Attach the base to the mounting bracket through the four screw holes at the bottom. Connect the power connector and type-B USB connector into the corresponding ports on the rear of the R12 base, plug the PSU into a power socket and connect the type-A USB connector to the PC. Short press the power button on the rear of the R12 base (short press to power on, long press to power off).
Navigate to MOZA Racing (www.mozaracing.com) and download the latest version of the MOZA Pit House software. Install it and start your racing journey!

Desk Clamp Installation Guide

Align the four holes on the base and clamp and use the four supplied screws to attach them both securely. Place the clamp and base into position on the desk and fully tighten the knobs until the base is secure enough to prevent movement during use.

Software Introduction

On the main page, you can view the working status of each connected device, set the wheelbase, force feedback, pedals, steering wheels and digital dashes, etc., and you can quickly start the game.

Presets are recommended for sim racing beginners, while professional sim racing drivers can create presets of their own.

MOZA's FFB equalizer allows full customization and fine-tuning of the FFB effects spectrum for a perfect setup for all track conditions.

Full customization of the shift indicator LEDs is available in the control centre. Timing, colour and shift modes can all be adjusted to suit every car and setup.

Quickly adjust the pedal stroke to enrich the foot feel to meet individual needs. MOZA offers a wide range of pedals that can be used with R12 wheel base.

Easily upgrade the MOZA Pit House with one click and enjoy the latest functional experience.

Parameters

Supported platforms	PC
Drive type	Direct Drive
Max steering wheel rotation	Unlimited
Material	Aviation-grade aluminium alloy
Colour	Black
Peak torque	12N m
Input voltage	110~220V AC / 36V DC
USB refresh rate	1000Hz
Quick release system	Supported
Mounting method	4-hole bottom mount
Desk clamp	Optional
Firmware upgrade function	Supported

Additional Notes

• This product has high force feedback strength and small parts. Children are prohibited from using it without adult guidance.
• Keep away from loose clothing and easily tangled objects such as hair, cables, skirts, etc.
• MOZA R12 is ready to use right out of the box. Firmware is updated to the latest version at the factory. For more information on software updates, visit the MOZA website.
• This manual is intended for demonstration purposes only and should not be used for marketing. It provides a general overview of a single product, including related product series. Please refer to the actual product when making a purchase.
• The product images and content above are for demonstration purposes and may not precisely match the external design (including but not limited to appearance, colour, size) and content display (including but not limited to background, UI, pictures) of the actual product. Please refer to the actual product for accurate information.
• The above test data are all from the MOZA test laboratory and may not reflect the actual performance factors due to usage conditions and environmental reasons.
• The information provided, such as descriptions and images, is subject to change. MOZA may update the content to better reflect the performance and specifications of the actual product, ensuring more accurate information. Product availability may vary due to unforeseen issues during batch processing or delivery. In such cases, MOZA reserves the right to modify the descriptions and images as needed without prior notice. For the most up-to-date information, please refer to official channels.

Precautions

To ensure safe and proper use of this device, please follow these guidelines:

•
  Do not expose the device to liquids or humidity as it may cause fire or electric shock.
• Avoid using the device in direct sunlight.
• Recommended indoor temperature: 15°C ~ 35°C.
• For your safety and well-being, please monitor your gaming time and take breaks as needed.
• The device is not suitable for children under the age of 6, small accessories may pose a choking hazard! Children under 13 years of age should have adult supervision.
• It is strictly forbidden to disassemble the equipment by yourself, failure to adhere to this will result in loss of warranty.
• The equipment must be connected with the factory-supplied power supply to ensure the electrical safety and the protection of user rights and interests.
• In order to ensure user safety, parts repair or replacement can only be carried out by officially authorized repair centres.
• Non-standard power supplies are strictly prohibited even if data such as related voltages match.
• Use only AC power provided by a standard wall outlet to avoid damage to the product.
• Do not expose the device to heat sources.
• Unplug the power cord of the device if it will not be used for a long time.
• If you find any abnormality, please stop using it immediately and seek help from MOZA representatives or authorized repair centres.
• Stay tuned to our official website and social media platforms for the latest product updates.

This product is designed as a simulator! Please remember to distinguish simulations from reality and drive safely!

If you have any questions or comments about the device, please contact the customer line.
www.alza.co.uk/kontakt
+44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
