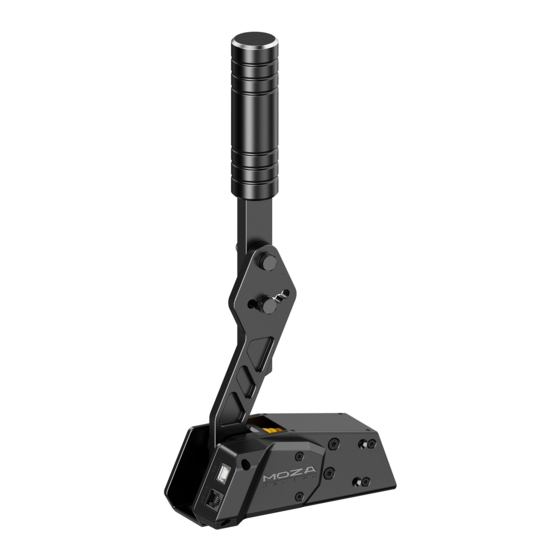

MOZA Hand Brake
01 Product Introduction
Aviation-grade Aluminum
Easy to Fix
Two Modes
16-bit High Precision Angle Sensor
Adjustable Height & Angle
Adaptable Brake Force & Travel
Direct connection to PC via MOZA Universal Hub
02 Lever Height & Angle Adjustment
Unscrew the nuts with two open-end wrenches counterclockwise, adjust the lever's
height and angle, and then tighten the screws. (It's recommended to apply the flat and
spring pads supplied in the tool kit to avoid scratches.)
03 Spring Replacement
1) Remove the cover above the spring with a Phillips screwdriver
2) Remove the baffles on both sides with an Allen wrench
3) Pull the handbrake lever until the spring and the baffles tilt
4) Remove the screws with a flat-head screwdriver and install the spring
5) Adjust the baffle, put the cover back in place, and tighten all screws
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moza RS31
Summary of Contents for Moza RS31
- Page 1 16-bit High Precision Angle Sensor Adjustable Height & Angle Adaptable Brake Force & Travel Direct connection to PC via MOZA Universal Hub 02 Lever Height & Angle Adjustment Unscrew the nuts with two open-end wrenches counterclockwise, adjust the lever's height and angle, and then tighten the screws. (It’s recommended to apply the flat and spring pads supplied in the tool kit to avoid scratches.)
- Page 2 04 Configuration in MOZA Pit House 1) Set the start and end points to adjust handbrake travel and eliminate the dead zone. 2) Adjust the output curve to change the correlation between mechanical travel and signal output at the initial and final stages.
