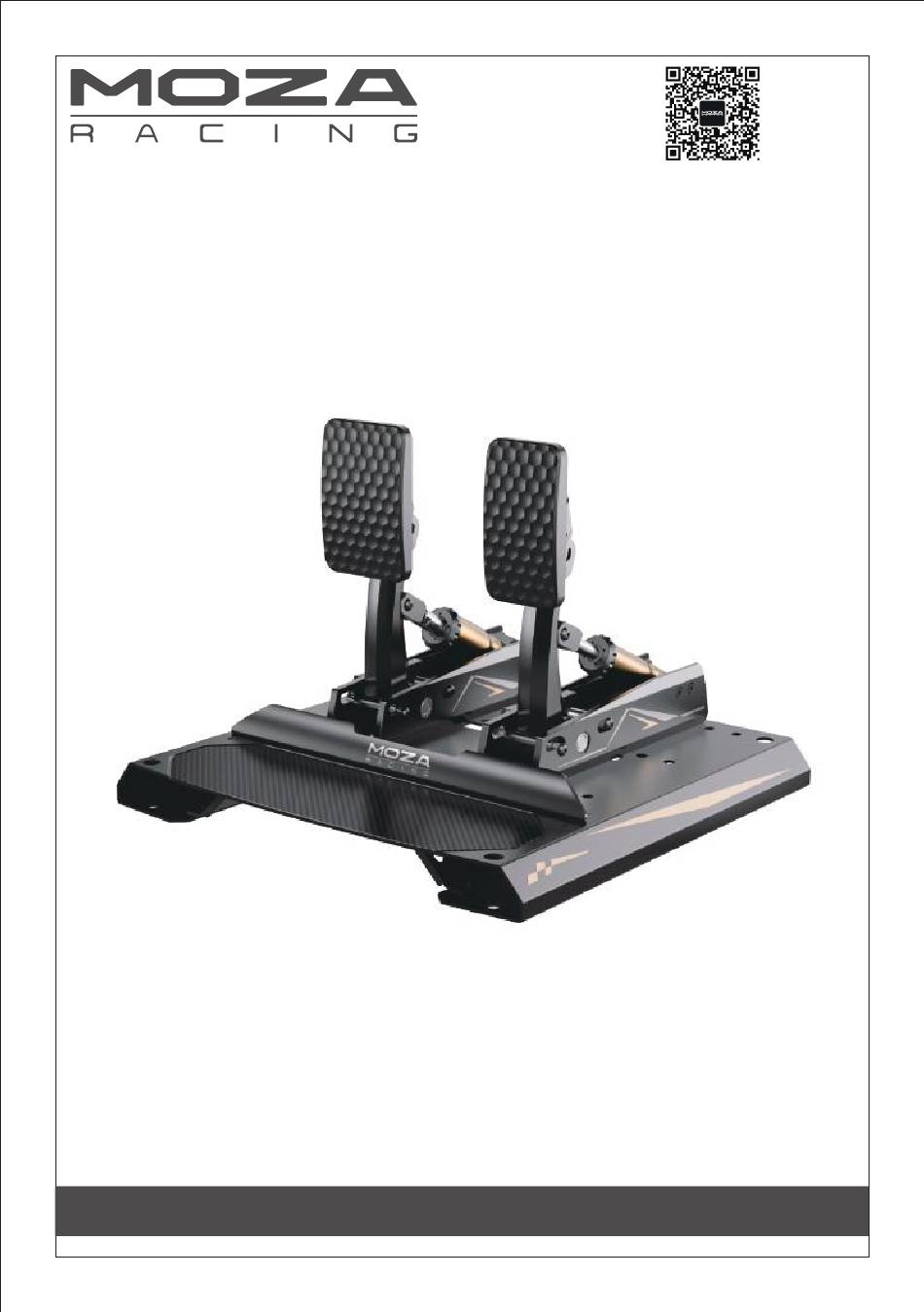

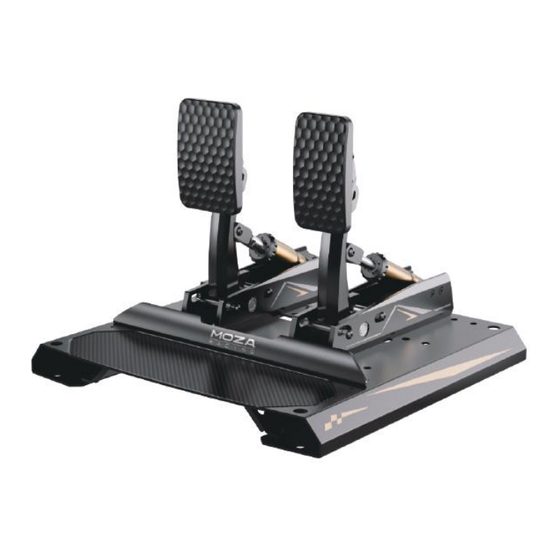

- Page 1 Quick Guide CRP2 Racing Pedals User Manual...
-
Page 2: Product Introduction
Product Introduction · Aviation-grade Aluminum Alloy · Adjustable Pedal Feel for All Types of Racing Cars · 200KG Load Cell Sensor · Adjustable Spring & Travel · 15Bit High-precision Angle Sensor · Support Inverted Installation Base Plate Installation 1. Attach the Baffle Plate: Use the 2.5mm hex wrench and screws from the accessory pack to secure the baffle plate to the base. - Page 3 Pedal Installation Mount the Pedals: Use the screws and wrench from the accessory pack to attach the throttle and brake pedals to the base. Adjust the pedal positions as needed. Route the pedal cables through the base and connect them to the control box at the bottom. (Avoid pulling or pressing on the cables too hard during installation.) Pedal Face Adjustment 1.
- Page 4 Adjusting Pedal Travel Adjust Pedal Travel: To adjust the travel of the throttle, brake, and clutch pedals, loosen the screws on both sides of the limit shaft with a wrench, adjust to the desired position, and then tighten the screws. Pedal Feel Adjustment 1.
- Page 5 Replacing Springs and Damping Blocks 1. Throttle Spring Replacement: Loosen the 2 knurled limit shaft screws by hand, press the pedal to a slight angle and lift the front limit shaft away from the pedal to allow extra forward pedal travel. Release the pedal, unscrew the sleeve cover, remove the existing spring, and replace it with the red spring from the accessory pack for a stronger feel.
- Page 6 Damping Block Hardness (Soft to Hard) Metal washer Grey Black Yellow Damping blocks 4 pcs 4 pcs 8 pcs 8 pcs R: Rubber P: Polyurethane Cylinder cap Installation Method: To simulate the pedal feel of various race cars, you can freely combine 8 damping blocks as shown in the diagram.
