Summary of Contents for Moza mBooster

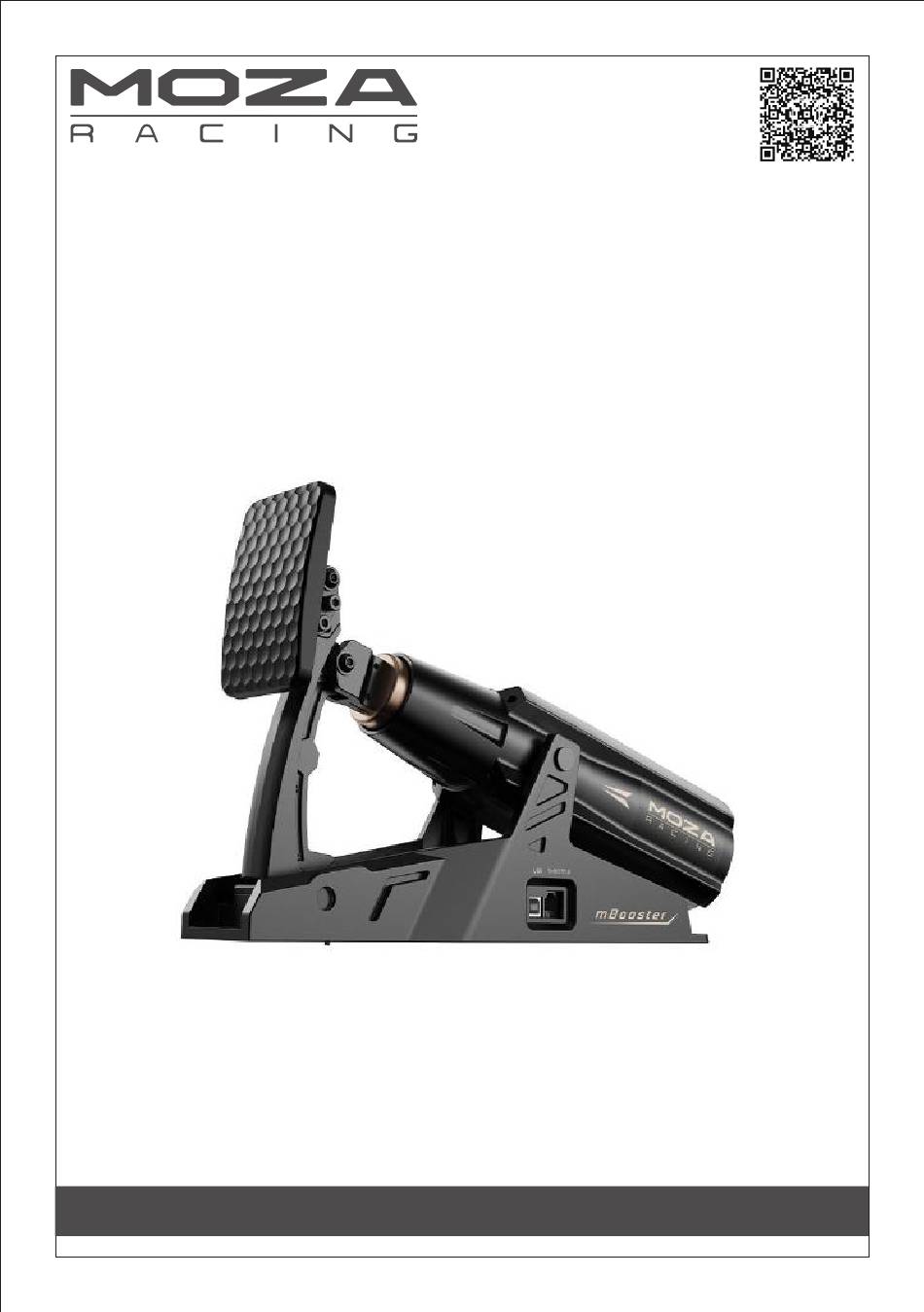

- Page 1 Quick Guide mBooster Active Pedal User Manual...
- Page 2 M8 external hex screws at the rear mounting hole. · Mounting on a Cockpit Rig Adjust the position of the mBooster Active Pedal on the cockpit rig as needed. Secure it to the rig’s T-nut using M8 countersunk screws through the front mounting hole, and fasten...
- Page 3 (as shown in the image below). Adjust the pedal surface to your desired angle then tighten the screws to secure the pedal in place. Signal Connection and Usage 1. Using the mBooster Active Pedal with CRP2/CRP Pedals mBooster+CRP2 mBooster+CRP Note: The latest CRP2 base plate includes pre-drilled mounting holes for the CRP pedals, which can be used for installation as shown in the diagram.
- Page 4 Each mBooster active pedal requires a separate 48V power adapter. · Dual Pedal Setup: Use the RJ11 cable to connect the two mBooster active pedals as shown. If the throttle pedal is connected to the PC via USB, adjust the pedal mapping in the MOZA Pit House software.
- Page 5 3. Using the mBooster Active Pedal with Third-party Pedals Connect the mBooster Active Pedal to the PC using the provided USB cable. Third-party pedals must connect directly to the PC, not to the mBooster Active Pedal. Assign the pedal functions manually in the game settings.
- Page 6 You have the option to use the official preset for the mBooster Active Pedal, or adjust parameters such as pedal travel and force to your liking. For step-by-step adjustment instructions, please refer to the guide in the MOZA Pit House software.
-
Page 7: Product Instruction
· Keep the device away from loose clothing and objects that could become entangled, such as hair, cables, skirts, etc. · The MOZA mBooster Active Pedal is ready to use straight out of the box, equipped with the latest firmware. For details on software updates, please visit the MOZA website.
