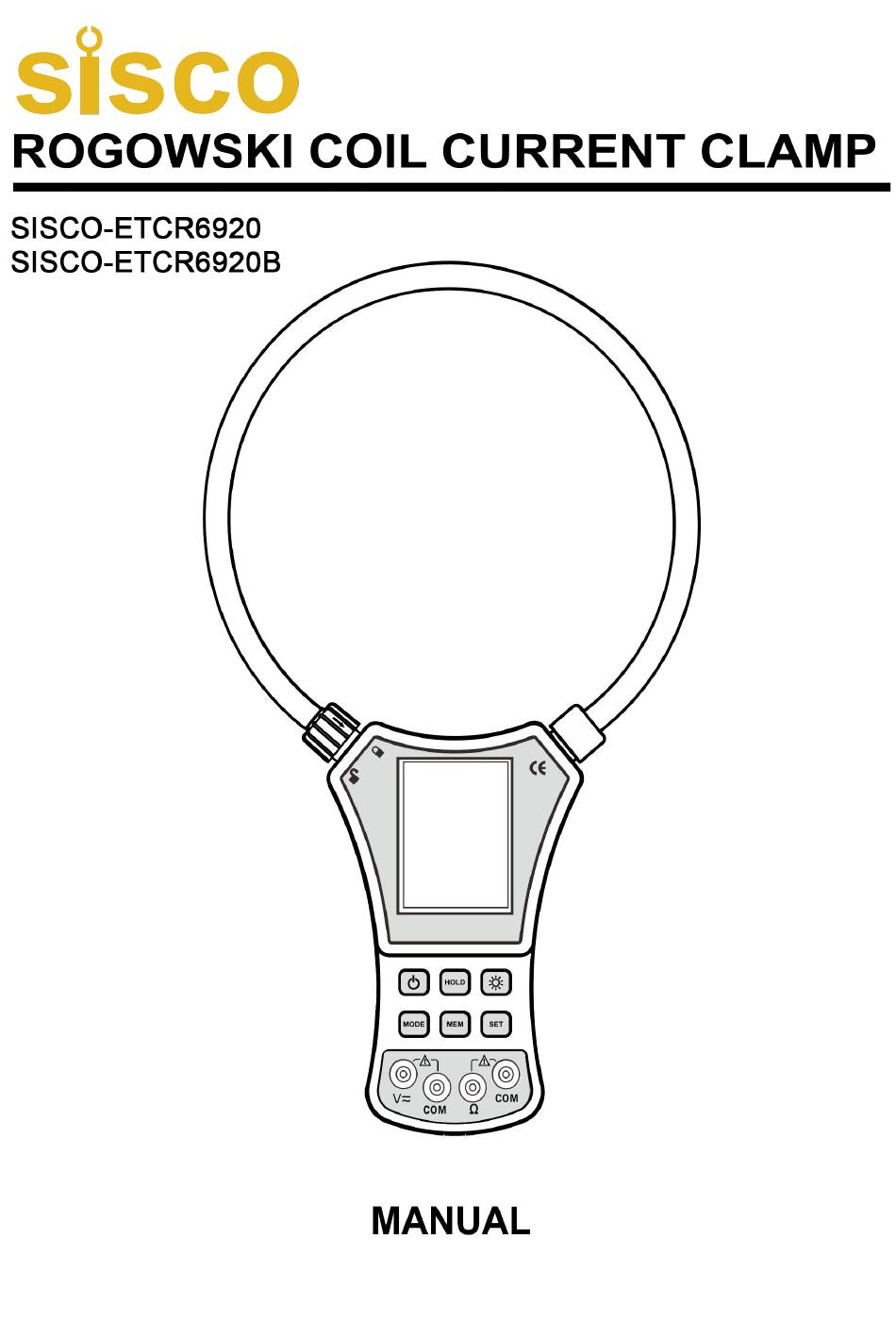

- Page 1 Email:sales@sisco.com Phone: +1800-585-1519 Website: www.sisco.com...
-
Page 2: Table Of Contents
CONTENT Precaution For Use ....................1 1. Introduction ......................2 2. Electrical Symbol ....................2 3. Product Model ....................3 4. Range & Error ....................3 5. Meter Structure ....................5 6. Operate Method ....................6 6.1. Start-up/Shutdown ..................6 6.2. Measurement Mode Selection ..............6 6.3. -
Page 3: Precaution For Use
Precaution For Use Thank you for purchasing SISCO-ETCR6920 Flexible Coil Clamp Large Current Meter, In order to better for use of the product, please be certain: ---Read the instruction manual in detail. ---Comply with safety regulations and cautions listed in manual. -
Page 4: Introduction
1. Introduction SISCO-ETCR6920 Flexible Coil Large Current Clamp Meter is designed and manufactured for field testing of AC large current. It can also be used as an common multimeter to measure AC voltage, DC voltage, resistor and continuity testing. Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. -
Page 5: Product Model
3. Product Model Power,power factor, Resistance Model Current Range Voltage Range Coil diameter energy, Range frequency, phase SISCO-ETCR6900 0.00A~10000A Φ200mm 0.0V~750V AC SISCO-ETCR6920 0mA~10000A 0Ω~2kΩ Φ200mm 0.0V~1000V DC 0.0V~750V AC SISCO-ETCR6920B 0mA~10000A 0Ω~2kΩ Φ300mm 0.0V~1000V DC SISCO-ETCR7350 0.0A~6000A 0.0V~600V AC Φ200mm... - Page 6 50Hz/60Hz(Automatic) Gear Shift Automatic Sampling Rate 2times/second Display Mode 2.8 inch TFT colorful screen; display area: 58mmX44mm SISCO-ETCR6920: LXWXH: 200mmX370mmX35mm Meter Size SISCO-ETCR6920B: LXWXH: 300mmX470mmX35mm Backlight Yes, “ * ” key control Data Hold Data hold function: “HOLD” symbol display Overflow Display Exceed measure range overflow function: “OL”...
-
Page 7: Meter Structure

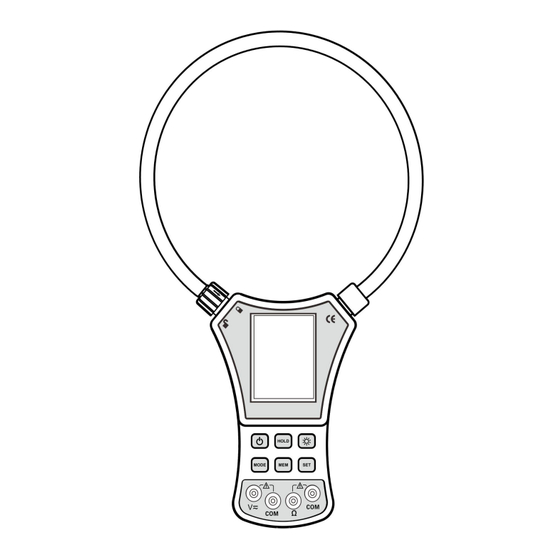

Working -10℃~40℃; below 80%RH Environment Store Environment -10℃~60℃; below 70%RH Insulation 100MΩ or large more,1000V Resistance Suitable Safety IEC1010-1, IEC1010-2-032, Pollution 2, CAT VI(1000V) ,IEC61326(EMC standard) Standard 5. Meter Structure 1.Flexible coil CT 2.Lock catch (Turn back and forth according arrow to lock or open the coil) 3.LCD screen 4.Function keys... -
Page 8: Operate Method
6. Operate Method 6.1. Start-up/Shutdown Press POWER key to start up, LCD display and enter into measurement mode; Press the POWER key again to shut down. after 10minutes the meter start up and without any operation will shutdown automatic; If LCD display is dark after start up, it might battery voltage is low, please replace battery. 6.2. -
Page 9: Voltage Measurement
4). When the measured current is small, the test resolution can be improved by repeatedly wrapping the flexible coil around to the measured wire for many times and then closing. For example, the measured current is 10A, and the flexible coil wrapped around the tested wire for 3 times, the meter will show 30A, and the flexible coil will show 50A if it is wrapped around 5 times, and so on, the actual current is equal to the display value of the meter divided to the number of winding of the flexible coil. -
Page 10: Data Qurey & Return
6.9. Data Query & Return In measurement mode, press MEM key enter data query mode, and display”READ” symbol, query the data start from “READ:001”, press HOLD key to increasing query, press MEM key to decreasing query, Press MODE key return back to data query mode. 6.10. -
Page 11: Battery Replacement
7. Battery Replacement Warning! The meter cannot test in the situation of the battery cover plate is not covered properly, otherwise it is dangerous Please pay attention to the polarity of battery, or will damage the meter. Low battery, please replace the battery in time If not use the leaker for a long time, please take out batteries. - Page 12 The company is not responsible for other losses caused by use. The contents of this user manual cannot be used as a reason to use the product for special purposes. sisco reserves the rights to change specifications or designs described in this manual without notice and without obligations.
