Vaporesso XROS 4 NANO Manual

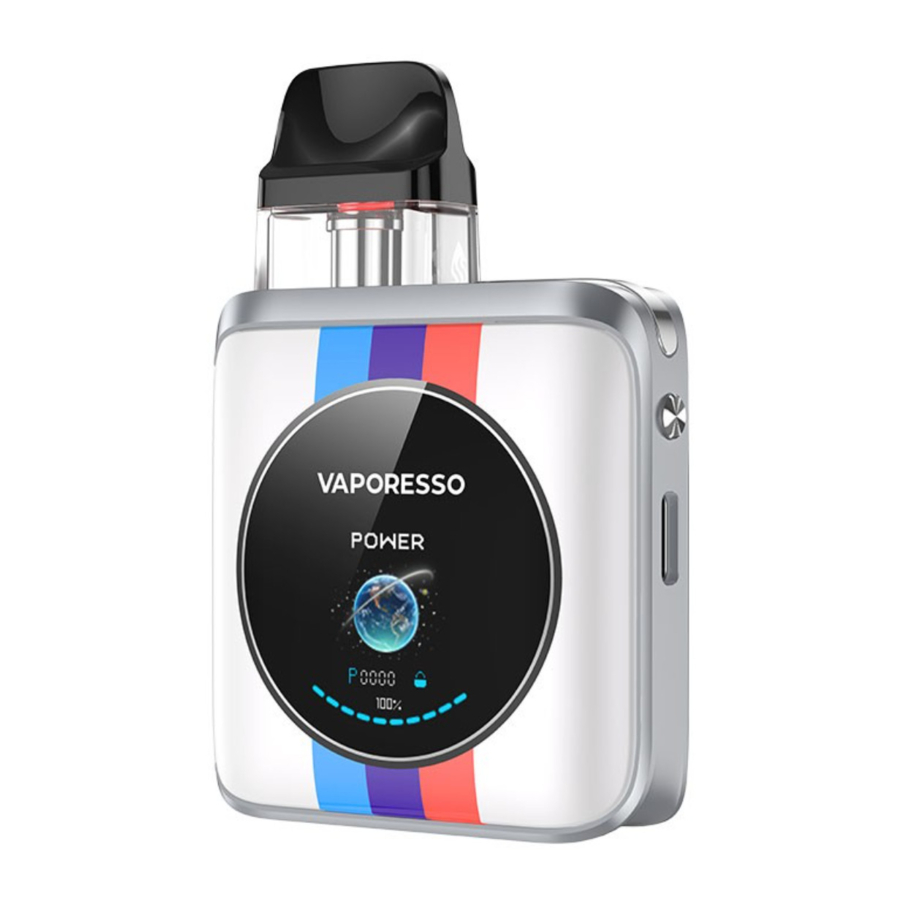

ENLARGED VIEW

SPECIFICATION

USE INSTRUCTIONS

1. Install & Replace the Pod
   Pull out the pod from the battery and install the new one.
   * If it's the first time using the device, please tear off the sticker of the preinstalled pod.
2. Fill the E-liquid
   Snap off the mouthpiece then squeeze the e-liquid through filling hole. After filling, put the mouthpiece back and make sure it's shut firmly.

   * If it's the first time filling the e-liquid, please wait 5 minutes for the coil to prime.
3. Adjust Airflow
   There is an airflow control toggle on the side of the battery. Adjust the toggle according to your vaping habits for different airflow effects.

4. Power ON/OFF
   Click the power button 5 times in 2 seconds to power on or power off the device.

5. Start Vaping
   The device is both button-activated and draw-activated. Press the power button or inhale directly through the mouthpiece and exhale to start vaping.
6. Check the Battery Level
   Check the battery level by clicking the power button or inserting the pod to light up the screen.
7. Charging
   Please use the in-box Type-C cable to charge the device. The screen will play a charging animation with the current charge.
8. Lock Button
   Click the power button 4 times in 2 seconds to lock the power button, and the Power ON/OFF function still works.
9. Theme Settings and puff cleaned
   Click the power button 2 times in 2 seconds to enter the settings interface, then click the power button to select the Settings, press and hold for 2s to confirm.
10. Power/Mode Settings
    When using the 0.6/0.7/0.8/1.0/1.2Ω PODs, click the power button 3 times in 2s to set the vaping mode, then click the power button to choose P (POWER), N (NORMAL) or E (ECO) mode, and wait 3 seconds to save the current status.
    * When using the 0.4Ω POD, click the power button 3 times in 2s to set the vaping power, and click again to adjust the wattage.

PROTECTIONS

Low Resistance/Short-circuit: The screen displays "LOW RESISTANCE" and the device will stop working.
High Temperature: The screen displays "OVER HEAT" and the device will stop working.
No Load/High Resistance: The screen displays "CHECK ATOMIZER" and the device will stop working.
Low Voltage/Over Discharging: The screen displays "BATTERY LOW" and the device will stop working.
Over Charging: The screen stays on the charging interface, and the device will stop charging.
Overtimes(8s): The screen displays "OVER TIME" and the device will stop working.

1. Please turn off the device when it is not in use.
2. Do not leave the charging device unattended.
3. Do not drop, throw or abuse your device, which may cause damage.
4. Please use a standard USB output charger with proper charging current and voltage range.
5. Keep away from the water or any flammable gas, liquid.
6. Do not expose the device to direct sunlight, dust, moisture or mechanical shock.
7. Do not expose the device to extreme temperature. (Recommended temperature range: 10~40°C using and 10~40°C while storing).
8. EEE Recycling: the product should not be treated as household waste, instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
9. Battery Recycling: the product battery should not be treated as household waste, instead, it should be handed over to the applicable used battery collection point for recycling.
10. Only have your device repaired by VAPORESSO. Do not attempt to repair it by yourself as damage or personal injury may occur.
11. Please keep the pins at the connection between the battery and the pod clean to ensure the best performance of the device.
12. If the product is taken on board an aircraft or encounters environments with significant changes in air pressure, it is advisable to store the pod and batteries separately, and avoid any liquid injection to prevent leakage and product damage.

This refillable electronic cigarette is intended for use with compatible e-liquid, which may contain nicotine. Nicotine is an addictive substance and it is not suitable or recommended to use in following cases:

1. This device is not suitable for:
   • Persons under the legal smoking age.
   • Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease or difficult breathing due to bronchitis, emphysema or asthma.
   • Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumour of the adrenal gland that can effect blood pressure).
   • Persons taking certain medications like Theophylline, Ropinirole or Clozapine and etc.
2. This device is not recommended for:
   • Non-smokers
   • Pregnant or breastfeeding women
3. You may experience the following results if you use nicotine containing e-liquid with this product. If it happens, please consult a healthcare professional and show them this leaflet if possible:
   Feeling faint/Nausea/Dizziness/Headache/Coughing/Irritation of the mouth or throat/Stomach discomfort/Hiccups/Nasal congestion/Vomition/Chest palpitations/pain or an irregular heart rate.

This device should not be used by persons under the legal smoking age.
If there is any additional requirement about this product, please consult the local agent or contact us through our website: www.vaporesso.com
