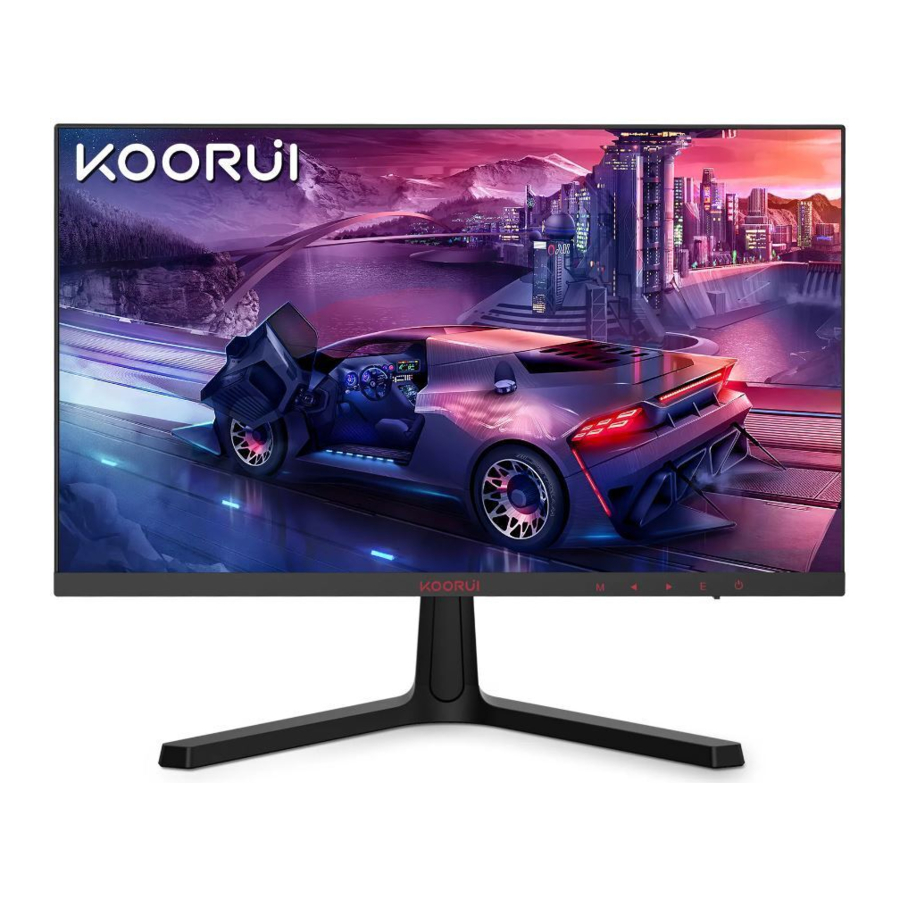

KOORUI 24E4 Manual

Product Parameters

Product Parameters Physical Properties
MODEL NO. 24E4 Signal Cable Model Separable
Display Power Type External power supply
LCD Technology VA Input Voltage 100-240V 47/63Hz
Reaction Time(G/G) 1ms(MPRT) Input Current 5mA
Pixel Distance 0.275mm Power Consumption Boot 30W
Video HDMI/ HDMI/ DP Sleep 0.5W
Display Color 16.7M colors VESA Mount supported 75x75mm
Image Ratio 16: 9 Product Height 424.2 mm
Brightness(typ.) 250cd/ m2 Product Width 541.9mm
Resolution 1920x1080 Product Depth 176.3mm
Maximum Refresh Rate 165Hz Product Weight 3.14±0.2kg
Viewing Angle (H / V) 178o /178o FCL Weight 4.45±0.2kg
Static Contrast 3000:1 Height adjustment Not adjustable
Dynamic Contrast 20000000: 1 Output Port
Display frequency conversion technology FreeSync HDMI 1.4 2
sRGB color gamut 1000% DisplayPort 1
DCI-P3 color gamut 85% Audio 1
Model Type Digital Signal Use Environment
Language English, Chinese,
German, Japanese,
Italian, French optional 		Working Temperature 0-40oC
Storage Temperature -20-60oC
Eye Protection Mode Yes Working Humidity 10%-80%
Built-in Speaker No Storage Humidity 5%-95%

Attention

Safety Precautions


A serious or fatal injury may result if instructions are not followed.


Personal injury or damage to properties may result if instructions are not followed.

Risk of electric shock. don't open

TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). There are no user serviceable parts inside. Delegate all services to qualified personne.
shock hazard This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product. AC voltage: Rated voltage marked with this symbol is AC voltage.
warning This symbol indicates that this product has included important literature concerning operation and maintenance. DC voltage: Rated voltage marked with this symbol is DC voltage.

Class II product:
This symbol indicates that a safety connection to electrical earth (ground) is not required.

If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).
Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

Storage Precautions

  • Keep away from water sources or damp places, such as bathrooms, kitchens, basements, swimming pools, etc.
  • Ensure that the equipment is installed and placed smoothly. If it falls, it may cause human injury or equipment damage.
  • Store in a cool, dry and ventilated place, and do not approach radiation sources and heat sources.
  • Do not cover or plug the ventilation holes in the back shell, and do not use them on beds, sofas, blankets or similar surfaces.
  • The power supply voltage range of equipment operation is indicated on the label of the back shell. If the supplied voltage cannot be determined, consult the local power company.
  • When the monitor is not used for a long time, please cut off the power supply to prevent the damage of the motor and abnormal power supply voltage in thunderstorm days.
  • Do not overload the socket, which may cause fire and electric shock.
  • Please do not put foreign bodies into the machine, which may cause short circuit or cause fire and electric shock.
  • Please do not disassemble or repair this product by yourself. If thereis any fault, please contact the after-sales service personnel directly.
  • Please do not pull or twist the power cord excessively.

Securing the Installation Space

Make sure to have enough space for ventilation when placing the product. An internal temperature rise may cause fire and damage the product. Maintain enough space around the product as shown in the diagram when installing the product.

Protection Recommendations

Suggestions for eyes
In order to avoid eye fatigue and pain in neck, arms, back and shoulders caused by long-term use of the monitor, please pay attention to the following points:

  • Place the monitor 20-28 inches away from both eyes (about 50-70cm).
  • Use the monitor to keep the eyes moist or increase the blinking frequency.
  • After using the monitor for 2 hours, please rest for 20 minutes.
  • When resting, leave your eyes away from the monitor and look at the distance for 20 seconds.
  • When resting, stretch or relieve your neck, arms, back and shoulders.

Low blue light description
The blue light wavelength is in the blue light band, and the display has the function of reducing blue light emission. Can select "eye protection mode" in the menu to protect your eyes.

Cleaning your monitor
To clean your screen, lightlydampen a soft, clean cloth with water. If possible, use a special screen-cleaningtissue or solution suitable for the anti static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or compressed air.

Precautions for Moving the Product

  • Do not directly apply pressure on the screen.
  • Do not hold the screen when moving the product.
  • Hold the lower corners or edges of the product when moving it.

Preparation Before Use

Accessories

Your monitor is equipped with the following components. Please check whether all parts have been received. If there are any omissions, please contact Koorui.

Holder Installation

Monitor Holder Installation

Monitor Holder Installation - Step 1
Monitor Holder Installation - Step 2

VESA holder Installation &Attention

VESA holder Installation &Attention
Wall mounting screws require M4 screws, the length should not exceed7MM.

VESA Attention

  • VESA device can be purchased separately.
  • Refer to the user guide provided with your VESA device for details.
  • Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, please contact your nearest dealer for additional information. If you install the producton a slanted wall, it may fall and result in severe personal injury.
  • Do not mount the product at more than 15 degree tilt.
  • Assemble VESA holder (using retaining screws removed from rear shell)

Holder removal

VESA Holder removal

VESA Holder removal

Monitor Holder removal

VESA Holder removal

Interface and Data Cable Connection Instructions

Interface and Data Cable Connection Instructions

Port Port Description
Connect to an audio output device such as headphones or earphones.
Note: Converting DVI and VGA does not support sound mode.
Connects to a PC using a HDMI cable.
Connects to a PC using a DisplayPort cable.
Connects to the DC cable.

Connecting and using a PC

  • Choose the connection method that suits your PC.
  • Connecting parts may vary from product to product.
  • HDMI Port supports up to 1920x1080, 144Hz;
  • DP port supports up to 1920x1080, 165Hz;

Connecting and using source devices
Read below before installing the product.

  • Before installing the product, check the shapes of both ports of the supplied signal cables and the shapes and locations of the ports on the product and external device.
  • Before connecting signal cable, make sure you remove the power cables from both the product and the external device to prevent damage to the product due to a short circuit or over current.
  • After all signal cables have been properly connected, connect the power cables back to the product and the external device.
  • After installation is completed, make sure you read the user guide to acquaint yourself with the product functions, precautions and other information required to use the product properly.

Please read the user guide provided by the source device for the operation mode of the source device. The original device signal is abnormal. It is recommended to contact the source device manufacturer first.

If you need assistance, please contact Koorui customer services.

Adjusting the Product Tilt

Adjusting the Product Tilt

Anti-theft Lock

  • An anti-theft lock allows you to use the product securely even in public places.
  • The locking device shape and locking method depend on the manufacturer.

To lock an anti-theft locking device:

  • An anti-theft locking device can be purchased separately.
  • Refer to the user guide provided with your anti-theft locking device for details.

Preset display modes

NO. Resolution Horizontal Frequency(kHz) Vertical Frequency (Hz)
1 720x400@70Hz 31.469 70.087
2 640x480@60Hz 31.469 59.94
3 640x480@72Hz 37.861 72.809
4 640x480@75Hz 37.5 75
5 800x600@60Hz 37.879 60.317
6 800x600@72Hz 48.077 72.188
7 800x600@75Hz 46.875 75
8 1024x768@60Hz 48.363 60.004
9 1024x768@70Hz 56.476 70.069
10 1024x768@75Hz 60.023 75.029
11 1280x1024@60Hz 63.981 60.02
12 1280x1024@75Hz 79.976 75.025
13 1280x1024@120Hz 130 120
14 1440)(900@60Hz 55.469 59.901
15 1600x900@120Hz 114.2 120
16 1680x1050@60Hz 64.674 59.883
17 1680x1050@120Hz 133.4 120
18 1920x1080@144Hz 67.5 60
19 1920x1080@120Hz 137.26 120
20 1920x1080@144Hz 161.47 144
21 1920x1080@165Hz 183.15 165

OSD Function

The OSD function information table of this product is as follows.

Menu Press this button to display the main menu, return to the previous menu or exit the main menu.
Left When the menu is opened, press this button to select the left item, and the value of the progress bar will decrease. When the menu is closed, act as the specified shortcut volume mode hotkey. Hotkey function: volume down (when M menu is not open).
Right When the menu is opened, press this button to select the right item, and the value of the progress bar will increase. When the menu is closed, act as the specified shortcut volume mode hotkey.
Accessing menu If the menu is active, pressing this key selects the function.
Power button Press it to turn on/off the monitor.
Power LED Remains on: normal working state; Flashes: power-saving standby state.

If there is any question about the operation process, please contact Koorui customer services.

First order menu Secondary menu Tertiary menu Description

Display
Brightness 		Can adjust the brightness of your display by pressing the left and right key -/+.

Contrast 		Can adjust the Contrast of your display by pressing the left and right key -/+.

DCR 		ON OR OFF ON: Turn on; OFF: Turn Off Automatic identification output dynamic adjustment can be selected; If you choose dynamic contrast, manually adjusting brightness and darkness will automatically turn off.



Language

Chinese / After confirmation by "E", the OSD menu options will be changed to Chinese language.
English / After confirmation by "E", the OSD menu options will be changed to English language.
French / After confirmation by "E", the OSD menu options will be changed to French language.
Deutsch / After confirmation by "E", the OSD menu options will be changed to Deutsch language.
Italian / After confirmation by "E", the OSD menu options will be changed to Italian language.
Japanese / After confirmation by "E", the OSD menu options will be changed to Japanese language.




Game mode




OD mode 		ON OR OFF ON: Turn on; OFF: Shutdown Turn on OD mode.




Crosshair

Confirm the use of this sight graphic sight (supported by the source equipment).
Confirm the use of this sight graphic sight (supported by the source equipment).
Confirm the use of this sight graphic sight (supported by the source equipment).
Confirm the use of this sight graphic sight (supported by the source equipment).
Confirm the use of this sight graphic sight (supported by the source equipment).
Confirm the use of this sight graphic sight (supported by the source equipment).

FreeSync Premium 		ON OR OFF ON: Turn on; OFF: Shutdown Open freesync (need your source device support, open the display freesync before using).
ON: Turn on; OFF: Shutdown Turn on MPRT mode.



Timer

 After selection, turn on the 30-minute timer function (countdown will appear in the upper left corner).
After selection, turn on the 40-minute timer function (countdown will appear in the upper left corner).
After selection, turn on the 50-minute timer function (countdown will appear in the upper left corner).
After selection, turn on the 60-minute timer function (countdown will appear in the upper left corner).
After selection, turn on the 90-minute timer function (countdown will appear in the upper left corner).
Turn off Timer Mode.

Preset Mode
Standard 		/ turn on Standard mode.
/ turn on Movie mode.
/ turn on FPS mode.

RTS		 / turn on RTS mode.

Eye Saver 		/ turn on eye protection mode.

Color temperature
Cool 		/ When confirmed, turn on cool color temperature mode (when turned on, DCI-P3 mode will be automatically exited).

Warm 		When confirmed, Turn on warm color temperature mode (when turned on, DCI-P3 mode will be automatically exited).

User 		Adjust the red saturation level. A value closer to 100 means a stronger color.
Adjust the green saturation level. A value closer to 100 means a stronger color.
Adjust the blue saturation level. A value closer to 100 means a stronger color.
/ DCI-P3 mode.

Aspect Ratio 		AUTO / After selection, automatically find the input source.

16:9		 / Select to display the image of the sub-screen with an aspect ratio of 16: 9.

4:3 		/ Select an aspect ratio of 4: 3 to display the image of the sub-screen. Applicable to video and standard broadcasting.

Input Source

HDMI 1 		/ Select HDMI 1 Signal Input (HDMI 1.4 port).

HDMI 2 		/ Select HDMI 2 Signal Input (HDMI 2.0 port).

DisplayPort 		/ Select DisplayPort Signal Input (DisplayPort port).

Other
Power Off 		ON OR OFF ON: Turn On; OFF: shutdown Turn on the timed shutdown, and the display will be automatically turned off after 4H.


Gamma
Gamma 1 		Select Gamma Mode 1 to use.

Gamma 2 		Select Gamma Mode 2 to use.

Volume 		/ Adjust the sound size. The higher the value, the louder the sound.

Reset 		YES OR NO / In addition to OSD language, you can reset your other option settings and revert to the factory settings of the product.

Exit		 / /
/
Return 		/ Return to the previous menu (this selection only appears in the second\ third order settings).

Precautions:

  • When you are not watching movies or games, it is best to set the response time and mode to standard.
  • Under dynamic contrast, brightness and contrast cannot be adjusted.
  • Image ratio and MPRT cannot be adjusted under FREESYNC.
  • Standard mode, get the clearest display effect, and adjust it according to your preference
  • Cinema mode, eye protection mode, FPS mode and RTS mode cannot adjust brightness and contrast.
  • Eye protection mode cannot adjust color temperature.
  • In MRPT mode, OD acceleration cannot be started.
  • If you have any other questions, you can contact Koorui customer service.

Common Applications

(In the case of Windows 10)

Resolution and Refresh Rate Setting

Resolution settings

Windows Settings→ System →Screen →Display Resolution

Refresh rate setting

Windows Settings →System→Screen→ Advanced Display Settings→ Refresh Rate
In Multiple Screen Control, in Advanced Display Settings, select the display you want to set

Extended Application of Display (split screen)

Screen expansion function setting.
Windows Settings→ System → Screen→ Multiple Display Settings→ Select "Expand This Display"

Display Sound Output Setting

HDMI, DP sound effect selection.
Windows Settings → System → Sound → Output →Select Output Settings.

Display Direction Setting

Windows Settings→ System →Screen →Display Direction

Windows Personalized Fonts

(Including: blurred fonts, desktop fonts with colors)
Windows Settings→ Personalize →Font →Adjust Clear Type text and change Turn on Clear Type.

Q&A

  • The following table lists some common monitor problems that you may encounter and their solutions.
  • If you can't solve your difficulties, please contact Koorui customer services.
  • Official website: http://www.koorui.net/
  • E-mail: support@koorui.net
Blank spaces are found on all four sides of the screen when an HDMI or DP cable is connected to the product and PC. The blank spaces found on the screen have nothing to do with the product. Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the screen size in the HDMI or DP settings for the graphics card. If the graphics card settings menu does not have an option to adjust the screen size, update the graphics card driver to the latest version. (Please contact the graphics card or PC manufacturer for further details about how to adjust the screen settings.)
The power LED is off. The screen will not turn on. Check that the power cable is connected properly. If a problem occurs with the monitor screen, run Self Diagnosis to check that the monitor is working properly.
Not Optimum Mode is displayed. This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product. Change the maximum resolution and frequency to suit the product performance.
The images on the screen look distorted. Check the cable connection to the product.
The screen is not clear or blurry. Remove any accessories (video extension cable, etc.) and try again. Set the resolution and frequency to the recommended level.
The screen appears unstable and shaky. There are shadows or ghost images left on the screen. Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode.
The screen is too bright or too dark. Adjust Brightness and Contrast.
Screen colour is inconsistent. The colour on the screen have a shadow and are distorted. White does not really look white. Change the Color Settings.
There is no image on the screen and the power LED blinks every 0.5 to 1 second. The product is operating in power-saving mode. Press any key on the keyboard or move the mouse to return to normal operating mode. Observe whether the computer operates or restarts the device through the PC keyboard Caps Lock.
Video playback is choppy. Playback of high-definition large video files can be choppy. This may be because the video player is not optimized for the PC resource. Try playing the file on another video player.
The monitor is no sound. If the input device is connected using an HDMI-DVI cable, no sound will be heard. You should be connect the device using an HDMI cable or a DP cable. Re-check the condition of the connected audio cable and/or adjust the volume. Check the volume. Check whether audio is set to mute. The monitor sound output is not set, refer to [ Display Sound Output Setting ]
The volume is too low. Volume adjustment. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software programme.
Video is available but there is no sound. No sound can be heard if the input device is connected with an HDMI-DVI cable. Connect the device using an HDMI cable or a DP cable. The monitor sound output is not set, refer to [ Display Sound Output Setting ]
An energy efficiency prompt appears on the monitor or "XXS Power down. MENU Key Cancel" appears in the upper left corner of the monitor When you buy and sell European products, European regulations have energy efficiency requirements
The monitor quickly goes to a black screen state (no display) Under the power setting state, the monitor is turned off for a short time Windows settings==>system==>power and sleep==>screen==>Reset the TIME

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download KOORUI 24E4 Manual

Advertisement

Need help?

Need help?

Do you have a question about the 24E4 and is the answer not in the manual?

Questions and answers

Related Manuals for KOORUI 24E4

Save Article as PDF

Table of Contents
